Component Checklist

Bits Bag

Installation Instructions

TELEHOOK

32”-60” WALL FIXED

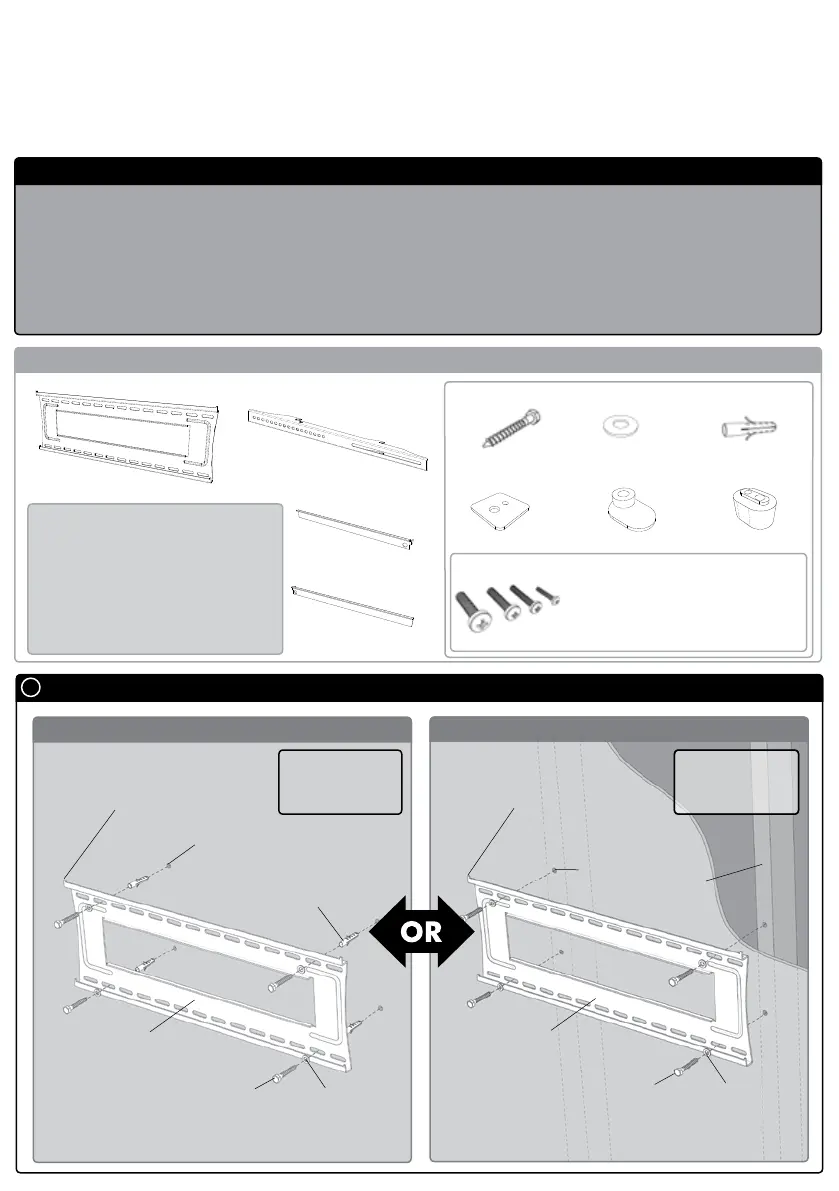

Mounting the Wall Plate

Timber Stud Wall

Masonry Wall

Display Bracket (x2)

Wall Plate

Coach Screw (x4)

Masonry Wall Plug (x4)

Washer (x4)

Recessed Hole Bush (x4)

Washer

Masonry

Wall Plug

Wall Plate

12mm (

”)

Hole

TIP: Use a spirit

level to ensure the

wall plate is

horizontal

Note: Ensure the Wall Plate

is mounted with the folded

tabs pointing upwards.

Coach Screw

8mm (

”)

Hole

Important Notes

TOOLS REQUIRED:

Power Drill

12mm or 8mm Drill Bit

Phillips Head Screw Driver

Spirit Level

17mm (

”) Socket Wrench

or Shifter

The Telehook 32-60 Wall Fixed supports LCD and Plasma Flat Panel Displays from 32” (81cm)

to 60” (152cm) and supports a maximum load of 91kgs (200lbs).

This product suits displays with mounting hole patterns from 180mm to 740mm wide (7”-29”) by 93mm to

500mm high (3

”-20”).

The manufacturer does not accept responsibility for incorrect installation.

Security Bracket (right)

Security Bracket (left)

Multi Washer (x4)

Spacer Bush (x4)

Mounting Screws

M8x15mm / M8x35mm / M8x45mm (x4 each)

M6x15mm / M6x35mm / M6x45mm (x4 each)

M5x15mm / M5x35mm / M5x45mm (x4 each)

M4x15mm / M4x35mm / M4x45mm (x4 each)

Cross Recess Screws

TIP: Use a spirit

level to ensure the

wall plate is

horizontal

Note: Ensure the Wall Plate

is mounted with the folded

tabs pointing upwards.

Wall Plate

Coach Screw

Washer

Timber

Stud

Produktspecifikationer

Varumärke:	Atdec
Kategori:	Inte kategoriserad
Modell:	TH-32-60-UFB
Montage:	VESA 4"x8", 8"x8"
Maxvikt:	91 kg
Produktens färg:	Svart
Kompatibla skärmstorlekar:	32/60 "
