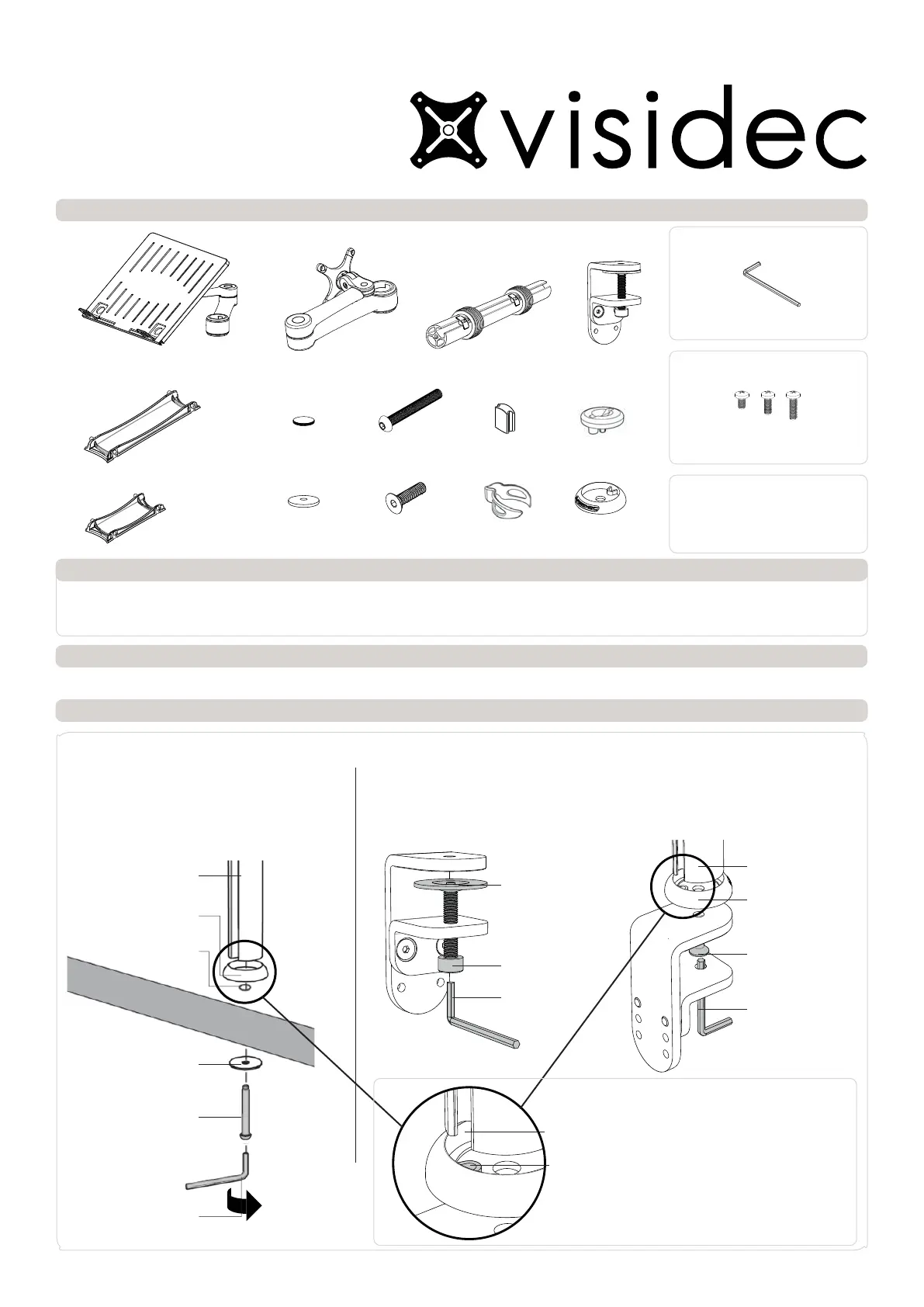

Installation Instructions
VF-AT-NBC
Component Checklist
Focus | Notebook/Monitor Arm Combo
M4x10/12/16mm (x4)
Phillips Head Mounting Screws
Primary Arm
Cable Cover (x2)
Cable Stops
(x2)
Pole Top Cap
Cable Clips
(x2)
5mm Allen Key
Secondary Arm
Cable Cover (x2)
M8 x 30mm
Screw
M8 x 60mm
Button Head Screw
Hook & Loop
Fasteners (x4 sets)
Bolt Through
Base
Steel Washer
Pole Assembly
Desk Clamp
Assembly
Arm Assembly
Notebook Tray and Arm Assembly
HARDWARE
! IMPORTANT - Install Visidec Focus Notebook/Monitor Arm Combo as per installation instruction.
! This product supports a maximum load of 8kg (17.6lbs).
! The manufacturer accepts no responsibility for incorrect installation.
IMPORTANT INFORMATION:
Step 1. Check Components
Check what you have received against the component checklist and hardware above.
Step 2. Mount Pole Assembly
Option 1: Bolt Through
Tools Required:
• Power Drill
• 9mm (0.35”) Drill Bit
• Phillips Head Screwdriver
Option 2: Mount using Desk Clamp
Pole Assembly
Pressure Plate
2.1 Remove both the Pressure
plate and M10 Desk Clamp
Screw.
2.2 Fasten the Desk Clamp to the Bolt
Through Base & Pole Assembly using the
M8 x 30mm Screw and Tighten Firmly.
M10 Desk Clamp
Screw
M8 x 30mm Screw
Bolt Through Base
Pole Assembly
Slot
Slot Tab
Bolt Through Base
9mm (0.35”) Hole
Steel Washer
M8 x 60mm Button
Head Screw
5mm Allen Key
It is recommended that the Pole Assembly be
mounted towards the rear edge of the work surface.
Note: Ensure that the Slot Tab in the Bolt
Through Base fits snugly into the Slot on the
Pole Assembly.
The Visidec logo on the Bolt Through Base
must face the front of this assembly.
5mm Allen Key
5mm Allen Key
Display Mounting Screws
1.1 Drill a 9mm (0.35”) hole in the work surface in
the desired position and assemble as shown below.
