AT-HDR-EX-70C-RX
4K HDR HDMI Over HDBaseT RX
AT-HDR-EX-70C-RX
The Atlona AT-HDR-EX-70C-RX is a HDBaseT™ to HDMI® receiver for 4K and high dynamic
range (HDR) content. It supports extension of 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling
plus HDR data, multi-channel audio, control signals, and power up to 130 ft. (40 m) or 1080p up
to 230 ft. (70 m) over Category 6/6A cable. The AT-HDR-EX-70C-RX is ideal for use with the AT-
HDR-CAT-2 and AT-HDR-CAT-8 distribution ampliers for passing 4K HDR signals to a display.
A compact enclosure and remote power supplied by the transmitter means the receiver can be
conveniently mounted in furniture, behind a display, or above a projector.
IMPORTANT: Visit https://atlona.com/product/at-hdr-ex-70c-rx/ for the latest rmware
updates and Installation Guide.
1 x AT-HDR-EX-70C-RX
2 x Mounting brackets
4 x Mounting screws
1 x 3-pin captive screw connector
1 x 5-pin captive screw connector
1 x Installation Guide
Package Contents
Installation Guide
2
AT-HDR-EX-70C-RX
AT-HDR-EX-70C-RX
POWER
LINKFW
RS-232
RX TX
SS
P
HDBaseT IN
HDMI OUT
IR OUT
IR IN

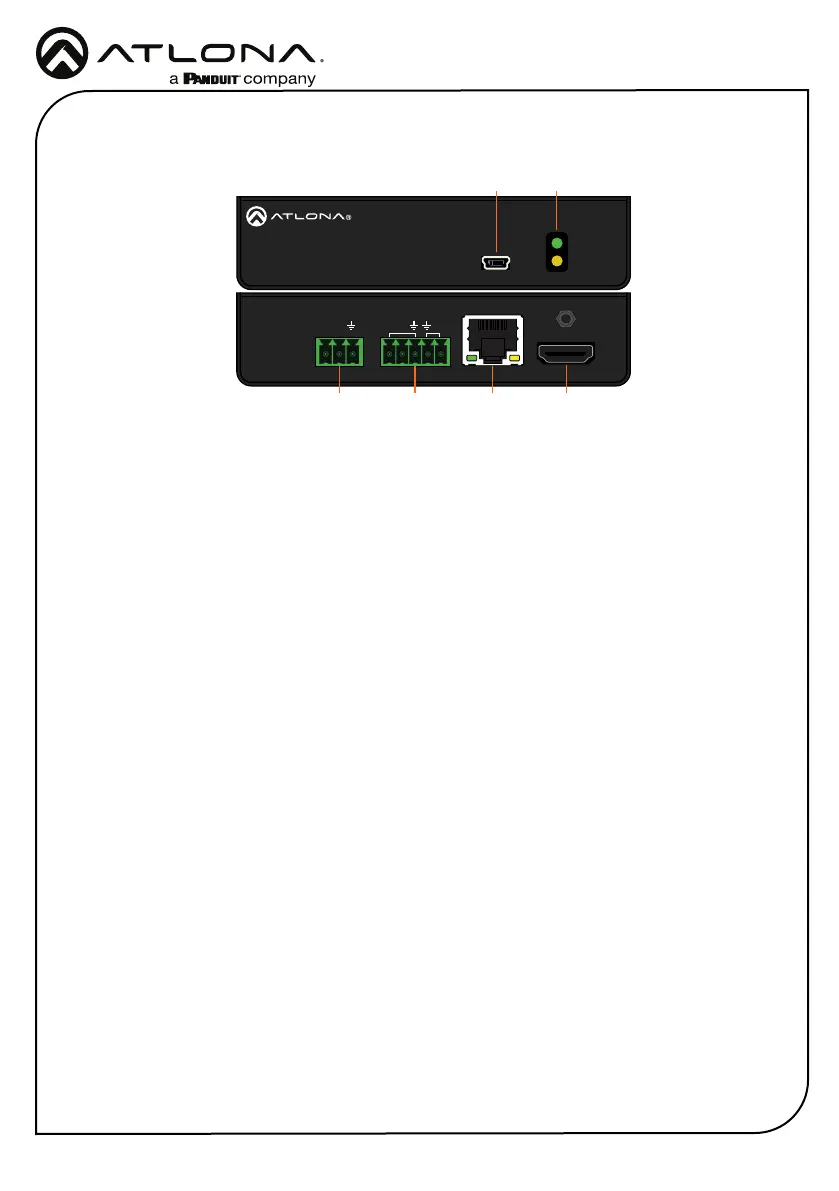

Panel Descriptions
1 FW
Connect a mini-USB to USB-A type cable
from this port to a computer, to update
the rmware.
2 POWER and LINK LEDs
The power LED will illuminate green when
receiving power. The link LED will glow
yellow when signal is being sent/received
between the transmitter and the receiver.
3 RS-232
Bidirectional control port, used for pass
through of commands to or from the
transmitter.
4 IR
Connect an IR receiver to the IR IN port or
an IR emitter to the IR OUT port.
5 HDBaseT IN
Connect an HDBaseT cable from this port
to the HDBaseT OUT port on the AT-
HDR-CAT (available in -2, 4, 4ED, or -8).
6 HDMI OUT
Connect an HDMI cable from this port to
an HDMI display.
3 4
6
5
21
Installation Guide
