AXAC-GM1
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 7/9/25 INSTAXAC-GM1
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
INTERFACE FEATURES
REQUIRED ITEMS
TABLE OF CONTENTS
Configuration .........................................................2

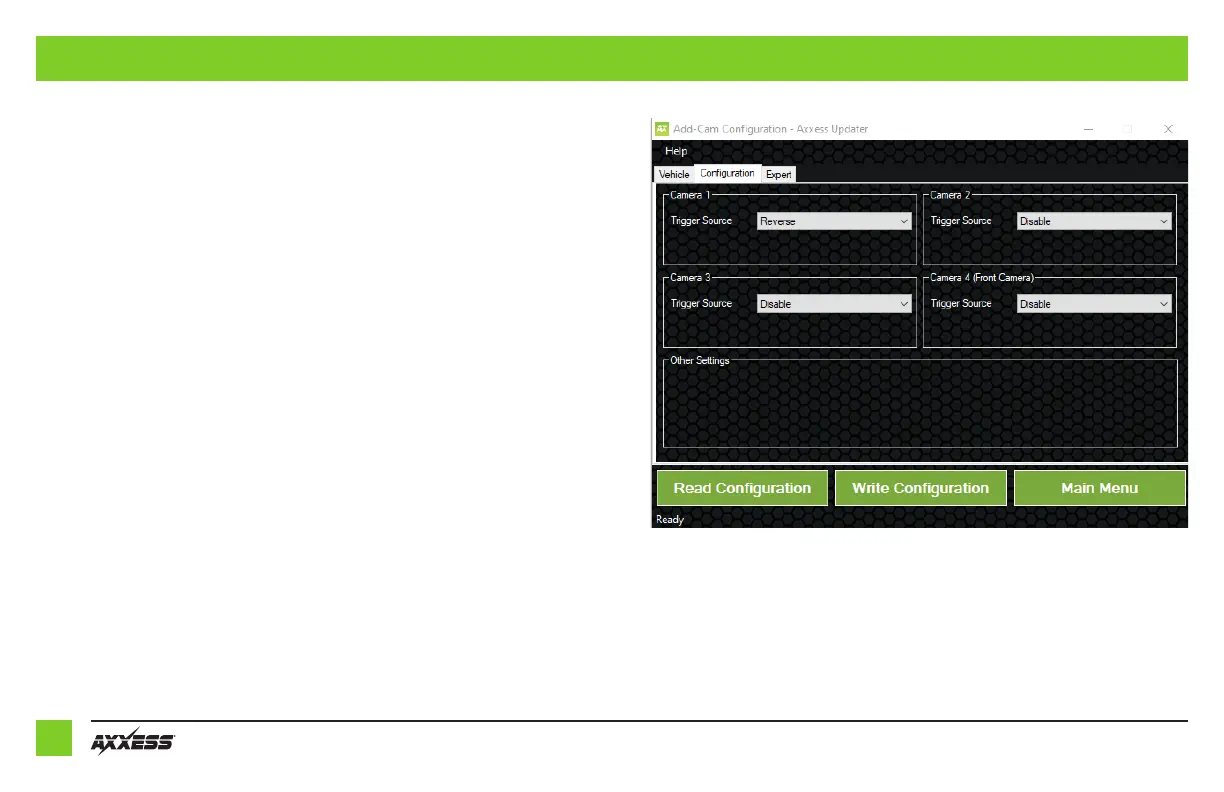

Add-Cam Configuration from AXXESS Updater ...3
Connections ............................................................ 4
LD-GMLVDS-AC ....................................................... 5
Layout .....................................................................6
• Add multiple CAN-activated cameras with 4 camera inputs
• Includes AXAC camera interface and vehicle-specific harness
• Programmable 12-volt 5-amp switched output (configured through the
Axxess Updater program)
•
Reverse signal trigger generated via CAN Bus communication of the vehicle
• Turn signal trigger generated via CAN Bus communication of the vehicle
• 4 programmable camera control wires (configured through the Axxess
Updater program)
•
Can also be manually controlled and used along with an aftermarket radio
• Rear Video Assistant (RVA) option can be used to keep a camera active
• VSS (Vehicle Speed Sense) input and output
• Micro “B” USB updatable
Update Cable: AXUSB-MCBL (sold separately)
Axxess Updater Program
*Intended for 8" inch screens, the GM LVDS interface will
allow your factory screen to enable a Camera or add
multiple cameras to your factory screen. It can also be used
as a “Baby Monitor” or “Monitor” for your Trailer Hitch”

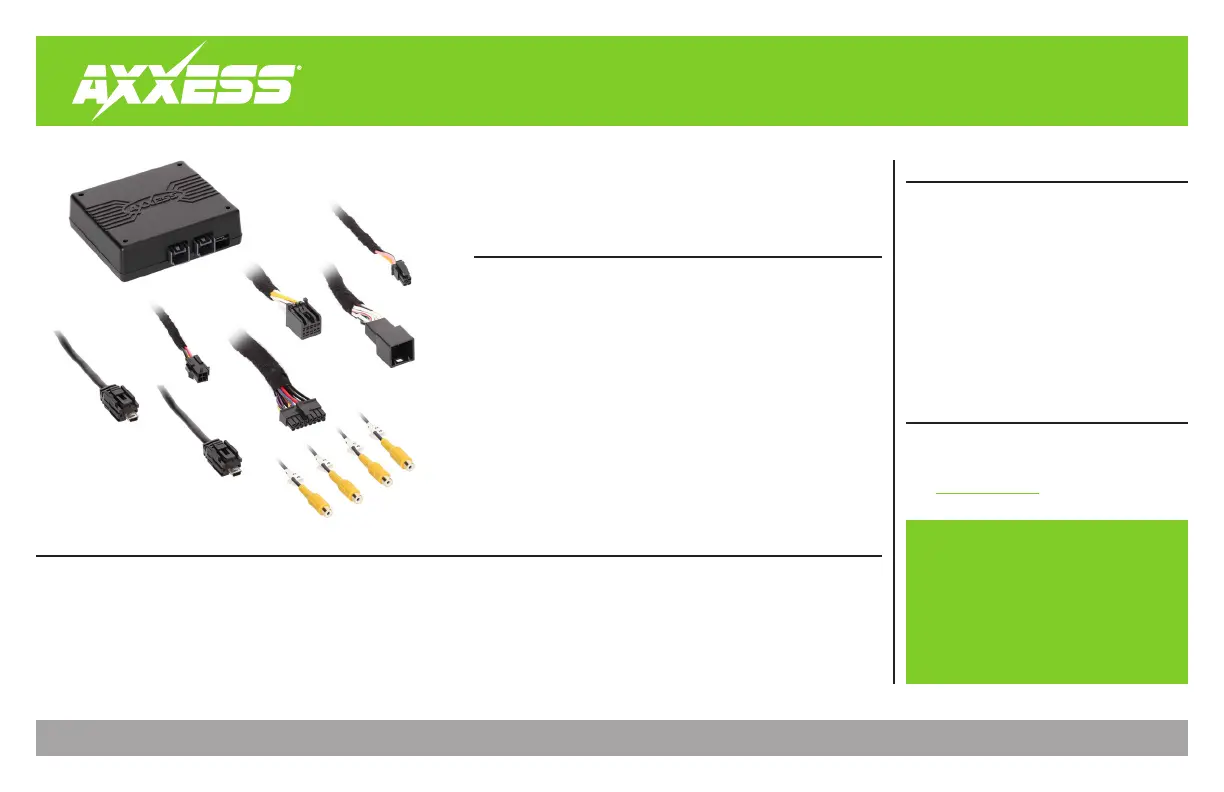

Camera Data Interface with Pre-Wired Harness
Fits Select Chevrolet/GMC Models*
2015-2020
APPLICATIONS (LD-GMLVDS1-AC - 8 inch (IO5/IO6))
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications.
Chevrolet
w/8” MyLink Touchscreen
Camaro ............................ 2016-2018
Colorado ...........................2017-2018
Equinox ......................................2018
Silverado (LD-Old Style)
........... 2019
Silverado .........................2016-2018
Silverado 2500 / 3500 ............. 2019
Spark ................................ 2016-2018
GMC w/8” MyLink Touchscreen
Acadia ...............................2017-2018
Canyon ..............................2017-2018
Sierra ................................ 2016-2018
Sierra Limited ........................... 2019
Sierra 2500/3500 ..................... 2019
Terrain ........................................2018
Yukon / XL .......................2015-2020
2
CONFIGURATION
Camera 1
• Disable: Turn off input
•
Reverse: Activates when the vehicle is in
reverse
• Left Blinker: Activates Input when your left
turn signal is activated
• Right Blinker: Activates input when your
right turn signal is activated
• * Control 1 Positive: Allows you to trigger
that input by applying 12V
• * Control 1 Negative: Allows you to trigger
that input by applying a ground. (Reverse
can only be configured on Camera 1)
Camera 2
• Disable: Turn off input
• Left Blinker: Activates input when your left
turn signal is activated
• Right Blinker: Activates input when your
right turn signal is activated
• *Control 1 Positive: Allows you to trigger
that input by applying 12V
• *Control 1 Negative: Allows you to trigger
that input by applying a ground
Camera 3
• Disable: Turn off input
• Left Blinker: Activates input when your left
turn signal is activated
• Right Blinker: Activates input when your
right turn signal is activated
•
RVA (Rear Video Assistant) Positive or
Negative trigger: Allows you to monitor a
child or view your Trailer Hitch
Camera 4
• Disable: Turn off input
• Left Blinker: Activates input when your left
turn signal is activated
• Right Blinker: Activates input when your
right turn signal is activated
• *Control 1 Positive: Allows you to trigger
that input by applying 12V
• *Control 1 Negative: Allows you to trigger
that input by applying a ground
• Auto (Reverse to Drive): Activates once it
sees a sequence of reverse then drive
* Not available if RVA is selected as a trigger source for input 3
Note: The AXAC-GM1 monitors the vehicle’s speed, preventing the use of the Cameras when vehicle
is in motion. Example: When approaching a stop/light and your turn signal is active, your configured
camera input that uses a turn signal will not activate unless the vehicle is moving at 3mph-cut off
point. (Cut off point is from 8-15mph)
The following options can be chosen for each input
