AXDSPX-TY3

INSTALLATION INSTRUCTIONS

INTERFACE FEATURES

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip-ties • Multimeter

TABLE OF CONTENTS

Installation & Installation Options ........................2

Connections ........................................................3-4

AX-DSP-XL App: Quick Setup ............................5-6

Specifications ......................................................... 7

APPLICATIONS

Visit AxxessInterfaces.com for current application list

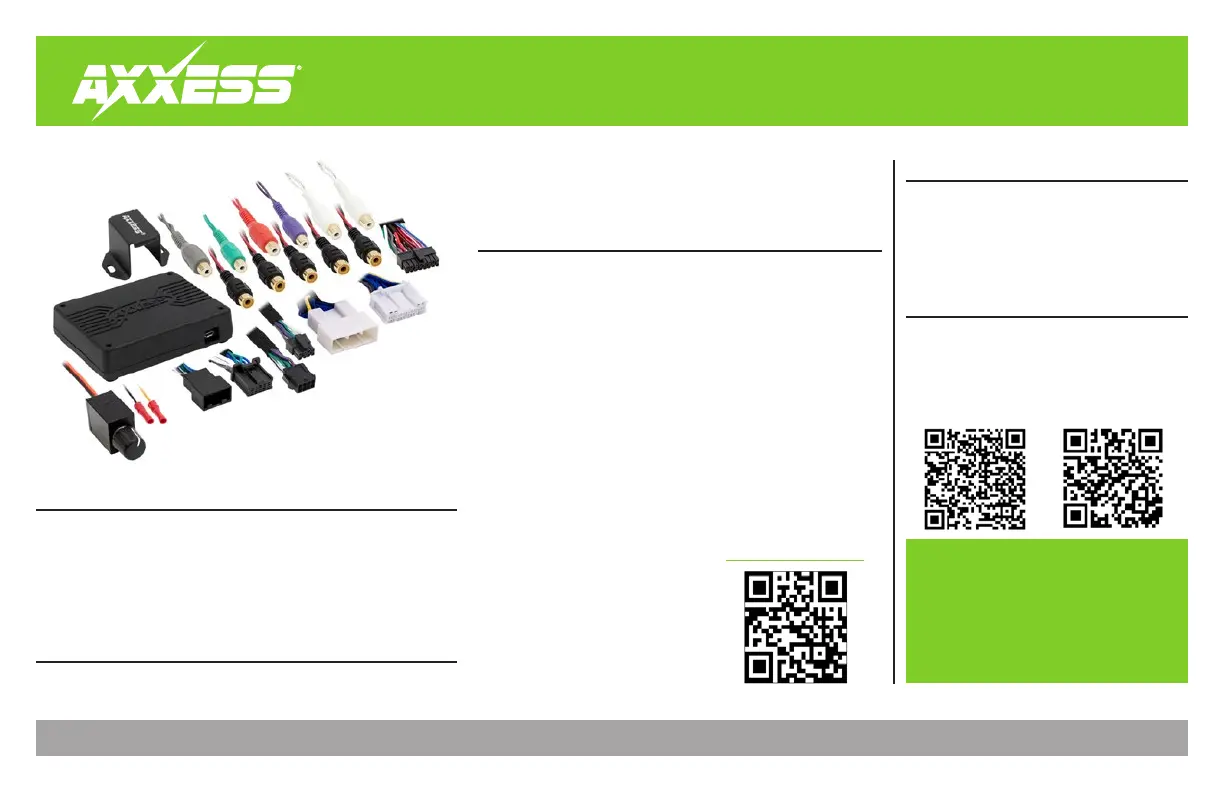

INTERFACE COMPONENTS

• AXDSPX-TY3 interface

• AXDSPX-TY3 interface harness

• AXDSPX-TY3 vehicle T-harness

• Bass knob

DSP Interface with Pre-Wired Harness

Fits Select Toyota Models

2018-Up

www.MetraOnline.com

MetraOnline.com may be used to assist

with dash assembly instructions. Simply

enter your Year, Make, Model vehicle

into the vehicle fit guide and look for the

Dash Kit Installation Instructions.

• Designed for both amplified and non-amplified models

• AXDSP-X interface and vehicle-specific T-harness included

• Selectable 31 Band Graphic EQ or 5 Band Parametric EQ

• 10 individually assignable outputs

• Independent equalization on each of the 10 outputs

• Independent high pass, low pass, and band pass filters

• Each channel can be delayed independently up to 10ms

• Clipping detection and limiting circuits

• U.S. Patent 9,875,078

• Easy behind the radio installation with pre-wired harness

(Features continued on next page)

Download the AX-DSP-XL App

iOS

12.1 or higherAndroid™ 9 or higher

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator lights, are

plugged in before reconnecting the battery or cycling

the ignition to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

Adding a subwoofer to a factory system:

This feature offers the ability to add a subwoofer to a factory system, whether amplified* or non-

amplified (Refer to Page 3)

Adding a full-range amp and subwoofer to a factory system:

This feature offers the ability to add a full-range amp and sub to a factory system, whether

amplified* or non-amplified. (Refer to Page 4)

* For amplified models the amp must be bypassed/unplugged.

Refer to http://www.MetraOnline.com for the vehicle-specific amplifier bypass harness.

Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing

multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps

combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.

1. Disassemble the dash, unplug all connectors, and then remove the factory radio.*

2. Install the AXDSPX-TY3 vehicle T-harness to the vehicle and make all necessary

connections, but leave the amp turn-on wire disconnected.

3. Plug the AXDSPX-TY3 vehicle T-harness to the AXDSPX-TY3 interface.

4. Plug the AXDSPX-TY3 interface harness to the AXDSPX-TY3 interface.

Download and install the AX-DSP-XL app for your smart device.

6. Open the app then select the Bluetooth

Connection tab. Follow the instructions to

pair the mobile device to the interface. Refer to Page 5 for more information.

7. Scroll to the Configuration tab then select the vehicle type. Press the Lock Down**

button to save the configuration. Refer to Page 6 for more information.

8. Connect the amp turn-on wire.

9. Adjust the settings in the app as desired. Press the Lock Down** button to save any

new configurations.

* For dash disassembly instructions, refer to metraonline.com. Enter the year, make,

and model of the vehicle in the Vehicle Fit Guide and find instructions under Metra

Radio Install kits.

** Anytime the interface is locked down the key must be cycled off then back on.

INSTALLATION OPTIONS I N S TALLATIO N

• Bass knob included for level control of subwoofer amp

• Settings adjusted via Bluetooth

wireless technology when used with the free downloadable

AX-DSP-XL app for smartphones and tablets

• Read, write, and store configurations for future recall

• Password protect feature available in the mobile app

• Micro “B” USB updatable

FEATURES CO NT.

The Bluetooth

word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Metra Electronics is under license. Other trademarks and trade names are those of their respective owners.
