CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.

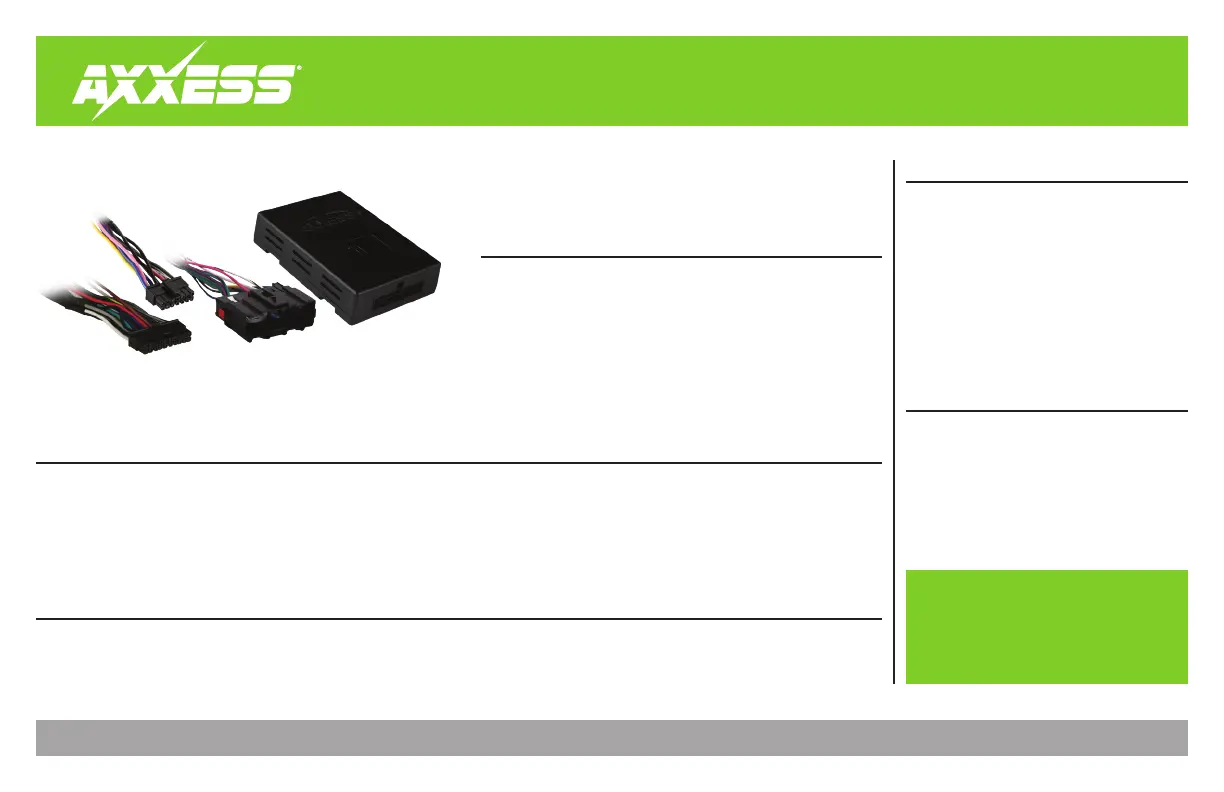

AXGMLN-06
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 1/22/20 INSTAXGMLN-06
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
TABLE OF CONTENTS
Connections to be made .......................................2
Installing the AXGMLN-06 .....................................3
Programming the AXGMLN-06 .............................3
Adjusting the AXGMLN-06 .....................................3
Troubleshooting .....................................................3
Saturn OnStar interface 2006-2007
APPLICATIONS
• Provides accessory power
(12-volt 10-amp)
•
Maintains the retained
accessory power (R.A.P.) feature
• Retains OnStar/OE Bluetooth
• Adjustable volume for OnStar
• Designed for non-amplified
models with OnStar
• Retains balance and fade
• Micro “B” USB updatable
SATURN
Ion 2006-2007
Vue 2006-2007
• AXGMLN-06 Interface
• AXGMLN-06 harness
• 16-pin harness with stripped lead
2
CONNECTIONS TO BE MADE
From the 16-pin harness with stripped leads to the aftermarket radio:
• Connect the Red wire to the accessory wire.
• Connect the White wire to the left front positive speaker wire.
• Connect the White/Black wire to the left front negative speaker wire.
• Connect the Gray wire to the right front positive speaker wire.
• Connect the Gray/Black wire to the right front negative speaker wire.
• Connect the Brown wire to the mute wire of the aftermarket radio. If the radio has no mute
wire, tape it off and disregard it.
• Tape off and disregard the following (9) wires, they will not be used in this application:
Blue/Pink, Blue/White, Green, Green/Black, Green/Purple, Light Green, Orange/White,
Purple, Purple/Black.
From the AXGMLN-06 harness to the aftermarket radio:
• Connect the Yellow wire to the 12 volt constant/battery wire.
• Connect the Black wire to the ground wire.
• Connect the Orange wire to the illumination wire. If no illumination wire is present, tape it
off and disregard it.
• Connect the Green wire to the left rear positive speaker wire.
• Connect the Green/Black wire to the left rear negative speaker wire.
• Connect the Purple wire to the right rear positive speaker wire.
• Connect the Purple/Black wire to the right rear negative speaker wire.
• Tape off and disregard the Orange/White wire, it will not be used this application.
• The Black/Yellow wire is for OnStar volume adjustment and will be discussed later in this
manual.
