AXTC-VW2
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 8/27/25 INSTAXTC-VW2
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections ............................................................2
Programming .........................................................3
Troubleshooting.....................................................4
Data Interface with SWC
Fits Select Volkswagen Models 2015-2019
APPLICATIONS
• Designed for non-amplified systems
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (Retained Accessory Power)
• Provides NAV outputs (parking brake, reverse, and speed sense)
• Built-in features like SWC & Auto-Detect
• Auto-detect feature - automatically detects the vehicle type, radio
connection, and preset controls
• Ability to dual assign steering wheel control buttons
• Designed to work with a major radio brands
• Can be manually programmed for most vehicles
• Retains settings, even after battery disconnection
• Retains the factory backup camera if equipped
• Provides 12-volt illumination output
• Micro “B” USB updatable
Volkswagen
Beetle ................................................ 2016-2019
Golf Series .........................................2015-2016
Jetta ..................................................2016-2019
Passat................................................2016-2018
Tiguan ............................................... 2016-2017
• AXTC-VW2 interface
• AXTC-VW2 harness
• 3.5mm adapter
Product Info
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
2

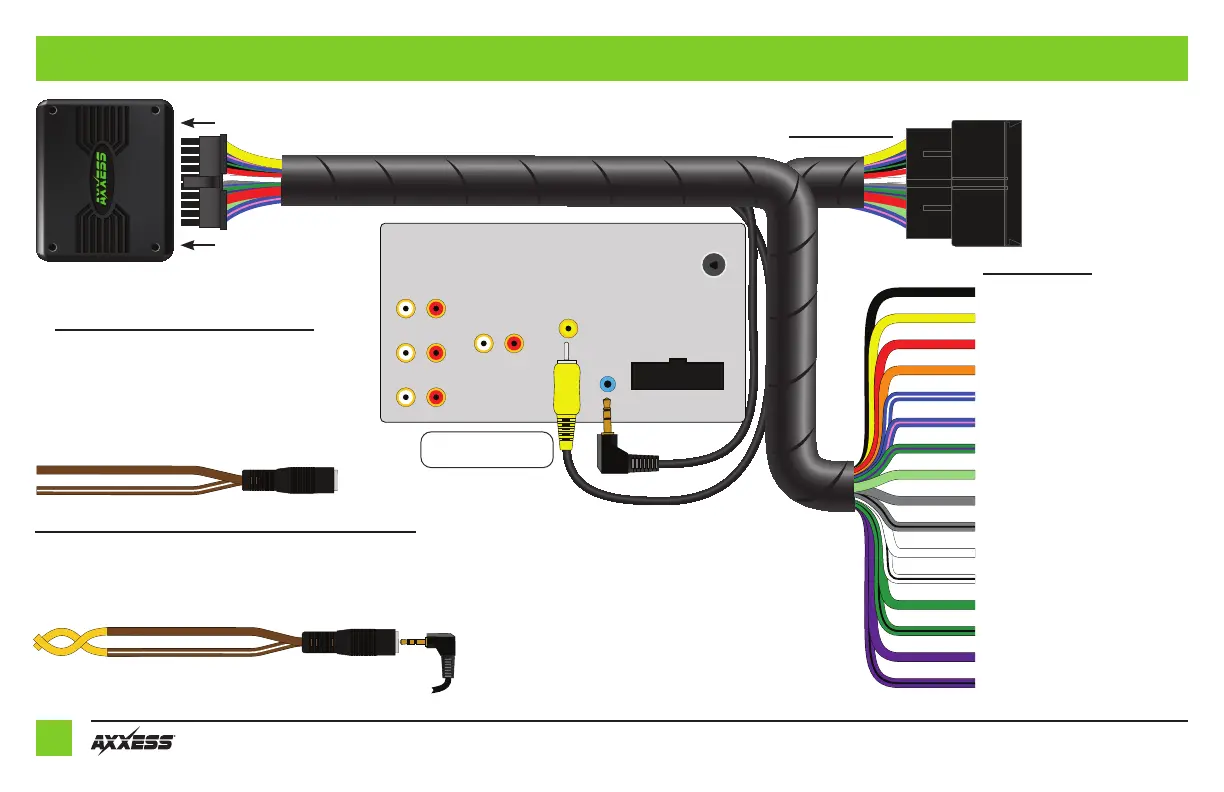

CONNECTIONS
Front
Rear
Sub
AUX-IN
Rear View
SWC
3.5mm Adapter (for vehicles without Steering wheel
controls or aftermarket radios with a wire for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White
* After programming, assign SWC buttons within radio menu
Universal
Radio*
{
3.5mm Adapter for Vehicles without Steering wheel controls
1) From the 3.5mm adapter, tie the Brown and Brown/White wires together
with tape or connector
2) Connect the 3.5mm adapter to the 3.5mm jack from the AXTC-VW2 Harness
3) Program the AXTC-VW2 per the instructions on page 3. Disregard steps 4 & 5
Vehicle Connector
Aftermarket Radio
(radio’s features may vary)
Reset Button
LED Light
Yellow RCA - Rear View
Radio Connections
Black - Ground
Yellow - Battery power
Red - Accessory power
Orange - Illumination
Blue/White - Amp turn-on
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
