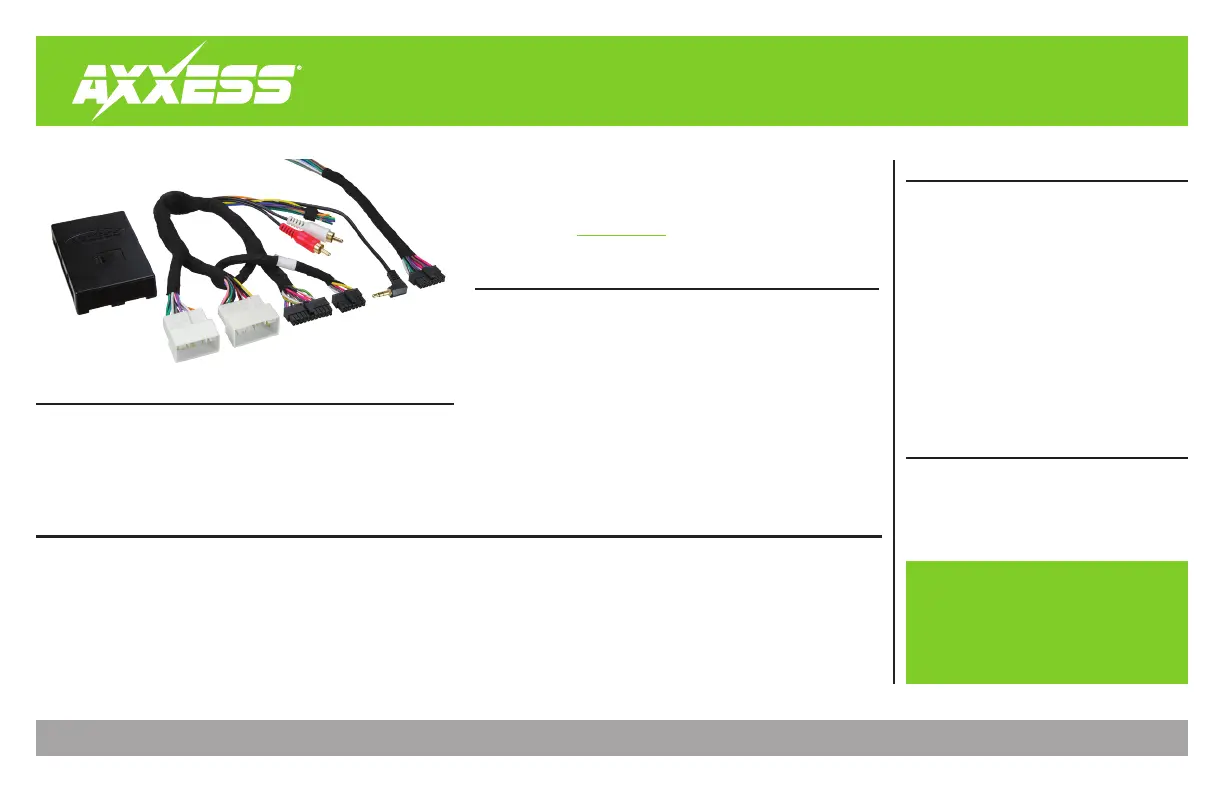

AXDIS-HK1
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 9/24/24 INSTAXDIS-HK1
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
NOTE: Refer to the instructions included with
the aftermarket radio.
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter • Zip ties
TABLE OF CONTENTS
Connections ........................................................2-4
Installation .............................................................5
Programming .........................................................6
Steering Wheel Control Settings ......................7-9
LED feedback ....................................................... 5
Changing radio type ...........................................7
Remapping ...................................................... 7-8
Dual assignment ............................................. 8-9
Troubleshooting.....................................................9
Hyundai/Kia Data Interface with SWC
2011-2016
APPLICATIONS
INTERFACE FEATURES
• Designed for amplified* and non-amplified models**
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Retains BlueLink
®
• Retains balance and fade***
• Micro-B USB updatable
INTERFACE COMPONENTS
• AXDIS-HK1 interface
• AXDIS-HK1 harness
• 16-pin harness with stripped leads
• Female 3.5mm connector with stripped leads
*
Requires the AXSP-HK (sold separately)
**
Bristol Audio Systems not covered
***
Non-amplified models only
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications
HYUNDAI
Elantra .............................................2014-2016
Elantra (Non-NAV) ..........................2011-2013
Genesis Coupe .................................2013-2013
Genesis Coupe (Non-NAV) ............. 2013-2016
Santa Fe / Sport (Non-NAV) ..........2013-2016
Sonata .............................................. 2011-2016
Sonata Hybrid (Non-NAV) ..............2011-2015
Tucson (Non-NAV) ...........................2011-2015
KIA
Optima (Non-NAV) .........................2014-2015
Optima ..............................................2011-2013
Sorento (Non-NAV) ........................2014-2016
Sorento (Non-NAV, w/ UVO) ..........2011-2013
Soul (Non-Nav) ............................... 2012-2013
Sportage .......................................... 2011-2016
2

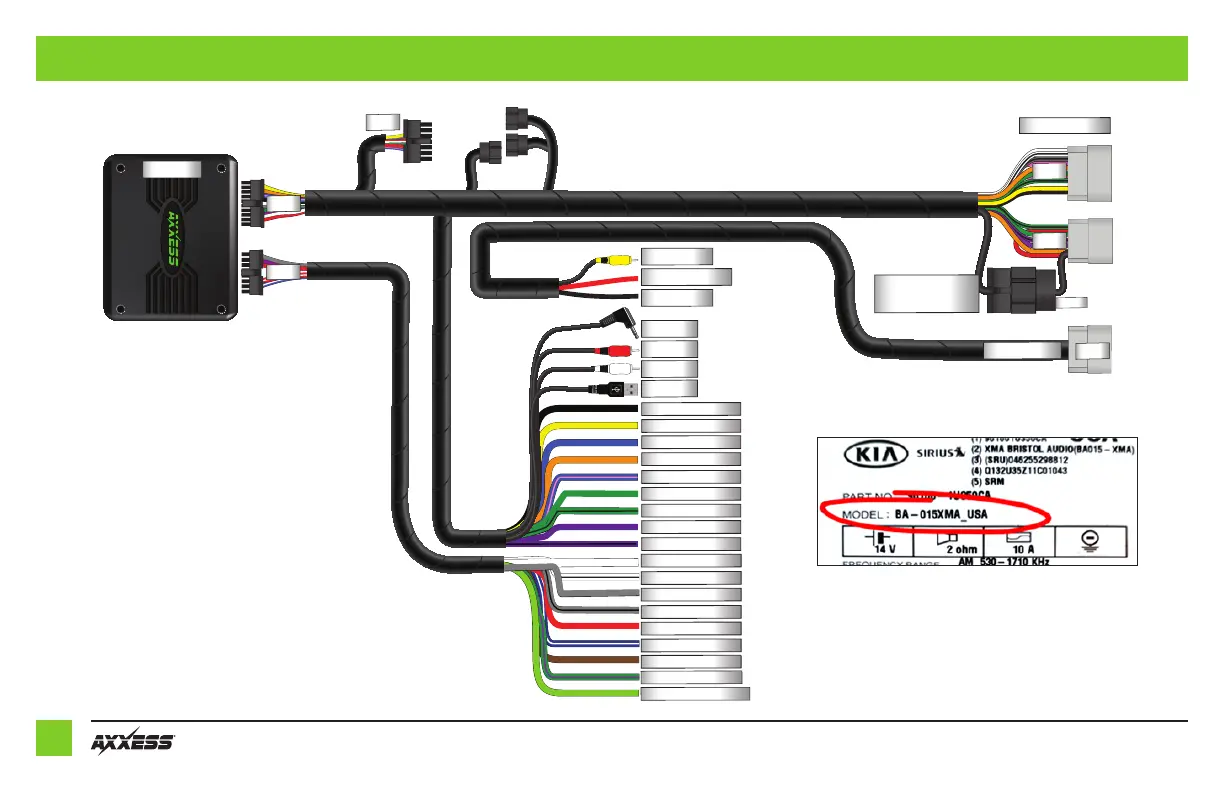

NON-AMPLIFIED VEHICLES
Interface
22 Pin
16 Pin
Vehicle Connectors
Non-Nav Models Only
8 Pin
Non-Amplified Vehicles
Connect for Non-Amplified Vehicles
SWC Jack
Red
White
AUX IN RETENTION
14 Pin
18 Pin
24 Pin
}
DO NOT USE
USB RETENTION
Back-up Camera
Camera Power 6 Volt
Camera Ground
Back-up Camera
USB Cable
16 Pin
Connect for
Non-Amplified Vehicles
Black - Ground
Yellow - Constant
Blue - Power antenna
Orange - Illumination
Blue/Pink - VSS
Green - Left Rear (+)
Green/Black - Left Rear (-)
Purple - Right Rear (+)
Purple/Black - Left Rear
(-)
(A) DO NOT USE
(B) DO NOT USE
White - Left Front (+)
White/Black - Left Front (-)
Gray - Right Front (+)
Gray/Black - Right Front (-)
Red - Accessory
Blue/White - Amp turn-on
Brown - Mute
Green/Purple - Reverse
Light Green - Parking Brake
Green/Purple - Reverse
Light Green - Parking Brake
To Identify if your vehicle has the Bristol Audio system,
check the radio’s model number. If the model # starts with
a BA , it has Bristol Audio and is NOT covered.
