CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
AXABH-FD1
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 6/06/25 INSTAXABH-FD1
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
TABLE OF CONTENTS
Amplifier locations ................................................2
Connections ............................................................3
APPLICATIONS
FORD
Edge (Sony
®
or non-amplified)...................2011-2018
Escape ........................................................... 2015-2019
Expedition (Sony
®
or non-amplified) ........2015-2017
Explorer (Sony
®
or non-amplified) ............ 2011-2019
F-150 (Sony
®
or non-amplified) .................2014-2016
Super Duty (Sony
®
or non-amplified) ................ 2019
Flex ................................................................2013-2019
Focus .............................................................2012-2019
Fusion ..........................................................2013-2020
Taurus ...........................................................2013-2019
Refer to the following pages for the vehicle specific instructions for wiring connections. Wiring connections vary per vehicle. Please note that
there are (2) different wiring harnesses included, and the instructions for each harness will be listed.
If it’s uncertain whether the vehicle contains a specific speaker or not, test the wires with a tone generator, or check to see if the factory wires
are populated on the vehicle side. Alternatively, the wires can be tested for impedance with a multimeter.

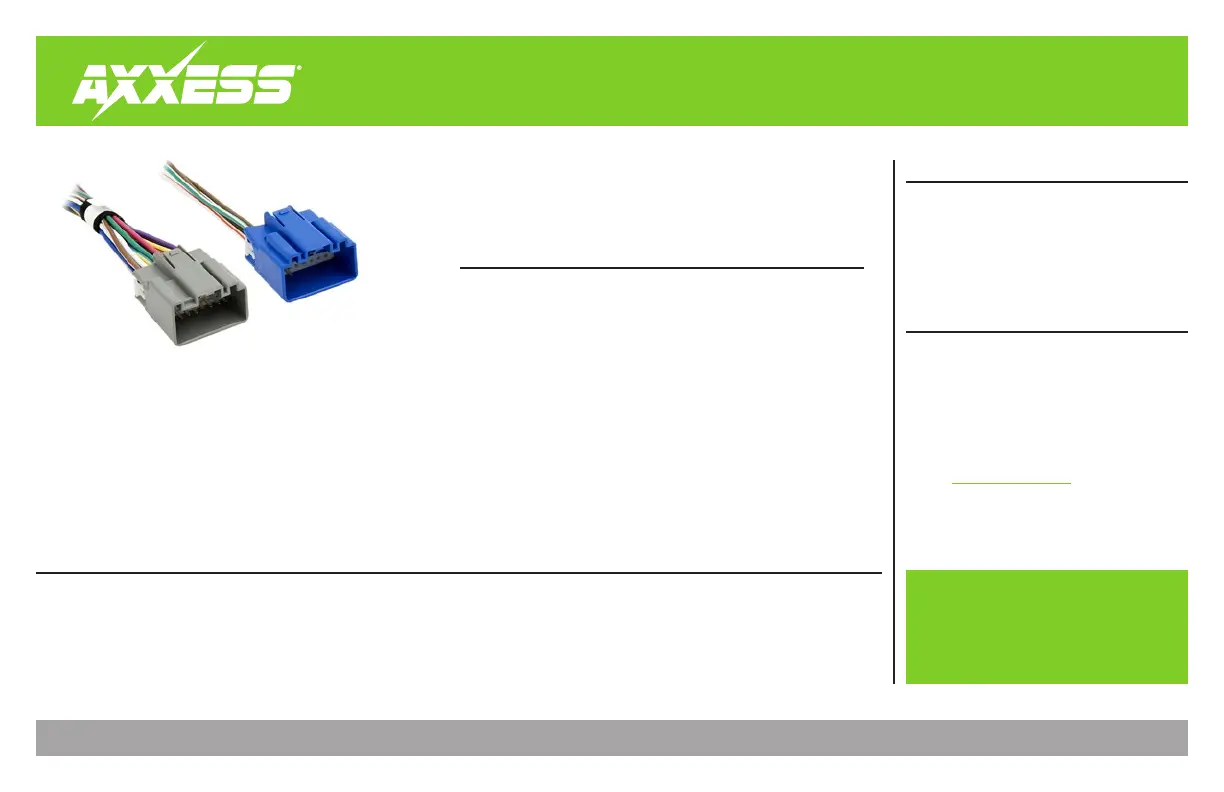

Amplifier Bypass Harness
Fits Select Ford Models 2011-2020
FEATURES
• Vehicle-specific harness to bypass the factory amplifier
• Saves the installer unnecessary labor and wire
• 20 gauge wires
• Wire Length: 12”
Visit AxxessInterfaces.com for more detailed
information about the product and up-to-date
vehicle specific applications.
2
AMPLIFIER LOCATIONS
Make/Model Amp Location
Ford
Edge Passenger Side Rear, Above Wheel Well
Escape Left Front of Luggage Compartment
Expedition Behind Left Rear Quarter Panel
Explorer Behind Right Rear Quarter Panel
F-150 Under Center Console
F-150 Regular Cab Base of Left B-Pillar (behind left rear seat)
F-150 Supercab / Crew Cab Base of Left C-Pillar (behind left rear seat)
F-250 Crew Cab Base of Left C-Pillar
F-250 Supercab Rear Center of Floor
F-350 Crew Cab Base of left C-Pillar (behind left rear seat)
F-350 Supercab Rear Center of Floor
Flex Behind Right Rear Quarter Panel
Focus Left Rear of Luggage Compartment
Fusion Right Front of Luggage Compartment
Taurus Left Front of Luggage Compartment
