AXAC-MZ2
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 7/14/25 INSTAXAC-MZ2
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product.
Ensure that all installation connections,
especially the air bag indicator lights, are
plugged in before reconnecting the battery
or cycling the ignition to test this product.
NOTE: Refer also to the instructions
included with the aftermarket accessory
before installing this device.
TOOLS REQUIRED
INTERFACE COMPONENTS
REQUIRED ITEMS
TABLE OF CONTENTS
Introduction ...........................................................2
Configuration ..................................................... 2-4
Connections ............................................................5
Installation .............................................................6
Programming .........................................................6
• Add multiple CAN-activated cameras with 4 camera inputs
• Includes AXAC camera interface and vehicle-specific harness
• Programmable 12-volt 5-amp switched output (configured through
the Axxess Updater program)
• Reverse signal trigger generated via CAN bus communication of
the vehicle
•
Turn signal trigger generated via CAN bus communication of
the vehicle
• 4 programmable camera control wires (configured through the
Axxess Updater program)
•
Can also be manually controlled and used along with an
aftermarket radio
• Retains backup camera
• VSS (Vehicle Speed Sense) input and output
• Micro “B” USB updatable
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip-ties

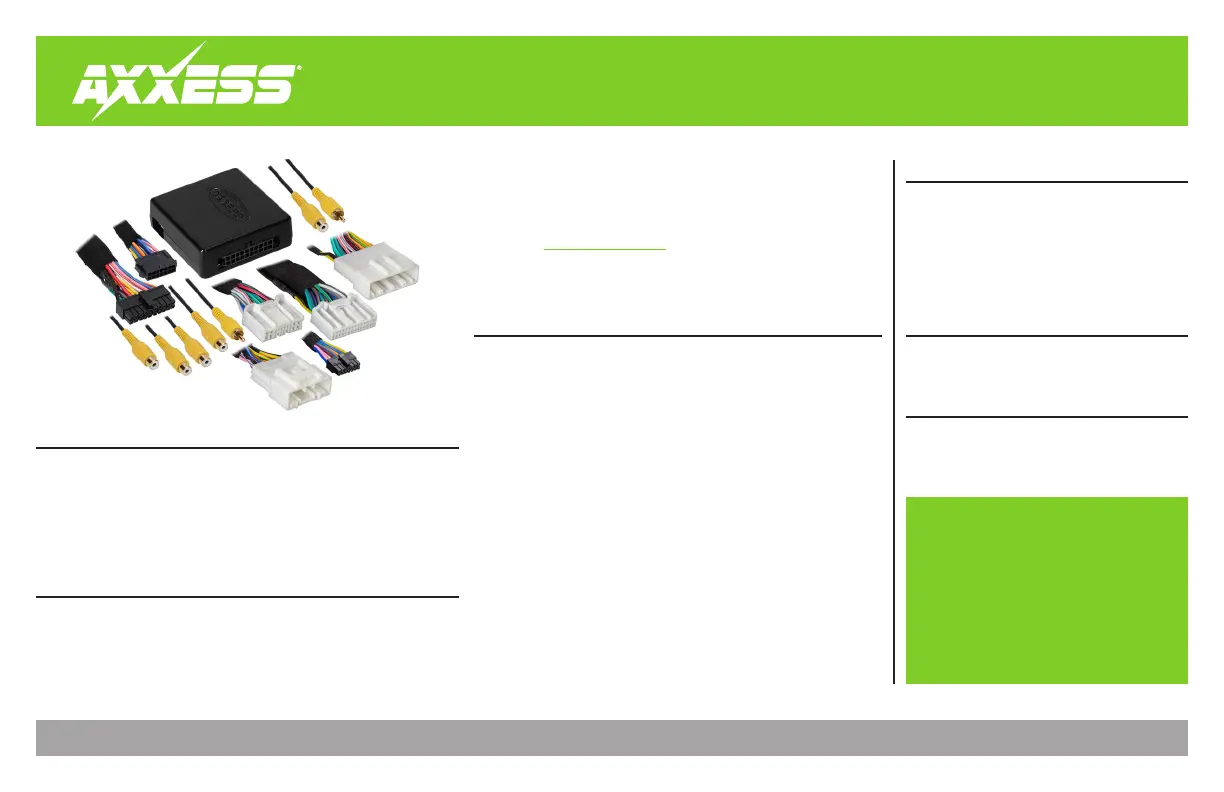

• AXAC-MZ2 interface
• AXAC-MZ2 interface harness
• AXAC-MZ2 vehicle harness (qty. 2)
• 18-pin T-harness
• 28-pin T-harness (cam harness)
Update Cable: AXUSB-MCBL (sold separately)
Axxess Updater Program
Camera Data Interface with Pre-Wired Harness
Fits Select Mazda Models 2013-2018
APPLICATIONS
Mazda
CX-9 ............................................................2013-2016
Mazda 3 ...................................................... 2014-2018
INTERFACE FEATURES
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications
2
CONFIGURATION

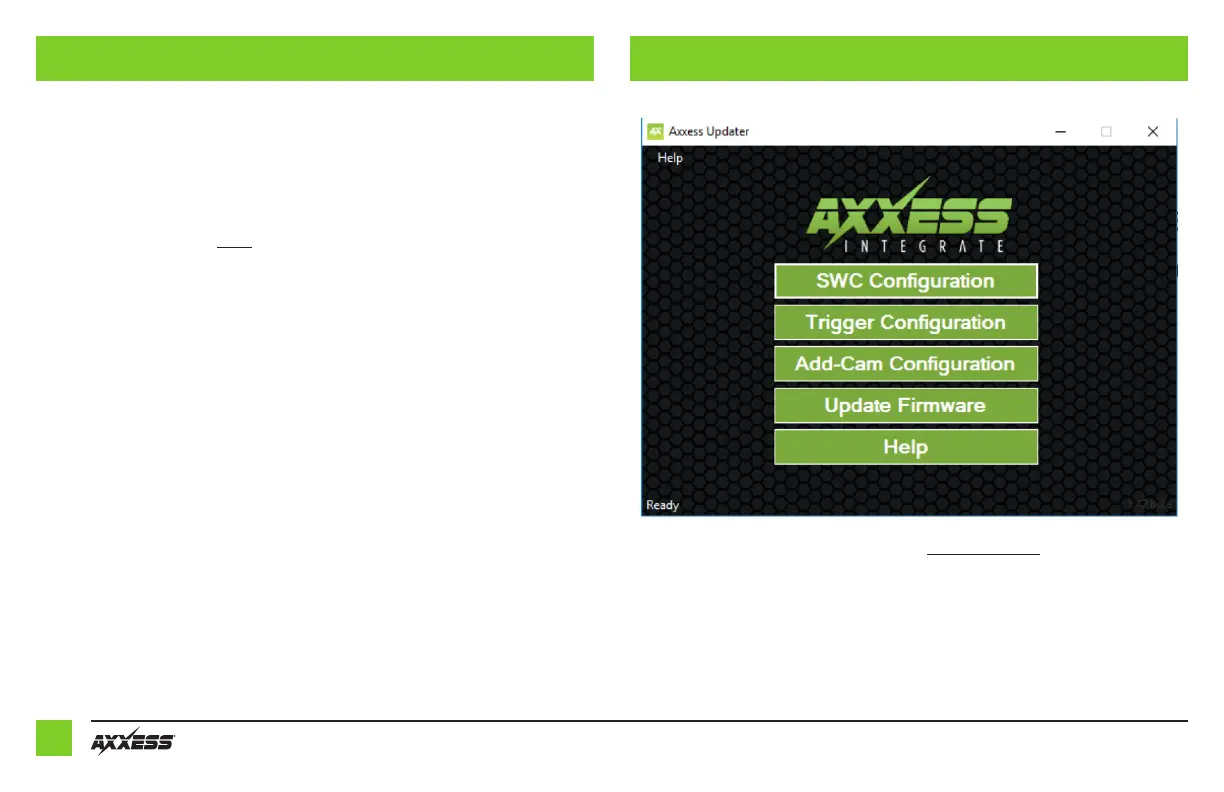

• Download and install the Axxess Updater available at: AxxessInterfaces.com
• Connect the AXUSB-MCBL update cable (sold separately) between the interface and the computer.
The cable will connect into the micro-B USB port in the interface.
• Open the Axxess Updater and wait until the word Ready is listed in the bottom left of the screen.
• Select Add-Cam Configuration.
Continued on the next page
INTRODUCTION
The AXAC-MZ2 is a camera switching interface that provides up to (3) additional camera inputs
to the factory radio, while still retaining the factory camera. With this interface a front camera,
and/or side cameras, can be added to the factory radio. The cameras function automatically, no
human interaction required, unless desired to do so. The interface can also be used if the vehicle
doesn’t come equipped with a backup camera, adding up to (4) cameras in this scenario. Axxess
recommends cameras from the iBEAM product line for best results.
