AXRC-GMLN10
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 1/10/22 INSTAXRC-GMLN10
Product Info
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
NOTE: Refer to the instructions included with
the aftermarket radio.
OPTIONAL ACCESSORIES (sold separately)
Extension Harness: AXEXH-GM10
TABLE OF CONTENTS
Connections ............................................................2
Installation .............................................................3
Programming .........................................................3
APPLICATIONS
INTERFACE COMPONENTS

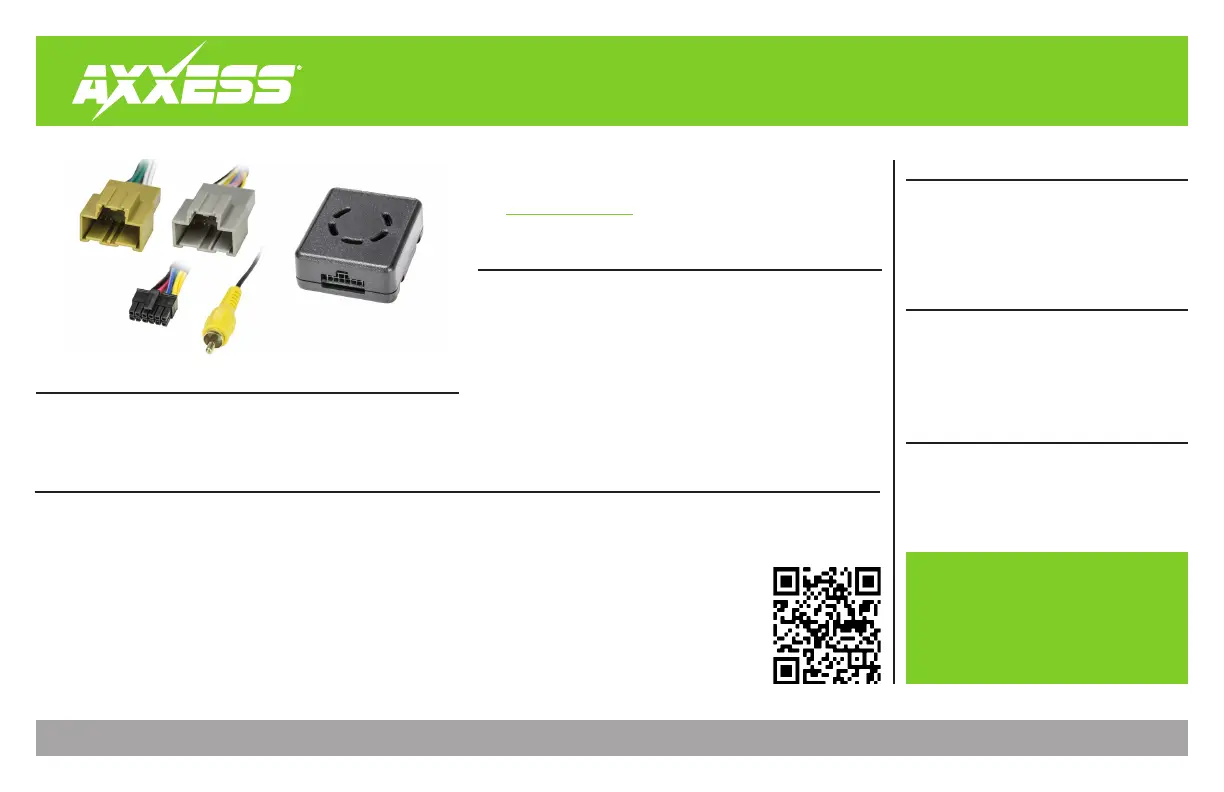

• AXRC-GMLN10 interface
• AXRC-GMLN10 harness
(1) With RPO code I0B • (2) With RPO code I0A
The IOA/IOB codes, if applicable, are in the Service Parts Identification labels in the following locations: Rear Compartment Floor: Malibu
Glovebox: Canyon/Colorado/Cruze/Equinox/Silverado/Sierra Note: RPO (QR codes) are in the driver door jam or “B Pillar” on the VIN label.
GM Data Interface 2016-2019
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip-ties
CHEVROLET
Colorado (1) 2017-2019
Cruze (2) 2016-2019
Cruze Hatchback (2) 2016-2019
Equinox (1) 2018
Malibu (2) 2016-2019
Silverado (1) 2016-2018
Silverado LD (1) 2019
Trax (2) 2017-2020
GMC
Acadia (1) 2017-2019
Canyon (1) 2017-2019
Sierra (1) 2016-2018
Sierra Limited (1) 2019
Visit AxxessInterfaces.com for vehicle specific applications.
INTERFACE FEATURES
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
•
Provides illumination, parking brake, reverse, and speed sense outputs
• Used in non-amplified models, or when bypassing a factory amp
• Used in models without OnStar
• Retains all warning chimes
• High level speaker input
• Retains balance and fade
• Retains factory backup camera
• USB Micro-B updatable
2
CONNECTIONS
From the AXRC-GMLN10 harness to the aftermarket radio, connect the:
• Black wire to the ground wire.
• Yellow wire to the battery wire.
• Red wires (2) to the accessory wire.
• Blue/White wire to the amp turn on wire (excluding Bose). This wire must be connected to
hear sound from the factory amplifier.
• Orange wire to the illumination wire (if applicable).
• White wire to the front left (+) speaker output.
• White/Black wire to the front left (-) speaker output.
• Gray wire to the front right (+) speaker output.
• Gray/Black wire to the front right (-) speaker output.
• Green wire to the rear left (+) speaker output.
• Green/Black wire to the rear left (-) speaker output.
• Purple wire to the rear right (+) speaker output.
• Purple/Black wire to the rear right (-) speaker output.
The following (3) wires are only for multimedia/navigation radios that require these wires.
• Blue/Pink wire to the VSS/speed sense wire.
• Green/Purple wire to the reverse wire.
• Light Green wire to the parking brake wire.
• Yellow RCA jack to the backup camera input. (If the vehicle is equipped with a factory backup
camera.)
