AXPIO-COL1
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/25/24 INSTAXPIO-COL1
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
TABLE OF CONTENTS
Speaker Installation...............................................2
Dash Disassembly .................................................. 3
Connections ........................................................4-5
Kit Preparation ....................................................... 6
Kit Assembly ..........................................................7
Radio Operations ............................................... 8-9
Chevrolet Colorado/GMC Canyon 2016-2018
KIT FEATURES)
• Designed for Pioneer DMH-W4600NEX/W4660NEX or
DMH-WC5700NEX receivers
• Allows for the retention and adjustment of the factory personalization
menu through the Pioneer radio
• Provides a visual view of HVAC and gauges on the Pioneer screen (cannot
be adjusted via the screen)
(cont. on page 2)
WIRING & ANTENNA CONNECTIONS
•
RGB Extension Cable: Pioneer part # CD-RGB150A
(not sold by Metra)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32" socket wrench

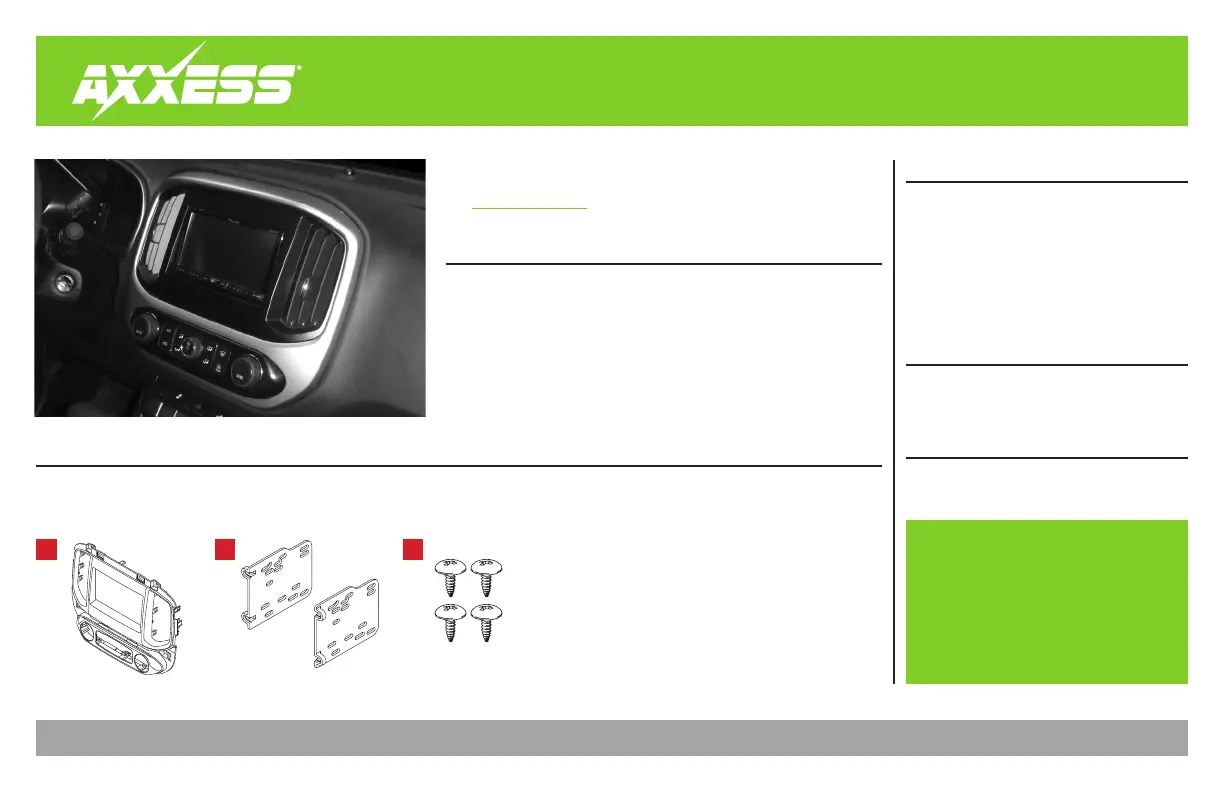

KIT COMPONENTS
• A) Radio trim panel • B) Brackets • C) #8 x 3/8" Phillips pan-head screws (4)
Not Shown: Radio Interface, LD-LAN09-PIO, LD-LAN10-PIO, LD-GMSWC, LD-BACKCAM-MOST, AD-EU5, 40-GPS-PIO, PR04AVIC-PIO / PRO4-PIORCA, LD-AX-SPK
A B C
Visit AxxessInterfaces.com for more detailed information about the product and
up-to-date vehicle specific applications.
2
KIT FEATURES (cont. from cover)
• Complete Plug-n-Play installation
• Includes dash kit with Axxess interface and
vehicle-specific T-harness
• Includes radio antenna adaptor for GPS
• Provides accessory power (12-volt 10-amp)
• Provides NAV outputs (parking brake,
reverse, speed sense)
• Retains audio controls on the steering wheel
• Works in both single and dual-zone vehicles
• Retains safety chimes through an included
off-board speaker
• USB Micro B updatable
•
Dash kit is painted scratch-resistant matte
black to match the factory finish
• For non-amplified vehicles only
KIT FEATURES
(CONT.)
SPEAKER INSTALLATION
Install the provided speaker in the dash prior to assembling the radio components.
Note: Make sure this is mounted in a location suitable for the driver to hear. (Audio level for the
speaker can be changed via the radio, once installed.)
SPEAKER INSTALLATION
