Sida 1/4

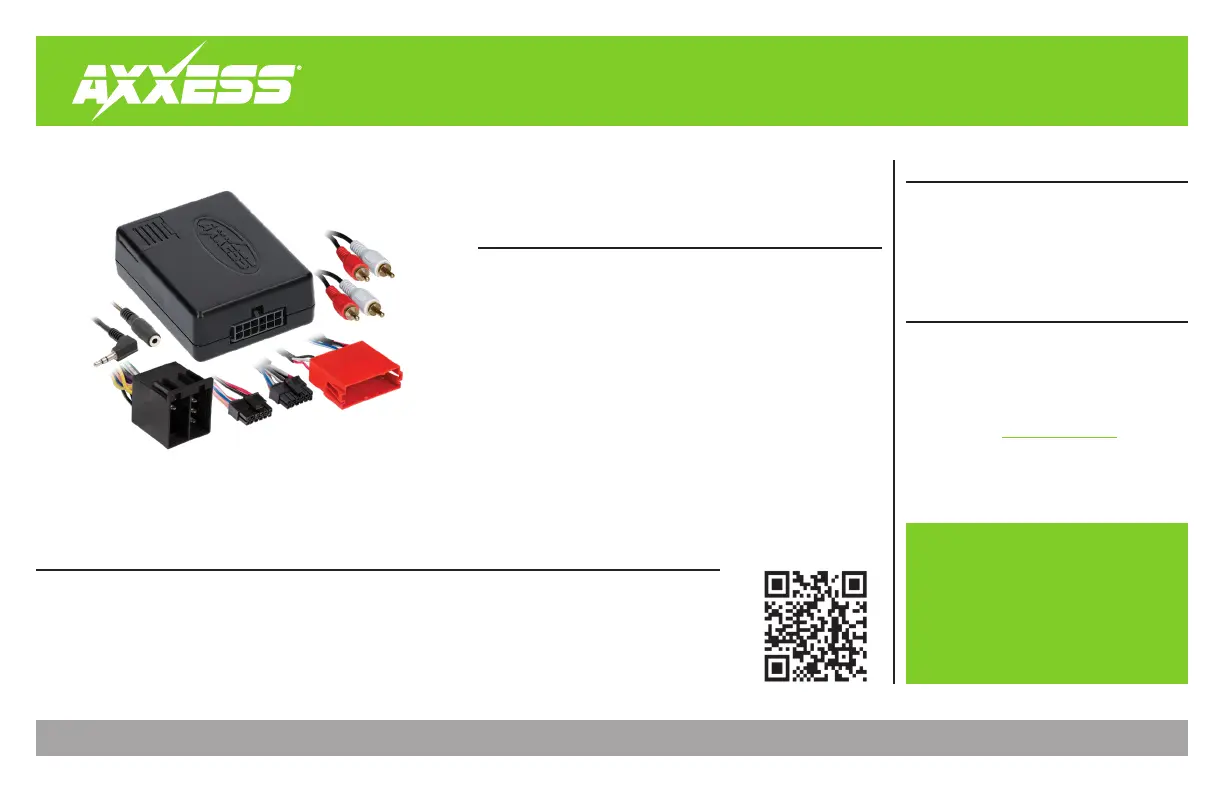

AXDI-6515
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 9/14/23 INSTAXDI-6515
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter
TABLE OF CONTENTS
Connections LD-AX-XSVI-FT1.................................2
Installation .............................................................3
Programming .........................................................3
Fiat
500 Data Interface
2012-2015
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (Retained Accessory Power)
• Used in both amplified and non-amplified systems
• Provides NAV outputs (parking brake, reverse, speed sense)
• Pre-wired AXSWC harness (AXSWC sold separately)
• High level speaker input
• Retains OE BT/USB and 3.5mm audio
• Micro-B USB updatable
• AXDI-6515 Interface
• LD-AX-XSVI-FT1 Harness
Product Info
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product. Ensure
that all installation connections, especially the
air bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
Visit AxxessInterfaces.com
for more detailed information about the product
and up-to-date vehicle specific applications
2
SWC Harness
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
(Your radio’s features may vary)
Black - Ground wire
Yellow - Battery wire
Red - Accessory power
Green - Rear left speaker + output
Green/Black - Rear left - speaker output
Green/Purple - Reverse backup camera
Light Green - Parking brake
Orange - Illumination
Blue/Pink VSS
Gray - Front right + speaker
Gray/Black - Front right - speaker
White - Front left + speaker
White/Black - Front left - speaker
Purple - Rear right + speaker output
Purple/Black - Rear right - output
Blue/White - Amp Turn on from radio
Steering Wheel
Control (AXSWC)
(Sold Separately)
LD-AX-XSVI-FT1
Vehicle Connector
Radio Connections
Interface
12-Pin
3.5 AUX
Fuse Holder
Vehicle Connector
*
BT/USB
*
*
Connect either to retain 3.5mm Jack or BT/USB
12-Pin

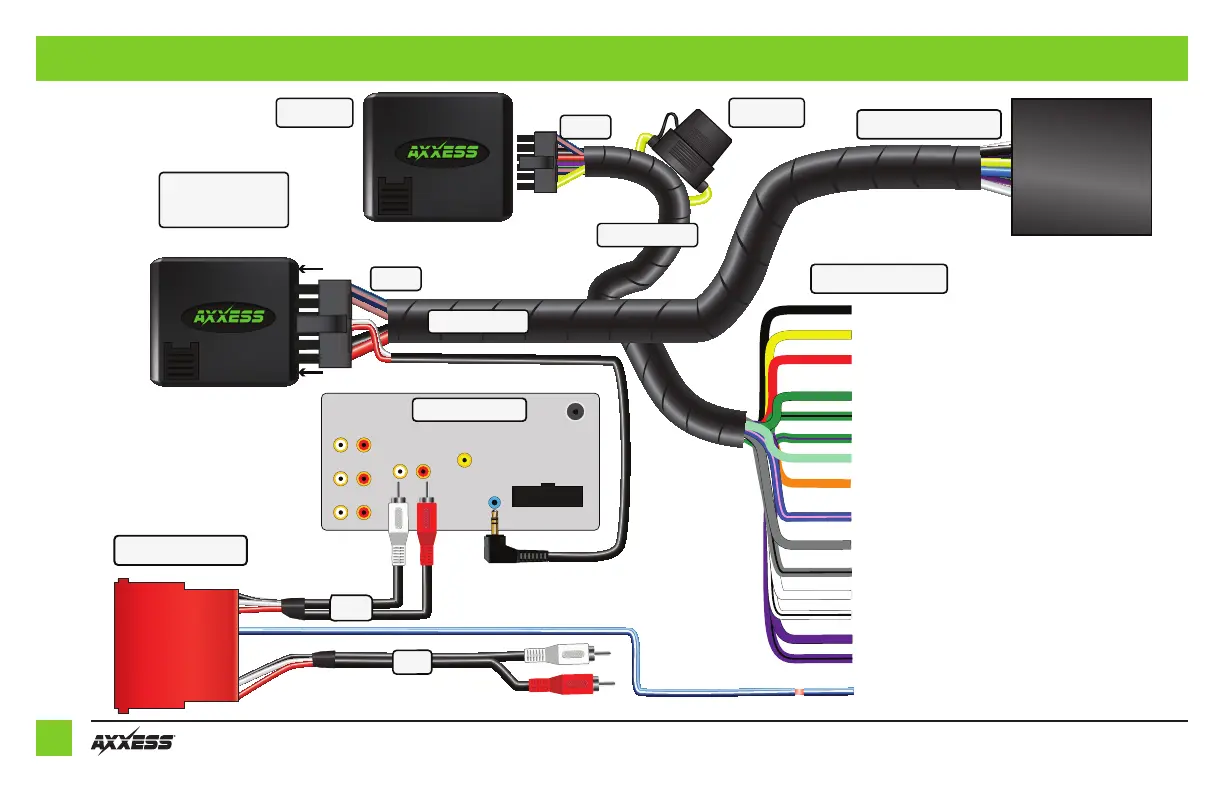

CONNECTIONS: LD-AX-XSVI-FT1
