Sida 1/15
North America: Black Diamond Equipment, Ltd.
2084 East 3900 South
Salt Lake City, UT 84124
Europe: Black Diamond Equipment
Hans-Maier-Straße 9
6020, Innsbruck, Austria
WARNING [EN]
Skiing is inherently dangerous. Understand and
accept the risks involved before participating.
You are responsible for your own actions and
decisions. Before using this product, read and
understand all instructions and warnings that
accompany it, and familiarize yourself with its
proper use, capabilities and limitations. We rec-
ommend that you get proper training in its use.
Failure to read or follow any of these warnings
can result in severe injury, paralysis or death!
INSTRUCTIONS FOR USE
ѥ Keep instructions for future reference.
BASKETS
To attach a basket: Push the basket and turn clock-
wise until secured against the upper stop, spinning
freely.
To remove a basket: Pull the basket and twist coun-
terclockwise.

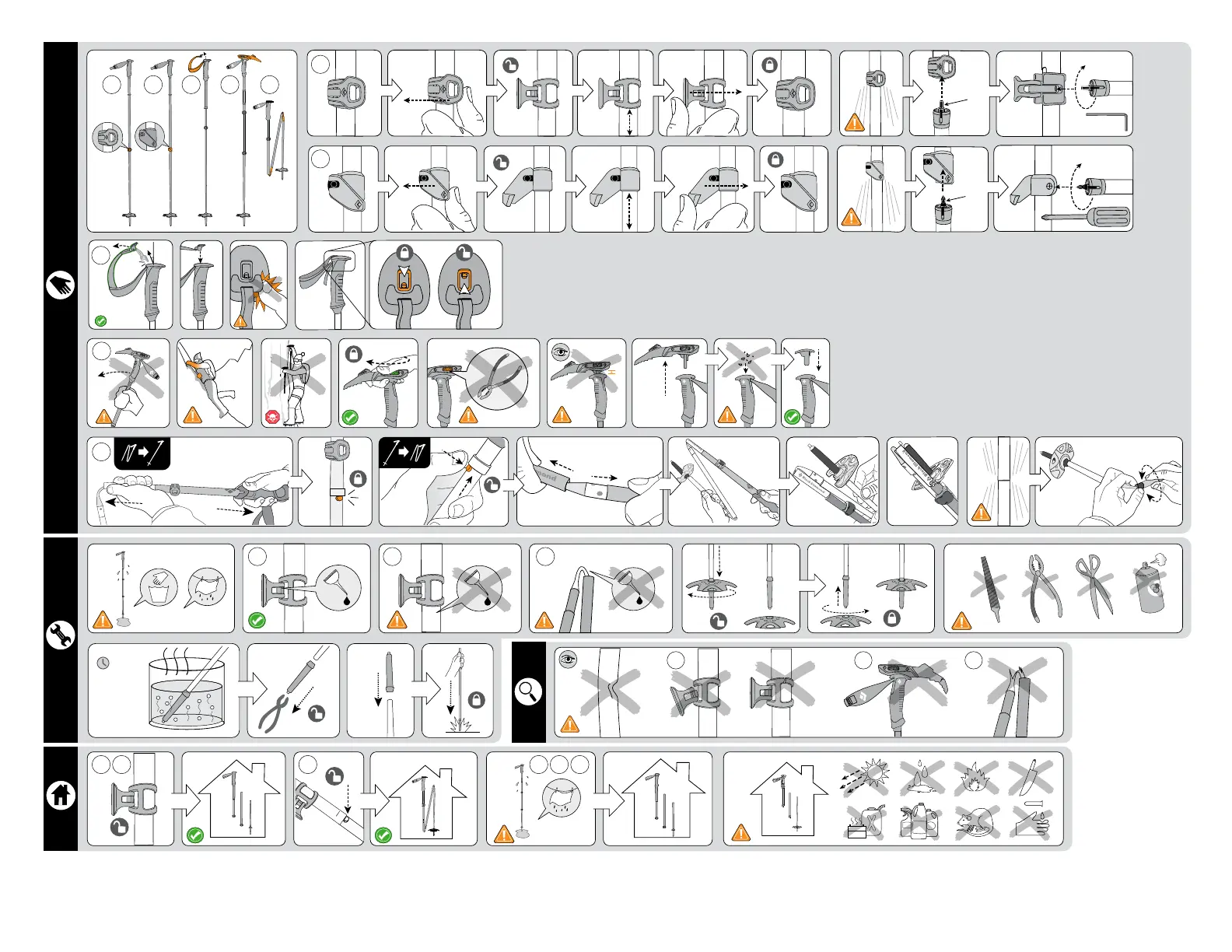

(See accompanying illustrations)
WHIPPET SELF-ARREST POLE
The Whippet is not an ice axe, nor is it a substitute for
one.
Do not hold or swing Whippet like an ice axe. Always
hold on to the grip.
Practice self-arresting so you will understand its capa-
bilities.
For self-arrest, hold one hand over the Whippet’s pick,
with the shaft diagonal across the torso, one hand
holding on near the FlickLock Pro mechanism.
Avoid self-evisceration when climbing or skiing
CAUTION: The strap on the Whippet DOES NOT
release, remove the wrist strap in avalanche terrain.
(See accompanying illustrations)
SWITCH RELEASE™ STRAPS
For safety, some Black Diamond Ski Poles are designed
with an automatic strap releasing mechanism. This
release mechanism activates approximately +/- 10°
angle from vertical, upward and can be re-engaged
in the field. The strap release mechanism can also be
locked in place, preventing release.
(See accompanying illustrations)
FLICKLOCK
®
ADJUSTMENT
(See accompanying illustrations)
COMPACTOR TOURING POLES
Black Diamond Equipment’s Compactor touring poles
use our exclusive Rapid Deployment System that fea-
tures a single push button release to collapse and
deploy the pole. The push button is located just below
the numbered FlickLock Pro adjustment section
Collapsing Compactor Poles:
1. Press the button and slide the grip toward the pole tip
2. Pull the shafts apart at each joint, located at the seam
between each shaft section
3. Fold the poles into a compact “Z” shape
4. Open the FlickLock Pro lever arm and fully collapse
the pole to minimize its folded length.
5. Snap the lower shaft’s basket clip onto the upper and
middle shaft for secure storage
Deploying
1. Ensure the basket is unclipped from all shafts.
2. Grab the grip and the first shaft section, and pull
them away from each other. The pole will snap into
place and lock.
3. Check that the push button on has snapped com-
pletely out and the pole is locked without gaps at the
joints
Adjusting
Over time, the inner cord that connects the shaft sec-
tions may stretch. This play can be removed by increas-
ing the inner cord tension.
1. Press the push-button release, and then pull ONLY
the lowest joint apart.
2. The cord tensioner is located between the middle
and lower shafts
3. Hold both ends of the tensioner and turn it clockwise
to tighten or counterclockwise to loosen
NEVER loosen the tensioner completely unless replac-
ing a lower section. If replacing a lower section, loosen
the tensioner completely until it comes free from the
upper section. Keep hold of the upper part of the ten-
sioner so it doesn’t slide up inside the middle pole sec-
tion. Insert the threaded end of the new lower pole sec-
tion’s tensioner and twist until no threads are showing.
Then follow the above instructions to adjust the tension.
(See accompanying illustrations)
CARE AND MAINTENANCE
Never put oil or silicone on the pole shafts—this could
cause the joints to slip during use. Always remove the
lower shafts after skiing and allow them to dry com-
pletely before storage.
(See accompanying illustrations)
INSPECTION AND RETIREMENT
Before and after each use, FlickLock mechanisms
open and close smoothly. Make sure that there are no
cracks in the housing or cam lever and that nothing
is deformed or broken. Replacement parts may be
obtained from your Black Diamond dealer or direct-
ly from us. If you own probe models, always make
sure that you are using one male lower shaft and one
female lower shaft. Before and after each use, check to
see that the adjustment mechanisms open and close
smoothly and are tensioned properly.
Make sure nothing is deformed or broken.
Before storage, release the tension cord, collapse the
pole, and dry.
Apply a drop of oil on the lever axle where the lever
meets the clamp band if the FlickLock Pro mecha-
nisms become hard to open or close.
Replacement parts may be obtained from your local
Black Diamond Equipment dealer or directly from Black
Diamond Equipment.
(See accompanying illustrations)
LIMITED WARRANTY
For 2 years following purchase or delivery unless oth-
erwise indicated by law, we will warrant to the original
retail buyer that our products are free from defects
in materials and workmanship as originally sold. The
Product will be repaired or replaced at our discretion.
We do not warrant products which show normal wear
and tear or that have been used or maintained improp-
erly, modified or altered, or damaged in any manner.We
reserve the right to require proof of purchase or delivery
for all warranty claims.
WARNING [FR]
Le ski est une activité dangereuse par nature.
Vous devez comprendre et accepter les risques
encourus avant de vous engager. Vous êtes
responsable de vos actes et de vos décisions.
Avant d’utiliser ce produit, veuillez lire et assi-
miler l’ensemble des notices et avertissements
qui l’accompagnent, vous entraîner à l’utiliser
correctement et vous familiariser avec ses
possibilités et ses limites. Nous vous recom-
mandons de suivre une formation appropriée
pour apprendre à l’utiliser. Le fait de ne pas lire
ou respecter l’un quelconque de ces avertisse-
ments peut être la cause de blessures graves,
de paralysie ou de mort !
BÂTONS DE SKI – NOTICE D’UTILISATION
ѥ Veuillez conserver la notice pour consultation ultérieure.
RONDELLES
Pour fixer une rondelle : Poussez vigoureusement la
rondelle en tournant dans le sens des aiguilles d’une
montre jusqu’à ce qu’elle se cale solidement contre la
butée d’arrêt et puisse tourner librement.
Pour ôter une rondelle : Tirez vigoureusement la
rondelle en tournant dans le sens inverse des aiguilles
d’une montre jusqu’à extraction de celle-ci.
(Voir les illustrations jointes)
TON D’AUTO-ARRÊT WHIPPET
Le Whippet n’est ni un piolet ni un substitut de piolet.
Ne pas tenir ni manier le Whippet comme un piolet.
Toujours le tenir par la poignée.
Entraînez-vous à l’auto-arrêt afin de comprendre les
capacités du Whippet.
Pour l’auto-arrêt, tenez une main sur le pic du
Whippet, le manche en diagonale le long du torse, et
une main près du système FlickLock Pro.
Evitez l’auto-éviscération lorsque vous grimpez ou
skiez
ATTENTION : La dragonne de votre Whippet NE SE
TACHE PAS en cas de sollicitation. Nous vous
conseillons d’ôter la dragonne de votre poignet lorsque
vous traversez une zone avalancheuse.
(Voir les illustrations jointes)
DRAGONNES SWITCH RELEASE
Pour une meilleure sécurité, certains bâtons de ski
Black Diamond sont équipés d’un mécanisme de
déclenchement de dragonne automatique. Ce méca-
nisme se déclenche en cas de sollicitation selon un
angle donné de +/-10° et peut être ré-enclenché sur le
terrain. Lecanisme de déclenchement de dragonne
est également verrouillable, si souhaité.
(Voir les illustrations jointes)
FLICKLOCK
®
(Voir les illustrations jointes)
TONS DE SKI DE RANDONNÉE COMPACTOR
Les bâtons de ski de randonnée Black Diamond
Equipment Compactor sont dotés de notre système
à déploiement rapide exclusif qui intègre un unique
bouton-poussoir pour déplier et replier le bâton. Ce
bouton-poussoir est situé juste sous le brin gradué à
réglage FlickLock Pro.
Repliage des bâtons Compactor :
1. Appuyer sur le bouton et faire coulisser la poignée en
direction de la pointe du bâton.
2. Tirer sur les brins de part et d’autre de chaque jonc-
tion.
3. Replier les brins de manière à former un ”Z” com-
pact.
4. Ouvrir le levier FlickLock Pro et replier complètement
le bâton jusqu’à sa longueur reple minimale.
5. Pour un rangement plus sûr, embter les brins su-
rieur et médian dans l’encoche prévue sur la rondelle
du brin inférieur.
Dépliage
1. Vérifiez qu’aucun brin n’est clippé sur la rondelle
d’arrêt.
2. Saisissez la poignée et le brin supérieur puis tirez
simultament de part et d’autre. Le bâton se met en
place d’un coup sec et se verrouille.
3. Assurez-vous que le bouton-poussoir ressort com-
plètement et que le bâton est verrouillé de manière
parfaitement jointive aux jonctions.
Degré de serrage
Avec le temps, le câble interne qui relie les brins de
votre bâton peut légèrement se détendre. Vous pouvez
redier à ce jeu en augmentant le degré de serrage du
câble interne.
1. Appuyez sur le bouton-poussoir puis tirez de part et
d’autre de la jonction la plus basse UNIQUEMENT.
2. Le tendeur du câble se situe entre le brin médian et
le brin inférieur
3. Tenez les deux extrémités du tendeur entre vos
doigts et tournez-le dans le sens des aiguilles d’une
montre pour serrer ou dans le sens inverse des
aiguilles d’une montre pour desserrer.
Ne JAMAIS desserrer le tendeur comptement sauf
SKI
POLES
© Black Diamond Equipment, Ltd. 2024
www.BlackDiamondEquipment.com
MM5978_RWEB
or P3
P3
1.5mm
1.5mm
or
D
CA B
E
A A
E
EDA
Switch Release™
FlickLock
®
FlickLock
®
Pro
Whippet
Compactor
+
-
D
100º C
(21 F)
2 min
A
B
10º
C
E
105 CM
110 CM
EA B EA B

Produktspecifikationer

Varumärke: Black Diamond
Kategori: ej kategoriserat
Modell: Expedition 3
Vikt: 520 g
Längd (max): 1250 mm
Produktens färg: Black, Grey
Antal per förpackning: 2 styck
Målgrupp: Vuxen
Färgsättning: Monokromatiskt
Bästa användningsområden: Utförsåkning
Färg, bärrem: Svart
Handtagets färg: Svart
Vikta längd: 570 mm
Skaftmaterial: Gjuten aluminium
Könstyp: Unisex
Material i skidstavens tryga: 100 mm
Axeldiameter: 18 mm
Material i skidstavens spets: Stål
