Sida 1/5

INCLUDES

(1) CMX FMCH002 Extender Set (Transmier and Receiver)-

(2) DC5V/2A

(1) SFP+ Opcal Module (T1270NM/R1330NM)

(1) SFP+ Opcal Module (T1330NM/R1270NM)

(1) IR Blaster Extension Cable

(1) IR Blaster Receiver Cable

(8) Mounng Brackets

(16) Black Counter Sunk Screws

(2) Silver Screws

(2) Phoenix Plugs

• Supports HDR 18gbps 4:4:4

• Up To 40km Over Single Mode Single Opc Fiber Cable

• HDMI Loop Out & Audio Separaon-

• Zero Latency & Compression

• Arc/EARC

• Bi- Direconal IR

CAMPLEX Broadcast Fiber Soluons

812 Kings Highway Saugeres, NY 12477•

www.camplex.com

USER MANUAL

CMX FMCH002 4K/2K HDMI 2.0 Over Fiber Extender Set 18Gbps HDCP 2.2 -

with 10G Ethernet and RS 232 Support-

FEATURES

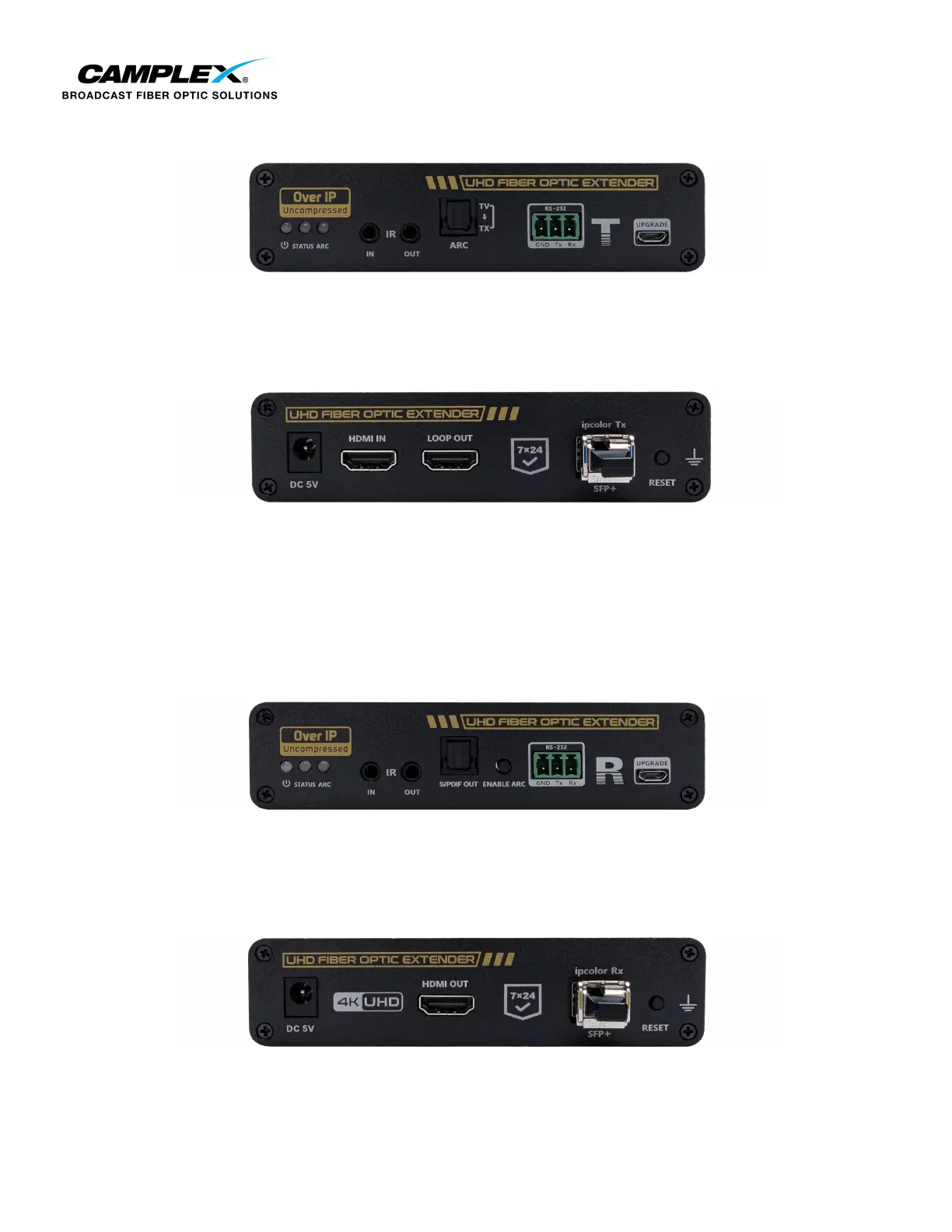

CMX FMCH002 Transmier -

CMX FMCH002 RECEIVER -

1 2

Front

1 Power / Status / Arc LED Indicator

2 IR In

3 IR Out

1 Power Supply Input

2 HDMI Out

1 Power / Status / Arc LED Indicator

2 IR In

3 IR Out

4 ARC Port

5 232 Port RS-

6 Factory Use Only

4 5

4 SFP Module Port

5 Reset Buon

1 Power Supply Input

2 HDMI Input

3 Loop Output

4 Opcal Out

5 ARC Switch

6 232 Port RS-

7 Factory Use Only

3 SFP Module Port

4 Reset Buon

SPECIFICATIONS

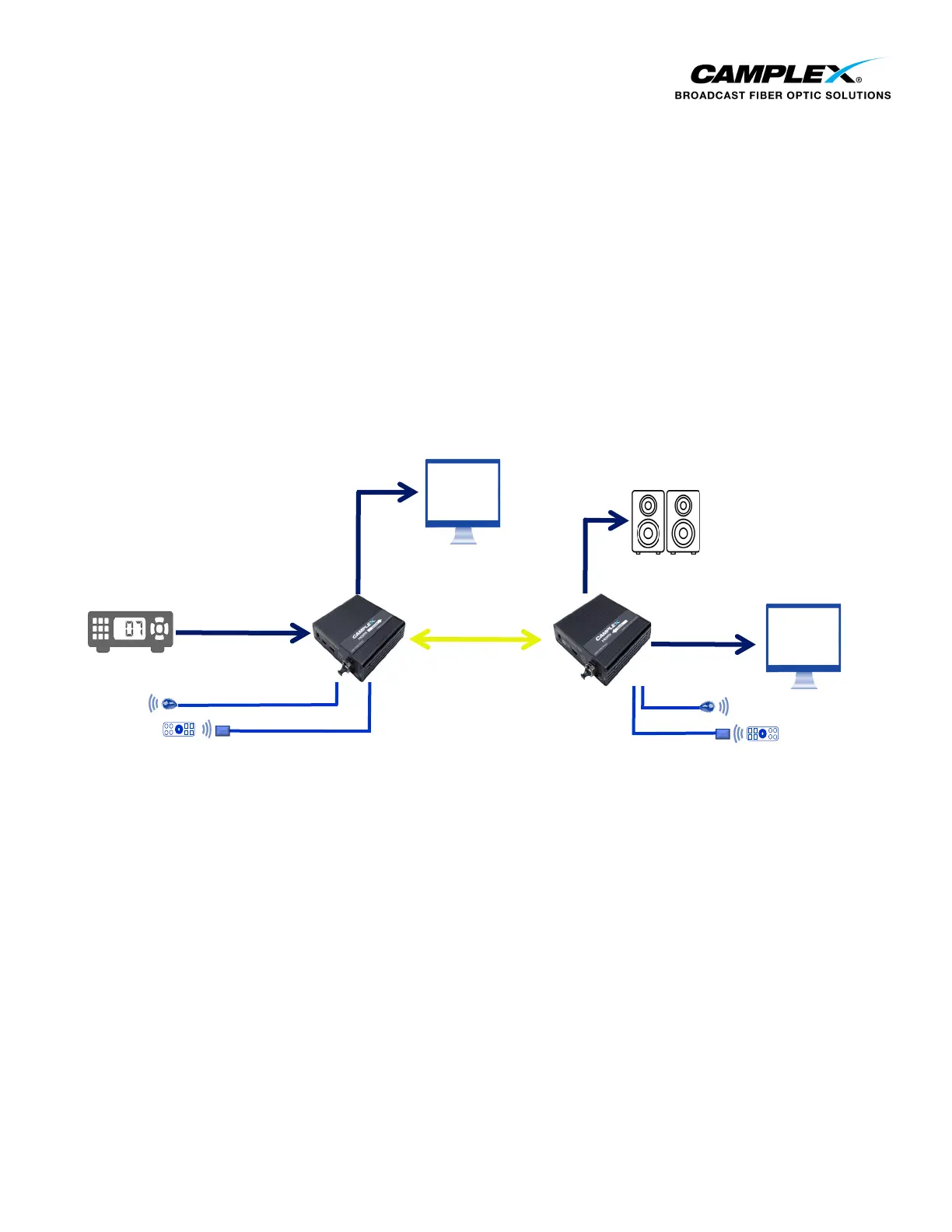

CONNECTION DIAGRAM

• Transmission Distance: 40km≤

• Fiber Type: Single Mode

• Fiber Connector: LC

• SFP+ Opcal Fiber Module Wavelengths: 1270nm (T), 1330nm (R)

• Bi- - - - Direconal IR Support Bi Direconal Ir Pass Back, Supports 20 60khz Ir Devices

• Audio Format: LPCM 7.1/DTS HD/DTS Audio/Dolby Digital Plus/Dolby TrueHD/Dolby Digital/Dolby Atmos- -

• Arc Support Arc Back to Tx-

• Rs- -232 Support Rs 232 Passthrough and Command Control-

• Supported Resoluons: 720P@50/60 Hz / 1080P@24/25/50/60 Hz / 1080i@50/60 Hz / 1024*768@60 Hz / 1280*768@60

Hz/ 1280*800@60 Hz / 1280*960@60 Hz / 1280*1024@60 Hz / 1440*900@60 Hz / 1400*1050@60 Hz / 1600*900@60

Hz / 1600*1200@60 Hz / 1680*1050@60 Hz / 1920*1080@60 Hz / 1920*1200@60 Hz / 2560*1440@60 Hz /

2560*1600@60 Hz / 3840*2160@24/25/30/50/60/23.9/29.9/59.9 Hz / 4096*2160@24/25/30/50/60/23.9/29.9/59.9 Hz

Video Source

HDMI

HDMI Display

Single Fiber LC LC Connecon -

Single Mode

HDMI In

HDMI Display

Speakers

Connecon Instrucons:

1. Connect the source device to the HDMI In port of the transmier with an HDMI cable, connect the HDMI Out port of the receiver to the display device with

another HDMI cable.

2. If it is a one to one connecon, then use a ber opc cable to connect the SFP port to the transmier and receiver.

3. If using the HDMI loop out feature, connect the display device to the HDMI Out port of the transmier.

4. If using the IR pass back funcon, the IR blaster extension cable should be plugged into the IR out port of the transmier receiver, the IR receiver exten-and

sion cable should be plugged into the IR In port of the transmier and receiver.

5. If using the HDMI ARC feature, connect the ARC interface of the transmier to the speaker with an opcal ber cable. If yo eed addional audio from the u n

receiver, connect the S/PDIF Out interface of the receiver to the audio device with an opcal ber cable.

6. If using the RS 232 funcon, connect the RS 232 port of the transmier or receiver to an external device.- -

7. Plug the power supply into the devices to get started.
