Sida 1/11
DE9300
DE9500
DE9100

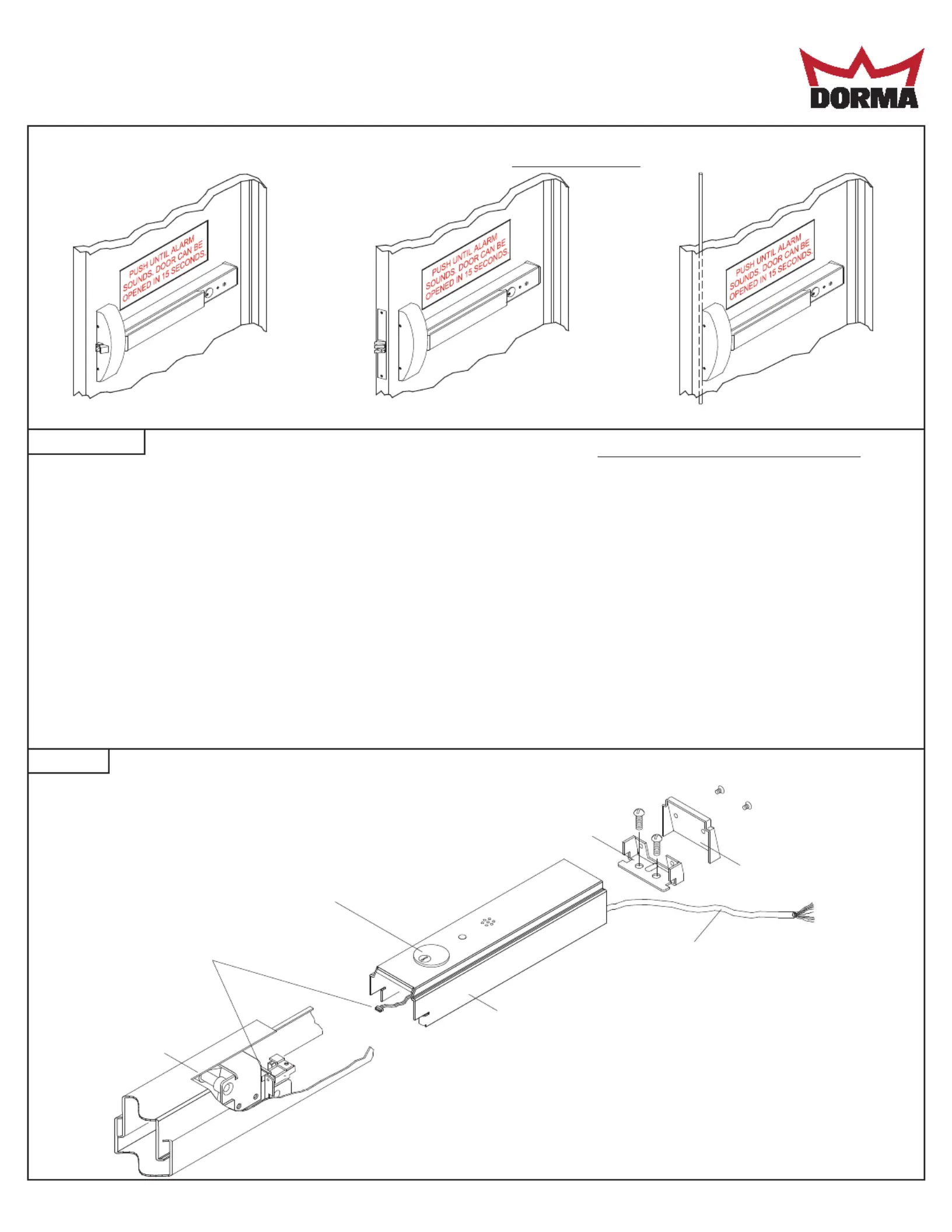

INSTALLATION INSTRUCTIONS
RIM
MORTISE CONCEALED VERTICAL ROD
WIRE PIG TAIL
End Cap
DE5300
DE5500
DE5100
SIZE A: (DE9000 Series)
Will fit 48" (1219 mm) door opening without cutting.
Can be cut to fit a 40 1/2" (1029 mm) minimum door opening.
SIZE B: (DE9000 Series)
Will fit 36" (914 mm) door opening without cutting.
Can be cut to fit a 34 1/2" (876 mm) minimum door opening.
End Cap Bracket
Filler (DE9000/DE5000)
REQUIRES DORMA ES-100 or AD100 POWER SUPPLY.
Easily accessible slide in and out electronics.
Meets UL, ANSI/BHMA & CBC requirements.
Note: Refer to Individual Series Installation Instructions for templating and installation of device; @ www.dorma-usa.com
These are additional instructions for installation and operation of the "Delayed Egress" unit.
NOTE: "Always disconnect power prior to making
any connections or service!"
Observe proper static discharge grounding procedures
when installing or servicing the Delayed Egress device.
SIZE AA: (DE5000 Series w/ #443 strike)
Will fit 48" (1219 mm) door opening without cutting.
Can be cut to fit a 38 3/4" (984 mm) minimum door opening.
SIZE BB: (DE5000 Series w/ #443 strike)
Will fit 36" (914 mm) door opening without cutting.
Can be cut to fit a 31 3/4" (806 mm) minimum door opening.
85 Decibel Alarm - Standard
LED Status Indicator - Standard
Nuisance Alarm - Standard
Key Switch Control - Standard
Remote Authorized Egress - Standard
Remote Re-Arm - Standard
Remote Bypass - Standard

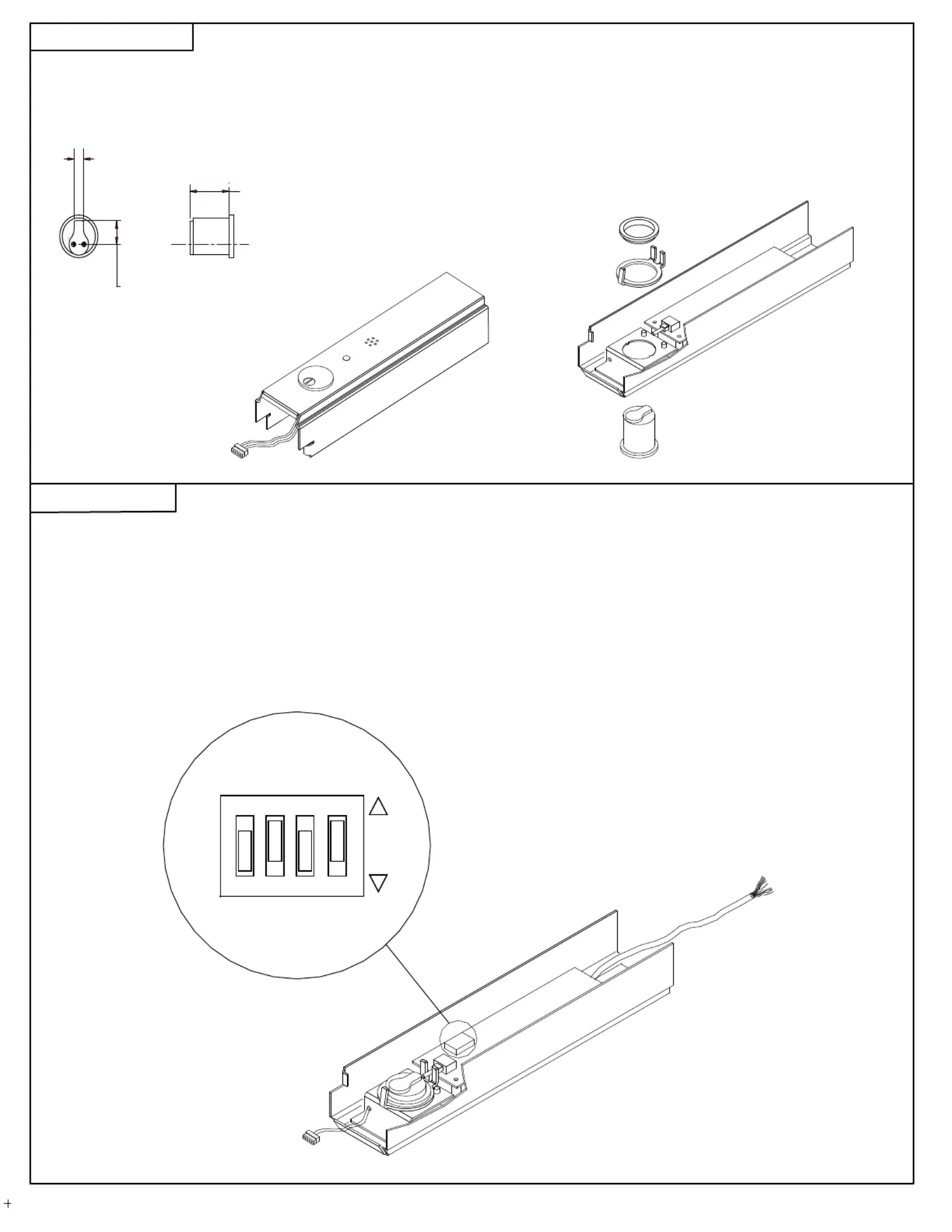

Door Position Input - Standard, DIP Switch Setting
Auto Reset or Manual Reset, DIP Switch Setting
Auto - Stanadard (Manual - in CA)
Additional Form "C" Relays For Optional Horn etc.
(Rated 1 amp @ 30 vdc)
Touchbar/Rail
Assembly
(Delayed Egress)
Connecting Plugs
NOTE:
If cutting to length is required
carefully remove filler and
electronics for cutting. Use all
grounding precautions.
Assembly
1
Mortise Cylinder
(factory supplied)
Pt. No. 90B10SC118
Specifications
DE5000 & DE9000 SERIES
DELAYED EGRESS EXIT DEVICE
IDE - 12 8/09
1135-88 95011817
