Sida 1/132

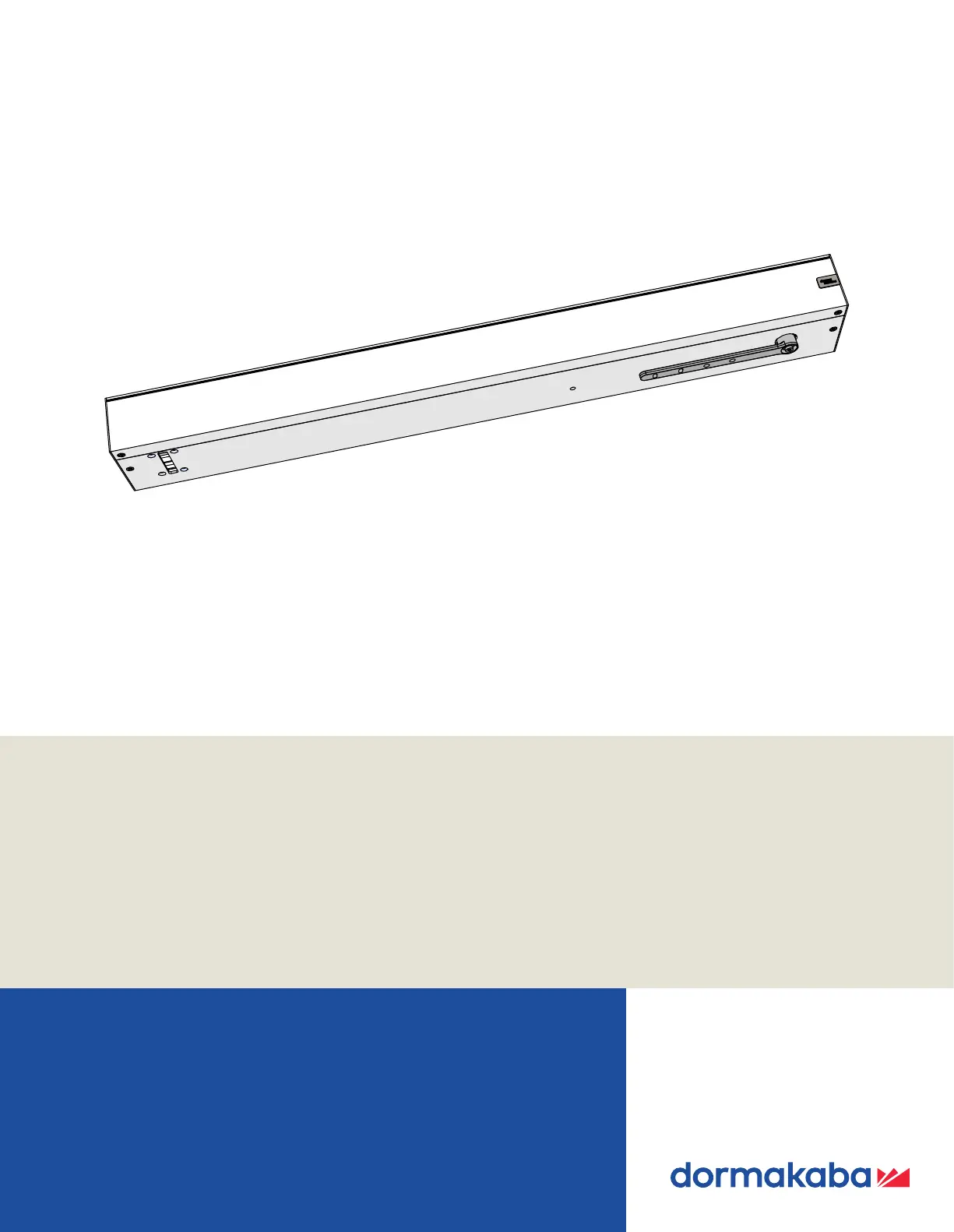

ED100/ED250
Automatic Swing Door Operators
Installation in Overhead Concealed Header
Installation Instructions
DL4614-100 – 08-2018
| EN |
2
ED100/ED250 08-2018DL4614-100
dormakaba ED100/ED250 OHC Installation Instructions Table of Contents
Table of contents 2
1 General information 6
2 ED100/ED250 OHC product description 7
3 Safety information 8
4 ED100/ED250 OHC door configurations 9
. ED/ED OHC single door
configurations
. ED/ED OHC double door
configurations
5 ED100/ED250 OHC hardware
- single door 10
. OHC header and overhead arm
configurations
. ED/ED OHC header assemblies
as shipped, covers included
. ED/ED OHC operator
. ED/ED OHC single door hardware
package
6 ED100/ED250 OHC hardware - double
doors 14
. OHC header and overhead arm
configurations
. ED/ED OHC pair header
assemblies as shipped -covers included
. ED/ED OHC operator
. ED/ED OHC pair door hardware
package
7 ED100/ED250 OHC header assembly 18
. ED/ED OHC single door header
example
. ED/ED OHC pair doors header
example
8 Technical data 20
. ED/ED Technical data
. Operating specifications
9 Operational mode overview 21
. ED/ED door closer modes
10 User interface 22
. ED/ED OHC operator user
interface
. button keypad and display
. Program switch panel, optional key switch
panels
. RJ panel
. Operator status LEDs
11 System accessories 24
. System accessory electrical connections,
overhead concealed header
. System accessories
. ED/ED terminal board interface
Table of contents
12 Recommended tools and torque chart 26
. Recommended tools
. Standard tightening torque
. Drill bits
13 ED100/ED250 door signage 27
. Full energy operator
. Low energy operator
. Door signage, full energy single swing
doors
. Door signage, low energy single swing
doors: initiation of door operation
. Door signage, full energy double swing
doors
. Door signage, low energy double swing
doors, initiation of door operation
. Door signage, full energy double egress
swing doors
. Safety information labels, automatic
swing doors
14 ED100/ED250 OHC installation template 34
. Header installation
. Bottom pivot, floor installation
. Program panel jamb cutout
. RJ panel jamb cutout, double doors
16 Customer installed door jambs 38
. Check jamb installation dimensions
. Check jambs for plumb, level, and square
. Drill holes in jambs for header mounting
and for wiring into header
. Program switch panel jamb cutout
. RJ panel jamb cutout, double doors
. Program and RJ panel installation
17 Header preparation 42
. Remove ED/ED operator from
mounting plate: right side of header
mounting example
. Install ED/ED OHC mounting
plate in right side of header
. Install ED/ED OHC mounting
plate in left side of header
. Install low voltage terminal PC board
module
. Double header: Install ED/ED
OHC mounting plates and Terminal
PC boards
. Install panic breakout, inswing doors
. Install fixed stop, outswing doors
