Sida 1/6

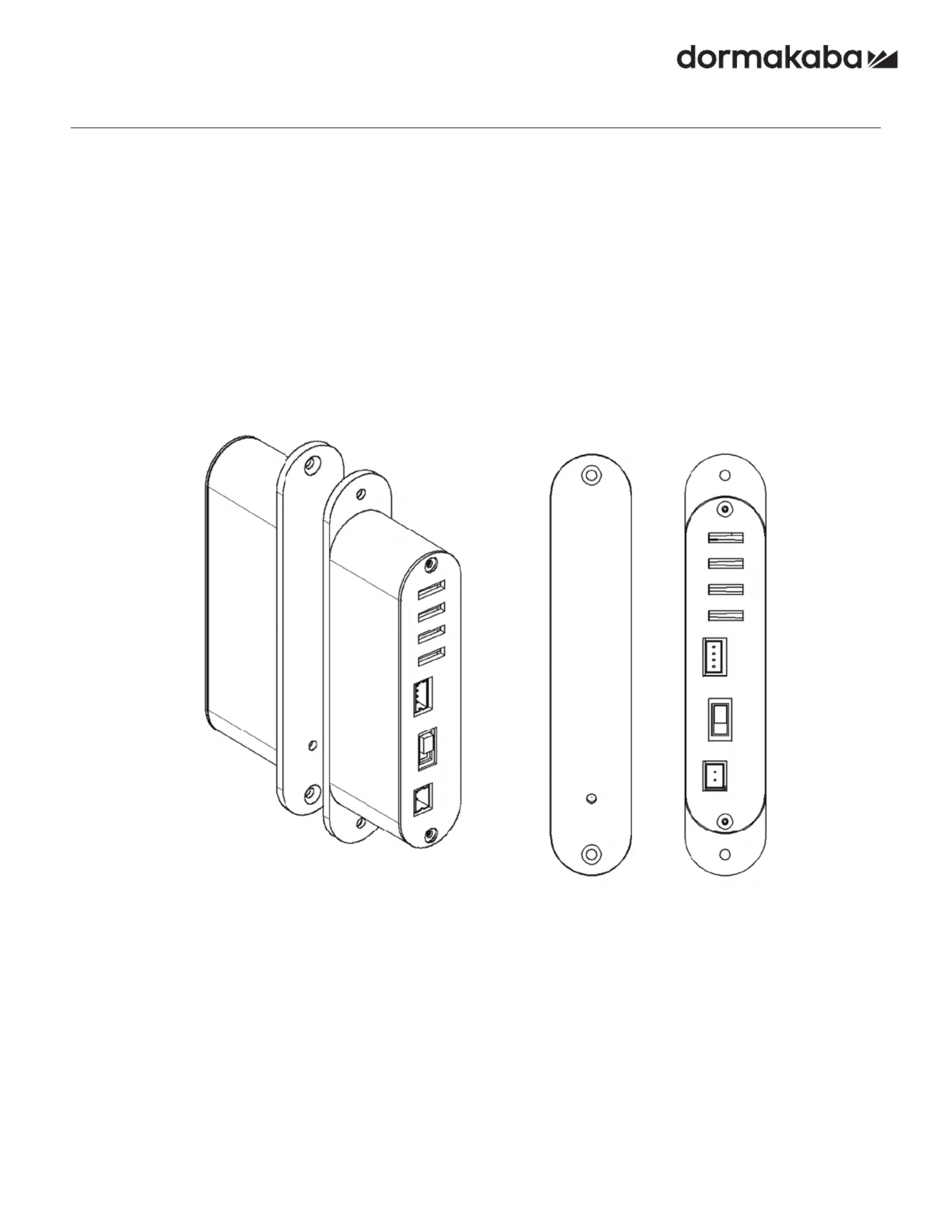

INSTALLATION
RCI WPDT
WIRELESS POWER & DATA TRANSFER
© 2019 dormakaba Canada Inc
www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • E-mail: sales_RCI@dormakaba.comISWPDT
R07-19GR-1
2
Specifications:
• Input Voltage = 24VDC
• Input Power = 600 mA minimum
• Maximum Sensor Gap = 7.0 mm 1/4”
• Fail Secure Locks only*
• Output Voltage 12VDC @ 600mA or 24VDC @ 300mA selectable*
• Door Position Sensor*, 60V AC/DC@200 mA
• 2 Input/Outputs for Monitoring (REX, LBM)*, 30VDC@1A & 125VAC@300mA
• 3 Second Fixed Unlock Time or 0-90 Second (by switch activation)
• Operating Temperature -20 ~ 60˚C (-4 ~ 140˚F)
• Error Indicator LED (frame side)**
* Response time can be affected by installation and door gap
** Indicates excessive load or improper input voltage
Package Content
1) Frame side unit
2) Door side unit
3) 4 mounting tabs
4) 6 washers
5) 4 M3 wood screws
6) 12 M3 steel mounting screws
7) templates for both wood and hollow metal
8) wire harnesses
FCC Warning Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference that may cause undesired operation.
NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY
APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE. SUCH MODIFICATIONS COULD VOID THE
USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
IC Warning Statement
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003 and RSS-247. Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Radio Frequency (FR) Exposure Information
The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits.
The Wireless Device should be used in such a manner such that the potential for human contact during normal operation
is minimized.
This device has also been evaluated and shown compliant with the IC RF Exposure limits under mobile exposure
conditions (antennas are greater than 20cm from a preson’s body).
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur
de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.
3
12 VDC
24 VDC
DOOR SIDE FRAME SIDE
RED +
BLACK -
GRN
YEL
BRO
BLU
GRAY
YEL
WHT= N/C 1
GRAY/WHT= COM 1
PUR/WHT= N/O 1
GRN/WHT= N/C 2
PINK= N/O 2
BLK/YEL= COM 2
WHT
24 VDC INPUT
N/O INPUT TRIGGER
DOOR POSITION OUTPUT
ERROR OUTPUT *
SWITCH #1 OUTPUT
SWITCH #2 OUTPUT
}
}
}
}
}
}
ORANGE +
BLACK - 12/24 VDC OUTPUT
}
BLU
GRAY
YEL
WHT
}
}
SWITCH #1 INPUT
SWITCH #2 INPUT
ORANGE AND BLACK WIRES ARE OUTPUT VOLTAGE FOR FAIL SECURE
LOCKING DEVICE
SWITCH 1 & 2 INPUT CAN BE CONNECTED TO ANY N/O SWITCH
OUTPUT FOR REX OR SIGNAL OUTPUT ON FRAME SIDE DEVICE
RED AND BLACK = 24 VDC INPUT @ 600 mA minimum
GREEN AND YELLOW MOMENTARY CLOSURE = 3 SECOND UNLOCK TIME
BROWN AND YELLOW CLOSURE = 0 - 90 SECOND UNLOCK TIME
BLUE AND GRAY = DOOR POSITION OUTPUT
YELLOW AND WHITE = ERROR STATUS INDICATION
SWITCH #1 = SPDT OUTPUT FROM DOOR SIDE SIGNAL
SWITCH # 2 = SPDT OUTPUT FROM DOOR SIDE SIGNAL
* ERROR OUTPUT WHEN EXCESSIVE LOAD APPLIED OR IMPROPER INPUT VOLTAGE
