Original Instructions
Version 1 – January 2024
1. Product Introduction
2. Health and Safety Information
Stock No. 20114
Part No. RP-3
Pump type Rotary vane
Flow Rate 600ml/revolution
Adaptor Collar Size: 2" BSP
Nett Weight 3kg
1.2 Specication
1.1 Intended Use
This heavy-duty pump is designed for pumping low viscosity uids such as oils, anti-freeze, add-blue, diesel & other
uids which are non-corrosive. The pump is supplied with a 2” BSP adaptor suitable for most 205litre drums.
Any other application beyond the conditions established for use will be considered misuse. Draper Tools accepts no
responsibility for improper use of this product.
Important: Read all the Health and Safety instructions before assembling, operating or maintaining this product.
Non-compliance with these instructions may result in injury or damage to the user or the product.
• DO NOT modify the pump and only use for its intended purpose.
• The pump is designed specically for the transfer of low viscosity and non-corrosive uids from reservoirs, tanks
and drums. Always refer to the Safety Data Sheets for the substances being used before use.
• Maintain the pump in good condition and when replacing any parts only use spare parts recommended by Draper.
• Keep children and unauthorised persons away from the working area.
• Always wear protective gloves during operation and wash hands after use.
• DO NOT use the pump as a handle to move the uid drum.
• Always clear up any spillages to avoid creating dangerous surfaces and environmental pollution.
20114
R OTA RY
PUMP
Version 1: January 2024
First release
Contact Details
Draper Tools
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Email: sales@drapertools.com
Product Helpline: +44 (0) 23 8049 4344
Telephone Sales Desk: +44 (0) 23 8049 4333
General Enquiries: +44 (0) 23 8026 6355
Please contact the Draper Tools Product Helpline for
enquiries regarding spare parts, servicing, repairs and
replacement options.
3. Product Overview 5. Operating The Pump
6. Maintenance
7. Warranty
4. Preparing the Pump
Carefully remove the product from the
packaging and examine it for any
signs of damage that may have
occurred during shipment. If any
part is damaged or missing, do not
attempt to use the product. Please
contact the Draper Helpline;
contact details can be found at
the back of this manual.
Please visit drapertools.com for
our full range of accessories
and consumables

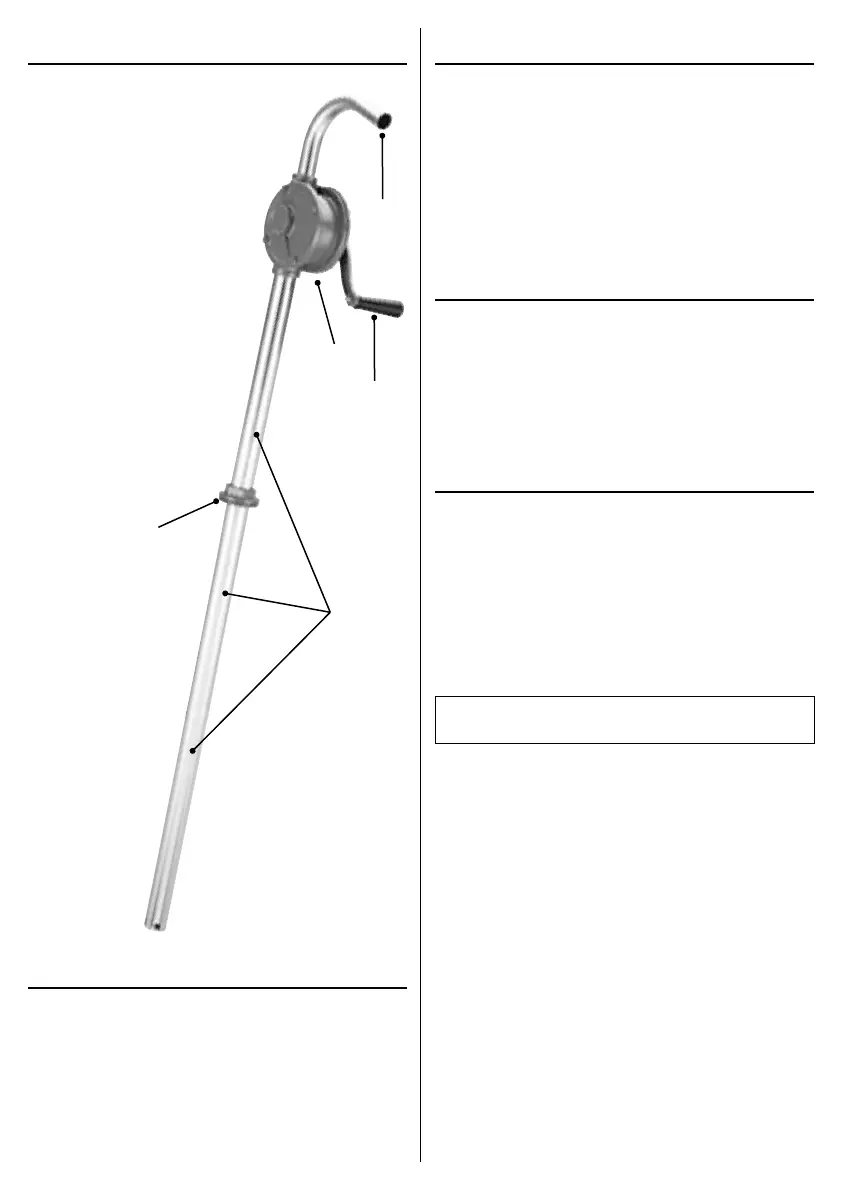

1. Discharge Spout
2. Pump Body
3. Crank Arm
4. 2” BSP Connector
5. 3 × Extension Tubes
© Published by Draper Tools Limited
Delta International
Delta International BV
Oude Graaf 8
6002 NL
Weert
Netherlands
4.1 Assembly
• Attach the spout (1) to the top of the pump body (2).
• Fit the crank handle (3) and secure with the handle
bolt supplied.
• Connect the extension tubes (5) together and then
attach to the bottom of the pump body.
5.1 Using the Pump
• Insert the bottom extension tube into the drum.
• Then slide the BSP connector (4) down and use the
thumb screw to secure the pump to the drum.
• Before starting to use the pump check that the handle
is secure.
• Keep the pump clean and well maintained.
• To prevent the components from becoming clogged,
protect from damp, dust and debris.
• Store in a safe, dry, childproof location.
Visit drapertools.com/warranty for full details.
(1)
(2)
(3)
(5)
(4)
