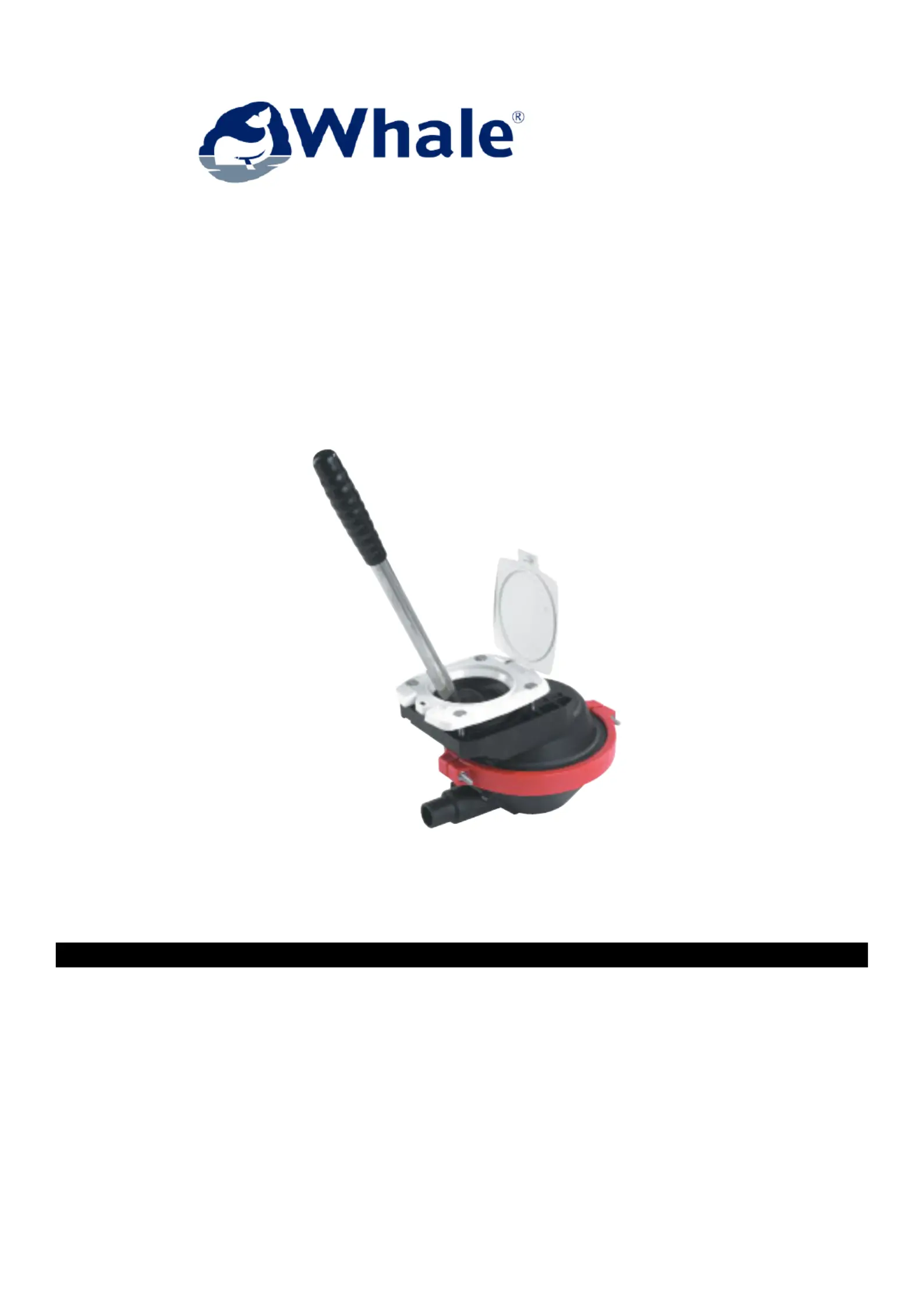

Whale Compac 50
BP0350(B)
BP0352B
MH0360
MH0364
Page 2 English
Page 4 French
Page 6 German
CONTENTS
Whale Compac 50
BP0350(B), BP0352B, MH0360 & MH0364
2. TO THE USER
3. TO THE INSTALLER
Thank you for purchasing this Whale® product. For over 60 years, Whale has led the way in the design and manufacture of freshwater
and waste systems including: pumps, plumbing faucets, showers for low voltage applications. The company and its products have built a
reputation for quality, reliability and innovation backed up by excellent customer service. For more information visit www.whalepumps.com.
Read the following carefully before installation. WARNING: Please note that incorrect installation may invalidate the warranty.
Check that the product is suitable for the intended application, follow these installation instructions and ensure all relevant personnel read
the points listed below. Also ensure that these operating instructions are passed on to the end user.
4. APPLICATION
This Compac 50 is designed for installation in recreational marine vessels only as a manual bilge pump. If it is intended for any other
purpose or with any other liquid, it is the user’s responsibility to ensure that the pump is suitable for the intended use and, in particular, that
the materials are fully compatible with the liquids to be used. The Whale Compac 50 is not recommended for domestic applications.
5. WARNINGS
1. With all applications, it is important that a system of safe working practice is applied to installation, use and maintenance.
The electric supply must be turned off and water system drained prior to installation.
2. Not suitable for pumping fl ammable liquids, diesel, chemicals etc. Suitable for bilge water only.
3. NOTE: Bilge pump capacities may not be suffi cient to prevent fl ooding from rapid accumulation of water due to storms, rough
weather and/ or rapid leaks created by hull damage and or unsafe navigational conditions.
4. In order to securely fasten the unit, ensure that the mounting surface is a minimum thickness of 5mm (3/16”) (when fi tted with the
screws supplied). NOTE Do not screw directly to the hull - must be mounted on a bulkhead or on an additional board.
Contact Whale® Support team for further technical advice: Tel: +44 (0)28 9127 0531 Email: info@whalepumps.com
6. INSTALLATION
Note: Incorrect installation will invalidate warranty.
6.i Location
• Choose a position to mount the pump that is dry and away from standing water and is
free from obstacles.
• To maximize performance, mount in a position with the shortest possible pipe run lengths.
6.ii Installation

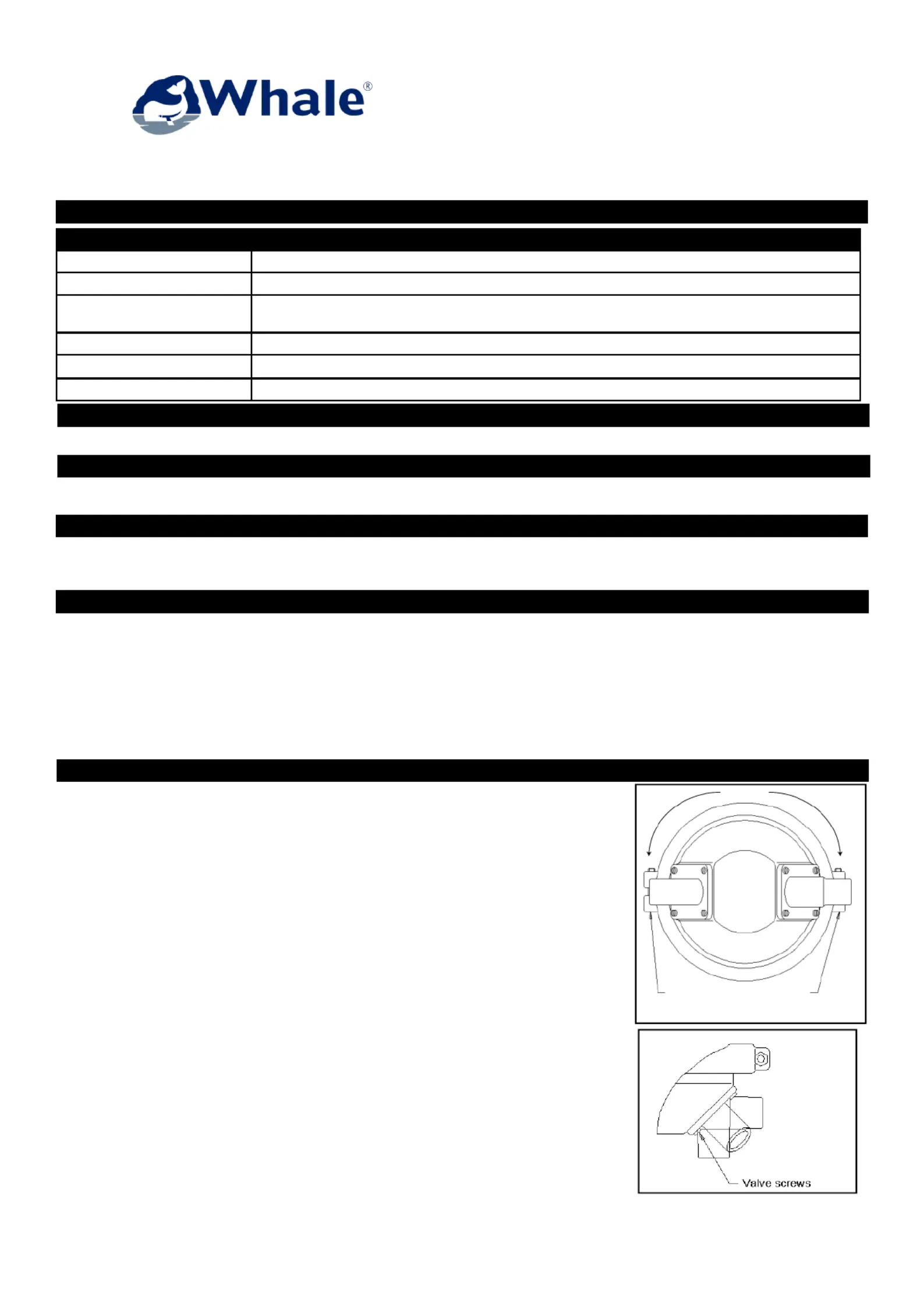

The Compac 50 is a covered diaphragm pump, designed specifi cally for low profi le installation
below deck or thru bulkhead. The pump chamber complete with inlet/outlet hose connections, can
be rotated through 360° (Fig. 1) allowing complete fl exibility in the choice of fl ow direction relative
to the handle position.
To change direction of pump fl ow: Slacken the clamping ring screws and rotate the pump
body to the desired positions. Re-tighten the clamping screws, (this can be adjusted even
after installation).
Inlet/Outlet Options: There are 4 possible hose directions for both inlet and outlet. These
can be combined to give 16 port orientations (see Fig 2).
To Change Inlet/Outlet Positions: Remove the 4 self-tapping screws from base of inlet/
outlet. Reposition the inlet/outlet, replace the 4 self-tapping screws and tighten.
Mounting the Pump
The Whale Compac 50 is provided with a deckplate. The hole positions are square, allowing a
choice of pump stroke direction, relative to the orientation of the deckplate.
1. Using the deckplate as template, mark off and drill 4 x ¼” (6 mm) holes and cut out a 3 3/8” (86 mm) hole, which should be
central to the 4 x ¼” (6 mm) holes. Round off the edge of the hole to allow easy mounting of the rubber gaiter.
2. Minimum deck thickness is 3/16” (5 mm). Deck can be reinforced up to a maximum of 5/8” (15 mm) by using a backing plate.
1. SPECIFICATION
Model Number BP0350(B) / BP0352B / MH0360 / MH0364
Weight 0.9 kg (2 lbs)
Hose Connections 25 mm (1”) Smooth Hose Connections
Materials Pump Body: Glass-fi lled Polypropylene, Clamp Ring: Acetal, Diaphragm, Valves and Seals: Nitrile®,
Operating Lever: Glass-fi lled Nylon, Gaiter: EPDM, Deck Plate Cover: PBT, Fasteners: Stainless Steel
Materials in contact with fl uid Glass-fi lled Polypropylene, Nitrile®, Stainless Steel
Maximum Suction Lift 3 m (10 ft)
Maximum Discharge Head 4 m (13.5 ft)
Clamping ring screws
Figure 1
Figure 2
7. INSTRUCTIONS FOR USE
This Whale® Compac 50 is designed to only require minimal maintenance.
WARNING: Before servicing, turn off the power and drain water from system.
Optimal Performance
• For optimal performance, regular inspection of the pump for debris and damage is recommended.
• Rubber components are perishable and susceptible to damage. They should be inspected periodically and replaced as necessary
The following service kits are available, please visit www.whalepumps.com for more information or for details of a local retailer:
AK8035 - Whale Compac 50 - diaphragm, valves and fi xings AS0356 - Whale Compac 50 Ivory Deckplate Kit
AS0353 - Clamping Ring Kit AS0358 - Whale Compac 50 Black Deckplate Kit
AS0355 - Spare Handle AS0364 - Whale Compac 50 White Deckplate Kit
Changing the Diaphragm and Valves
Diaphragm:
1. Slacken and remove the clamping ring screws and remove clamping rings (hoses may be left attached).
2. Remove clamping plate screw and clamping plate.
3. Replace diaphragm ensuring the centre portion of the diaphragm projects into valve chamber.
4. Check diaphragm is “seated” in the cover grooves.
Valves:
1. Unscrew the 4 self tapping screws at the base of the inlet/outlet nipples (hoses can be left attached).
2. Remove and replace the valves ensuring that they are correctly seated in the pump body groove.
3. Replace the nipples in their mounting position and secure in place.
3. Position the pump underdeck and check fl ow direction.
4. Work the rubber gaiter up through the hole until its fl ange rests on the deck.
5. Place deck plate cover on top of the deck and secure with the 4 screws provided into the pump body.
6. Attach 1” I.D. (25 mm) smooth bore reinforced hose with stainless steel wormdrive hose clips. Tighten the clips to prevent air
leaks.
7. With thru-hull discharge, make sure that the discharge point is above the water line.
8. Check the installation for air leaks, correct priming and discharge.
10. WINTERIZING
12. WARRANTY
11. SERVICE SUPPORT DETAILS
13. PATENTS AND TRADEMARKS
NOTE When winterizing, fully drain system.
Whale® does not cover damage, caused by the system not being not fully drained for winterizing.
Whale® Compac 50 is guaranteed for 5 year from date of purchase. The rubber components are guaranteed for 1 year from date of
purchase. Please refer to the enclosed document for details of our Statement of Limited Warranty.
For installation or service advice please contact Whale® Customer Support:
UK Tel: +44 (0)28 9127 0531 Email: info@whalepumps.com
USA Tel: 1 802 367 1091 Email USA: usasales@whalepumps.com
Whale® is a registered trademarks of Munster Simms Engineering limited (also trading as Whale® Seaward Inc).
Copyright Whale 2020 - All rights reserved. Reproduction in whole or in part without permission is prohibited. WHALE®, is a registered
trademark of Munster Simms Engineering Limited, Bangor, Northern Ireland trading as Whale. Whale’s policy is one of continuous
improvement and we reserve the right to change specifi cations without prior notice. Illustrations are for guidance purposes only. Neither the
accuracy nor completeness of the information contained in this or any product literature is guaranteed by the Company and may be subject
to change at its sole discretion.
14. APPROVALS
This product complies with all relevant European directives and standards. Please contact Whale® if further details are required.
The Whale Compac 50 ensures effi cient throughput with an easy pumping action. Full even strokes will obtain the best results. Two clips
are provided for storing the handle when the pump is not in use.
Output At 45 Strokes/Min At 70 Strokes/Min
US Gal/min 9 9.2
Litres/min 32 35
8. MAINTENANCE
Please note: Performance data is based on factory tests and is typical
of what may reasonably be achieved. Actual performance may vary
depending on installation and operating conditions.
9. TROUBLESHOOTING
Pump fails to prime or chokes:
• Check inlet hose connection is airtight and does not collapse during the suction stroke.
• Inspect inlet and outlet valves for blockages. Clear with fi nger or screwdriver and test.
• Solid objects in the body of the pump should not prevent operation but must be removed to prevent damage.
