Sida 1/122
BSWI-D2
USER GUIDE
Version:1.0
40-012-KQ7101
®
BSWI-D2 USER MANUAL
i
Preface
Copyright
This publication, including all photographs, illustrations and software, is protected
under international copyright laws, with all rights reserved. Neither this manual, nor
any of the material contained herein, may be reproduced without written consent of
the author.
Version 1.0
Disclaimer
The information in this document is subject to change without notice. The manufac-
turer makes no representations or warranties with respect to the contents hereof
and specifically disclaims any implied warranties of merchantability or fitness for
any particular purpose. The manufacturer reserves the right to revise this publica-
tion and to make changes from time to time in the content hereof without obligation
of the manufacturer to notify any person of such revision or changes.
Trademark Recognition
Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp.
MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel
Corporation.
Other product names used in this manual are the properties of their respective owners
and are acknowledged.
Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential instal-
lation. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment onto an outlet on a circuit different from that to
which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
Shielded interconnect cables and a shielded AC power cable must be employed with
this equipment to ensure compliance with the pertinent RF emission limits govern-
ing this device. Changes or modifications not expressly approved by the system’s
manufacturer could void the user’s authority to operate the equipment.
BSWI-D2 USER MANUAL
ii
Declaration of Conformity
This device complies with part 15 of the FCC rules. Operation is subject to the
following conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference
that may cause undesired operation.
Canadian Department of Communications
This class B digital apparatus meets all requirements of the Canadian Interference-
causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Réglement
sur le matériel brouilieur du Canada.
The manual consists of the following:
Describes features of the
motherboard.
H
page 1
Describes installation of
motherboard components.
H
page 7
H
page 21
H
page 49
Installing the Motherboard
Introducing the Motherboard
Provides information on us-
ing the BIOS Setup Utility.
Describes the motherboard
software.
Limits and methods of mesurement of radio disturbance char-
acteristics of information technology equipment
EN 55022
EN 61000-3-2
Disturbances in supply systems caused
EN 61000-3-3
Disturbances in supply systems caused by household appli-
ances and similar electrical equipment “ Voltage fluctuations”
EN 55024
Information technology equipment-Immunity characteristics-
Limits and methods of measurement
EN 60950
Safety for information technology equipment including electri-
cal business equipment
CE marking
About the Manual
This device is in conformity with the following EC/EMC directives:
Chapter 4
Chapter 1
Chapter 2
Chapter 3
Using BIOS
Using the Motherboard Software
Chapter 5
Trouble Shooting
Provides basic trouble shoot-
ing tips.
page 53
H
BSWI-D2 USER MANUAL
iii
Chapter 2 7
Installing the Motherboard 7
Safety Precautions.............................................................................7
Installing the Motherboard in a Chassis......................................7
Checking Jumper Settings...........................................................8
Installing Hardware..................................................................9
Installing Memory Modules.....................................................9
Connecting Optional Devices..................................................10
Installing a SATA Hard Drive...................................................16
Connecting Case Components................................................17
TABLE OF CONTENTS
Preface i
Chapter 1 1
Introducing the Motherboard 1
Introduction...................................................................................1
Pakage Contents............................................................................1
Specifications................................................................................2
Motherboard Components..........................................................4
I/O Ports..............................................................................................6
Chapter 3 21
Using BIOS 21
About the Setup Utility........................ .......................................21
The Standard Configuration......................... ...........................21
Entering the Setup Utility........................................................21
Resetting the Default CMOS Values.....................................22
Using BIOS.......................................................................................22
BIOS Navigation Keys..............................................................23
Main Menu.............................................................................24
Advanced Menu......................................................................24
Chipset Menu..........................................................................40
M.I.B X (MB Intelligent BIOS X) Menu....................................42
Boot Menu..............................................................................43
Security Menu.........................................................................44
Exit Menu................................................................................46
Updating the BIOS.........................................................................47
BSWI-D2 USER MANUAL
iv
Chapter 4 49
Using the Motherboard Software 49
Auto-installing under Windows 7/8.1/10.......................................49
Running Setup.........................................................................49
Manual Installation..........................................................................51
ECS Utility Software (Intelligent EZ Utility) (Optional).................51
Chapter 5 53
Trouble Shooting 53
Start up problems during assembly..............................................53
Start up problems after prolong use............................................54
Maintenance and care tips..............................................................54
Basic Troubleshooting Flowchart...................................................55
1
BSWI-D2 USER MANUAL
Chapter 1
Chapter 1
Introducing the Motherboard
Introduction
Thank you for choosing the BSWI-D2 motherboard. This motherboard is a high
performance, enhanced function. This motherboard has onboard Intel
®
Braswell
SoC for high-end business or personal desktop markets.
It supports up to 8 GB
of system memory with single channel DDR3L 1600MHz
SO-DIMM.
It implements an EHCI (Enhanced Host Controller Interface) compliant interface that
provides four USB 2.0 ports (two USB 2.0 ports at the rear panel and one 2*5-pin USB
2.0 header supports additional two USB 2.0 ports) and four USB 3.0 ports (two USB
3.0 ports at the rear panel and one USB 3.0 header supports additional two USB 3.0
ports).
The motherboard is equipped with advanced full set of I/O ports in the rear panel,
including one PS/2 Keyboard & PS/2 Mouse connectors, one D-sub (VGA) port, one
COM port,one HDMI port, two USB 3.0 ports, two USB 2.0 ports, one RJ45 LAN connec-
tor and audio jacks for line-in, line-out and microphone.
In addition, this motherboard supports two SATA 6Gb/s connectors for expansion.
Your motherboard package ships with the following items:
Package Contents
BSWI-D2 Motherboard
User Manual
DVD
I/O Shield
2 SATA Cables
Accessories may vary, please refer to actual goods you purchase.
Chapter 1
2
BSWI-D2 USER MANUAL
SoC
Specifications
• Signal channel DDR3L SO-DIMM memory architecture
• 1 x 204-pin DDR3L SO-DIMM socket supports up to 8 GB
• Supports DDR3L 1600 MHz DDR3 SDRAM
Memory
• Supported by Intel
®
Braswell SoC
- 2 x Serial ATA 6Gb/s devices
Storage
Rear Panel I/O
LAN • Realtek RTL8111H Gigabit LAN
• Realtek ALC662 6-CH HD Audio CODEC
- 6 Channel High Definition Audio Codec
- Compliant with HD audio specification
Audio
• Onboard Intel
®
Braswell Pentium QC N3700/Celeron QC
N3150/Celeron DC N3050 or other SoC
• Supports TDP up to 6W

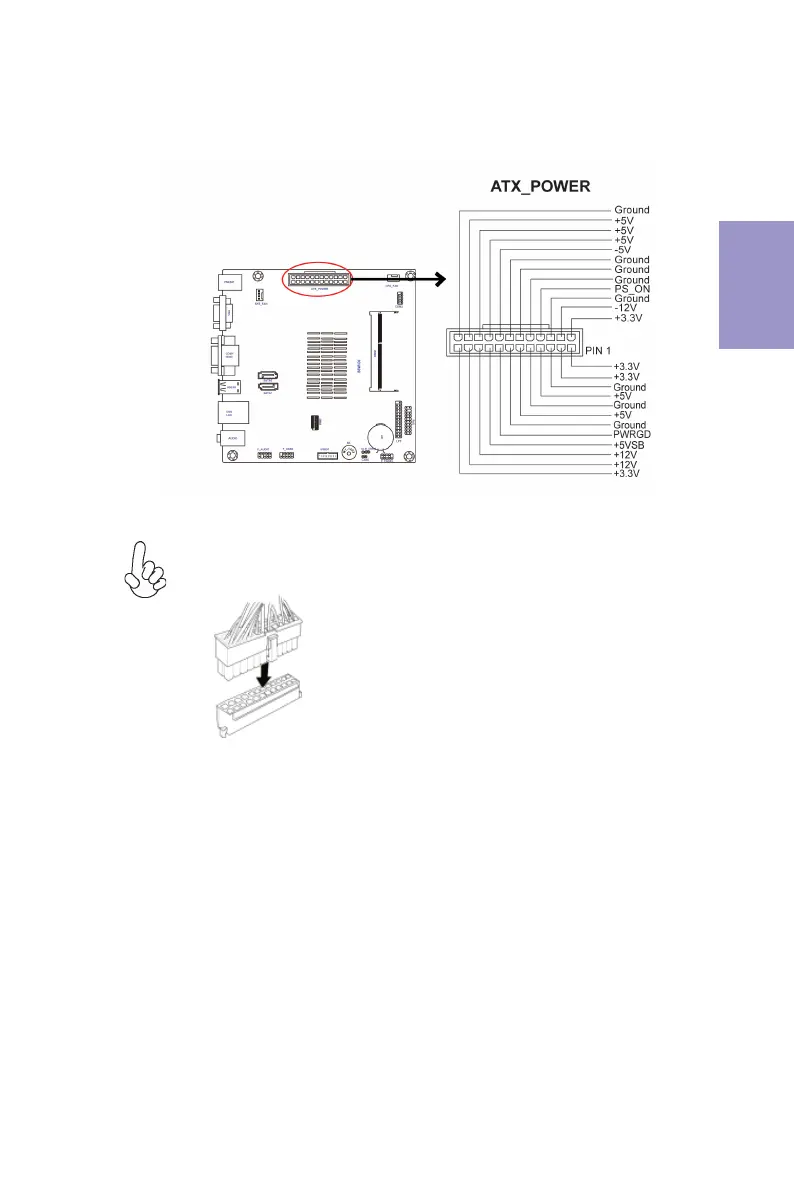

• 1 x 24-pin ATX Power Supply connector
• 1 x 4-pin CPU_FAN connector
• 1 x 4-pin SYS_FAN connector
• 1 x 2*5-pin USB 2.0 header supports additional two USB 2.0
ports
• 2 x Serial ATA 6Gb/s connectors
• 1 x BZ
• 1 x Front Panel switch/LED header
• 1 x Front Panel audio header
• 1 x Clear CMOS jumper
• 1 x Case open header
• 1 x Parallel port header (LPT)
• 1 x TPM header
• 1 x EMMC header
• 1 x USB 3.0 header
• 1 x COM header
Internal I/O
Connectors &
Headers
Note: Please go to ECS website for the latest CPU support list.
Note: Please go to ECS website for the latest Memory support list.
• 1 x PS/2 Keyboard & PS/2 Mouse connectors
• 1 x D-sub (VGA) port
• 1 x COM port
• 1 x HDMI port
• 2 x USB 3.0 ports
• 1 x RJ45 LAN connector
• 2 x USB 2.0 ports
• 1 x Audio port (1 x line-in, 1 x line-out, 1 x Microphone)
3
BSWI-D2 USER MANUAL
Chapter 1
System BIOS
Form Factor
• Mini ITX Size, 170mm x 170mm
• AMI BIOS with 64Mb SPI Flash ROM
- Supports Plug and Play
- Supports ACPI & DMI
- Supports STR (S3) /STD (S4)
- Supports Hardware monitor
- Audio, LAN, can be disabled in BIOS
Ap/ Bundled
Software
Support
- F7 hot key for boot up devices option
- Supports PgUp clear CMOS Hotkey (Has PS2 KB Model only)
Note: *
1
Microsoft .NET Framework 3.5 is required.
*
2
Free bundle software is including ECS DVD: Cyberlink Media
Suite.
• Supports eBLU*
1
/eDLU/eSF
• 3rd Party Bundled Software: Cyberlink Media Suite*
2
Chapter 1
4
BSWI-D2 USER MANUAL

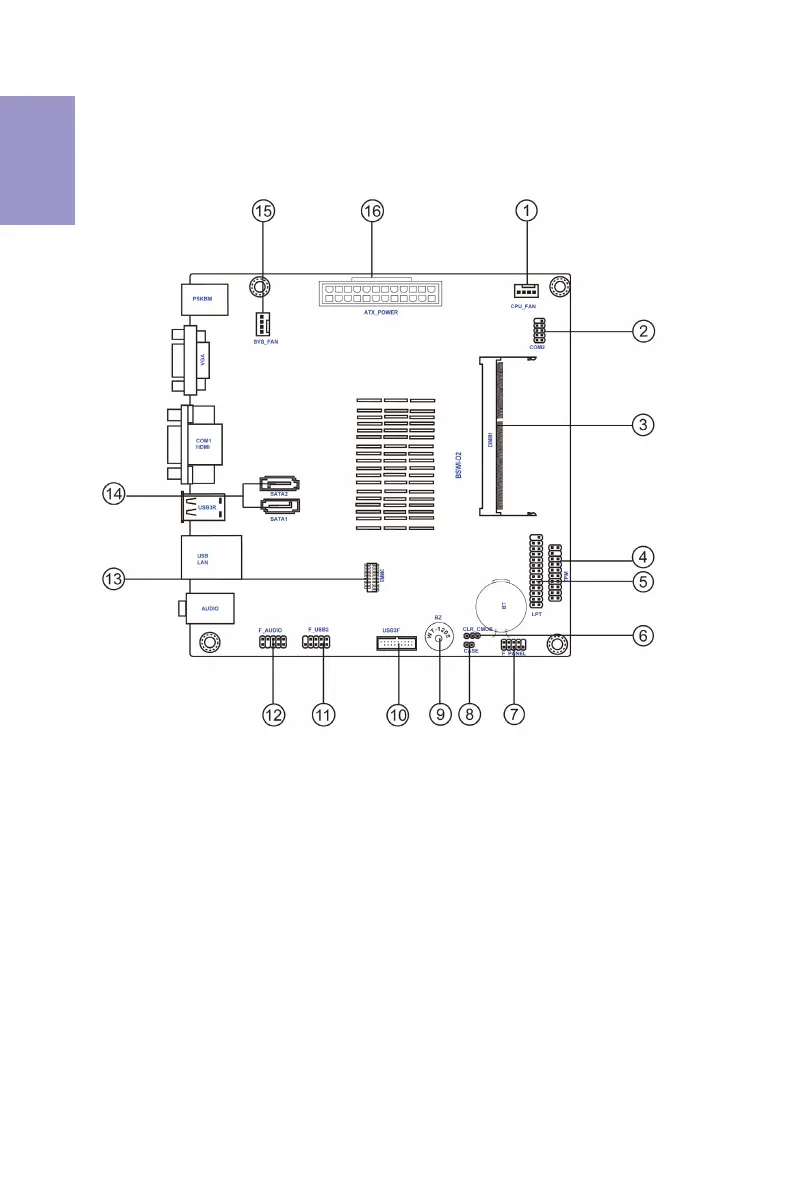

Motherboard Components
*BSWI-D2-N3700/BSWI-D2-N3150/BSWI-D2-N3050 MB image
5
BSWI-D2 USER MANUAL
Chapter 1
LABEL
COMPONENTS
1. CPU_FAN
4-pin CPU cooling fan connector
2. COM2
Onboard serial port header
3. DIMM1
204-pin DDR3L SDRAM SO-DIMM
4. TPM
Trusted platform module header
5. LPT
Onboard parallel port header
6. CLR_CMOS
Clear CMOS jumper

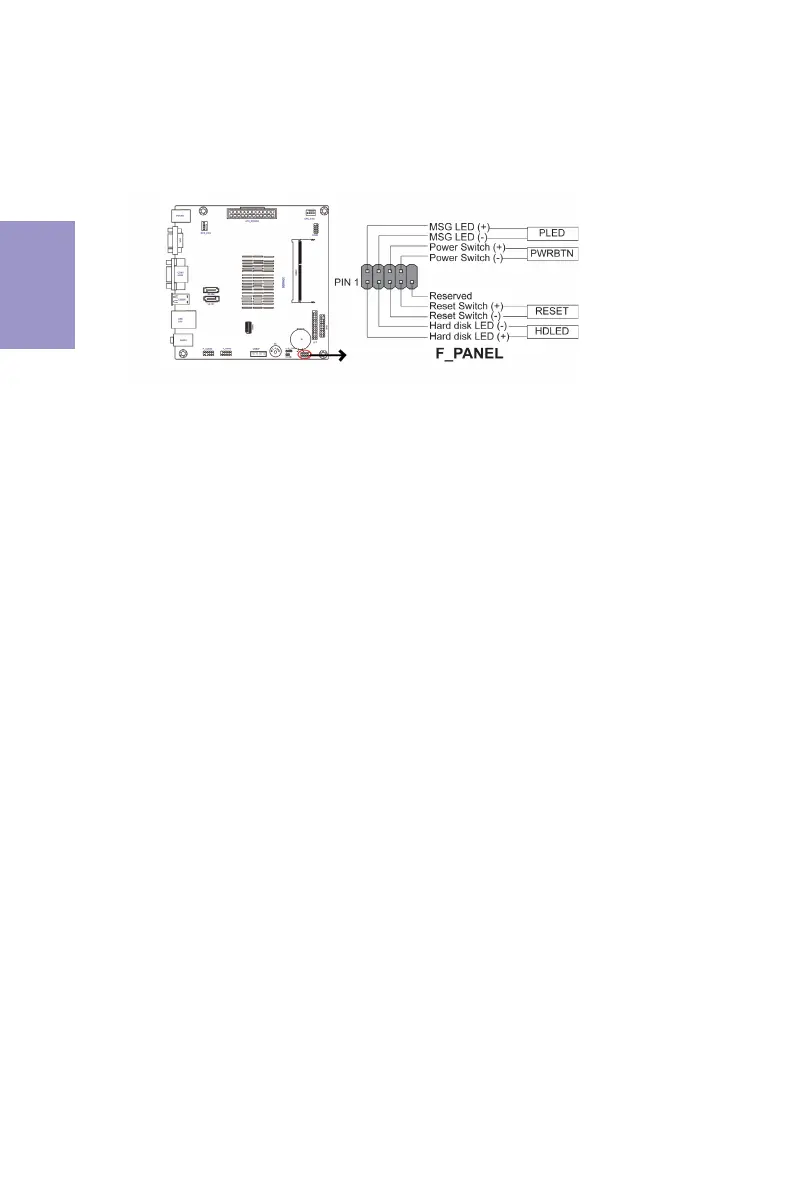

7. F_PANEL
Front panel switch/LED header

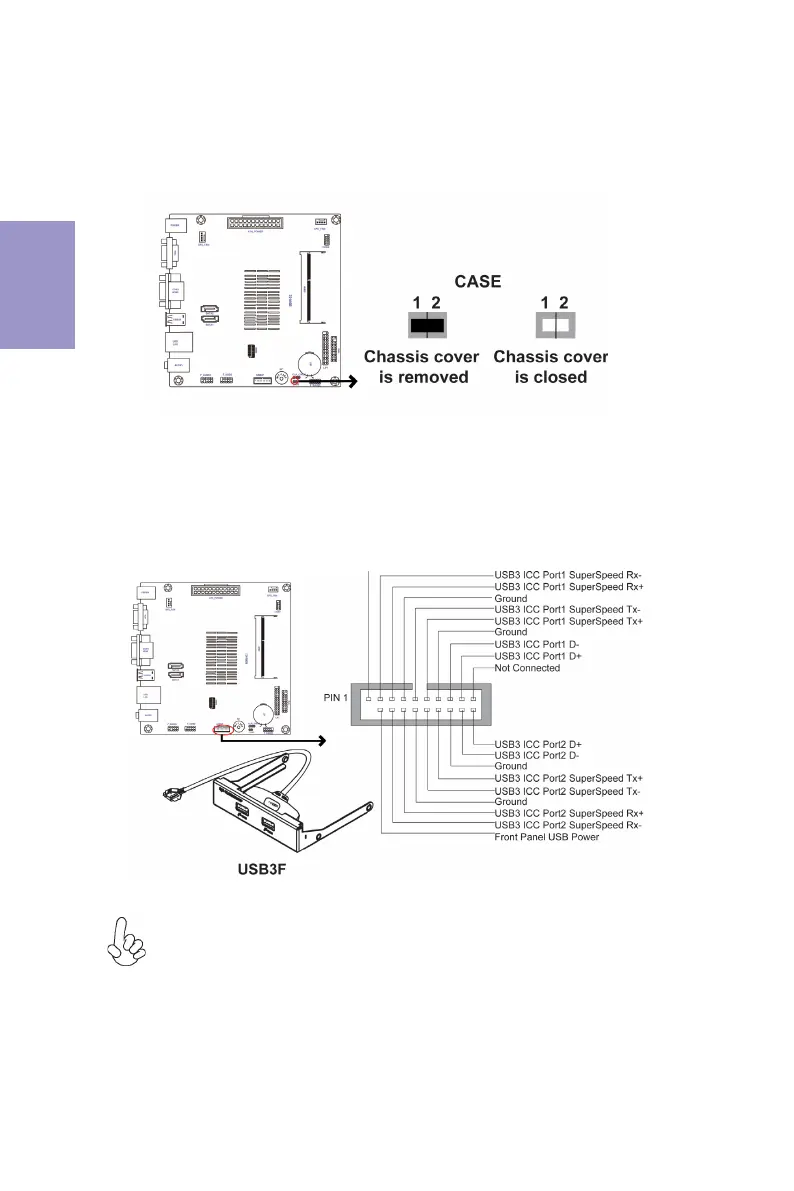

8. CASE
Case open header
9. BZ
Buzzer
10. USB3F
Front panel USB 3.0 header
11. F_USB2
2*5 PIN Front USB 2.0 header
12. F_AUDIO
Front panel audio header
13. EMMC
EMMC header
14. SATA1~2
Serial ATA 6Gb/s connectors
15. SYS_FAN
4-pin system cooling fan connector
16. ATX_POWER
Standard 24-pin ATX Power connector
Table of Motherboard Components (BSWI-D2-N3700/BSWI-D2-N3150/BSWI-
D2-N3050 )
Chapter 1
6
BSWI-D2 USER MANUAL
I/O Ports
1. PS/2 Mouse (green)
Use the upper PS/2 port to connect a PS/2 mouse.
2. PS/2 Keyboard (purple)
Use the lower PS/2 port to connect a PS/2 keyboard.
3. VGA Port
Connect your monitor to the VGA port.
5. HDMI Port
You can connect the display device to the HDMI port.
6. USB 3.0 Ports
Use the USB 3.0 port to connect USB 3.0 device.
7. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
8. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
9. Line-in (blue)
It can be connected to an external CD/DVD player, Tape player or other audio
devices for audio input.
10. Line-out (green)
It is used to connect to speakers or headphones.
11. Microphone (pink)
It is used to connect to a microphone.
LAN LED Status Description
OFF No da ta
Orange blinking Active
OFF No link
Green Link
Activity LED
Link LED
Link LED
LAN Port
4. COM1 Port
Use the COM1 port to connect the serial devices such as mice or fax/modems.
Chapter 2
BSWI-D2 USER MANUAL
7
Chapter 2
Installing the Motherboard
2-1. Safety Precautions
2-2. Installing the motherboard in a Chassis
This motherboard carries a Mini ITX form factor of 170 x 170 mm. Choose a chassis
that accommodates this form factor. Make sure that the I/O template in the chassis
matches the I/O ports installed on the rear edge of the motherboard. Most system
chassis have mounting brackets installed in the chassis, which corresponds to the
holes in the motherboard. Place the motherboard over the mounting brackets and
secure the motherboard onto the mounting brackets with screws.
Follow these safety precautions when installing the motherboard:
• Wear a grounding strap attached to a grounded device to avoid damage
from static electricity.
• Discharge static electricity by touching the metal case of a safely grounded
object before working on the motherboard.
• Leave components in the static-proof bags.
• Always remove the AC power by unplugging the power cord from the power
outlet before installing or removing the motherboard or other hardware
components.
Do not over-tighten the screws as this can stress the motherboard.
Chapter 2
BSWI-D2 USER MANUAL
8
2-3. Checking Jumper Settings
To avoid the system instability after clearing CMOS, we recommend users to
enter the main BIOS setting page to “Load Default Settings” and then “Save
and Exit Setup”.
The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.
Chapter 2
BSWI-D2 USER MANUAL
9
2-4-1. Installing Memory Modules
• This motherboard accommodates one memory module. It can support
one 204-pin DDR3L 1600 MHz.
• Do not remove any memory module from its antistatic packaging until
you are ready to install it on the motherboard. Handle the modules only
by their edges. Do not touch the components or metal parts. Always wear
a grounding strap when you handle the modules.
• You must install one module in the slot. Total memory capacity is 8 GB.
• Refer to the following to install the memory modules.
Install the DIMM module into the slot and press it firmly down until it
seats correctly. Check that the cutouts on the DIMM module edge
connector match the notches in the DIMM slot.
2-4. Installing Hardware
DIMM1
Chapter 2
BSWI-D2 USER MANUAL
10
2-4-2. Connecting Optional Devices
Refer to the following for information on connecting the motherboard’s optional
devices:
No. Components No. Components
1COM26F_USB2
2TPM7F_AUDIO
3 LPT 8 EMMC
4CASE9SATA_1~2
5USB3F~ ~
1. COM2: Onboard Serial Port Header
Connect serial port extension brackets to these headers to add serial ports to your
system.
Chapter 2
BSWI-D2 USER MANUAL
11

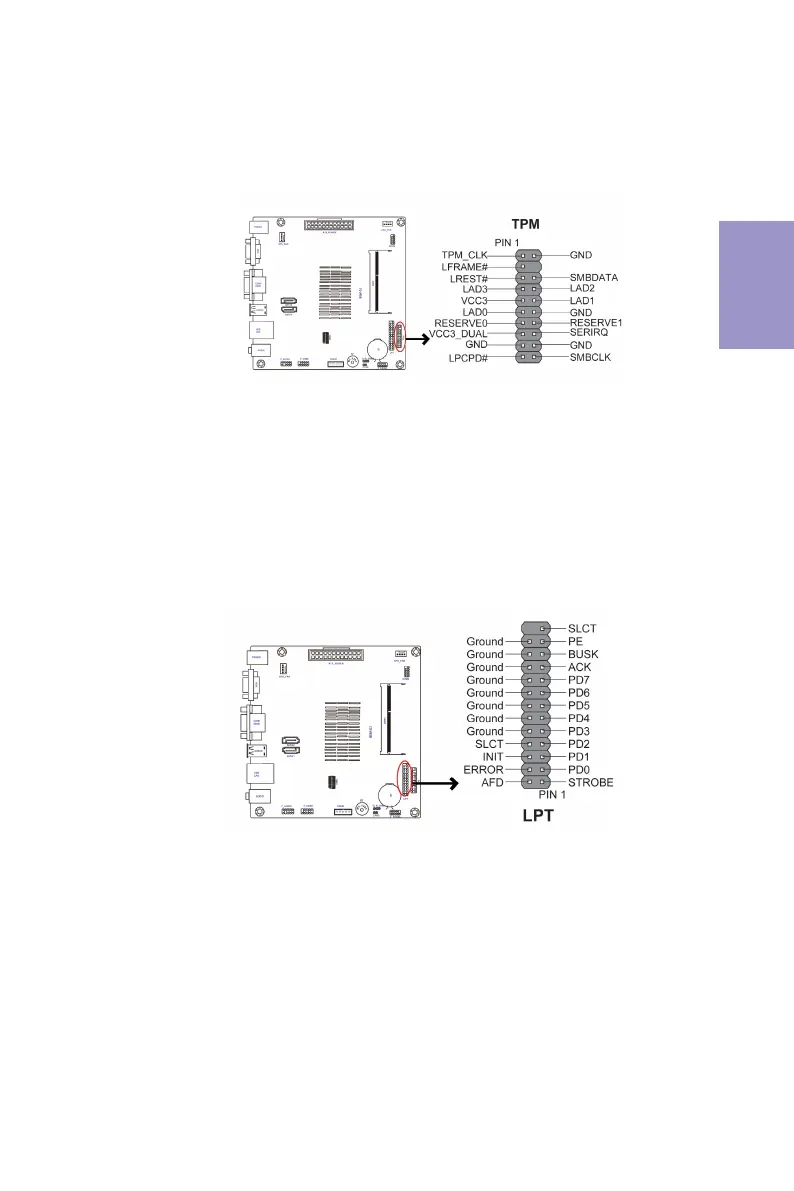

3. LPT: Onboard Parallel Port Header
This header can be used to connect to the printer, scanner or other devices.
2. TPM: Trusted Platform Module header
Tursted Platform Module (TPM) is a publised specification detailing a micro control-
ler that can store secured information, and implementations of that specification.
Chapter 2
BSWI-D2 USER MANUAL
12
4. CASE: Chassis Intrusion Detect Header
This detects if the chassis cover has been removed. This functiion needs a chassis
equipped with intrusion detection switch and needs to be enabled in BIOS.
Please make sure that the USB cable has the same pin assignment as indi-
cated above. A different pin assignment may cause damage or system hang-
up.
This Motherboard implements one USB 3.0 header supporting 2 extra front USB 3.0
ports, which delivers 5Gb/s transfer rate.
5. USB3F: Front Panel USB 3.0 header
Chapter 2
BSWI-D2 USER MANUAL
13
The motherboard has one 2*5-pin USB 2.0 header supporting two USB 2.0 ports.
Additionally, some computer cases have USB 2.0 ports at the front of the case. If you
have this kind of case, use auxiliary USB 2.0 connector to connect the front-mounted
ports to the motherboard.
6. F_USB2: 2*5-pin Front Panel USB 2.0 Header
Please make sure that the USB cable has the same pin assignment as
indicated above. A different pin assignment may cause damage or system
hang-up.
The front panel audio header allows the user to install auxiliary front-oriented
microphone and line-out ports for easier access. This header supports HD audio by
default. If you want connect an AC’ 97 front panel audio to HD onboard headers,
please set as below picture.
7. F_AUDIO: Front Panel Audio Header
Chapter 2
BSWI-D2 USER MANUAL
14

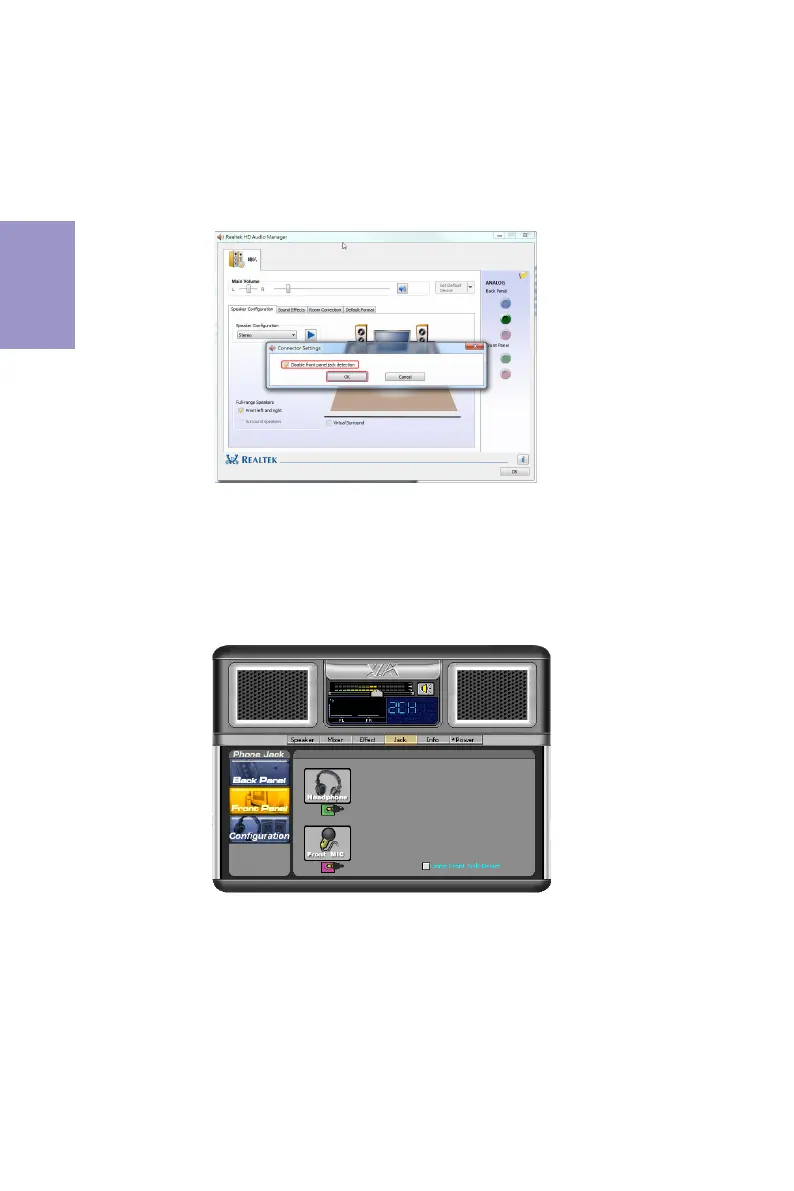

If you use AC’ 97 Front Panel, please don’ t tick off “Using Front Jack Detect ”. If you
use HD Audio Front Panel, please tick off the option of “Using Front Jack Detect ”.
* For reference only
If you use AC’ 97 Front Panel, please tick off the option of “ Disabled Front Panel
Detect
”. If you use HD Audio Front Panel, please don’ t tick off “Disabled Front Panel
Detect
” .
* For reference only
AC’ 97 Audio Configuration: To enable the front panel audio connector to
support AC97 Audio mode.
Chapter 2
BSWI-D2 USER MANUAL
15
SATA 1~2 connectors support the Serial ATA 6Gb/s device, simpler disk drive cabling
and easier PC assembly. It eliminates limitations of the current Parallel ATA
interface. But maintains register compatibility and software compatibility with
Parallel ATA.
9. SATA1~2: Serial ATA Connectors

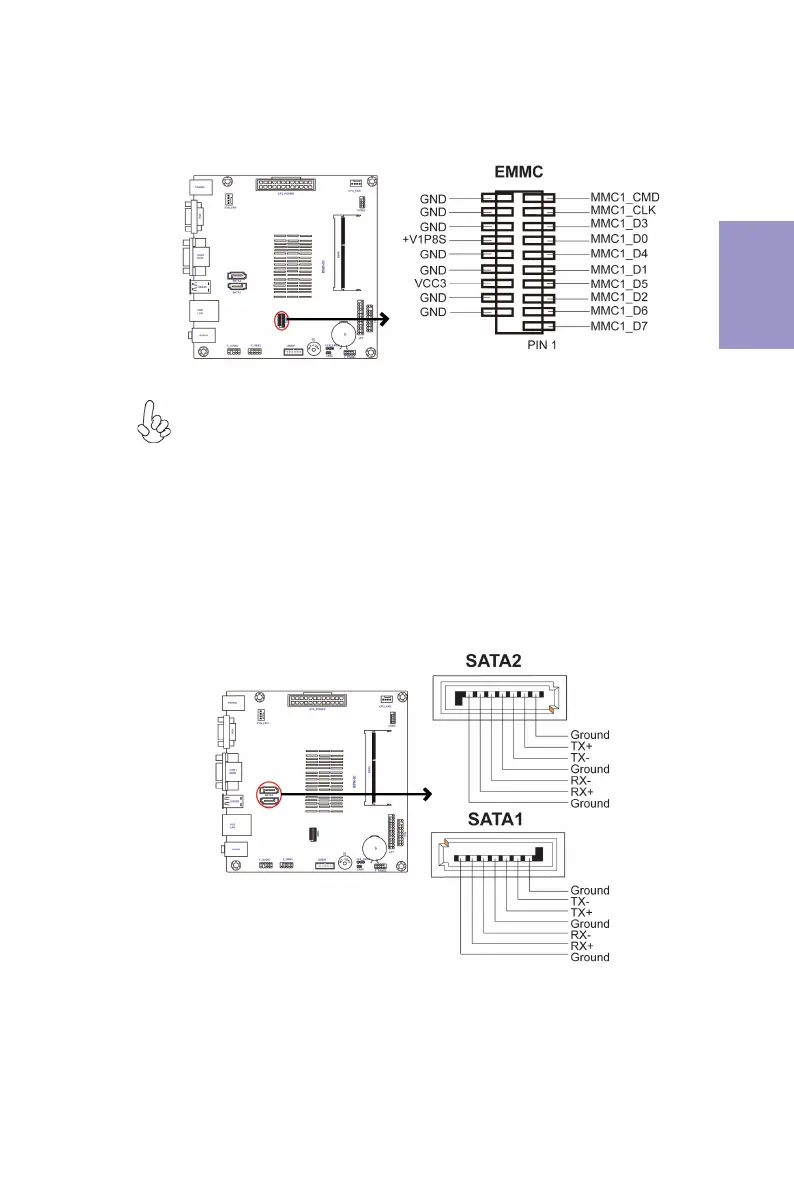

8. EMMC Header
The EMMC-BSW-32G card is not included in the package, you
can buy it separately and install.
Chapter 2
BSWI-D2 USER MANUAL
16
2-4-3. Installing a SATA Hard Drive
This section describes how to install a SATA Hard Drive.
About SATA Connectors
Your motherboard features two SATA connectors supporting a total of two drives.
SATA refers to Serial ATA (Advanced Technology Attachment) is the standard
interface for the IDE hard drives which are currently used in most PCs. These
connectors are well designed and will only fit in one orientation. Locate the SATA
connectors on the motherboard and follow the illustration below to install the SATA
hard drives.

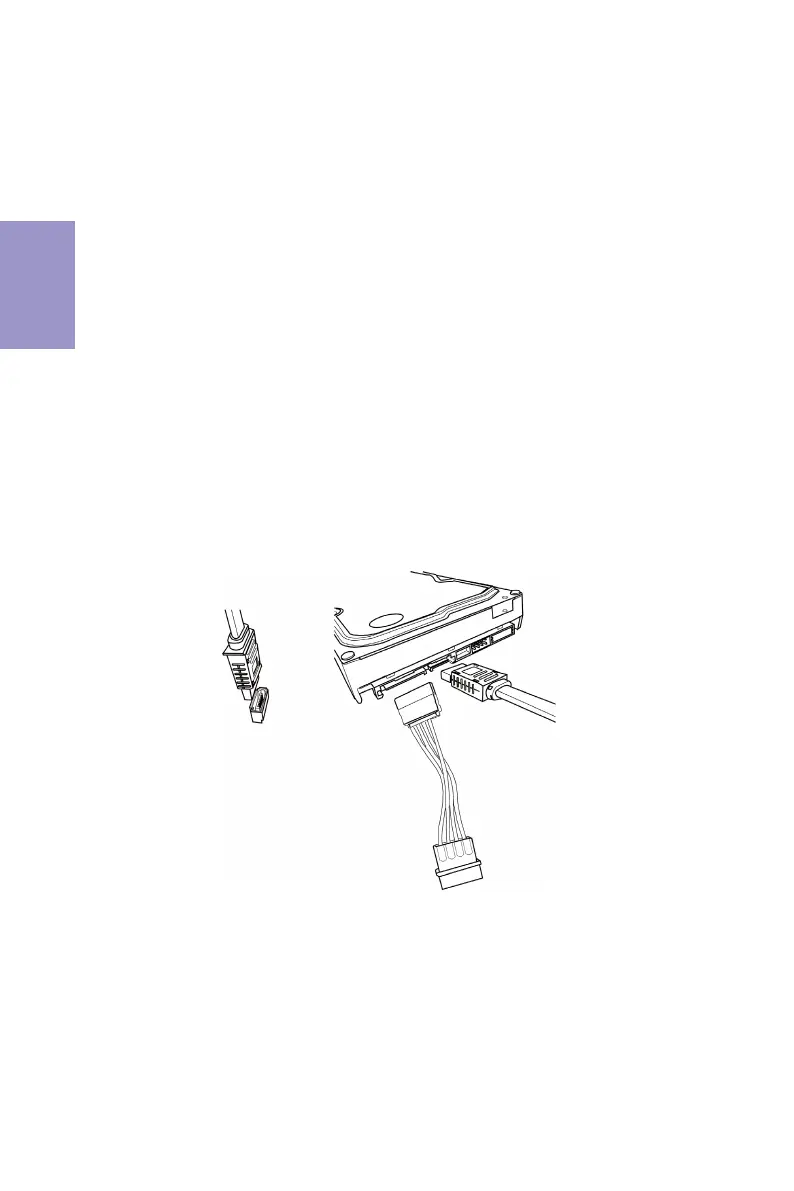

Installing Serial ATA Hard Drives
To install the Serial ATA (SATA) hard drives, use the SATA cable that supports the Serial
ATA protocol. This SATA cable comes with a SATA power cable. You can connect either
end of the SATA cable to the SATA hard drive or the connector on the motherboard.
Refer to the illustration below for proper installation:
1 Attach either cable end to the connector on the motherboard.
2 Attach the other cable end to the SATA hard drive.
3 Attach the SATA power cable to the SATA hard drive and connect the other
end to the power supply.
* For reference only
Chapter 2
BSWI-D2 USER MANUAL
17
After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:
2-4-4. Connecting Case Components
No. Components No. Components
1 CPU_FAN 3 SYS_FAN
2 F_PANEL 4 ATX_POWER
1 & 3. CPU_FAN (CPU Cooling FAN Connector) & SYS_FAN (System Cooling FAN
Connector)
Users please note that the fan connector supports the CPU cooling fan of 1.1A
~ 2.2A (26.4W max) at +12V.
Connect the CPU cooling fan cable to CPU_FAN.
Connect the system cooling fan connector to SYS_FAN.
Chapter 2
BSWI-D2 USER MANUAL
18
Hard Drive Activity LED
Connecting pins 1 and 3 to a front panel mounted LED provides visual indication that
data is being read from or written to the hard drive. For the LED to function properly,
an IDE drive should be connected to the onboard IDE interface. The LED will also
show activity for devices connected to the SCSI (hard drive activity LED) connector.
Power/Sleep/Message waiting LED
Connecting pins 2 and 4 to a single or dual-color, front panel mounted LED provides
power on/off, sleep, and message waiting indication.
Reset Switch
Supporting the reset function requires connecting pin 5 and 7 to a momentary-con-
tact switch that is normally open. When the switch is closed, the board resets and
runs POST.
Power Switch
Supporting the power on/off function requires connecting pins 6 and 8 to a momen-
tary-contact switch that is normally open. The switch should maintain contact for at
least 50 ms to signal the power supply to switch on or off. The time requirement is
due to internal de-bounce circuitry. After receiving a power on/off signal, at least
two seconds elapses before the power supply recognizes another on/off signal.
2. F_PANEL: Front Panel Header
The front panel header (F_PANEL) provides a standard set of switch and LED headers
commonly found on ATX or Micro ATX cases. Refer to the table below for information:
Chapter 2
BSWI-D2 USER MANUAL
19
The ATX 24-pin connector allows you to connect to ATX v2.x power supply.
With ATX v2.x power supply, users please
note that when installing 24-pin power
cable, the latches of power cable and the
ATX match perfectly.
Connecting 24-pin power cable
24-pin power cable
4. ATX_POWER (ATX 24-pin Power Connector)
Connect the standard power supply connector to ATX_POWER.
Chapter 2
BSWI-D2 USER MANUAL
20
Memo
Chapter 3
BSWI-D2 USER MANUAL
21
About the Setup Utility
The computer uses the latest “American Megatrends Inc. ” BIOS with support for
Windows Plug and Play. The CMOS chip on the motherboard contains the ROM setup
instructions for configuring the motherboard BIOS.
The BIOS (Basic Input and Output System) Setup Utility displays the system’s
configuration status and provides you with options to set system parameters. The
parameters are stored in battery-backed-up CMOS RAM that saves this information
when the power is turned off. When the system is turned back on, the system is
configured with the values you stored in CMOS.
The BIOS Setup Utility enables you to configure:
• Hard drives, diskette drives and peripherals
• Video display type and display options
• Password protection from unauthorized use
• Power Management features
The settings made in the Setup Utility affect how the computer performs. Before
using the Setup Utility, ensure that you understand the Setup Utility options.
This chapter provides explanations for Setup Utility options.
The Standard Configuration
A standard configuration has already been set in the Setup Utility. However, we
recommend that you read this chapter in case you need to make any changes in the
future.
This Setup Utility should be used:
• when changing the system configuration
• when a configuration error is detected and you are prompted to make
changes to the Setup Utility
• when trying to resolve IRQ conflicts
• when making changes to the Power Management configuration
• when changing the password or making other changes to the Security
Setup
Entering the Setup Utility
When you power on the system, BIOS enters the Power-On Self Test (POST) routines.
POST is a series of built-in diagnostics performed by the BIOS. After the POST routines
are completed, the following message appears:
Press DEL to enter SETUP
Chapter 3
Using BIOS
Chapter 3
BSWI-D2 USER MANUAL
22
Press the delete key to access BIOS Setup Utility.
Using BIOS
When you start the Setup Utility, the main menu appears. The main menu of the
Setup Utility displays a list of the options that are available. A highlight indicates
which option is currently selected. Use the cursor arrow keys to move the highlight
to other options. When an option is highlighted, execute the option by pressing
<Enter>.
Some options lead to pop-up dialog boxes that prompt you to verify that you wish to
execute that option. Other options lead to dialog boxes that prompt you for
information.
Some options (marked with a triangle ) lead to submenus that enable you to change
the values for the option. Use the cursor arrow keys to scroll through the items in the
submenu.
Resetting the Default CMOS Values
When powering on for the first time, the POST screen may show a “CMOS Settings
Wrong” message. This standard message will appear following a clear CMOS data
at factory by the manufacturer. You simply need to Load Default Settings to reset
the default CMOS values.
Note: Changes to system hardware such as different CPU, memories, etc. may
also trigger this message.
BIOS Information
System Language [English]
System Date [Tue 07/28/2015]
System Time [00:06:28]
+/- :Change Opt.
Enter : Select
F1:General Help
Choose the system default
language.
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Main Advanced Chipset M.I.B X Boot Security Exit
Chapter 3
BSWI-D2 USER MANUAL
23
The default BIOS setting for this motherboard apply for most conditions
with optimum performance. We do not suggest users change the default
values in the BIOS setup and take no responsibility to any damage caused
by changing the BIOS settings.
BIOS Navigation Keys
The BIOS navigation keys are listed below:
KEY FUNCTION
Scrolls through the items on a menu
+/- Modifies the selected field’s values
F2 Previous Values
F3 Optimized Defaults
F1 General Help
ESC Exits the current menu
Enter Select
In this manual, default values are enclosed in parenthesis. Submenu items are
denoted by a triangle .
F4 Save & Exit
For the purpose of better product maintenance, the manufacture reserves
the right to change the BIOS items presented in this manual. The BIOS setup
screens shown in this chapter are for reference only and may differ from
the actual BIOS. Please visit the manufacture’s website for updated
manual.
Chapter 3
BSWI-D2 USER MANUAL
24
System Language (English)
This item is used to set the language.
System Date & Time
The Date and Time items show the current date and time on the computer. If you are
running a Windows OS, these items are automatically updated whenever you make
changes to the Windows Date and Time Properties utility.
The Advanced menu items allow you to change the settings for the CPU and other
system.
Advaned Menu
When you enter the BIOS Setup program, the main menu appears, giving you an
overview of the basic system information. Select an item and press <Enter> to
display the submenu.
Main Menu
BIOS Information
System Language [English]
System Date [Tue 07/28/2015]
System Time [00:06:28]
+/- :Change Opt.
Enter : Select
F1:General Help
Choose the system default
language.
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Main Advanced Chipset M.I.B X Boot Security Exit
+/- :Change Opt.
Enter : Select
F1:General Help
ACPI Power Management
Configuration
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Main Advanced Chipset M.I.B X Boot Security Exit
Power Management Setup
PC Health Status
LAN Configuration
Wireless Function Configuration
ACPI Settings
CPU Configuration
SATA Configuration
USB Configuration
Super IO Configuration
Platform Trust Technology
Trusted Computing
Chapter 3
BSWI-D2 USER MANUAL
25
Power Management Setup
This page sets up some parameters for system power management operation.
Press <Esc> to return to the Advanced Menu page.
Resume By PME (Disabled)
The system can be turned off with a software command. If you enable this item, the
system can automatically resume if there is an incoming call on the PCI/PCI-E
Modem or PCI/PCI-E LAN card. You must use an ATX power supply in order to use this
feature. Use this item to do wake-up action if inserting the PCI/PCI-E card.
Resume By USB (Disabled)
This item allows you to enable or disable the USB device wakeup function from S3
mode.
Resume By PS2 KB (Disabled)
This item enables or disables you to allow keyboard activity to awaken the system
from power saving mode.The system can be turned off with a software command.
If you enable this item, the system can automatically resume at a fixed time
basedon the system’s RTC (realtime clock). Use the items below this one to set
the date and time of the wake-up alarm. You must use an ATX power supply in order
to use this feature.
Resume By RTC Alarm (Disabled)
EUP Function (Enabled)
This item allows user to enable or disable EUP support.
Power LED Type (Dual Color LED)
This item shows the type of the Power LED.
The system can be turned off with a software command. If you enable this item,
the system can automatically resume at a fixed time based on the system’s RTC
(realtime clock). Use the items below this one to set the date and time of the wake-
up alarm. You must use an ATX power supply in order to use this feature.
Resume By PS2 MS (Disabled)
This item enables or disables you to allow mouse activity to awaken the system
from power saving mode.
+/- :Change Opt.
Enter : Select
F1:General Help
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Main
Advanced Chipset M.I.B X Boot Security Exit
Power Management Setup
Resume By PME [Disabled]
Resume By USB [Disabled]
Resume By PS2 KB [Disabled]
Resume By PS2 MS [Disabled]
Resume By RTC Alarm [Disabled]
EUP Function [Enabled]
Power LED Type [Dual Color LED]
About Resume by
PCI/PCI-E/LAN/Ext.USB 3.0 PME
Chapter 3
BSWI-D2 USER MANUAL
26
PC Health Status
On motherboards support hardware monitoring, this item lets you monitor the
paremeters for critical voltages, temperatures and fan speeds.
Smart Fan Mode (Normal)
This item allows you to select the fan mode (Normal, Quiet, Silent, or Manual) for a
better operation environment. If you choose Normal mode, the fan speed will be
auto adjusted depending on the CPU temperature. If you choose Quite mode, the
fan speed will be auto minimized for quiet environment. If you choose Silent mode,
the fan speed will be auto restricted to make system more quietly. If you choose
Manual mode, the fan speed will be adjust depending on users’ parameters.
Version 2.02.1205. Copyright (C) 2012, American Megatrends, Inc.
Scroll to this item and press <Enter> to view the following screen:
Smart Fan Function
+/- :Change Opt.
Enter : Select
F1:General Help
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Main
Advanced Chipset M.I.B X Boot Security Exit
SoC Temperature 32°C
System Temperature 32°C
CPU Fan Speed 0 RPM
System Fan Speed 0 RPM
CPU Voltage 0.814V
DIMM Voltage 1.364V
+12V 12.474V
+5V 5.027V
+3.3V 3.520V
Smart Fan Function
PC Health Status
+/- :Change Opt.
Enter : Select
F1:General Help
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Main Advanced Chipset M.I.B X Boot Security Exit
Smart Fan Select [CPU]
Smart Fan Mode [Normal]
Smart Fan start PWM value 180
Smart Fan start PWM TEMP (°C) 45
DeltaT 3
Smart Fan Slope PWM value 10
Fan Full Limit Temp (°C) 52
Smart Fan Select
Smart Fan Select (CPU)
This item allows you to change and configure Smart Fans on CPU Fan or System Fan.
Smart Fan start PWM value (180)
This item is used to set the start PWM value of the smart fan.
Chapter 3
BSWI-D2 USER MANUAL
27
Smart Fan start PWM TEMP (°C) (45)
This item is used to set the start temperature of the smart fan.
DeltaT (3)
This item specifies the range that controls CPU temperature and keeps it from going
so high or so low when smart fan works.
Smart Fan Slope PWM value (10)
This item is used to set the Slope Select PWM of the smart fan.
Press <Esc> to return to the PC Health Status page.
• SoC Temperature
• System Temperature
• CPU Fan Speed
• System Fan Speed
• CPU Voltage
• DIMM Voltage
• +12V
• +5V
• +3.3V
System Component Characteristics
These items display the monitoring of the overall inboard hardware health events,
such as System & CPU temperature, CPU & DIMM voltage, CPU & system fan
speed,... etc.
Press <Esc> to return to the Advanced Menu page.
This item is used to monitor limit temperature when fan is full speed.
Fan Full Limit Temp (°C) (52)
Chapter 3
BSWI-D2 USER MANUAL
28
Onboard LAN Controller (Enabled)
Use this item to enable or disable the Onboard LAN.
LAN Configuration
The item in the menu shows the LAN-related information that the BIOS
automatically detects.
Press <Esc> to return to the Advanced Menu page.
+/- :Change Opt.
Enter : Select
F1:General Help
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Main Advanced Chipset M.I.B X Boot Security Exit
LAN Configuration
Onboard LAN Controller [Enabled]
Enabled/Disabled Onboard LAN 1
Controller
Chapter 3
BSWI-D2 USER MANUAL
29
Wireless Function Configuration
The item in the menu shows the Wireless Fucntion Configuration.
+/- :Change Opt.
Enter : Select
F1:General Help
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Wireless Function Configuration
Main Advanced Chipset M.I.B X Boot Security Exit
Chapter 3
BSWI-D2 USER MANUAL
30
ACPI Settings
The item in the menu shows the highest ACPI sleep state when the system enters
suspend.
ACPI Sleep State (S3(Suspend to RAM))
This item allows user to enter the ACPI S3 (Suspend toRAM) Sleep State(default).
Press <Esc> to return to the Advanced Menu page.
+/- :Change Opt.
Enter : Select
F1:General Help
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Main
Advanced Chipset M.I.B X Boot Security Exit
ACPI Settings
ACPI Sleep State [S3 (Suspend to RAM)]
Select the highest ACPI sleep
state the system will enter
when the SUSPEND button is
pressed.
Chapter 3
BSWI-D2 USER MANUAL
31
CPU Configuration
The item in the menu shows the CPU information.
Scroll to this item and press <Enter> to view the following screen:
Socket 0 CPU Information
Intel(R) Pentium(R) CPU N3700 @ 1.60GHZ
This is display-only field and displays the information of the CPU installed in your
computer.
CPU Signature (406c3)
This item shows the information of the CPU signature.
Microcode Patch (34c)
This item shows the version of Microcode patch.
Max CPU Speed (1600 MHz)
This item shows the max speed of the CPU.
Min CPU Speed (480 MHz)
This item shows the min speed of the CPU.
+/- :Change Opt.
Enter : Select
F1:General Help
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Main
Advanced Chipset M.I.B X Boot Security Exit
CPU Configuration
Socket 0 CPU Information
CPU Speed 1600 MHz
64-bit Supported
Limit CPUID Maximum [Disabled]
Bi-directional PROCHOT [Enabled]
Intel Virtualization Technology [Enabled]
Power Technology [Energy Efficient]
Enhanced Halt (C1E) [Enabled]
Socket specific CPU Information
+/- :Change Opt.
Enter : Select
F1:General Help
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Main Advanced Chipset M.I.B X Boot Security Exit
Socket 0 CPU Information
Intel(R) Pentium(R) CPU N3700 @ 1.60GHz
CPU Signature 406c3
Microcode Patch 34c
Max CPU Speed 1600 MHz
Min CPU Speed 480 MHz
Processor Cores 4
Intel HT Technology Not Supported
Intel VT-X Technology Supported
L1 Data Cache 24 KB X 4
L1 Code Cache 32 KB X 4
L2 Cache 1024 KB X 2
L3 Cache Not Present
Chapter 3
BSWI-D2 USER MANUAL
32
CPU Speed (1600 MHz)
This item shows the processor speed.
Bi-directional PROCHOT (Enabled)
Use this item to enable or disable the Bi-directional PROCHOT.
64-bit (Supported)
This item shows the CPU installed in your computer support 64-bit or not.
Limit CPUID Maximum (Disabled)
Use this item to enable or disable the maximum CPUID value limit, you can enable
this to prevent the system from “rebooting” when trying to install Windows NT 4.0.
Processor Cores (4)
This item shows the number of cores of the processor.
Intel HT Technology (Not Supported)
This item shows the computer supports Intel HT technology or not.
Intel VT-X Technology (Supported)
This item shows the computer supports Intel VT-X technology or not.
L1 Data Cache (24 KB X 4)
This item shows the size of CPU L1 Data Cache memory.
L1 Code Cache (32 KB X 4)
This item shows the size of CPU L1 Code Cache memory.
L2/L3Cache (1024 KB X 2/Not present)
These items show the size of CPU L2/L3 Cache memory.
Press <Esc> to return to the CPU Configuration page.
Intel Virtualization Technology (Enabled)
When enabled, a VMM can utilize the additional hardware capabilities provided by
Vandor Pool Technology.
Power Technology (Energy Efficient)
This item enables or disables the power management features.
Enhanced Halt (C1E) (Enabled)
Use this item to enable the CPU energy-saving function when the system is not
running.
Press <Esc> to return to the Advanced Menu page.
Chapter 3
BSWI-D2 USER MANUAL
33
SATA Configuration
Use this item to show the mode of serial SATA configuration options.
SATA Port1/2 (Not Present)
This motherboard supports two SATA channels, and each channel allows one SATA
device to be installed. These items will display the information of devices installed.
SATA Mode (AHCI)
Use this item to select SATA mode.
Press <Esc> to return to the Advanced Menu page.
+/- :Change Opt.
Enter : Select
F1:General Help
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Main Advanced Chipset M.I.B X Boot Security Exit
SATA Configuration
SATA Mode [AHCI]
SATA Port1 Not Present
SATA Port2 Not Present
Determines how SATA controller
operate.
Chapter 3
BSWI-D2 USER MANUAL
34
All USB Devices (Enabled)
Use this item to enable or disable all USB devices.
USB Configuration
Use this item to show the information of USB configuration.
Press <Esc> to return to the Advanced Menu page.
+/- :Change Opt.
Enter : Select
F1:General Help
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Main
Advanced Chipset M.I.B X Boot Security Exit
USB Configuration
All USB Devices [Enabled]
Legacy USB Support [Enabled]
USB Support Parameters
Legacy USB Support (Enabled)
Use this item to enable or disable support for legacy USB devices.
Chapter 3
BSWI-D2 USER MANUAL
35
+/- :Change Opt.
Enter : Select
F1:General Help
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Serial Port 1 Configuration
Serial Port [Enabled]
Device Settings IO=3F8h; IRQ=4;
Change Settings [Auto]
Enable or Disable Serial Port
(COM)
Super IO Configuration
Use this item to show the information of Super IO configuration.
Serial Port 1 Configuration
Scroll to this item and press <Enter> and view the following screen.
Serial Port (Enabled)
This item allows you to enable or disable serial port.
Device Settings (IO=3F8h; IRQ=4)
This item shows the information of the device settings.
Change Settings (Auto)
Use this item to change device settings.
Press <Esc> to return to the Super IO Configuration page.
Super IO Chip (IT8625)
This item shows the information of the super IO chip.
+/- :Change Opt.
Enter : Select
F1:General Help
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Main Advanced Chipset M.I.B X Boot Security Exit
Super IO Configuration
Super IO Chip IT8625
Serial Port 1 Configuration
Serial Port 2 Configuration
Parallel Port Configuration
Set Parameters of Serial Port
1 (COMA)
Main Advanced Chipset M.I.B X Boot Security Exit
Chapter 3
BSWI-D2 USER MANUAL
36
Boot Option #1 (Windows Boot Manager)
Use this item to set the order ot this item to set
ME Subsystem
+/- :Change Opt.
Enter : Select
F1:General Help
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Main Advanced Chipset M.I.B X Boot Security Exit
Serial Port 2 Configuration
Scroll to this item and press <Enter> and view the following screen.
Serial Port (Enabled)
This item allows you to enable or disable serial port.
Device Settings (IO=2F8h; IRQ=3)
This item shows the information of the device settings.
Change Settings (Auto)
Use this item to change device settings.
Press <Esc> to return to the Super IO Configuration page.
Serial Port 2 Configuration
Serial Port [Enabled]
Device Settings IO=2F8h; IRQ=3;
Change Settings [Auto]
Enable or Disable Serial Port
(COM)
Chapter 3
BSWI-D2 USER MANUAL
37
+/- :Change Opt.
Enter : Select
F1:General Help
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Main Advanced Chipset M.I.B X Boot Security Exit
Parallel Port Configuration
Parallel Port [Enabled]
Device Settings IO=378h; IRQ=5;
Change Settings [Auto]
Device Mode [Standard Parallel...]
Enable or Disable Parallel
Port (LPT/LPTE)
Parallel Port Configuration
Scroll to this item and press <Enter> and view the following screen.
Parallel Port (Enabled)
This item allows you to enable or disable serial port.
Device Settings (IO=378h; IRQ=5)
This item shows the information of the device settings.
Change Settings (Auto)
Use this item to change device settings.
Device Mode (Standard Parallel...)
This item is used for Printer port mode selection, it can be set to Standard Parallel
Port Mode (SPP) or EPP Mode.
Press <Esc> to return to the Super IO Configuration page.
Chapter 3
BSWI-D2 USER MANUAL
38
fTPM (Disabled)
Platform Trust Configuration
Use this item to show the information of platform trust configuration.
Press <Esc> to return to the Advanced Menu page.
+/- :Change Opt.
Enter : Select
F1:General Help
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Main
Advanced Chipset M.I.B X Boot Security Exit
TPM Configuration
fTPM [Disabled]
Enable/Disable fTPM
Use this item to enable or disable the fTPM support.
Chapter 3
BSWI-D2 USER MANUAL
39
Security Device Support (Enabled)
Trusted Computing
Use this item to show the information of trusted computing configuration.
Press <Esc> to return to the Advanced Menu page.
+/- :Change Opt.
Enter : Select
F1:General Help
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Main
Advanced Chipset M.I.B X Boot Security Exit
Configuration
Security Device Support [Enabled]
Device Select [Auto]
Current Status Information
NO Security Device Found
Enable or Disables BIOS
support for security devices.
O.S. will not show Security
Device Select (Auto)
Device.TCG EFI procotol and
INTIA interface will not be
available.
TPM 1.2 will restrict support to TPM 1.2 devices, TPM 2.0 will restrict support to
TPM 2.0 devices, Auto will support both with default set to TPM 2.0 devices if
not found, TPM 1.2 devices will be enumerated.
Enable or Disable BIOS support for security devices. O.S. will not show security
devices. TCG EFI procotol and INTIA interface will not be available.
Chapter 3
BSWI-D2 USER MANUAL
40
SoC Configuration
Scroll to this item and press <Enter> and view the following screen.
The chipset menu items allow you to change the settings for the SoC chip and other
system.
Chipset Menu
+/- :Change Opt.
Enter : Select
F1:General Help
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
SoC Parameters
SoC Configuration
TXE Information
Main Advanced Chipset M.I.B X Boot Security Exit
DVMT Pre-Allocated (64M)
This item is used to select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size
used by the Internal Graphics Device.
DVMT Total Gfx Mem (256MB)
This item shows the information of DVMT 5.0 total graphic memory size used by
Internal Graphics Device.
Restore AC Power Loss (Power Off)
This item enables your computer to automatically restart or return to its operating
status.
+/- :Change Opt.
Enter : Select
F1:General Help
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Select DVMT 5.0 Pre-
Allocated (Fixed) Graphics
Memory size used by the
Internal Graphics Device.
Main Advanced Chipset M.I.B X Boot Security Exit
SoC Configuration
DVMT Pre-Allocated [64M]
DVMT Total Ffx Mem [256MB]
Restore AC Power Loss [Power off]
Audio Configuration
Azalia HD Audio [Enabled]
Azalia HDMI Codec [Enabled]
Case Open Warning [Disabled]
Chassis Opened [No]
Chapter 3
BSWI-D2 USER MANUAL
41
TXE Information
Scroll to this item and press <Enter> to view the following screen.
Press <Esc> to return to the Chipset Menu page.
Azalia HDMI Codec (Enabled)
This item enables or disables Azalia HDMI codec.
Sec RC Version (00.05.00.00)
This item shows the Sec Reference Code Version.
TXE FW Version (02.00.00.2060)
This item shows the TXE Firmware Version.
TXE Mode (Enabled)
This is TXE mode control item, it is used to enable or disable the TXE firmware.
Case Open Warning (Disabled)
This item enables or disables the warning if the case is opened up, and the item
below indicates the current status of the case.
Chassis Opened (No)
This item indicates whether the case has been opened.
Audio Controller (Enabled)
This item enables or disables Audio controller.
+/- :Change Opt.
Enter : Select
F1:General Help
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Main Advanced Chipset M.I.B X Boot Security Exit
Note !!! TXE status will be change.
System will turn off. Please press
Power Button to power on the
system.
TXE Information
Sec RC Version 00.05.00.00
TXE FW Version 02.00.00.2060
TXE Mode [Enabled]
Chapter 3
BSWI-D2 USER MANUAL
42
M.I.B X (MB Intelligent BIOS X)
CPU Frequency 80.0 MHz
CPU Ratio 20
Intel(R) Pentium(R) CPU 3700 @ 1.60 GHz
CPU Speed 1.60 GHz
Memory Frequency 1600 MHz
Total Memory 2048 MB (LPDDR3)
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
Main Advanced Chipset M.I.B X Security Boot Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
+/- : Change Opt.
:Select Screen
:Select Item
F1:General Help
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Enter : Select
CPU Frequency (80.0 MHz)
This item shows the frequency of CPU reference clock.
CPU Ratio (20)
This item shows the max CPU ratio supported.
Intel(R) Pentimu(R) CPU 3700 @ 1.60 GHz
This is display-only field and displays the information of the CPU installed in your
computer.
CPU Speed (1.60 GHz)
This item shows the CPU speed.
Memory Frequency (1600 MHz)
This item shows the memory frequency.
Total Memory (2048 MB (LPDDR3))
This item shows the total memory.
This page displays the information of clock speeds and enables you to set the
memory voltage for your system. The clock speeds are determined by the kind of
processor installed in your system.
M.I.B X (MB Intelligent BIOS X) Menu
Chapter 3
BSWI-D2 USER MANUAL
43
This page enables you to set the keyboard NumLock state.
Boot Menu
Fast Boot (Disabled)
Use this item to enable or disable the fast boot.
Bootup NumLock State (On)
This item enables you to select NumLock state.
Set Boot Priority
This item enables you to set boot priority for all boot devices.
Boot Option #1/ 2/ 3/ 4/ 5/ 6/ 7/ 8
These items show the boot priorities and can be used to set the boot priorities of
various device categories.
Operation System Select (Windows 8.x)
This item is used to select the operation system.
Launch Network OpROM (Disabled)
The item enables or disables launch Network Option ROM.
Boot Mode select (UEFI)
Use this item to select boot mode.
UEFI USB Flash Drive Priorities
This item enables you to specify the sequence of loading the operating system from
the installing UEFI USB Flash drive. Press <Enter> to see the submenu.
+/- :Change Opt.
Enter : Select
F1:General Help
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Main Advanced Chipset M.I.B X
Boot Security Exit
Windows 7 or other OS: Boot
policy for Legacy OS
Windows 8.x: Boot policy for
UEFI OS without Compatibility
Support Module(CSM)
Boot Configuration
Operation System Select [Windows 8.x]
Launch Network OpROM [Disabled]
Fast Boot [Disabled]
Bootup NumLock State [On]
Quiet Boot [Enabled]
Boot Mode Select [UEFI]
Set Boot Priority
Boot Option #1 [Hard Disk]
Boot Option #2 [CD/DVD]
Boot Option #3 [USB/Floppy]
Boot Option #4 [USB CD/DVD]
Boot Option #5 [USB Hard Disk]
Boot Option #6 [USB Flash: UEFI: J...]
Boot Option #7 [USB Lan]
Boot Option #8 [Network]
UEFI USB Flash Drive Priorities
Quiet Boot (Enabled)
Use this item to enable or disable the Quiet boot.
Chapter 3
BSWI-D2 USER MANUAL
44
This page enables you to set setup administrator and password.
Security Menu
Administrator Password Status (Not Installed)
This item shows administrator password installed or not.
User Password Status (Not Installed)
This item shows user password installed or not.
Secure Boot menu
Scroll to this item and press <Enter> to view the following screen.
System Mode (Setup)
This item shows system of secure boot (can be setup or user).
Secure Boot (Not Active)
This item shows the active state of secure boot.
Vendor Keys (Not Active)
This item shows the active state of vendor keys.
+/- :Change Opt.
Enter : Select
F1:General Help
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Set Administrator Password
Administrator Password Status Not Installed
User Password Status Not Installed
Administrator Password
Secure Boot menu
+/- :Change Opt.
Enter : Select
F1:General Help
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Secure Boot can be enabled if
1. System running in User mode
with enrolled Platform Key(PK)
2. CSM function is disabled
System Mode Setup
Secure Boot Not Active
Vendor Keys Not Active
Secure Boot [Enabled]
Secure Boot Mode [Standard]
Main Advanced Chipset M.I.B X Boot Security Exit
Main Advanced Chipset M.I.B X Boot Security Exit
Secure Boot (Enabled)
Use this item to enable or disable secure boot state.
Chapter 3
BSWI-D2 USER MANUAL
45
Secure Boot Mode (Standard)
This item is used to select secure boot mode. When you select standard mode,
secure boot policy is fixed; when you select custom mode, the image execution policy
and secure boot key databases are changeable.
Chapter 3
BSWI-D2 USER MANUAL
46
This page enables you to exit system setup after saving or without saving the
changes.
Exit Menu
Save Options
Use this item enables you to save the options that you have made.
Save Changes
Use this item enables you to save the changes that you have made.
Discard Changes
Use this item enables you to discard any changes that you have made.
Restore Defaults
Use this item enables you to restore the system defaults.
Save as User Defaults
Use this item enables you to save the changes that you have made as user defaults.
Restore User Defaults
Use this item enables you to restore user defaults to all the setup options.
Save Changes and Exit
Use this item enables you to exit system setup after saving the changes.
Discard Changes and Exit
Use this item enables you to exit system setup without saving any changes.
Save Changes and Reset
Use this item enables you to reset the system setup after saving the changes.
Discard Changes and Reset
Use this item enables you to reset system setup without saving any changes.
Boot Override
Use this item enables you to set the device order.
+/- :Change Opt.
Enter : Select
F1:General Help
Aptio Setup Utility - Copyright (C) 2015 American Megatrends, Inc.
:Select Screen
:Select Item
F2:Previous Values
F3:Optimized Defaults
F4:Save & Exit
ESC:Exit
Version 2.17.1249. Copyright (C) 2015 American Megatrends, Inc.
Main Advanced Chipset M.I.B X Boot Security
Exit
Save Changes and Exit
Discard Changes and Exit
Save Changes and Reset
Discard Changes and Reset
Save Options
Save Changes
Discard Changes
Restore Defaults
Save as User Defaults
Restore User Defaults
Boot Override
UEFI: JetFlashTS4GJFV20 0.00, Partition 1
Exit system setup after saving
the changes.
Chapter 3
BSWI-D2 USER MANUAL
47
Updating the BIOS
You can download and install updated BIOS for this motherboard from the
manufacturer’s Web site. New BIOS provides support for new peripherals, improve-
ments in performance, or fixes for known bugs. Install new BIOS as follows:
This concludes Chapter 3. Refer to the next chapter for information on the software
supplied with the motherboard.
1 If your motherboard has a BIOS protection jumper, change the setting to
allow BIOS flashing.
2 If your motherboard has an item called Firmware Write Protect in
Advanced BIOS features, disable it. (Firmware Write Protect prevents BIOS
from being overwritten.)
3 Prepare a bootable device or create a bootable system disk. (Refer to
Windows online help for information on creating a bootable system disk.)
4 Download the Flash Utility and new BIOS file from the manufacturer’s
Web site. Copy these files to the bootable device.
5 Turn off your computer and insert the bootable device in your computer.
(You might need to run the Setup Utility and change the boot priority items
on the Advanced BIOS Features Setup page, to force your computer to
boot from the bootable device first.)
6 At the C:\ or A:\ prompt, type the Flash Utility program name and the file
name of the new BIOS and then press <Enter>. Example: AFUDOS.EXE
040706.ROM
7 When the installation is complete, remove the bootable device from the
computer and restart your computer. If your motherboard has a Flash
BIOS jumper, reset the jumper to protect the newly installed BIOS from
being overwritten. The computer will restart automatically.
Chapter 3
BSWI-D2 USER MANUAL
48
Memo
BSWI-D2 USER MANUAL
Chapter 4
49
Chapter 4
Using the Motherboard Software
The auto-install DVD-ROM makes it easy for you to install the drivers and software.
The support software DVD-ROM disc loads automatically under Windows 7(x64)/
8.1(x64)/10(x86/x64). When you insert the DVD-ROM disc in the DVD-ROM drive, the
auto-run feature will automatically bring up the installation screen. The screen has
four buttons on it: Setup, Utilities, Browse CD and Exit.
Auto-installing under Windows 7(x64)/8.1(x64)/10(x86/
x64)
Displays the path for all
software and drivers
available on the disk.
Open Windows Explorer
and show the contents
of the support disk.
Click “Exit” button to
close the Auto-Setup
window.
Browse CD:
Click the “Setup”
button to select and
run the software
installation program.
Click the “ Utilities”
button to select and
install ECS Intelligent
Utility.
Information:
Follow these instructions to install device drivers and software for the
motherboard:
The following screens are examples only. The screens and driver lists will be
different according to the motherboard you are installing.
1. Click Setup. The installation program begins:
Running Setup
The motherboard identification is located in the upper left-hand corner.
BSWI-D2 USER MANUAL
Chapter 4
50
2. Click Next. The following screen appears:
3. Check the box next to the items you want to install. The default options are recommended.
5. Follow the instructions on the screen to install the items.
Drivers and software are automatically installed in sequence. Follow the
onscreen instructions, confirm commands and allow the computer to
restart a few times to complete the installation.
Windows 8 will show the following screen after system restart, you must
select “Desktop” in the bottom left to install the next driver.
4. Click Next to run the Installation Wizard. An item installation screen appears:
BSWI-D2 USER MANUAL
Chapter 4
51

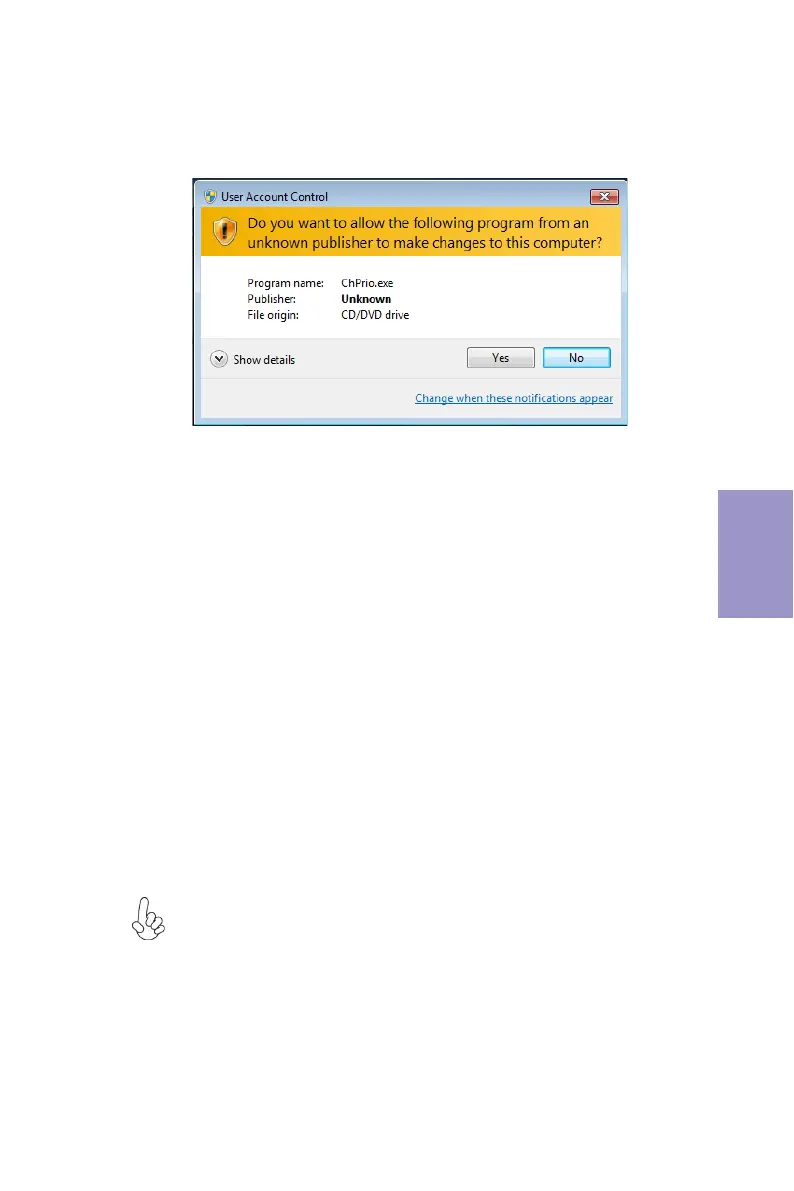

Windows 7/8 will appear below UAC (User Account Control) message after
the system restart. You must select “Yes” to install the next driver. Continue
this process to complete the drivers installation.
If the auto-install DVD-ROM does not work on your system, you can still install
drivers through the file manager for your OS (for example, Windows Explorer). Look
for the chipset and motherboard model, and then browse to the directory and path
to begin installing the drivers. Most drivers have a setup program (SETUP.EXE) that
automatically detects your operating system before installation. Other drivers have
the setup program located in the operating system subfolder.
Manual Installation
ECS Utility Software (Intelligent EZ Utility) (Optional)
ECS Intelligent EZ Utility provides friendly interfaces under Windows O.S, which makes
your computing more easily and conveniently.
If the driver you want to install does not have a setup program, browse to the oper-
ating system subfolder and locate the readme text file (README.TXT or README.DOC)
for information on installing the driver or software for your operating system.
These software(s) are subject to change at anytime without prior notice. Please
refer to the support disk for available software.
BSWI-D2 USER MANUAL
Chapter 4
52
eBLU
ECS eBLU utility makes BIOS update faster and easier. eBLU will list the latest BIOS
with a default check-mark. Click”install” button to install.
eDLU
ECS eDLU utility makes updating drivers fast and easy. eDLU saves time and hassle
by listing all the latest drivers online. Just select the one you prefer and start to
download and install the drivers.
eSF
eSF(Smart Fan) utility provides easy and safe way to adjust fan speed in accordance
with your PC’s system loading and temperature.
It has five modes to adjust fan speed in a safe range without entering the BIOS to
optimize your system cooling environment.
Microsoft .NET Framework 3.5 is required.
Microsoft .NET Framework 3.5 is required.
BSWI-D2 USER MANUAL
Chapter 5
53
Chapter 5
Trouble Shooting
Start up problems during assembly
After assembling the PC for the first time you may experience some start up
problems. Before calling for technical support or returning for warranty, this
chapter may help to address some of the common questions using some basic
troubleshooting tips. You may also log onto our ECS website for more information:
a) System does not power up and the fans are not running.
1. Disassemble the PC to remove the VGA adaptor card, DDR memory, LAN, USB and
other peripherals including keyboard and mouse. Leave only the motherboard,
CPU with CPU cooler and power supply connected. Make sure the power cord is
plugged into the wall socket & the switch on the Power Supply Unit (PSU) is turned
“ on “ as well. Turn on again to see if the CPU and power supply fans are running.
2. Make sure to remove any unused screws or other metal objects such as
screwdrivers from the inside PC case. This is to prevent damage from short circuit.
3. Check the CPU FAN connector is connected to the motherboard.
4. For Intel platforms check the pins on the CPU socket for damage or bent. A bent
pin may cause failure to boot and sometimes permanent damage from short circuit.
b) Power is on, fans are running but there is no display
1. Make sure the monitor is turned on and the monitor cable is properly connected
to the PC.
2. Check the VGA adapter card (if applicable) is inserted properly.
3. Listen for beep sounds. If you are using internal PC speaker make sure it is
connected.
a. continuous 3 short beeps: memory not detected
b. 1 long beep and 8 short beeps: VGA not detected
c) The PC suddenly shuts down while booting up.
1. The CPU may experience overheating so it will shutdown to protect itself. Apply
the thermal grease onto the CPU heatsink & ensure the CPU fan is well-connected
with the CPU heatsink. Check if the CPU fan is working properly while the system
is running.
http:// www.ecs.com.tw/ECSWebSite/Support/Support_FAQ.aspx?MenulD=49&
childid=M 49&LanlD=0
2. From the BIOS setting, try to disable the Smartfan function to let the fan run at
default speed. Doing a Load Optimised Default will also disable the Smartfan.
BSWI-D2 USER MANUAL
Chapter 5
54
Start up problems after prolong use
After a prolong period of use your PC may experience start up problems again. This
may be caused by breakdown of devices connected to the motherboard such as
HDD, CPU fan, etc. The following tips may help to revive the PC or identify the cause
of failure.
1. Clear the CMOS values using the CLR_CMOS jumper. Refer to CLR_CMOS jumper
in Chapter 2 for Checking Jumper Settings in this user manual. When completed,
follow up with a Load Optimised Default in the BIOS setup.
2. Check the CPU cooler fan for dust. Long term accumulation of dust will reduce its
effectiveness to cool the processor. Clean the cooler or replace a new one if
necessary.
3. Remove the hard drive, optical drive or DDR memory to determine which of
these components may be at fault.
4. Check whether there is any bulked up electrolytic capacitor or abnormal
component.
Your computer, like any electrical appliance, requires proper care and
maintenance. Here are some basic PC care tips to help prolong the life of the
motherboard and keep it running as best as it can.
1. Keep your computer in a well ventilated area. Leave some space between the
PC and the wall for sufficient airflow.
2. Keep your computer in a cool dry place. Avoid dusty areas, direct sunlight and
areas of high moisture content.
3. Routinely clean the CPU cooler fan to remove dust and hair.
4. In places of hot and humid weather you should turn on your computer once
every other week to circulate the air and prevent damage from humidity.
5. Add more memory to your computer if possible. This not only speeds up the
system but also reduces the loading of your hard drive to prolong its life span.
6. If possible, ensure the power cord has an earth ground pin directly from the
wall outlet. This will reduce voltage fluctuation that may damage sensitive devices.
Maintenance and care tips
Please logo onto our ECS website: http://www.ecs.com.tw/ECSWebSite/Support/
Technical_Support_List.aspx?MenuID=50&LanID=0 for more information.
uB rewoP
desserp si no
.trats ot sliaf CP tub
seY
ylppuS rewoP fi kcehC
tinU
gnikrow si )USP(
No
No
dnuos peeB ynA
No
kcehc dna SOMC RLC
rewop V21 UPC fi
detcennoc si
CP eht tratseR
?draob ro USP htiw melborP
AMR tcatnoc >- melborp draob fI
deulp si droc rewop CA gg
?no denrut si hctiws USP dna
seY
melborp draoB
AMR tcatnoc >-
No
:speeb trohs 3 fI -
ylreporp ton yromem MMID
eruliaf yromem ro detresni
:speeb trohs 8 dna peeb gnol 1 fI -
detceted ton AGV
seY
seY
neercs TSOP ta tlaH
seY
OMC RL dna SC tser .tra
AMR tcatnoc ,liaf fI
seY
No
eussi ecived larehpireP
.melborp DDH-
,rorre putes SOMC-
d .SOMCRLC ot een
ts ot liaf metsyS elbatsnu ro tra
a
es SOIB yfidom re
.gn
M SOC RLC tratser dna
hctiws USP no nruT
tekcos llaw ot tcennoc ro
.tratser dna
No
h rotinom fi kcehC sa
sid
yalp
rotinom fi kcehC
yalpsid sah
Basic Troubleshooting Flowchart
55
BSWI-D2 USER MANUAL
Chapter 5
56
Memo
Produktspecifikationer
| Varumärke: | ECS |
| Kategori: | moderkort |
| Modell: | BSWI-D2-N3060 |
Behöver du hjälp?
Om du behöver hjälp med ECS BSWI-D2-N3060 ställ en fråga nedan och andra användare kommer att svara dig
moderkort ECS Manualer
10 September 2025
1 September 2025
1 September 2025
1 September 2025
31 Augusti 2025
31 Augusti 2025
31 Augusti 2025
28 Augusti 2025
28 Augusti 2025
28 Augusti 2025
moderkort Manualer
- Elitegroup
- AOpen
- Asus
- Gigabyte
- MSI
- NZXT
- Asrock
- EPoX
- Abit
- Sharkoon
- Biostar
- Foxconn
- Intel
- Advantech
- Supermicro
Nyaste moderkort Manualer
20 September 2025
20 September 2025
14 September 2025
13 September 2025
13 September 2025
13 September 2025
13 September 2025
13 September 2025
13 September 2025
13 September 2025
