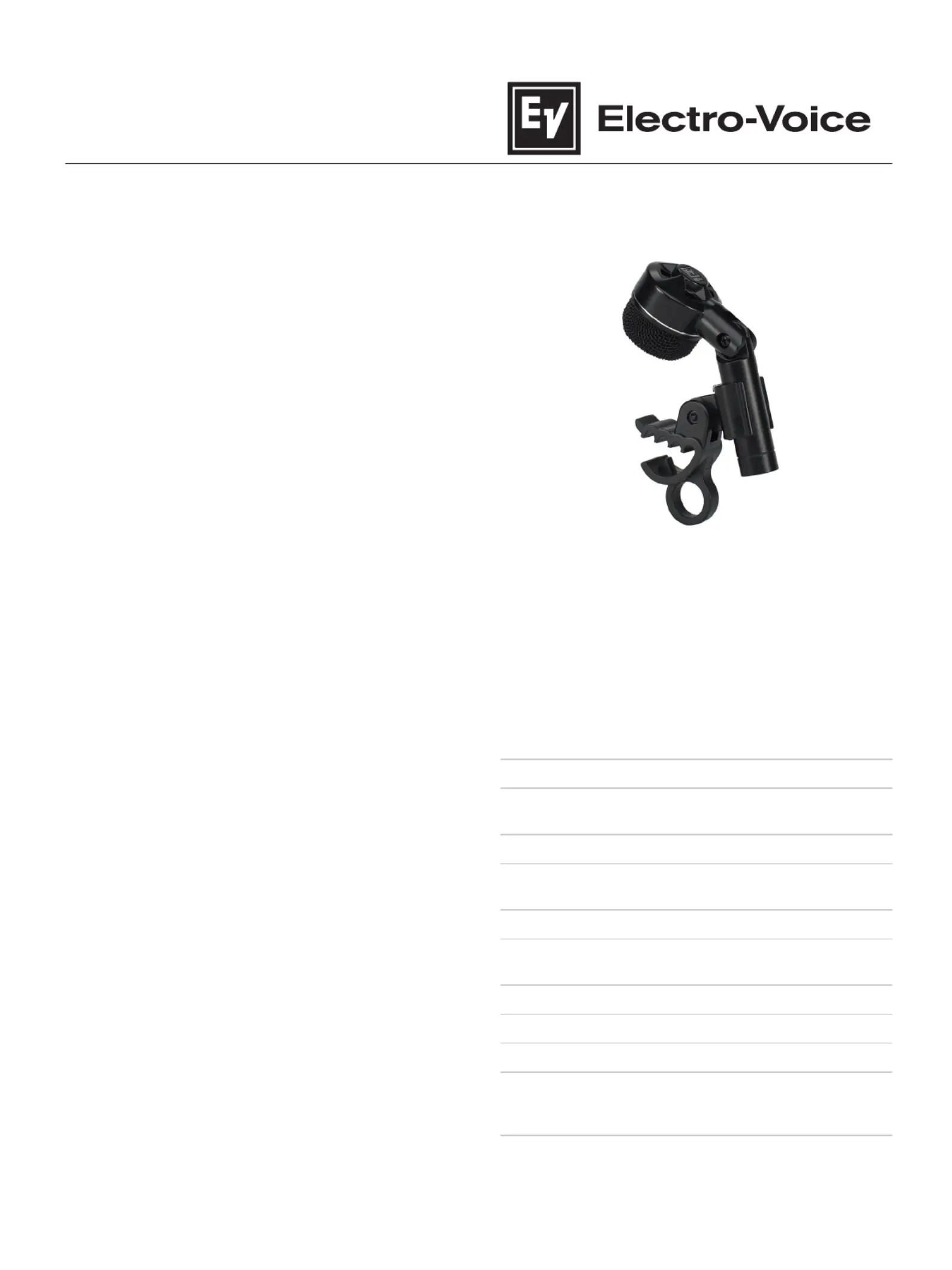

Electro-Voice | ND44

ND44

▪Excellent acoustic control with aggressive and

punctuated sound

▪Large diaphragm dynamic capsule creates a rich and

detailed frequency response

▪Easy mic placement with low-profile pivoting head

▪Humbucking coil guards against line hum

▪Memraflex grille resists denting

The Electro-Voice ND44 is a robust, high-performance

dynamic instrument microphone with a tight cardioid

polar pattern.

Designed for excellent performance on drums and

other rhythm section instruments, the ND44 capsule is

precisely tuned to deliver the aggressive and

punctuated sound these instruments produce, as well

as excellent isolation from the sound of other nearby

instruments.

The ND44 dynamic capsule contains a large Mylar

diaphragm which delivers a rich and detailed

frequency response by combining its large surface

area for tonal balance with its low-mass high-velocity

material for exceptionally fast transient response.

The ND44 low profile pivoting head makes mic

placement around a drum set easy. The included

DRC-2 drum rim clamp is simple to use and eliminates

the need for an additional mic stand.

The ND44 capsule uses a humbucking coil that

attenuates AC hum and electromagnetic interference.

ND dynamic mics can be used with confidence near

speaker cabinets and EMF generating equipment

racks.

The ND44 Memraflex grille is made of a durable tight-

mesh grille wire that withstands extraordinarily-rough

treatment. Your microphone remains protected and

looking good gig-after-gig, year-after-year.

For additional protection, the ND44 capsule contains a

hydrophobic cloth membrane which prevents moisture

and debris from reaching the diaphragm.

ND44 is also designed to function very well as a guitar

cabinet mic. It can be stand-mounted using the

optional SAND-1 stand adapter on a mic stand, or

merely hung over the speaker cabinet with the grille

facing the speaker cone using its mic cable to suspend

it.

Technical specifications

Element Type: Dynamic neodymium magnet structure

Frequency Response, Free

Field:

80Hz to 16.5kHz

Polar Pattern: Tight Cardioid

Sensitivity, Open Circuit

Voltage @ 1 kHz::

2.4 mV/Pascal

Maximum SPL: > 140 dB SPL

Polarity: Pin 2 positive, reference to pin 3 with

positive pressure on diaphragm

Impedance: 350 ohms balanced (low-z)

Microphone Connector: 3-pin, XLR-type

Finish: Black polyurethane paint

Material: Zinc die cast handle, ABS-

Polycarbonate Head, Memraflex grille

screen

Dimensions, Head:

Length:

Shank:

1.91 in (48.5 mm) Dia. X 1.94 in

(49.22 mm) Long

5.47 in (139 mm)

0.83 in (21 mm)

Net Weight: 6.85 oz (194 g)

Shipping Weight: 17.2 oz (488 g)

Accessories Included: (1) DRC-2 Drum Rim Clamp, (1) Gig

bag

Frequency Response:

-10

20 50

0 dB

+10

500

FREQUENCY IN HERTZ

100 1K 5K 10K 20K

1 m

2.5 cm

5 cm

Polar Response:

Dimensions:

System overview

Mounting the DRC-2 drum rim clamp to a drum rim:

This method can be used with or without the ND

Series microphone mounted in the clip (1).

To , do

mount the DRC-2 drum rim clamp to a drum rim

mount the DRC-2 drum rim clamp to a drum rimmount the DRC-2 drum rim clamp to a drum rim

the following:

1. Grip the DRC-2 firmly by placing your index finger in

the finger loop (2).

2. Choose a notch (3) at the top of the DRC-2 jaw and

place it to the drum rim so the top edge of the rim

fits inside the desired notch.

3. Using the finger you placed through the finger loop

(2), pull downwards and allow the edge of the

bottom DRC-2 jaw (4) to latch to the bottom edge of

the drum rim.

4. Using the thumbscrew (5), tension can be adjusted

on the pivoting joint as desired.

Microphone Use and Placement:

Please note that micing techniques are a matter of

personal preference. These are merely guidelines to

assist in the placement of the microphone to gain

optimal performance.

Usage

UsageUsage Optimal Placement

Optimal Placement

Optimal PlacementOptimal Placement

Tom-Toms On double headed Toms, place mic over the top of

drum 1-3" and at a 45° angle to the drumhead surface

and 1-2" in from the drum edge. On single headed

Toms, use above method or place mic inside Tom from

underneath at a 90° angle from the center of head,

3-5" away.

Snare Drum Place mic 1-3" above the heads, 1-2" in from the rim.

Aim each mic at the top heads angled down about 45°.

If the drum rings, tape deadening material to the head

or use damping rings. For more “snare” sound place a

2nd mic underneath aimed up at the bottom of head.

Electric

Guitar and

Bass Guitar

Amplifier

Place microphone approximately 1-2" from and at a

90°degree angle to the speaker cone. To reduce

boominess, move the microphone off axis to the cone

from 90° to 45°, or move mic from center of cone to

either edge.

Cymbals Place microphone one to two feet above the cymbals.

High-Hat Place 4-5” above outside edge at a 45° down angle.

2 | ND44

Brass 6-24" away, and on axis with the bell of the

instrument.

Acoustic

Guitar

Place mic 6-12" from where neck joins the body.

Standard Placement and Use Guidelines:

1. Always point the microphone at the desired source of

sound and away from any unwanted sources.

2. The microphone should be located close to the sound

source to minimize interference from other potential

sound sources.

3. Use the 3-to-1 rule when using multiple microphones.

Place each microphone three times farther from other

microphones as from the desired source.

4. Minimize over-handling of the microphone to reduce

unwanted mechanical noise.

5. Working close to the microphone will increase the

bass tone and also provide increased gain-before-

feedback.

Parts included

Qty. Item

1 Microphone

1 Gig bag

1 DRC-2 drum rim clamp

1 Engineering data sheet

1 Warranty and Product Documentation Information card

Ordering information

ND44

Dynamic tight cardioid instrument microphone, black

Order number ND44

DRC-2

Drum rim clamp, black

Order number DRC-2

ND44GRILLE

Replacement end grille, black

Order number ND44GRILLE

Accessories

SAND-1

Stand adapter, black

Order number SAND-1

3 | ND44
