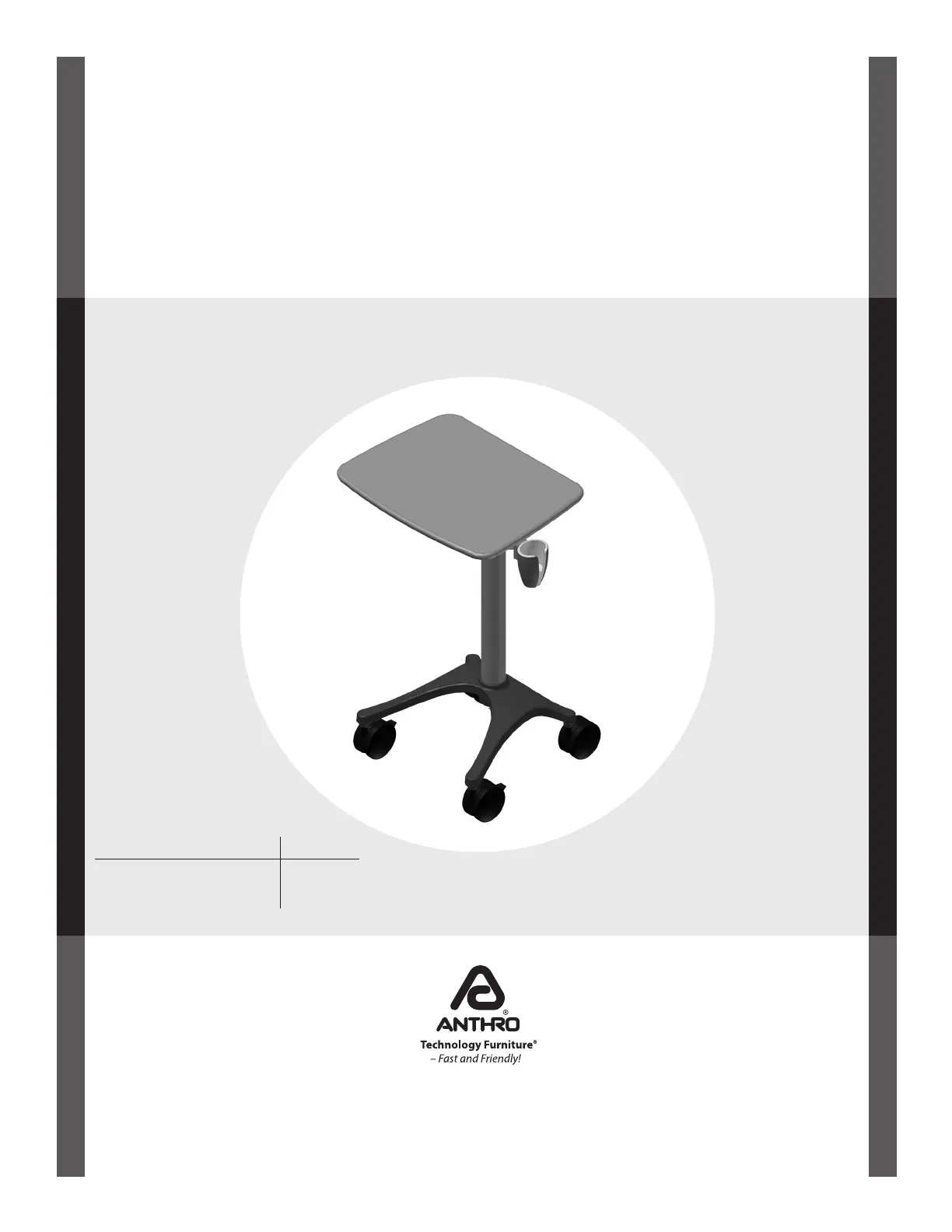

A S S E M B LY I N S T R U C T I O N S
Anthro Corporation
®
| 10450 SW Manhasset Dr. | Tualatin, OR 97062
Toll-free: 800.325.3841 | Fax: 800.325.0045 | email: sales@anthro.com | anthro.com
Outside the U.S. | Tel: 503.691.2556 | Fax: 503.691.2409
Zido
TM
Gel Cup/Probe Holders
Rev A November 2014
NOTE: The Zido Base Unit is not included.
Product Part#
Zido Gel Cup/Probe Holder Small ZGCSSB
Zido Gel Cup/Probe Holder Large ZGCLSB
WELCOME
Thank you for purchasing
Zido Gel Cup/Probe Holder!
If you have any questions or if we
can help you in any way, please
contact us at 800.325.3841.
PARTS LIST
Before beginning assembly of your Zido accessory, please
review the parts list to verify that your shipment is complete.
A 5/32" hex driver (provided with your Zido cart) is required
for this assembly.
A 1/8" drill bit and electric drill are also required.
2
Product Quantity Part Number
01 Zido Gel Cup/Probe Holder Bracket 1 225-2657-00
02 3/4" MDF Wood Screws 2 325-5575-00
03 Long Gel Cup/Probe Holder 1 175-5243-00
04 Short Gel Cup/Probe Holder (not shown) 1 175-5244-00
01
02
03 04
Zido
TM
Gel Cup/Probe Holders Assembly Instructions
3
S T E P 1
Install the Bracket
¡ Select the installation location. Place the mounting
bracket on the bottom of the shelf at the desired
location so that the side with four holes is against
the shelf.
¡ Using the Mounting Bracket as a template, mark the
drill points through the two larger bracket holes onto
the bottom of the shelf.
¡ Drill the screw holes using a 1/8” drill bit. Because
the shelf is 3/4” thick, only drill the hole 1/2” deep.
(Mark your drill bit with masking tape to be sure
you don’t drill too far.)
¡ Install the bracket onto the shelf using
two 3/4" MDF wood screws.
S T E P 2
Install the Holder
¡ Slide the Gel Cup/Probe Holder over the
bracket until it clicks into place.
1/8" Drill Bit
Shelf Prole
1/2"
Tape
C O N G R AT U L AT I O N S ! YO U R H O L D E R A S S E M B LY I S C O M P L E T E !
3/4" Button Hd PB Screw
325-5575-00
