Thank you for purchasing this USB Host to RS232 Adapter Cable (the

“ ”Adapter Cable ). It is designed specifically to support Android Open

Accessory protocol. The Adapter Cable connects to a USB device on

the Android platform, establishes the USB connection, enumerates

Open Accessories, and then provides a bridge from the USB host port

to a UART interface. All necessary USB and Android Open Accessory

protocol is incorporated in the chip built-in the Adapter Cable, so

that users can quickly and easily establish a USB connectivity link and

have a basic UART (RXD, TXD, RTS, and CTS signals) interface for their

applications .

Android Open Accessory Protocol is supported in Android

Honeycomb (3.1) and later versions, with the benefit that data can

be transmitted and received without additional driver support.

EX- 1305

USB Host to Android RS232 Adapter Cable

w/ DB9 Male Connector

1. Introduction

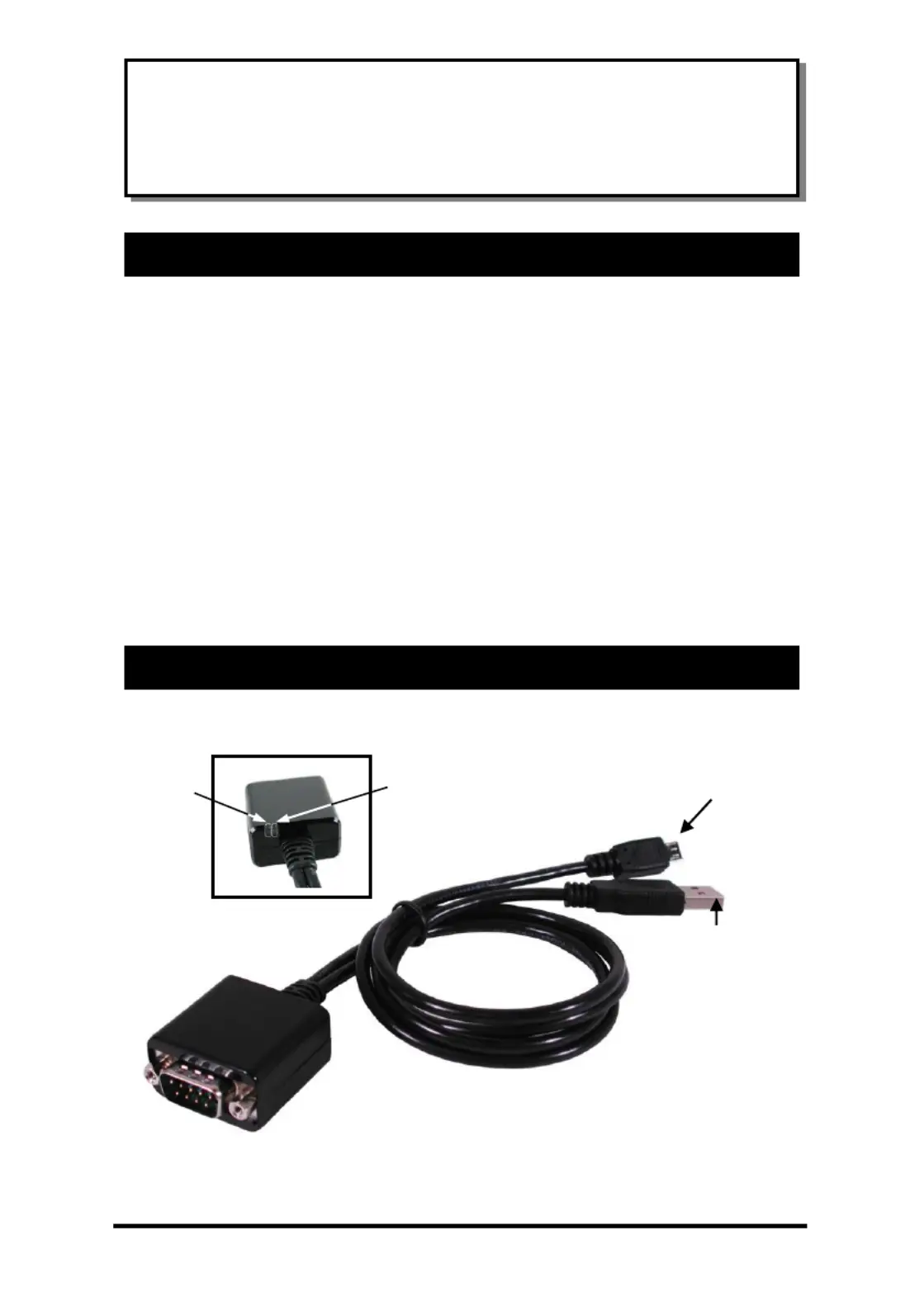

2. Connector Layout

RXD LED

Indicator

T Android Devico e

Micro-USB Connector

From AC/DC

Power Adapter,

+5V, USB Type-A

Connector

TXD LED

Indicator

USB Host to Android RS232 Adapter Cable, w/ DB9 Male Connector

Features:

✓ Provides 1 RS232 Serial Port over USB Host Port

✓ Provides Power Source to the Android Device via the Y-Cable

Configuration

✓ Supports Battery Charging the Android Device with SDP (Standard

Downstream Port) Mode

✓ Easy Serial Port Expansion for Android Devices

✓ Supports UART Signals: TXD, RXD, RTS and CTS

✓ Provides General HyperTerm UART Utility Apps;

Easily Adaptable to a Console Function:

◼ Supports CTS/RTS Flow Control

◼ Baud from 300 to 921600 With CTS/RTS Flow Control

◼ Baud from 300 to 115200 Without Flow Control

◼ Save File and Send File Functions

✓ Provides 1 Nut-type DB9-Male Connector

✓ Supports Android Platform Supporting Android Open

Accessory Mode (version 3.1 onwards and some v2.3.4 )

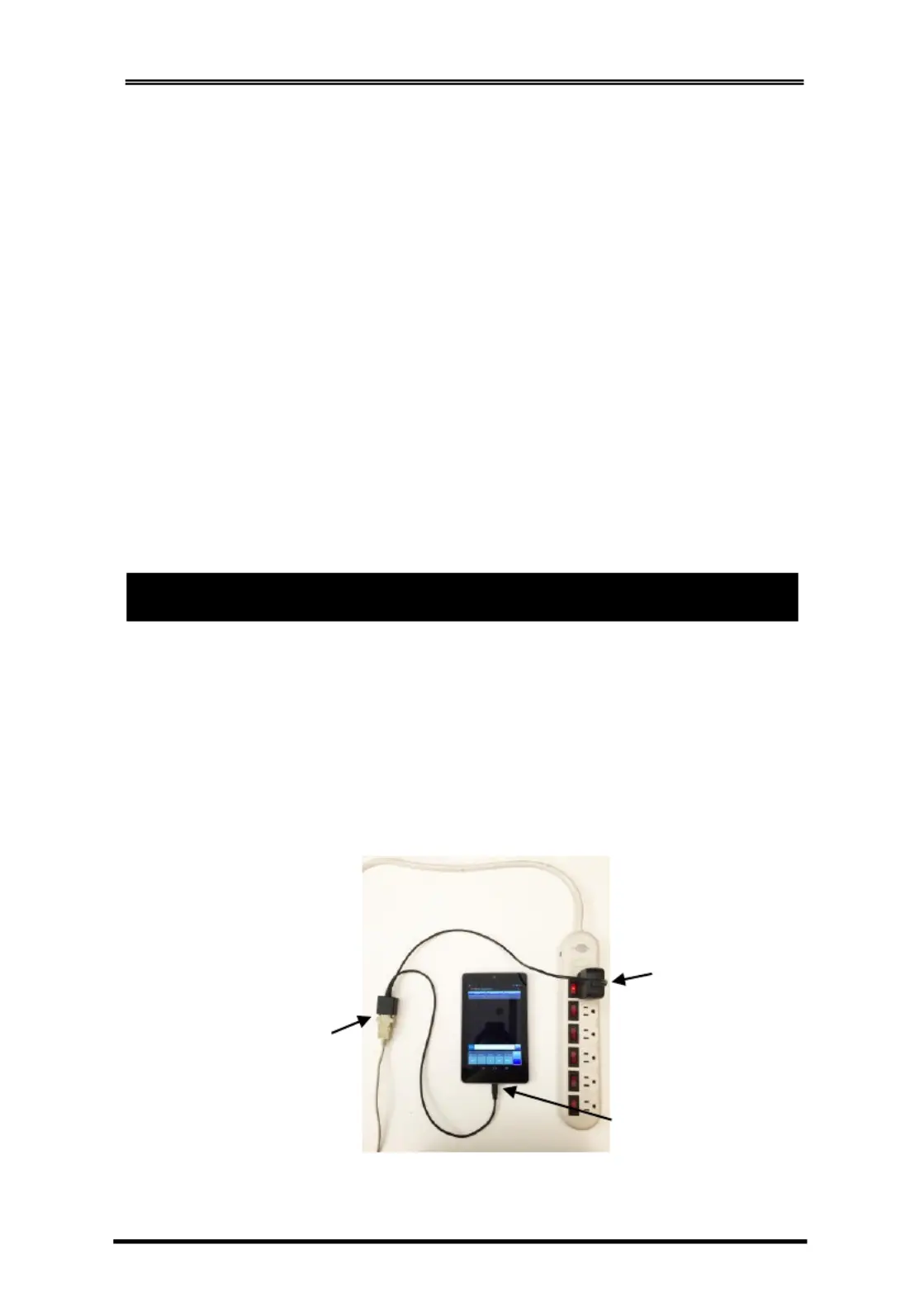

1. Connect the Micro-USB end of the Adapter Cable to your

Android Device s Charging/USB connector. ’

2. Plug the USB Type-A end of the Adapter Cable into the USB

Battery Charging Adapter (not shipped with the Adapter Cable,

should have come with your Android Device)

3. Connect the RS232 Serial Device to the DB9 male connector of

the Adapter Cable by a Serial Cable.

3. Installing the Adapter Cable

Type-A to USB

Power Adapter

Micro-USB to the

Android Device

DB9 male to the

RS232 device via

the serial cable

USB Host to Android RS232 Adapter Cable, w/ DB9 Male Connector

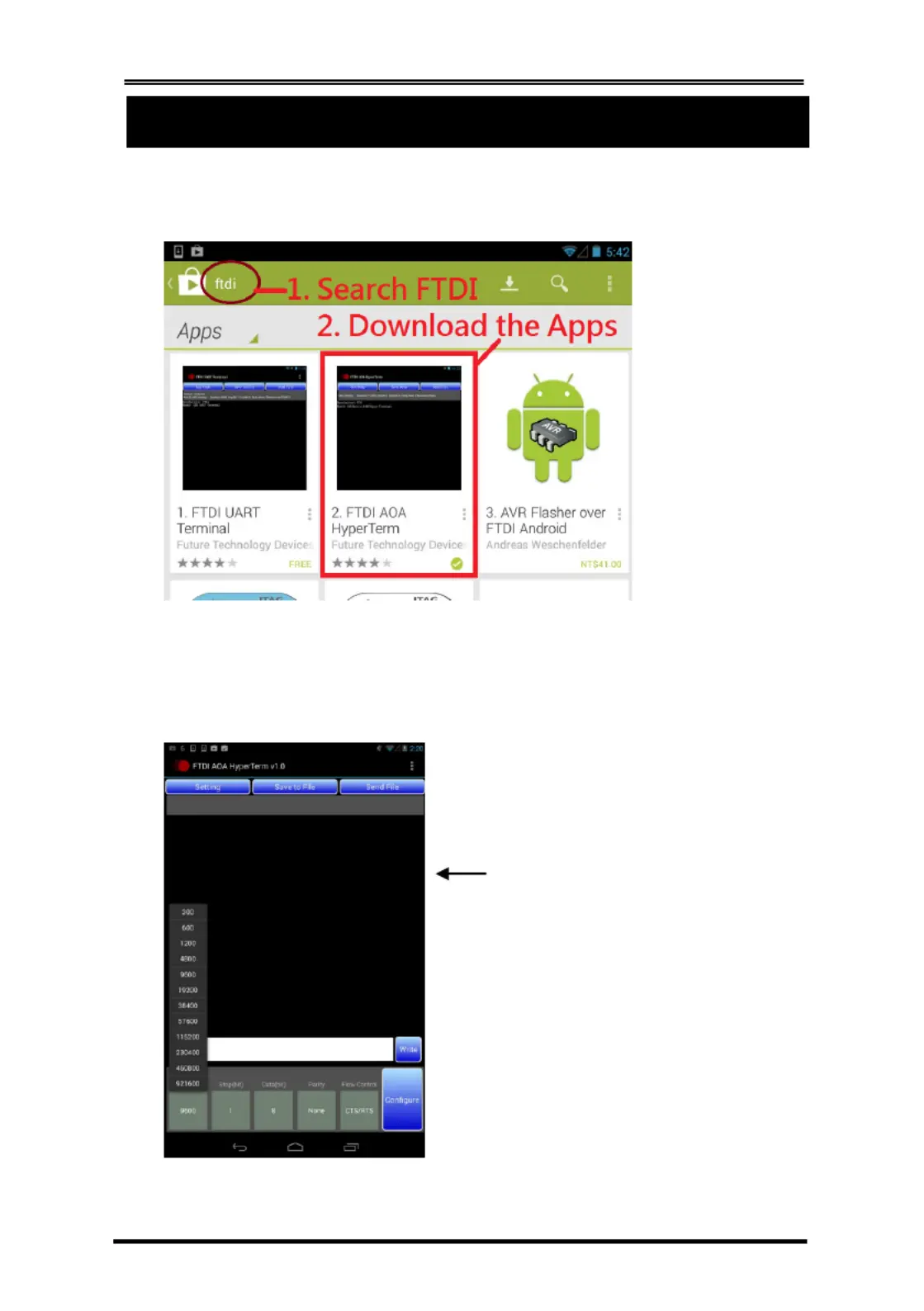

The software drivers of the Adapter Cable are on the Google Play.

Please search FTDI keyword and install the Apps shown as the “ ”

following screenshot.

Along with the Apps download is a useful utility called FTDI AOA Hyper

Term. You can perform all tests for the serial functions including

changing settings, sending characters and receiving characters.

4. Installing Drivers

FTDI AOA Hyper Term Utility

Produktspecifikationer

Varumärke:	EXSYS
Kategori:	ej kategoriserat
Modell:	EX-1305
Vikt:	200 g
Certifiering:	CE, FCC
Anslutning 1:	USB A + Micro USB
Anslutning 2:	RS-232
Databitar:	7, 8
Kabellängd:	1.8 m
Produktens färg:	Svart
Antal per förpackning:	1 styck
Temperatur vid drift:	0 - 55 ° C
Temperaturintervall (förvaring):	-40 - 75 ° C
Hållbarhetscertifiering:	RoHS
Typ, kontakt 1:	Hankoppling
Typ, kontakt 2:	Honkoppling
Relativ fuktighet:	5 - 95 %
stoppbitar:	1, 2
