EX- 48023

RS- 232 Multi Serial/Parallel Mini PCIe card

1. Introduction

Congratulation on your purchasing this high performance Mini PCI Express (Mini PCIe)

multi serial/parallel card. The card is high speed PCI Express bus based and plug- -and-

play compliant. Its enhanced serial ports (256 byte deep FIFO) are fully 16C550 UART -

compatible with most of the RS232C devices available from the market.

Features:

 Full p1-x1 Mini PCI Express Throughput, 250Mbytes/sec

 Fully Compliant with PCI Express Base Specifications, Revision 1.1

 Extended 16C650 UARTs, Fully Compatible with 16C550, Baud Rate up to

921.6Kbps

 Available Models: 1S, 2S and 2S+1P over one single Mini PCI Express slot.

 Supports Win 2000, 2003, XP 32, XP 64, Vista 32, Vista 64, Win7 32, Win7 64, - - - - - -

Mac OS and Linux

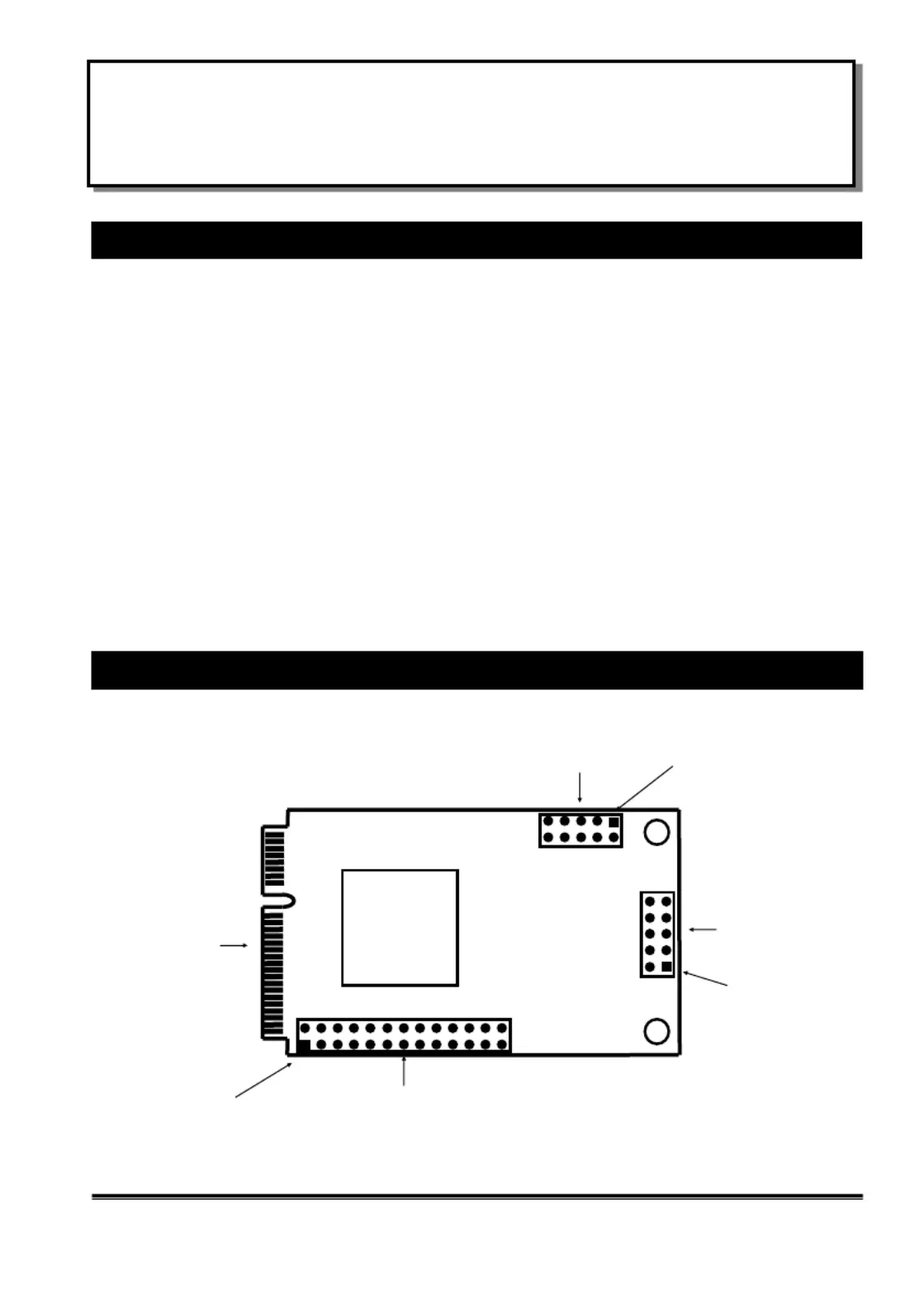

2. Board Layout

J3: S2, nd 2’

RS232 port

J2: S1, 1’st

RS232 port

J4: P1, Parallel port

Mini PCIe

golden

fingers

Pin #1

RS- 232 Serial / Parallel Multi I/O Mini PCIe card

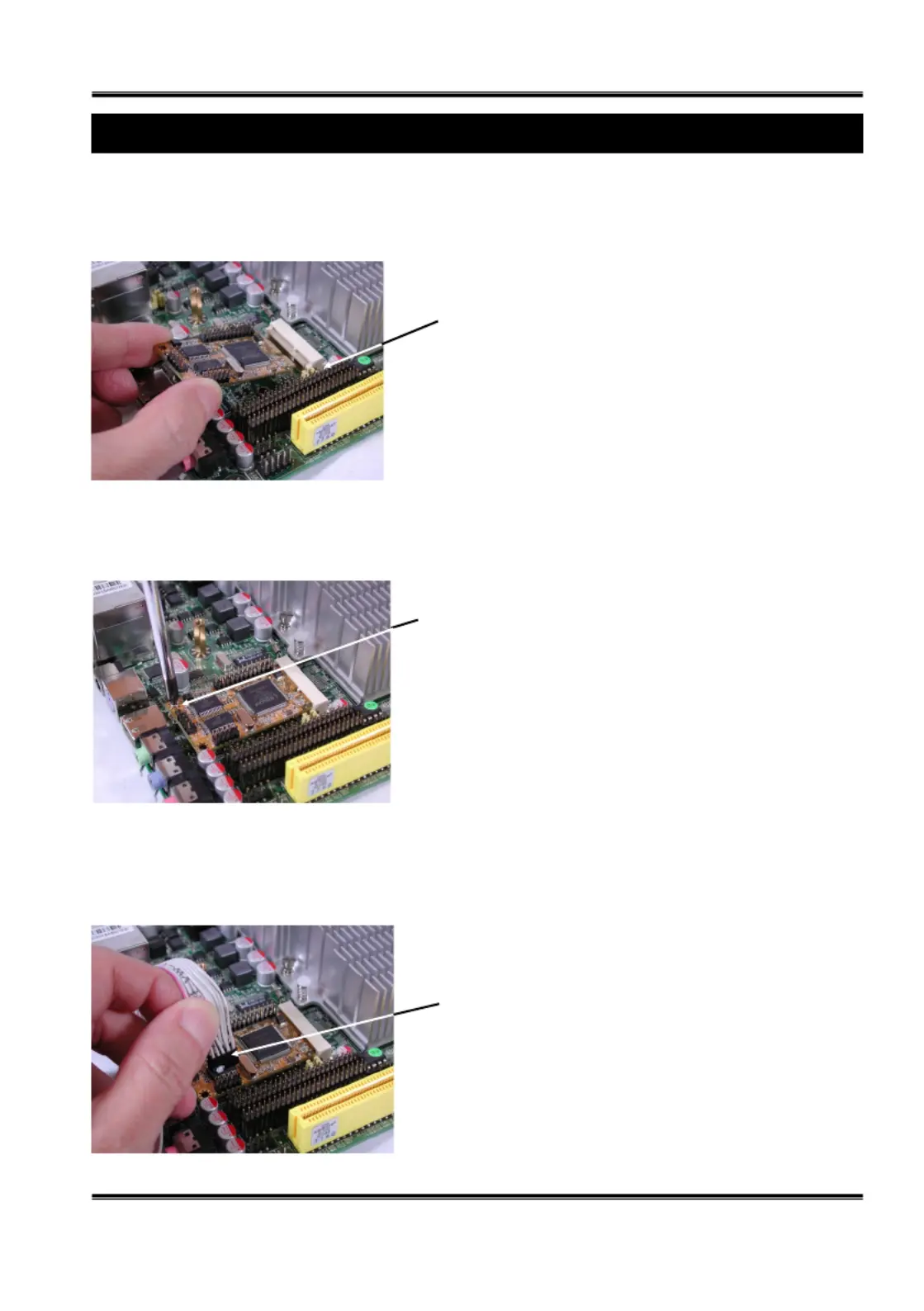

3. Installing the Mini PCIe Card

Mini PCIe Socket

Holding screw

White dot next to pin 1

1. Remove the Mini PCIe card from its protective antistatic packaging, remove the

screw holding the Mini PCIe card to the motherboard and insert the new Mini

PCIe card into the socket.

2. Put the Mini PCIe card onto the motherboard and attach it with the screw.

3. Install the serial and parallel flat cables. Please mind the pin 1 position marked

with the white dot.

RS- 232 Serial / Parallel Multi I/O Mini PCIe card

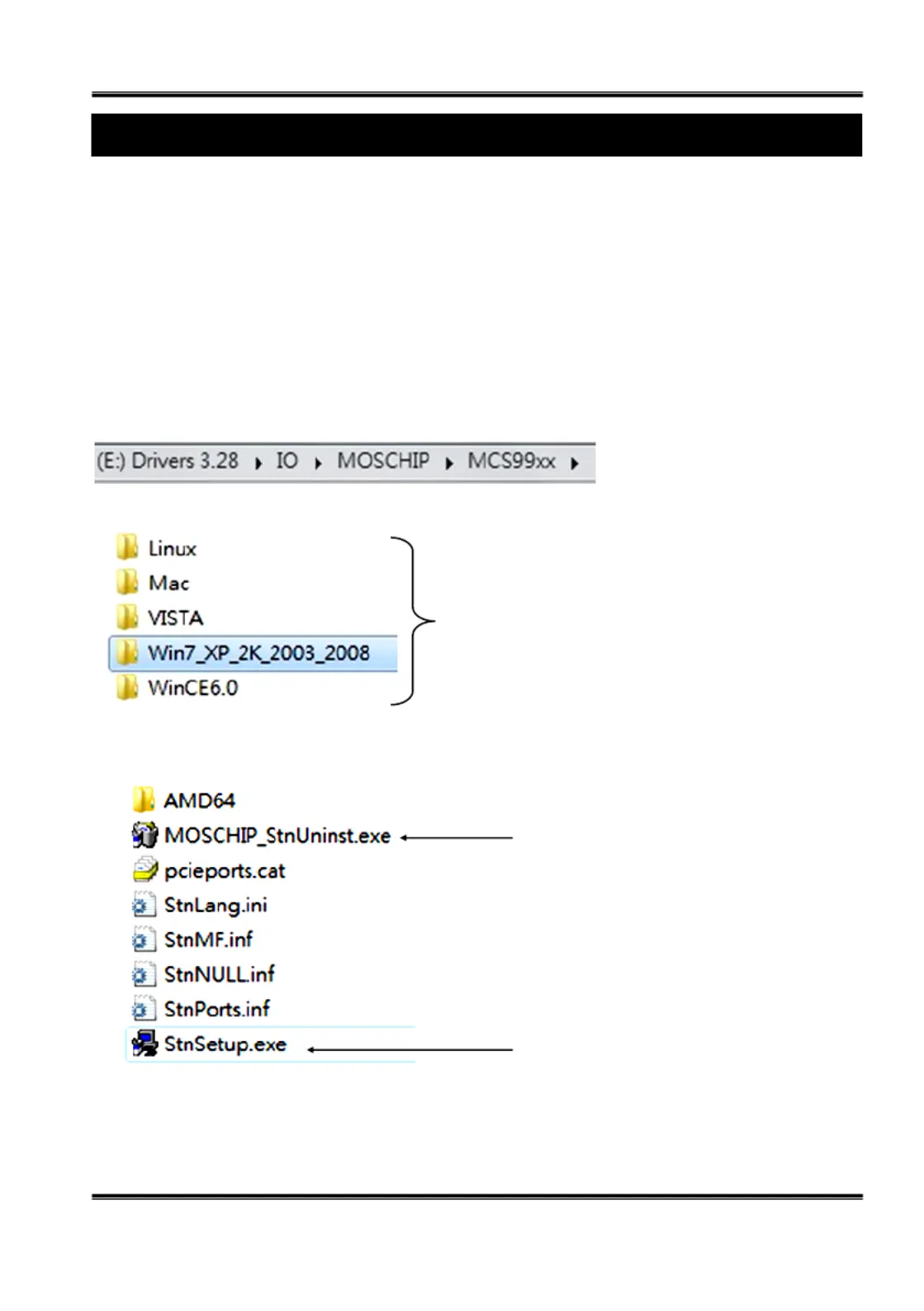

4. Installing the Combo PCI Card

1. To install the Windows drivers, there are two methods, one is to run the setup utility

( ) in each corresponding folder. The other one is by the WindowsStnSetup.exe ’

driver installation Wizard. We recommend you run the setup utility. It will be sim-

pler. However, PLEASE REFRESH HARDWARE OR REBOOT THE SYSTEM IN

CASE YOUR DRIVER DID NOT TAKE EFFECT AFTER RUNNING THE SETUP

UTILITY.

The drivers are shipped in the following folders on the driver CD:

E:\IO\MOSCHIP\MCS99xx

Drivers are in each corresponding folder

Driver Uninstalling Program

Driver Installing Program

Produktspecifikationer

Varumärke:	EXSYS
Kategori:	ej kategoriserat
Modell:	EX-48023
Vikt:	100 g
Bredd:	51 mm
Djup:	30 mm
Certifiering:	CE, FCC
Värdgränssnitt:	Mini PCI Express
Seriellt gränssnitt:	RS-232
Windows-operativsystem som stöds:	Ja
Temperatur vid drift:	0 - 55 ° C
Temperaturintervall (förvaring):	-40 - 75 ° C
Intervall för relativ operativ luftfuktighet:	5 - 95 %
Seriella portar:	2
Hållbarhetscertifiering:	RoHS
Anslutningsteknologi:	Kabel
Manual:	Ja
Linux operativsystem som stöds:	Ja
Intern:	Ja
Kretsar:	MosChip MCS9901CV
Mac-kompatibel:	Nej
Utgränssnittet:	Parallel, Serial
Parallellport:	1
