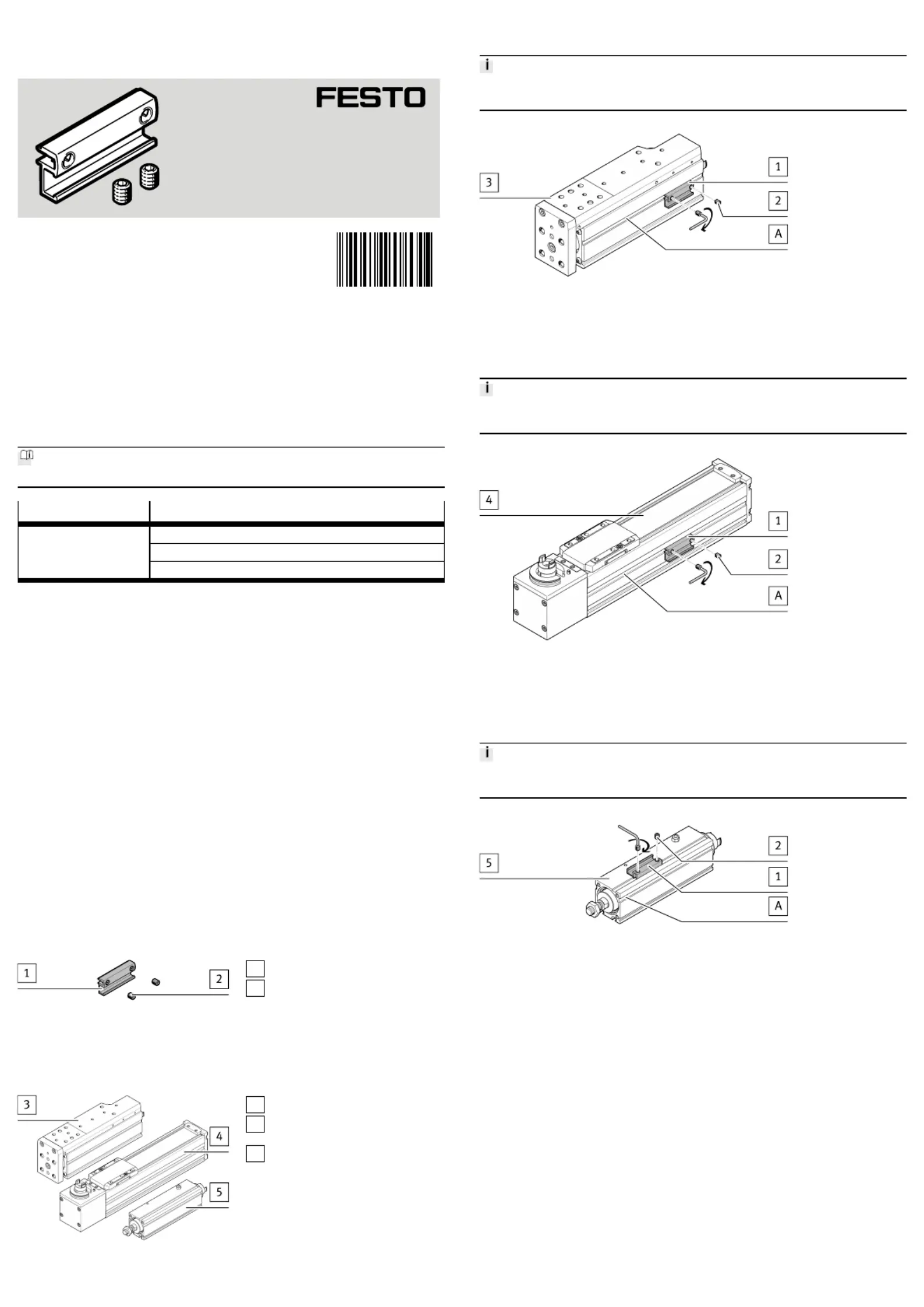

Translation of the original instructions

© 2021 all rights reserved to Festo SE & Co. KG

1Applicable documents

All available documents for the product www.festo.com/sp.è

DocumentProduct

Actuator … 35

Proximity switch

User documents

Switch lug

Tab. 1

2Safety

2.1Safety instructions

–Only mount the product on components that are in a condition to be safely

operated.

–Observe tightening torques. Unless otherwise specified, the tolerance is

±20%.

2.2Intended use

2.2.1Use

Mounting of a proximity switch for sensing the slide position on the basic profile

of an actuator … 35

2.3Training of qualified personnel

Work on the product may only be carried out by qualified personnel who can eval

uate the work and detect dangers. Personnel must have the relevant mechanical

training.

3Additional information

–Accessories www.festo.com/catalogue.è

–Spare parts www.festo.com/spareparts.è

4Product Range Overview

4.1Scope of delivery

1

Sensor bracket (1x)

2

Threaded pin (2x)

Fig. 1

4.2Not in scope of delivery

Mini slide unit EGSS (1x)/spindle axis unit ELGS (1x)/electric cylinder unit EPCS

(1x) or the following actuators:

3

Mini slide EGSC (1x)

4

Guide axis ELFC/spindle axis

ELGC (1x)

5

Electric cylinder EPCC (1x)

Fig. 2

5Assembly

5.1Attachment to mini slide

The sensor bracket can also be mounted on the opposite side. However, in this1

case a switch lug cannot be mounted.

Fig. 3

–Position sensor bracket in the slot[A] as shown. 1

–Tighten threaded pins. Tightening torque: 0.7Nm2

èSensor bracket is jammed in the slot[A].1

5.2Attachment to guide/spindle axis

The sensor bracket can also be mounted on the opposite side. A switch lug can1

be mounted on both sides.

Fig. 4

–Position sensor bracket in the slot[A] as shown. 1

–Tighten threaded pins. Tightening torque: 0.7Nm2

èSensor bracket is jammed in the slot[A].1

5.3Attachment on electric cylinder

The sensor bracket can be mounted on three sides. A switch lug cannot be1

mounted.

Fig. 5

–Position the sensor bracket in the slot[A] so the sensor will later be in the1

middle of the profile.

–Tighten threaded pins. Tightening torque: 0.7Nm2

èSensor bracket is jammed in the slot[A].1

8135693

EAPM-L2-SH

Sensor bracket

8135693

202101a

[8135695]

Assembly instructions

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 3470

www.festo.com
