Sida 1/8
Mounting and
Operating Instructions
Flush-mounted outdoor station
with call push button 1-gang
1260 65/66/67
1271 65/66/67
Flush-mounted outdoor station
with call push button 3-gang
1261 65/66/67
1272 65/66/67
2
Device description

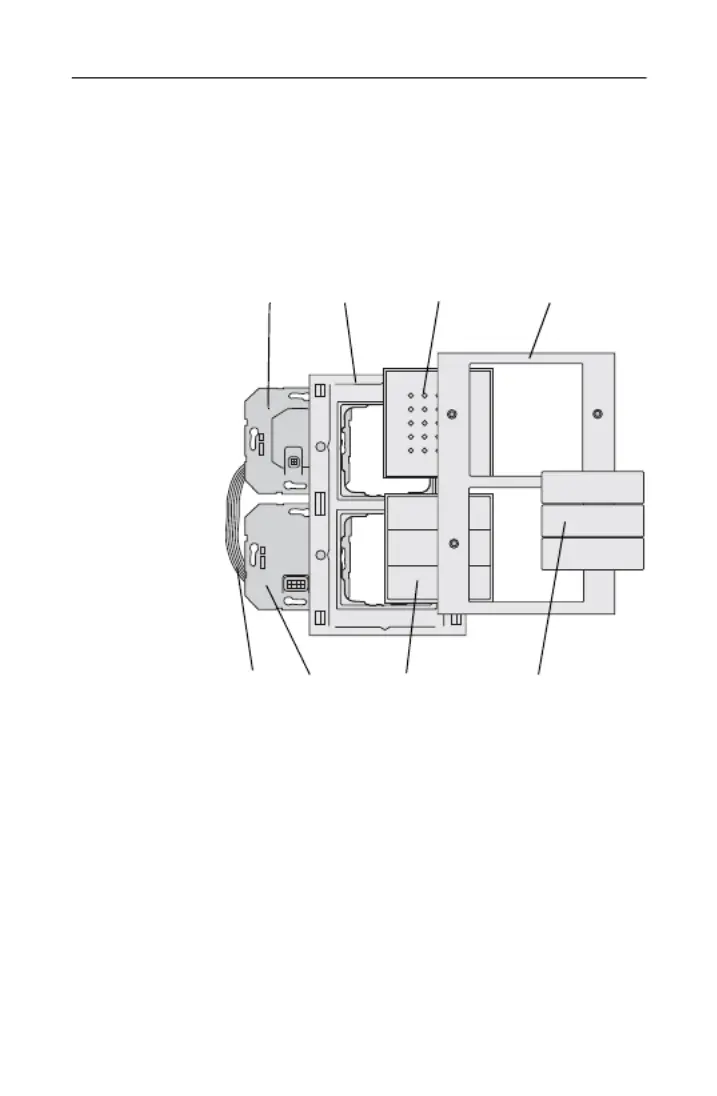

The flush-mounted outdoor station is part
The basic structure of a flush-mounted
outdoor station is presented in the
example of the flush-mounted outdoor
station with call push button 3-gang:
1 Door communication bus coupler
2 Audio connection cable
3 Speech insert
4 TX_44 frame bottom section
(not in scope of supply)
5 Door speaker top unit
6 TX_44 frame top section
(not in scope of supply)
7 Call push button covers
8 Call push button 3-gang
3 4 5 6
2 1 8 7
3
Mounting
The flush-mounted outdoor station is
installed in two common flush-mounted
panel boxes:

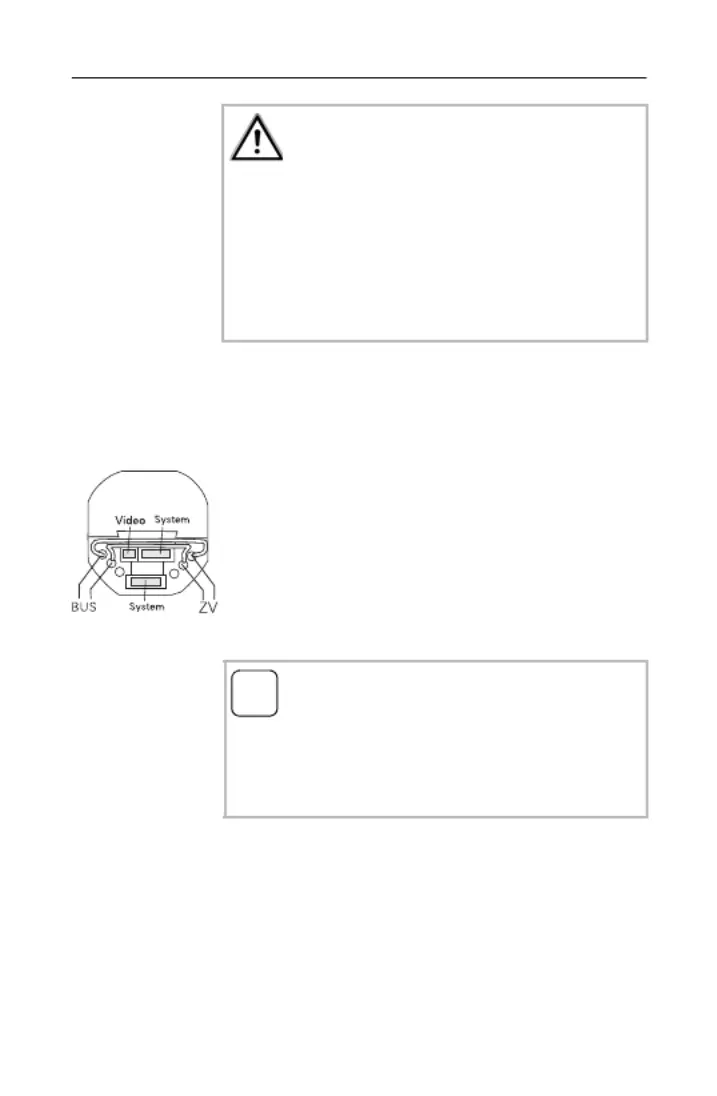

1. Connect the door communication bus
coupler to
the 2-wire bus on the BUS terminals
if necessary, the wires of the additional
supply to the "ZV" terminals
if necessary, the wires of a mechanical
bell button to the "ET" terminals.
2. Insert the audio connection cable into
one of the two system connectors of
the bus coupler.
3. Guide the audio connection cable to the
upper flush-mounted panel box and ins-
tall the bus coupler in the lower flush-
mounted panel box.
Attention
Installation and mounting of electrical
devices may only be carried out by a
qualified electrician.
Do not use the sealing rings included
with the TX_44 frame when installing
flush-mounted inserts.
i
Deactivating call push button
illumination
To deactivate the call push button illumi-
nation continuously, remove the jumpers
between BUS and ZV.

Produktspecifikationer

Varumärke: Gira
Kategori: Intercomsystem
Modell: 126066
Antal knappar: 1
Produktens färg: Vit
Temperatur vid drift: -25 - 70 ° C
Internationellt skydd (IP) kod: IP44
Tangentbordsbelysning: Ja
Anslutningsteknologi: Kabel
Högtalartelefon: Ja
Utomhusenhet ingår: Ja
Spänningsenhet utomhusenhet: AC/DC
Inomhusenhet ingår: Nej
