Wireless switching/dimming top unit, 1-gang

Order No. : 5490 ..

Operating instructions

1 Safety instructions

Electrical devices may only be mounted and connected by electrically skilled

persons.

Serious injuries, fire or property damage possible. Please read and follow manual fully.

Danger of electric shock. Always disconnect before carrying out work on the devise or

load. In so doing, take all the circuit breakers into account, which support dangerous

voltages to the device and or load.

Danger of electric shock. The device is not suitable for disconnection from supply

voltage. Depending on the insert used, the load is not electrically isolated from the

mains, even when the device is switched off.

These instructions are an integral part of the product, and must remain with the end

customer.

2 Device components

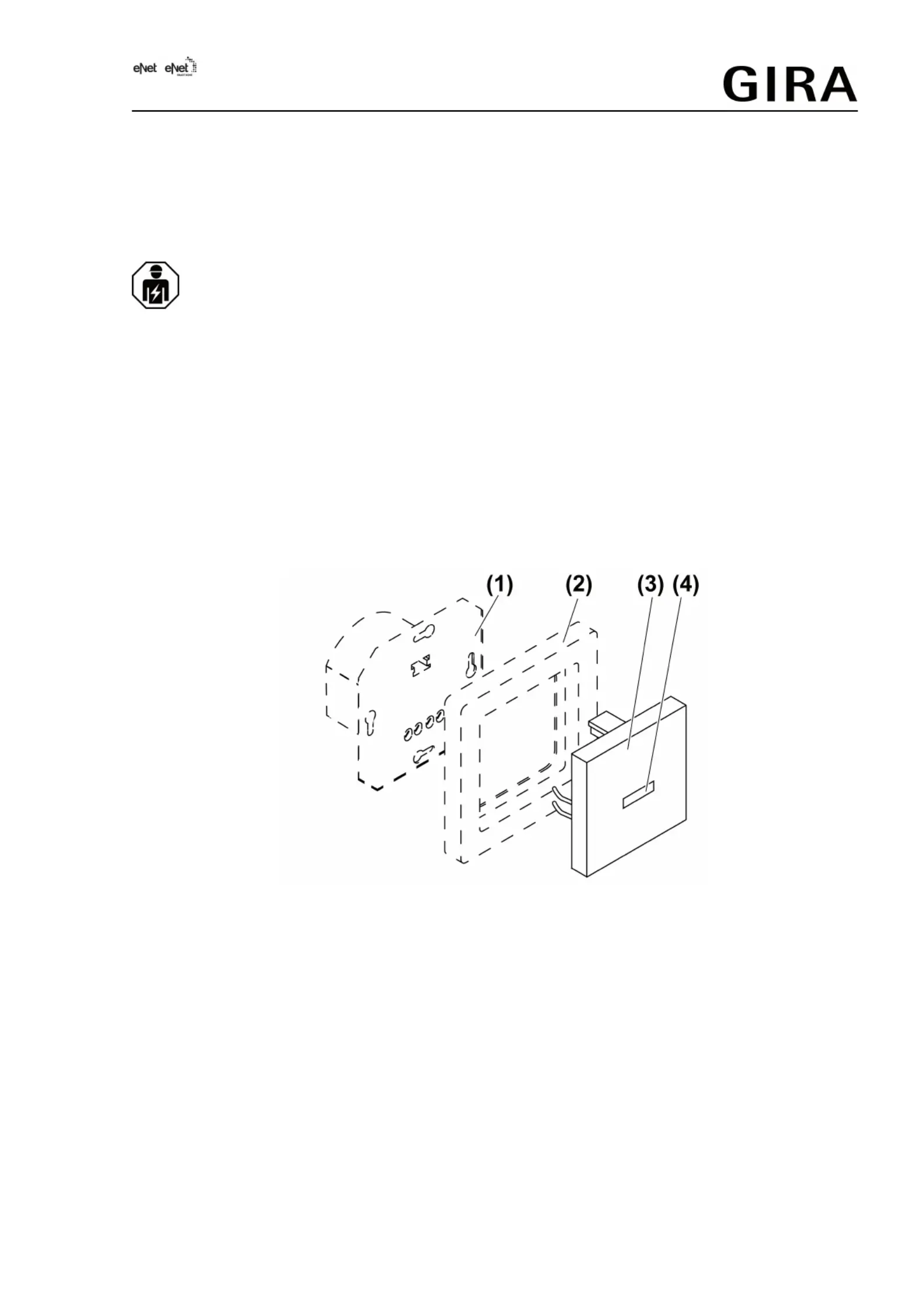

Figure 1: Device components

(1) FM insert

(2) Frame

(3) Radio button

(4) Status LED

3 Function

Intended use

- Manual and radio-controlled operation of suitable flush-mounted inserts for switching or

dimming (see accessories)

- Mounting on flush-mounted insert

- Operation with suitable radio transmitters

iNo operation on pulse insert, 2-wire and 3-wire extension inserts possible.

1/15

32582722 27.04.2017

Wireless switching/dimming top unit, 1-gang

10864994

Product characteristics

- Evaluation of extensions

- Scene operation possible

- Status indication with LED

- Status feedback to radio transmitter

- Switch-on brightness can be saved permanently when combined with flush-mounted

inserts for dimming

Can be set with eNet server:

- Maximum brightness

- Minimum brightness

- Dimming speed

- Switch-on delay / switch-off delay

- Dim up/dim down ramp

- Switch-off warning

- Operation locks

- Continuous on, Continuous off

- Hotel function

- Run-on time

- Light control

Supplementary functions with eNet Server:

- Fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0

- Update of the device software

- Reading of error memory

Response after mains voltage return

The response after mains voltage return can be configured with the eNet Server. Default

setting: Off.

4 Operation

iWhen operating with the eNet Server, operation and signalling could vary from what is

described here.

Operation is performed directly on the device or on a connected extension.

iIf operation takes place with radio transmitters, please observe the radio transmitter

instructions.

Switch light

oPress button for less than 0.4 seconds.

The light is switched on or off. In combination with inserts for dimming, switch-on takes

place at the saved switch-on brightness.

Status-LED (4) lights up: output is switched on.

Status-LED (4) off: output is switched off.

iIn the case of the HVAC insert, only the output is switched, whilst the output Kanal 1 HLK

switches according to the output (see operation manual of the insert).Kanal 1

Adjust the brightness

Button is combined with an insert for dimming.

Light is switched on.

oPress top button for longer than 0.4 seconds.

The light gets brighter up to maximum brightness.

oPress bottom button for longer than 0.4 seconds.

Light gets darker to minimum brightness.

iPush-button: the light becomes brighter up to maximum brightness, remains there briefly

and becomes dimmer down to minimum brightness, remains there briefly and becomes

brighter again. This process repeats for as long as the push-button remains pressed.

Switch light on with minimum brightness

Button is combined with an insert for dimming.

32582722 10864994 27.04.2017

2/15

Wireless switching/dimming top unit, 1-gang

oPress button at bottom for longer than 0.4 seconds.

Light is switched on at minimum brightness.

iIf the button or 2-wire extension is pressed at the top or the push-button is pressed for

longer than 0.4 seconds, then the light is switched on to minimum brightness and then

brighter.

Save switch-on brightness

Button is combined with an insert for dimming.

oSet light to the required brightness.

oPress button over entire surface for longer than 4 seconds.

Switch-on brightness is saved. For confirmation the lighting switches off briefly and then on

again to the saved switch-on brightness.

iAn push-button cannot be used to save the switch-on brightness.

5 Information for electrically skilled persons

5.1 Fitting and electrical connection

DANGER!

Electrical shock when live parts are touched.

Electrical shocks can be fatal.

Before carrying out work on the device or load, disengage all the

corresponding circuit breakers. Cover up live parts in the working environment.

Connecting and fitting the device

To ensure good transmission quality, keep a sufficient distance from any possible sources of

interference, e.g. metallic surfaces, microwave ovens, hi-fi and TV systems, ballasts or

transformers.

The flush-mounted insert is correctly fitted and connected (see instructions for flush-mounted

insert).

oFit radio button (3) and frame (2) on flush-mounted insert (1).

oSwitch on mains voltage.

oCarry out commissioning (see Commissioning chapter).

5.2 Commissioning

DANGER!

Electrical shock when live parts are touched.

Electrical shocks can be fatal.

During commissioning, cover the parts carrying voltage on radio transmitters

and actuators and in their surrounding area.

iThe button can also be commissioned with eNet server as an alternative to the

commissioning described here.

Connecting with radio transmitter

Load is switched off.

oPress button over entire surface for longer than 4 seconds.

iSwitch inserts switch the load on until the Status LED flashes.

The status LED (4) flashes after 4 seconds. The button is in programming mode for

approx. 1 minute.

oSwitch radio transmitter to programming mode as well (see radio transmitter instructions).

oTrigger telegram on the radio transmitter (see instructions of the radio transmitter).

The status LED lights up for 5 seconds.

32582722 10864994 27.04.2017

3/15

Wireless switching/dimming top unit, 1-gang

Produktspecifikationer

Varumärke:	Gira
Kategori:	mottagare
Modell:	549003
Gränssnitt:	RF Trådlös
Modell:	Dimmer och strömbrytare
Dimmer:	Ja
Produktens färg:	Vit
Temperatur vid drift:	-5 - 45 ° C
Material, hölje:	Rostfritt stål
Anslutningsteknologi:	Trådlös
Ljusstyrkeinställning:	Ja
Arbetsfrekvens:	868.0 - 868.6 MHz
Frekvens vid RF-överföring:	868 MHz
Sändningsområde:	0 - 100 m
Statusåterkoppling:	Ja
