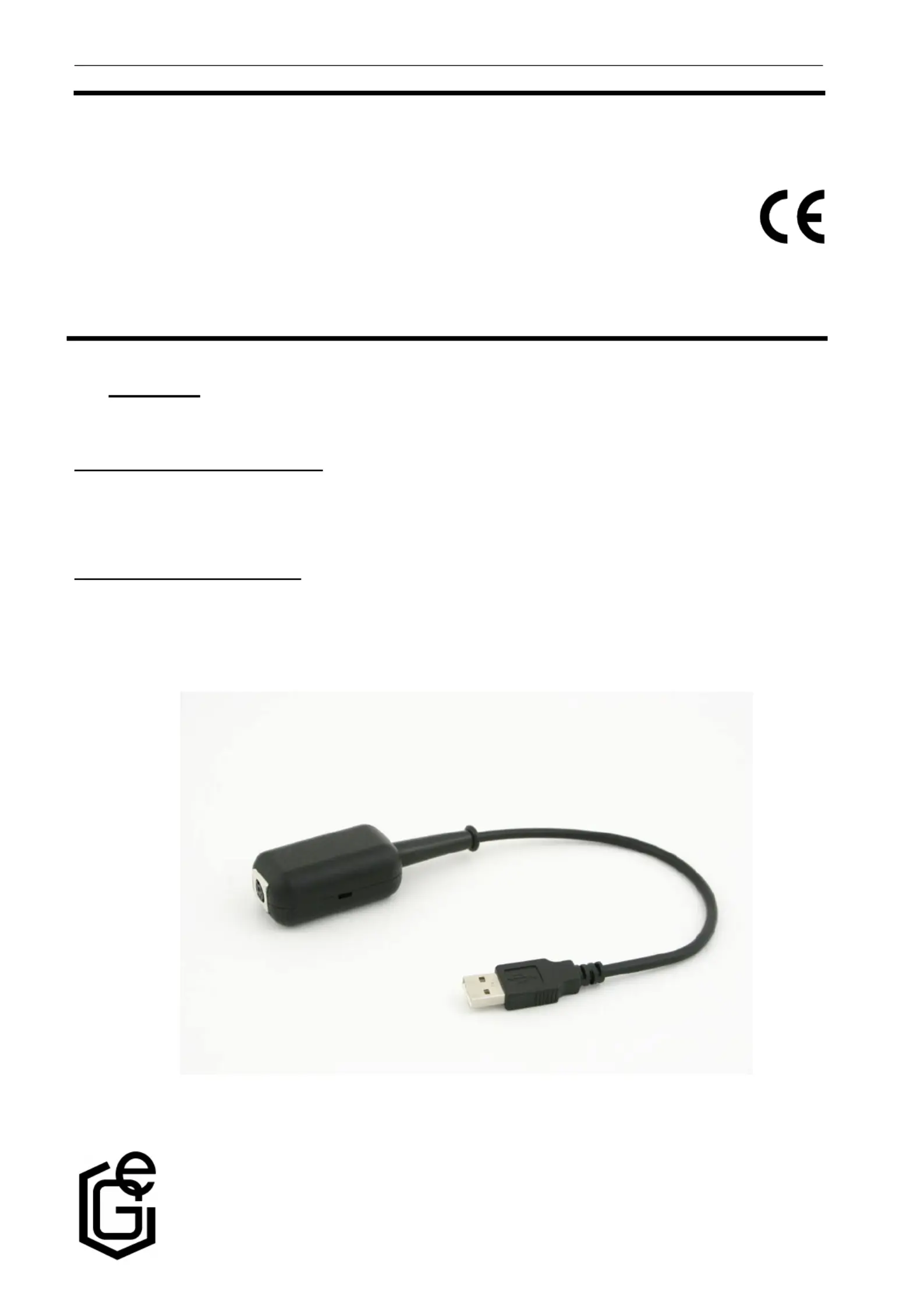

S56.0.01.6C-04 page 1 of 7
Installation- and operating manual
GDUSB 1000
Universal interface adapter for
GMSD/GMxD-sensors
1 General
The GDUSB1000-adaptor makes it possible to connect a standard pressure sensor of the type
GMSD/GMXD directly to the USB-port of a personal computer. Two operation modes are available:
Standard-mode: (Master-Slave)
In this mode the GDUSB1000 acts like a portable measuring instrument of the GMH3xxx-series and
gives back the wanted measurement on request (measurand, maximum or minimum data).
The communication can occur with the standard GMH/EASYBUS-software (e.g. EBS9M) and offers the
possibility to monitor long-run measurements of pressure for example.
Fast-mode: (autom. sending)
In this operating mode after a fulfilled trigger condition the GDUSB1000 sends the measuring data
automatically in the adjusted cycle time.
This mode is especially adapted for the analysis of pressure curves and the survey of pressure peaks
(with pre-trigger)
GREISINGER
electronic GmbH
D - 93128 Regenstauf, Hans-Sachs-Straße 26
Tel.: +49 9402 / 9383-0, Fax: +49 9402 / 9383-33, www.greisinger.de
S56.0.01.6C-04 page 2 of 7
Index
1 GENERAL ....................................................................................................................................... 1
2 SAFETY REGULATIONS ................................................................................................................ 2
3 SPECIFICATION ............................................................................................................................. 3
4 DISPOSAL INSTRUCTIONS ........................................................................................................... 3
5 OPERATING MODES ...................................................................................................................... 4
5.1 Standard - Mode ........................................................................................................................ 4
5.2 Fast - Mode ............................................................................................................................... 4
6 GENERAL HANDLING INSTRUCTIONS ........................................................................................ 5
6.1 To connect/change sensors....................................................................................................... 5
6.2 Altitude correction of the absolute pressure sensor ................................................................... 5
6.3 Zero correction of the pressure sensor ('OFFS') ........................................................................ 5
6.4 Slope correction of the pressure sensor ('SCAL') ...................................................................... 5
6.5 Pressure connection to the pressure sensor .............................................................................. 5
6.6 Advice for calibration service ..................................................................................................... 5
7 DRIVER INSTALLATION ................................................................................................................. 6
7.1 Windows Vista™, Windows XP and Windows 2000 .................................................................. 6
7.2 Windows 98SE (Version V4.28a) .............................................................................................. 6
8 FREQUENTLY ASKED QUESTIONS (FAQ) ................................................................................... 7
8.1 How to check whether the adaptor has been installed correctly and via which COM-port
can I approach the installed adaptor? ....................................................................................... 7
8.2 How to change the COM-port of the adaptor? ........................................................................... 7
8.3 Is there an automatic update function that updates the installed driver to the latest version? .... 7
8.4 How to find out the used version of the driver? .......................................................................... 7
2 Safety regulations
This device was designed and tested considering the safety regulations for electronic measuring de-
vices. Faultless operation and reliability in operation of the measuring device can only be assured if the
General Safety Measures and the devices specific safety regulation mentioned in this users manual are
considered.
1. Faultless operation and reliability in operation of the measuring device can only be assured if the
device is used within the climatic conditions specified in the chapter “Specification“.
2. By faulty handling of the interface adapter a damage of the device can not be excluded. Likewise a
damage of your attached device is possible. In such case we cannot assume any warranty.
The manufacturer will not assume any warranty for damages to other devices resulting by use of the
interface adapter.
3. Standard regulations for operation and safety for electrical, light and heavy current equipment have
to be observed, with particular attention paid to the national safety regulations (e.g. VDE 0100).
4. When connecting the device to other devices (e.g. the PC) the interconnection has to be designed
most thoroughly, as internal connections in third-party devices (e.g. connection of ground with pro-
tective earth) may lead to undesired voltage potentials.
S56.0.01.6C-04 page 3 of 7
5. The device must be switched off and must be marked against using again, in case of obvious mal-
functions of the device which are e.g.:
- visible damage
- no prescripted working of the device
- storing the device under inappropriate conditions for longer time
When not sure, the device should be sent to the manufacturer for repairing or servicing.
6. Attention: Do NOT use this product as safety or emergency stopping device, or in any other appli-
cation where failure of the product could result in personal injury or material damage. Failure to
comply with these instructions could result in serious injury and material damage.
3 Specification
Measuring range: corresponding to used pressure sensor
Max. range: -19999 ... 19999 digit
Resolution: corresponding to used sensor
Pressure units: mbar, bar, kPa, MPa, mmHg, PSI, mH
2
O
can be selected corresponding the used sensor
Accuracy: (typ.) ±0,2 % FS
(at nominal temperature)
Measuring cycle: 1 ms
Connection:
PC: standard USB-plug connector (type A)
GMSD, GMxD: 6-pin screened lockable Mini-DIN-socket.
Automatic sensor detection and setting of measuring range upon plugging
in of the sensor.
Power supply: via USB-interface
Operating conditions: -25 ... 50 °C, 0 ... 95 %RH
(non condensing)
Nominal temperature: 25 °C
Storage temperature: -25 ... 70 °C
Housing:
Dimensions: approx. 56 x 31 x 24 mm
Cable length: approx. 30 cm
Weight: approx. 40 g
EMC: The device corresponds to the essential protection ratings established in
the Regulations of the Council for the Approximation of Legislation for the
member countries regarding electromagnetic compatibility (2004/108/EG).
In accordance with EN 61326
:1997
+ A1
:1998
+ A2
:2001
(app. B, class B)
4 Disposal instructions
The device must not be disposed in the regular domestic waste.
Send the device directly to us (sufficiently stamped), if it should be disposed. We will dispose the de-
vice appropriate and environmentally sound.
