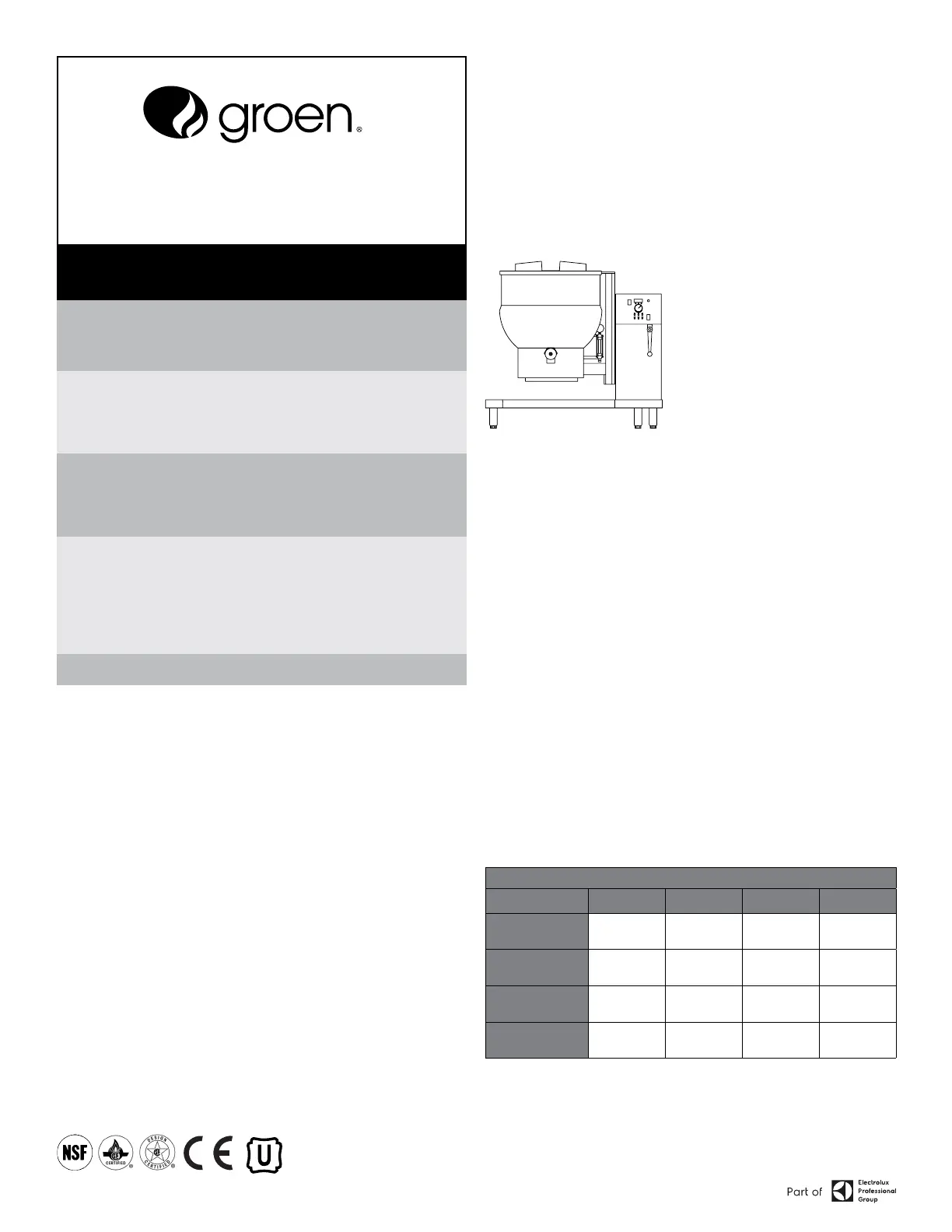

OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED
IN THIS MANUAL.
FOR YOUR SAFETY Instructions to be followed in the event user smells gas.
This information shall be obtained by consulting your local gas supplier. As
a minimum, turn off the gas and call your gas company and your authorized
service agent. Evacuate all personnel from the area.
WARNING Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death. Read the
installation, operating and maintenance instructions thoroughly before
installing or servicing this equipment.
NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the
consignee to inspect the container upon receipt of same and to determine
the possibility of any damage, including concealed damage. Groen suggests
that if you are suspicious of damage to make a notation on the delivery
receipt. It will be the responsibility of the consignee to le a claim with the
carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
PART NUMBER 177049, REV. G (03/25)
This manual provides information for:
STEAM JACKETED KETTLE WITH STANDARD
ELECTRONIC IGNITION
MODELS DH(T)-20/40/60/80 &
DH(T)-20/40/60/80(C,A) DOMESTIC & CE
EQUIPMENT DESCRIPTION
The Groen DH is a oor-mounted, tilting, steam jacketed kettle with a
thermostatically or electronically controlled, self-contained, gas-heated steam
source and appropriate controls, mounted on a sturdy base. The Model DH is
available in 20, 40, 60 or 80 gallon capacities.
The body of the DH Kettle is constructed of stainless steel, welded into one
solid piece. The kettle is furnished with a reinforced rim and a buttery shaped
pouring lip. It has a steam jacket which is ASME shop inspected and registered
with the national board for working pressures up to 50 PSI, 3.45 bars. Kettle
nish is 180 emery grit on the inside and bright high buff polish on the outside.
The kettle is tilted with a hand crank to pour out its contents. Stainless steel
panels enclose the controls and the base. Four stainless steel tubular legs
support the unit. Bullet or anged feet on each of the legs can be adjusted to
level the kettle. Standard DHT units include a two inch tangent draw-off valve.
The self-contained steam source is heated by propane or natural gas. Ignition
is electronic.
The kettle is charged at the factory with chemically pure water which contains
rust inhibitors. The steam source provides kettle temperatures of 150º to
approximately 295ºF (65 to 150ºC). Unit controls include a thermostat or
controller, pressure gauge, safety valve, pressure limit control, low water cut-
off, power switch and gas regulator valve. The gas supply shuts off automatically
when the kettle is tilted.
The unit must be specied for use with natural or propane gas. Service
connections for gas and electricity are required. Standard power supply is 115
Volt (domestic) or 230V (CE). Alternate single-phase voltages (208-240V) are
available.
KETTLE DIMENSIONS
DH/DHT-20 DH/DHT-40 DH/DHT-60 DH/DHT-80
Kettle
Capacity
20 gal.
(75 ltr)
40 gal.
(150 ltr)
60 gal.
(225 ltr)
80 gal.
(302 ltr)
Kettle Body
Diameter
20 in.
(508 mm)
26 in.
(660 mcm)
30 in.
(762 mm)
34 in.
(863 mm)
Base Width
35 in.
(889 mm)
47 in.
(1194 mm)
47 in.
(1194 mm)
52 in.
(1320 mm)
Base Front to Back
29 in.
(736 mm)
29 in.
(736 mm)
29 in.
(736 mm)
37.5 in.
(952 mm)
REFERENCES
CSA INTERNATIONAL
8501 East Pleasant Valley Road
Cleveland, Ohio 44131
NATIONAL SANITATION FOUNDATION
3475 Plymouth Road
Ann Arbor, Michigan 48106
KLENZADE SALES CENTER ECOLAB, Inc.
370 Wabasha
St. Paul, Minnesota 55102
ZEP MANUFACTURING COMPANY
1310-T Seaboard Industrial Boulevard
Atlanta, Georgia 30318
AMERICAN NATIONAL STANDARDS INST.,
Inc.
1430 Broadway
New York, New York 10018
Z223.1-1984 - National Fuel Gas Code
Z21.30 - Installation Gas Appliances &
Piping
NATIONAL FIRE PROTECTION ASSOCIATION
60 Battery march Park
Quincy, Massachusetts 02269
NFPA/54 -Installation Gas Appliances &
Piping
NFPA/70 - The National Electric Code
888-994-7636, fax 888-864-7636
groen.com
Information contained in this document is known to be current and accurate at the time of printing/creation. Reference our product line
website for the most updated product information and specications. © 2025 Electrolux Professional, Inc. All Rights Reserved.
2 OM-DH(T) DOMESTIC & (CE) INTERNATIONAL
Available Options:
1. 2” (50.8 mm) tangent drawoff standard on DHT models
2. Strainers, solid disk, 1/4” (6.35mm) or 1/8” (3.18mm) holes
3. No. 31 lift-off cover
4. No. 51 counterbalanced cover w/actuator*
5. Basket Inserts (Tri-BC)
6. Water ll faucets with swing spout
7. Kettle Brush Kit
IMPORTANT - READ FIRST - IMPORTANT
IMPORTANT:
THESE APPLIANCES MUST BE INSTALLED BY A COMPETENT PERSON IN
CONFORMITY WITH THE INSTALLATION AND SERVICING INSTRUCTIONS
AND NATIONAL REGULATIONS IN FORCE AT THE TIME. PARTICULAR
ATTENTION MUST BE PAID TO THE FOLLOWING (CE):
I. E. E. REGULATIONS FOR ELECTRICAL INSTALLATIONS
ELECTRICITY AT WORK REGULATIONS
GAS SAFETY (INSTALLATION & USE REGULATIONS
HEALTH AND SAFETY AT WORK ACT
FIRE PRECAUTIONS ACT
LOCAL AND NATIONAL BUILDING REGULATIONS
DETAILED RECOMMENDATIONS ARE CONTAINED IN INSTITUTE OF GAS
ENGINEERS PUBLISHED DOCUMENTS: IGE/UP/1, IGE/UP/2, BS6173 AND
BS5440 (CE).
THESE APPLIANCES HAVE BEEN CE-MARKED ON THE BASIS OF
COMPLIANCE WITH THE GAS APPLIANCE DIRECTIVE, EMC AND LOW
VOLTAGE DIRECTIVE FOR THE COUNTRIES, GAS TYPES AND PRESSURES
AS STATED ON THE DATA PLATE.
WARNING: TO PREVENT SHOCKS, ALL APPLIANCES WHETHER GAS OR ELECTRIC,
MUST BE EARTHED.
ON COMPLETION OF THE INSTALLATION, THESE INSTRUCTIONS SHOULD
BE LEFT WITH THE ENGINEER-IN-CHARGE FOR REFERENCE DURING
SERVICING. FURTHER TO THIS, THE USERS INSTRUCTIONS SHOULD
BE HANDED TO THE USERS AND THE INSTALLER SHOULD INSTRUCT
THE RESPONSIBLE PERSON(S) IN THE CORRECT OPERATION AND
MAINTENANCE OF THE APPLIANCE. EMPHASIS SHOULD BE MADE WITH
REGARD TO SAFE OPERATION OF DRAIN VALVE.
IT IS MOST IMPORTANT THAT THESE INSTRUCTIONS BE CONSULTED
BEFORE INSTALLING AND COMMISSIONING THE APPLIANCE. FAILURE TO
COMPLY WITH THE SPECIFIED PROCEDURES MAY RESULT IN DAMAGE OR
THE NEED FOR A SERVICE CALL.
CAUTION: SHIPPING STRAPS ARE UNDER TENSION AND CAN SNAP BACK WHEN CUT.
WARNING: DISCONNECT POWER BEFORE SERVICING. FAILURE TO DISCONNECT
COULD RESULT IN ELECTROCUTION AND DEATH.
CAUTION: UNIT WEIGHS 535 TO 973 LB. (245 TO 400 KG). FOR SAFE HANDLING,
INSTALLER SHOULD OBTAIN HELP AS NEEDED, OR EMPLOY APPROPRIATE
MATERIALS HANDLING EQUIPMENT (SUCH AS A FORKLIFT, DOLLY, OR
PALLET JACK) TO REMOVE THE UNIT FROM THE SKID AND MOVE IT TO THE
PLACE OF INSTALLATION.
WARNING: INSTALLATION OF THE KETTLE MUST BE DONE BY PERSONNEL QUALIFIED
TO WORK WITH GAS AND ELECTRICITY. IMPROPER INSTALLATION CAN
RESULT IN INJURY TO PERSONNEL AND/OR DAMAGE TO EQUIPMENT.
WARNING: THIS UNIT IS DESIGNED FOR COMMERCIAL USE. NEVER USE HOME
OR RESIDENTIAL GRADE GAS CONNECTIONS. THEY DO NOT MEET
COMMERCIAL GAS CODES AND COULD BE HAZARDOUS.
DANGER: ELECTRICALLY GROUND THE UNIT AT THE TERMINAL PROVIDED. FAILURE
TO GROUND UNIT COULD RESULT IN ELECTROCUTION AND DEATH.
WARNING: DO NOT CONNECT ANY PIPING TO THE POP SAFETY VALVE, THE VALVE
MUST BE FREE TO VENT STEAM AS NEEDED. THE ELBOW ATTACHED TO THE
SAFETY VALVE SHOULD POINT TO THE FLOOR. IMPROPER INSTALLATION
WILL VOID WARRANTY.
WARNING: FAILURE TO CHECK SAFETY VALVE OPERATION PERIODICALLY COULD
RESULT IN PERSONAL INJURY AND/OR DAMAGE TO EQUIPMENT.
WARNING: WHEN TESTING SAFETY VALVE, AVOID ANY EXPOSURE TO THE STEAM
BLOWING OUT OF THE SAFETY VALVE. DIRECT CONTACT WITH STEAM
COULD RESULT IN SEVER BURNS.
WARNING: KEEP THE APPLIANCE AREA FREE AND CLEAR OF COMBUSTIBLE MATERIALS.
FAILURE TO DO SO COULD RESULT IN FIRE OR PROPERTY DAMAGE.
CAUTION: BE SURE ALL OPERATORS READ, UNDERSTAND AND FOLLOW THE OPERATING
INSTRUCTIONS, CAUTIONS AND SAFETY INSTRUCTIONS CONTAINED IN THIS
MANUAL.
CAUTION: KEEP FLOORS IN KETTLE WORK AREA CLEAN AND DRY. IF SPILLS OCCUR,
CLEAN IMMEDIATELY TO AVOID THE DANGER OF SLIPS OR FALLS.
WARNING: WHEN TILTING KETTLE FOR PRODUCT TRANSFER:
1) USE CONTAINER DEEP ENOUGH TO CONTAIN AND MINIMIZE PRODUCT
SPLASHING.
2) PLACE CONTAINER ON STABLE, FLAT SURFACE, AS CLOSE TO KETTLE AS
POSSIBLE.
3) STAND TO SIDE OF KETTLE WHILE POURING — NOT DIRECTLY IN POUR
PATH OF HOT CONTENTS.
4) RETURN KETTLE BODY TO LEVEL POSITION AFTER CONTAINER IS FILLED OR
TRANSFER IS COMPLETE.
5) DO NOT OVERFILL CONTAINER, AVOIDING DIRECT SKIN CONTACT WITH HOT
CONTAINER AND ITS CONTENTS.
WARNING: DO NOT HEAT AN EMPTY KETTLE. EXCESSIVE STEAM PRESSURE COULD
DEVELOP.
WARNING: IF THE KETTLE CONTAINS ITEMS IN HOT LIQUIDS SUCH AS SAUCE OR MELTED
FAT, THEY CAN SLIDE FORWARD SUDDENLY DURING TILTING AND CAUSE THE
HOT LIQUID TO SPLASH OUT.
WARNING: AVOID ALL DIRECT CONTACT WITH HOT FOOD PRODUCT OR WATER IN THE
KETTLE. DIRECT CONTACT COULD RESULT IN SEVERE BURNS.
CAUTION: DO NOT OVER FILL THE KETTLE WHEN COOKING, HOLDING OR CLEANING. KEEP
LIQUIDS A MINIMUM OF 2-3” (5-8 CM) BELOW THE KETTLE BODY RIM TO
ALLOW CLEARANCE FOR STIRRING, BOILING AND SAFE PRODUCT TRANSFER.
WARNING: IT IS RECOMMENDED THAT WATER AND SOLUTIONS BE KEPT OUT OF
CONTROLS AND BURNERS. DO NOT USE HIGH PRESSURE SPRAY DIRECTLY ON
THE CONTROL CONSOLE, ELECTRICAL CONNECTIONS AND BURNERS. USE A
GARDEN HOSE SPRAY CONNECTED TO CITY WATER SUPPLY.
CAUTION: MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS MEMBRANES
AND CLOTHING. PRECAUTIONS SHOULD BE TAKEN TO WEAR RUBBER GLOVES,
GOGGLES OR FACE SHIELD AND PROTECTIVE CLOTHING. CAREFULLY READ THE
WARNINGS AND FOLLOW THE DIRECTIONS ON THE LABEL OF THE CLEANER TO BE
USED. FAILURE TO DISCONNECT COULD RESULT IN ELECTROCUTION AND DEATH.
WARNING: BEFORE REPLACING ANY PARTS, DISCONNECT THE UNIT FROM THE ELECTRIC
POWER SUPPLY AND CLOSE THE MAIN GAS COCK. ALLOW FIVE MINUTES FOR
UNBURNED GAS TO VENT.
CAUTION: USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY
AUTHORIZED DISTRIBUTORS CAN CAUSE INJURY TO THE OPERATOR AND
DAMAGE TO THE EQUIPMENT AND WILL VOID ALL WARRANTIES.
IMPORTANT
: SERVICE PERFORMED BY OTHER THAN GROEN AUTHORIZED SERVICE AGENT
WILL VOID ALL WARRANTIES.
CAUTION: THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND
ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL
CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN
GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE
IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED.
CAUTION: CHILDREN SUPERVISED ARE NOT TO PLAY WITH THIS APPLIANCE.
CAUTION: CLEANING AND USER MAINTENANCE SHALL NOT BE MADE BY CHILDREN
WITHOUT SUPERVISION.
CAUTION: FOR APPLIANCES INTENDED FOR USE AT ALTITUDES EXCEEDING 2,000 M, THE
MAXIMUM ALTITUDE WILL BE STATED OR MARKED ON APPLIANCE.
PERFORMANCE DATA (DOMESTIC)
Model DH/DHT-20 DH/DHT-40 DH/DHT-60 DH/DHT-80
BTU/hr 72,000 100,000 150,000 150,000
kW 21.1 29.3 44.0 44.0
Produktspecifikationer
| Varumärke: | Groen |
| Kategori: | ej kategoriserat |
| Modell: | AH/1E |
Behöver du hjälp?
Om du behöver hjälp med Groen AH/1E ställ en fråga nedan och andra användare kommer att svara dig
ej kategoriserat Groen Manualer
1 September 2025
1 September 2025
1 September 2025
1 September 2025
1 September 2025
31 Augusti 2025
ej kategoriserat Manualer
- Feit Electric
- Honeywell
- Lorex
- Midea
- Leica
- Ryobi
- Razer
- Cameo
- DeLock
- Gys
- Arctic
- Nordlux
- Gourmia
- ELTA Music
- OvisLink
Nyaste ej kategoriserat Manualer
1 September 2025
1 September 2025
1 September 2025
1 September 2025
1 September 2025
1 September 2025
1 September 2025
1 September 2025
1 September 2025
1 September 2025
