1. INTRODUCTION
Heatit Z-TRM3 is an electronic thermostat for electrical floor heating,
designed to be mounted in a standard flush box. The thermostat has
a built-in Z-Wave chip that can be connected with Home Automation
systems. Heatit Z-TRM3 is equipped with a single-pole relay and fits
into System 55 frames. The thermostat can withstand a load of max
16A /3600W at 230VAC.
NB! If the sensor mode is changed to A or AF mode then a room
sensor compensation process will start, which limits maximum power
output to 75%. The thermostat adapts to the environment within a
few days. No internal sensor calibration should be performed during
the first few days.
2. STATEMENT REGARDING PRODUCTS FROM MULTIPLE
MANUFACTURERS
Please read this before installation
This device may be used with all devices certified with the Z-Wave
Plus™ certificate and should be compatible with such devices
produced by any manufacturer. Every primary controller is different
depending on the manufacturer, their target audience and intended
use/application. Please review the functionalities implemented by the
primary controller you intend to use with our Z-Wave Plus certified
device to ensure that it provides the necessary controls to take full
advantage of our product’s capabilities.
3. BEHAVIOR WITHIN THE Z-WAVE™ NETWORK
This device may be operated within any Z-Wave network with
Z-Wave-certified devices from other manufacturers. All non-battery-
operated nodes within the network will act as repeaters regardless of
manufacturer to increase the reliability of the network. On delivery, the
device does not belong to any Z-Wave network.
The device needs to be added to an existing network to communicate
with the other devices within it. Devices may also be removed from
a network. The add/remove processes are initiated by the primary
controller of the Z-Wave network.
4. QUICK START
1. Switch off the mains supply (disable the fuse).
2. Open the wall switch box.
3. Connect wires according to the labeling described in
chapter 5 ”Installation”.
4. After verifying the connections, switch the mains supply back on.
5. Set the primary controller in add mode (security/non-security).
6. Press and hold the center button until “OFF” is shown on the display
(approx. 10 seconds).
7. Press down button until you reach “CON”, press and hold until the
display shows a rotating light pattern.
8. The thermostat will display “INC” when the thermostat is successfully
added.
NB! If adding/removing fails, Err (error) will appear.
TABLE OF CONTENTS
1 Introduction
2 Statement regarding products from multiple manufacturers
3 Behavior within the Z-Wave™ network
4 Quick Start
5 Installation
5.1 Controls
6 Add/Remove
6.1 Method 1: Standard (Manual)
6.2 Method 2: SmartStart (Automatic)
7 Factory Reset
7.1 Startup
8 Principles of regulation
9 Programming thermostat
10 Temperature shown in display
11 Standby and main screen
12 Choice of sensor
13 Selecting the right Ohm value for your external floor sensor
14 Calibration
15 Brightness
16 Hysteresis (dIF)
17 Min/Max temperature settings
18 Fast functions from Standby / Main Screen
18.1 Display on/off (don/doF)
18.2 Child lock (Loc)
19 Error codes
20 QR-Code placement (DSK)
21 Security
22 Node Information Frame
23 Associations
23.1 Setting and removing associations
23.2 Multichannel support
23.3 No multichannel support
23.4 Association groups
24 Configuration parameters
25 Command class specifications
26 Product information
HEATIT
Z-TRM3
Installers manual
Ver 2022-A
Firmware 4.0
01.01.2021
5. INSTALLATION
Installation must be done by a qualified electrician in accordance with
the National Building codes. Before installation, disconnect the power
to the device from the mains. During installation of the device, power
to the device must be disconnected AT ALL TIMES!
5.1 Controls
Use e.g. a small slotted screwdriver. Start by carefully removing the
front cover by pushing the release springs. The front cover and the
frame may now be removed.
Connect the wires to the thermostat terminals. Use 1.5mm² or 2.5mm²
according to load.
NB! Max tightening torque for terminal screws: 2Nm
HEATING (N) Heating cable connection (Neutral)
N Power connection (Neutral) 230VAC
L Power connection (Live) 230VAC
HEATING (L) Heating cable connection
FLOOR SENSOR NTC type (10, 12, 15, 22, 33 or 47kΩ)
Default 10kΩ
EXTERNAL SENSOR NTC type (10, 12, 15, 22, 33 or 47kΩ)
Default 10kΩ
Next, position the thermostat and mount it into the wall flush box
using 2-4 screws. Position the frame over the flush box, then position
and carefully press the front cover until it snaps in place. Check that
the front cover has snapped in place properly on both sides. The front
cover should now fit firmly on all sides. In order to read the Power
Metering, the load needs to be connected to both heating L + N.
Note! The top cover has to be installed when the thermostat
is connected to the main power source. The thermostat is not
a SELV product. All voltage parts must be considered to be
230VAC.
6. ADD/REMOVE
Please read this before installation
The primary controller/gateway has a mode for adding or removing
devices. Please refer to your primary controller manual on how to set
the primary controller in add/remove mode. The device may only be
added or removed from the network if the primary controller is in add/
remove mode. When the device is removed from the network, it will
NOT revert to factory settings.
There are two ways to add the device to a Z-Wave network.
6.1 Method 1: Standard (Manual)
1. Press Center (confirm) for 10 seconds. The display will show OFF.
2. Press Right (down) 5 times until you see Con on the display.
3. Start the add/remove device process in your primary controller.
4. Start the add/remove mode by pressing Center (confirm) for
approximately 2 seconds.
Adding/removing mode is indicated on the display by rotating
LED segments on the display. This lasts until the timeout occurs
after 90 seconds, or until the module has been added/removed in
the network. Confirmation will show Inc/EcL on the display. Exit
programming mode by choosing ESC in the menu. Your thermostat
is now ready for use with default settings.
NB! When the thermostat is removed from the gateway, the
parameters are not reset. To reset the parameters, see Chapter 7:
”Factory reset”. If adding/removing fails, Err (error) will appear.
Please perform a ”remove device” process and try again. If Err displays
again, please see Chapter 7: “Factory reset”.
6.2 Method 2: SmartStart (Automatic)
SmartStart enabled products may be added to a Z-Wave network
by scanning the Z-Wave QR-Code on the product if your primary
controller supports SmartStart inclusion. No further action is required
and the SmartStart product will be added automatically after being
powered on within range of the primary controller.
The Z-Wave QR-Code locations may be found in Chapter 20
”Z-Wave QR-Code/DSK”.
7. FACTORY RESET
By pressing buttons Right and Center (down and confirm) for 20 seconds, the
thermostat will perform a complete factory reset. The device will display rES for
10 seconds while performing a factory reset. When rES no longer is displayed,
the thermostat has been reset.
NB! Please use this procedure only when the primary controller/
gateway is missing or otherwise inoperable.
7.1 Startup
After powering up the device for the first time, all the parameters will have
default settings.
51.1mm
15.6mm
21.3mm
49.5mm
49.5mm
Made in EU
16A 230V~
50/60HZ
IP21
TF 058
HEATING L
L
N
HEATING N
FLOOR
SENSOR
EXTERNAL
SENSOR
Z-TRM3
Release spring
58.8mm
87mm
1: Left 2: Center 3: Right
br1 The display brightness may be adjusted in this menu.
Con Activation of inclusion/exclusion mode.
dIF Hysteresis.
ALo Setting lowest allowed temperature (limitation).
(Air sensor)
AHI Setting highest allowed temperature (limitation).
(Air sensor)
Flo Setting lowest allowed temperature (limitation).
(Floor sensor)
FHI Setting highest allowed temperature (limitation).
(Floor sensor)
A2L Setting lowest allowed temperature (limitation).
(A2 air sensor)
A2H Setting highest allowed temperature (limitation).
(A2 air sensor)
ESC Escape – exit programming menu.
12. CHOICE OF SENSOR
The thermostat has a range of choices when it comes to sensors.
To access the menu, press Center (confirm) for 10 seconds, then press
Right (down) once. An A will appear on the display. Then press Center
(confirm) again and choose modes while moving up and down with
buttons Left or Right:
F Floor sensor
A Internal sensor
AF Internal sensor + Floor sensor
A2 External room sensor
A2F External room sensor + Floor sensor
When you have chosen sensor mode, press the Center (confirm)
button. If you choose F without having a floor sensor connected, Er4
will be shown in the display. If you choose A2 or A2F and there is no
external sensor installed, Er5 will be displayed on the screen.
NOTE: Wooden floors require that a floor sensor is connected in order
to limit the floor temperature to a maximum of 27°C (in accordance
with specifications from most wooden floor manufacturers).
When using the thermostat is used in (AF or A2F) the floor limiter
FHI is automatically set to 27°C. When using any other sensor type
(A, F or A2F) the max temperatures is default 5°C minimum and 40°C
maximum.
13. SELECTING THE RIGHT OHM VALUE FOR YOUR EXTERNAL
FLOOR SENSOR
The following values are available: NTC type (10, 12, 15, 22, 33 or 47kΩ).
Default 10kΩ. Confirm with the Center (confirm) button. You can not
combine two types of NTC sensors.
14. CALIBRATION
CAr, CAF, CAE – Parameters 10, 11, 12)
Using Floor / External sensor (F, A2 or A2F-mode)
In this mode, you may adjust the displayed temperature. If the
Temperature sensor is not calibrated properly, you can make minor
changes to the temperature readout. You can calibrate the measured
temperature by up to ±6°C.
You may later adjust the temperature recorded by the sensor using in
the menu structure or using parameters.
8. PRINCIPLES OF REGULATION
Using Floor / External sensor (F, A2 or A2F-Mode)
The thermostat uses temperature readings retrieved from the internal
sensor or external wired sensor to regulate heating. When you have
chosen a setpoint temperature, the thermostat will use an internal
hysteresis to regulate the temperature. This hysteresis is adjustable.
See Chapter 5 “Installation”.

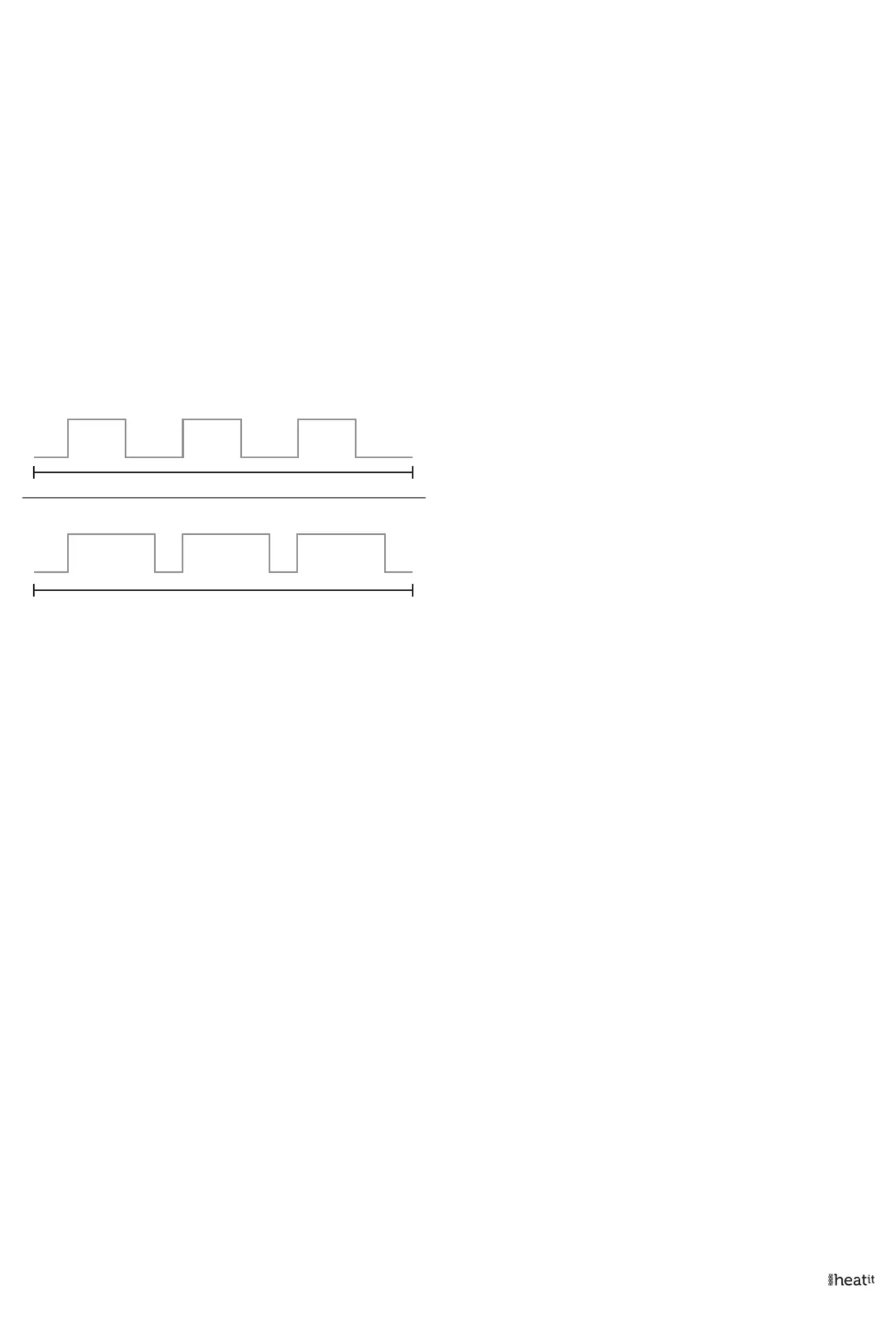

Using Internal sensor (A-mode/AF mode)
If you have a set point of 20°C, the thermostat will use the full power
until the temperature is 19°C. The thermostat will then begin to
regulate the output from 19°C with a 75% duty cycle until it reaches
19.25°C. When the temperature has reached 19.5°C the thermostat will
use a 50% duty cycle, until it reaches 20°C, then the thermostat turns
off and repeats the process. For example, at a 75% duty cycle it will turn
ON for a total of 90 minutes and OFF for 30 minutes.
9. PROGRAMMING THE THERMOSTAT
To activate the programming mode, press Center (confirm) for 10
seconds. The display will show OFF. You are now in programming
mode. To scroll up and down in the menu, use buttons 1 and 3 (left
and right) to navigate. To enter the submenu, press Center (confirm).
Always confirm your setting by pressing Center (confirm) for 2 seconds.
Sto will appear to indicate saved settings.
10. TEMPERATURE SHOWN IN DISPLAY
By default, the temperature shown on the display is the setpoint. This
may be altered with parameter 13: “Temperature display”. You may
calibrate the sensor values ±4 degrees using parameters 10 to 12.
11. STANDBY AND MAIN SCREEN
When the thermostat remains untouched for a while, it will
automatically revert to the standby screen. The standby screen will by
default show the setpoint temperature. By pressing any button once,
you will see the measured temperature. By pressing the left or right (up
or down) button one more time, you will change the setpoint.
Menu structure
OFF Turns the thermostat off
Sensors:
F Depending on your choice of sensors, the menu will change.
SEn Select the right Ohm value for your external/floor sensor.
NTC type (10, 12, 15, 22, 33 or 47kΩ). Default 10kΩ.
CAE Calibration for external sensor.
CAF Calibration for floor sensor.
CAr Calibration for internal sensor.
50% duty cycle
75% duty cycle
20 min.
30 min. 30 min. 30 min.
20 min.
2 hrs.
2 hrs.
20 min.
Produktspecifikationer
| Varumärke: | Heatit |
| Kategori: | Termostat |
| Modell: | Z-TRM3 |
| Enhetsplacering: | Ingebouwd |
| Typ av operation: | Scrollbar, Touch |
| Färg på produkten: | Zwart |
| Antal effektnivåer: | 17 |
| Inbyggd display: | Nee |
| Timer: | Ja |
| Vikt: | 12000 g |
| Bredd: | 572 mm |
| Djup: | 512 mm |
| Höjd: | 56 mm |
| Sladdlängd: | 1.1 m |
| Barnlås: | Ja |
| Förpackningens vikt: | 13000 g |
| Typ av material (överst): | Glaskeramiek |
| Brännare/kokzonseffekt 2: | 1800 W |
| Brännare/kokzonseffekt 3: | 1200 W |
| Brännare/kokzonseffekt 1: | 1800 W |
| Antal brännare/kokzoner: | 4 zone(s) |
| Typ av häll: | Inductiekookplaat zones |
| Elektronisk tändning: | Ja |
| Brännare/kokzon typ 1: | Regulier |
| Brännare/kokzon typ 2: | Regulier |
| Typ av brännare/kokzon 3: | Sudderen |
| Lätt att städa: | Ja |
| Antal gasbrännare: | 0 zone(s) |
| Antal elektroniska kokzoner: | 4 zone(s) |
| Sjud brännaren/kokzonens diameter: | 145 mm |
| Vanlig brännare/kokzonsdiameter: | 180 mm |
| Sjud brännare/kokzon: | 1400 W |
| Normal brännare/kokzon: | 1800 W |
| Kontrollposition: | Boven voorzijde |
| Ansluten last (elektrisk): | 7400 W |
| Installationsfackets bredd: | 560 mm |
| Installationsfack höjd: | 56 mm |
| Stor brännare/kokzonsdiameter: | 210 mm |
| Stor brännare/kokzon: | 2200 W |
| Ansluten last (gas): | 0 W |
| Automatisk avstängning: | Ja |
| Forma sjudgrop/kokzon: | Rond |
| Forma vanlig brännare/kokzon: | Rond |
| Forma stor brännare/kokzon: | Rond |
| Boost funktion: | Ja |
| Installationsutrymmets djup (min): | 500 mm |
| Restvärmeindikator: | Ja |
| Antal kokzoner som ska användas samtidigt: | 4 |
| Pansigenkänning: | Ja |
| Automatisk avstängningstimer lagar mat på ett säkert sätt: | Ja |
| Certifiering: | AENOR, CE |
| Gränssnitt: | Z-Wave |
| Typ av brännare/kokzon 4: | Groot |
| Brännare/kokzonseffekt 4: | 2200 W |
| Strömkälla brännare/kokzon 1: | Electrisch |
| Strömkälla brännare/kokzon 2: | Electrisch |
| Strömkälla brännare/kokzon 3: | Electrisch |
| Strömkälla för brännare/kokzon 4: | Electrisch |
| Måttenhet: | °C |
| Installationsutrymmets djup (max): | 516 mm |
| Frekvens: | 868.4 MHz |
| Placera brännare/kokzon 1: | Links achter |
| Diameter brännare/kokzon 1: | 180 mm |
| Placera brännare/kokzon 2: | Links voor |
| Brännare/kokzons diameter 2: | 180 mm |
| Placera brännare/kokzon 3: | Rechts achter |
| Brännare/kokzons diameter 3: | 145 mm |
| Placera brännare/kokzon 4: | Rechts voor |
| Brännare/kokzons diameter 4: | 210 mm |
| Kokzon 1 form: | Rond |
| Kokzon 2 form: | Rond |
| Kokzon 3 form: | Rond |
| Kokzon 4 form: | Rond |
| AC-ingångsspänning: | 220-240 V |
| AC-ingångsfrekvens: | 50 - 60 Hz |
| Temperatursensor: | Ja |
| Smart termostat: | Ja |
| Produktens färg: | Svart |
| Hållbarhetscertifiering: | CE, RoHS |
| AC-inspänning: | 230 V |
| Internationellt skydd (IP) kod: | IP21 |
| Växelström Frekvens: | 50 - 60 hz |
| Strömkälla: | AC |
| Barnsäkert: | Ja |
| Uppfyller hållbarhetskrav: | Ja |
| Lämplig för våtrum: | Nej |
Behöver du hjälp?
Om du behöver hjälp med Heatit Z-TRM3 ställ en fråga nedan och andra användare kommer att svara dig
Termostat Heatit Manualer
19 Augusti 2025
16 Augusti 2025
15 Augusti 2025
4 Januari 2025
26 September 2024
26 September 2024
24 September 2024
24 September 2024
24 September 2024
24 September 2024
Termostat Manualer
- Robertshaw
- GENERAL Life
- Nexa
- Hunter
- Wallair
- 2Heat
- Truma
- Hager
- Remeha
- Theben
- Computherm
- OJ ELECTRONICS
- Hoffman
- Bulex
Nyaste Termostat Manualer
12 September 2025
11 September 2025
10 September 2025
10 September 2025
10 September 2025
10 September 2025
9 September 2025
9 September 2025
9 September 2025
7 September 2025
