Sida 1/2

Port Fa

4 Po

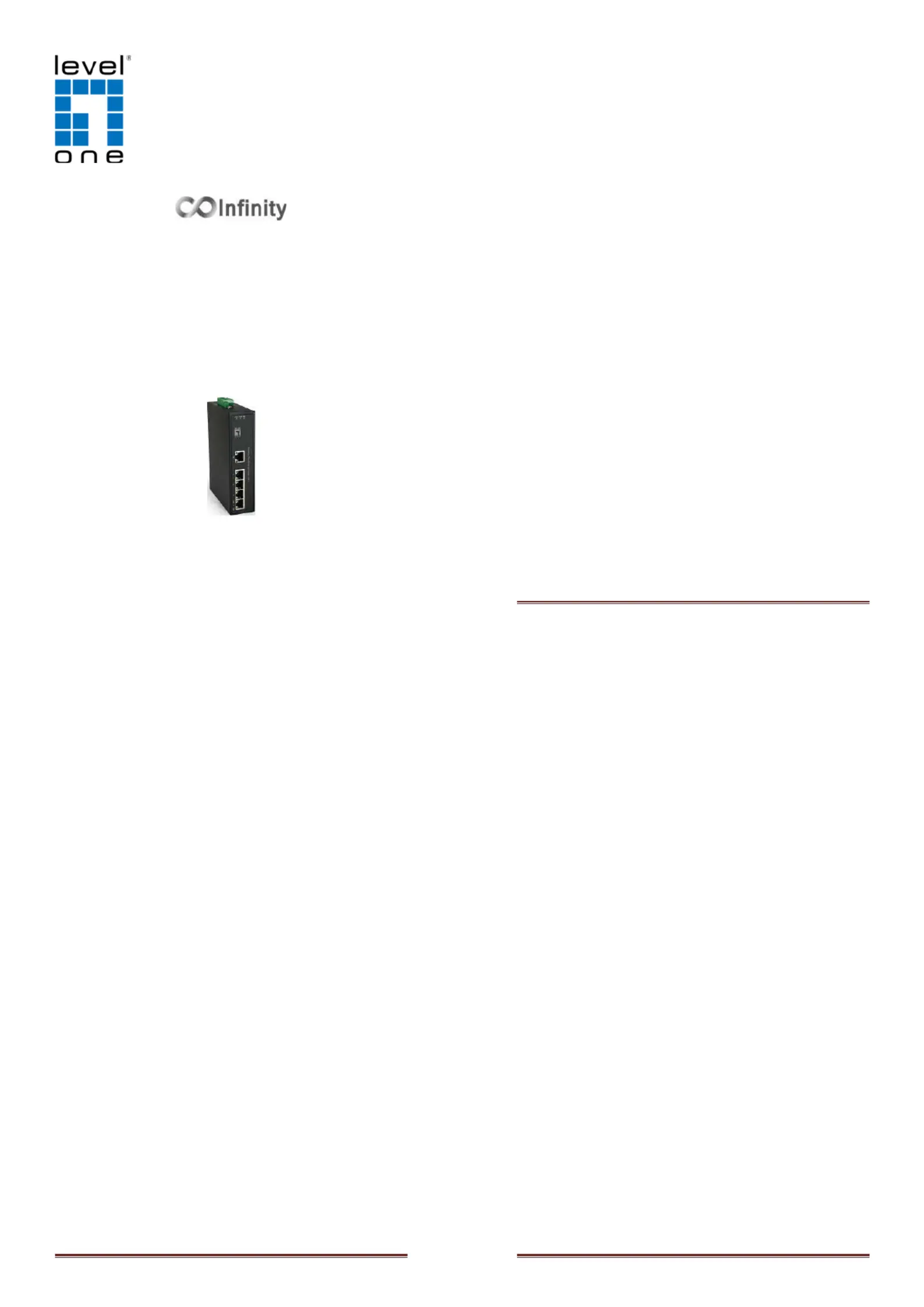

Quick

IFP-0501

ast Ethernet Industrial PoE Switch

oE Outputs, 802.3at PoE Plus

Installation Guid

v1.0

IFP-0501 Page 1

Overview

The LevelOne IFP-0501 Industrial Fast Ethernet PoE Switch

provides 4 ports at 10/100M TX PSE to supply power and

internet to PoE compatible Powered Devices (PD) in a network

setting. The IFP-0501 supplies 15.4 Watts for IEEE802.3af or

30 Watts (Max 36W) for IEEE802.3at per port. With an

industrial-standard DIN-rail mount for easy cabinet deployment

and metal casing rated to IP30, this ruggedized switch is

engineered for installation in industrial settings where humidity,

dust, high or low operating temperatures or vibrations could

cause standard devices to fail.

High Reliability

All components are built to withstand harsh environment

applications without compromise where humidity, temperature

variation and even shock vibration are concerns, including

Electric & Utility, Critical Infrastructure, Transportation and

Surveillance Security. This device operates under -40 to 75

Celsius (-40 to 167 Fahrenheit) temperature.

Plug & Play

This unmanaged Industrial Ethernet Switch is designed for the

demanding industrial environments at businesses in need of

instant connectivity with no setup or congure required, truly

plug and play.

IFP-0501 Page 2

Power over Ethernet

This switch is Power Sourcing Equipment (PSE), and it is fully

complied with IEEE 802.3at PoE standard at maximum 30W

power budget per port. It helps to save infrastructure wiring

costs dramatically by eliminating electric wiring and less UPS

needed. Also, it is compatible with IEEE802.3af standard PD

devices.

IFP-0501 Page 3

Features

• Meets NEMA TS1/TS2 Environmental requirements such as temperature,

shock, and vibration for trac control equipment

• Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for

industrial environment

• Supports 1024 MAC addresses. Provides 1M bits memory buer

• Store-and-forward mechanism. Full wire-speed forwarding rate.

• Power Supply: 44~56VDC Terminal Block power input.

• 3.76W power consumption 48VDC @ 0.12A (unit only)

• -40 to 75 (-40 to 167 ) operating temperature range. ℃ ℃ ℉ ℉

• Tested for functional operation @ -40 to 85 (-40 to 185 ). ℃ ℃ ℉ ℉

• Metal case design and compliant with IP30 standard

Package Contents

 IFP-0501

 Din rail*1, wall mount*2, terminal block*1, screw*4

 Quick Installation Guide

IFP-0501 Page 4

LED Status

LED

Status

Description

PWR 1, 2

ON Power On

OFF Power O

SW (relay)

ON both PW1 and PW2 are connected

OFF only PW1 or PW2 is connected

10/100

Base

LNK(1 ~ T5)

ON TX link is detected

OFF TX port is not detected

Flashing TX port is active

POE(1 ~ 4)

ON PD is connected

OFF No PD is connected

IFP-0501 Page 5

Power Input

Terminal Block

PW1

44–56VDC

–

Power Ground

PW2

44–56VDC

–

Power Ground

Relay Output

1A @ 24VDC

IFP-0501 Page 6

DIN Rail Mount

• Assembly: Place the switch on the DIN rail from above using

the slot. Push the front of the switch toward the mounting

surface until it audibly snaps into place

• Start-up: Connect the supply voltage to start up the switch

via the terminal block (or DC JACK)

• Dismantling: Pull out the lower edge and then remove the

switch from the DIN rail.

IFP-0501 Page 7

10/100Base-TX Connector

The following lists the pin-out of 10/100Base-TX ports.

Standard Port

Uplink Port

1 Output Transmit Data + Input Receive Data +

2 Output Transmit Data - Input Receive Data -

3 Input Receive Data + Output Transmit Data +

4 NC NC

5 NC NC

6 Input Receive Data - Output Transmit Data -

7 NC NC

8 NC NC

Produktspecifikationer

Varumärke:	LevelOne
Kategori:	brytare
Modell:	IFP-0501
Vikt:	470 g
Bredd:	36 mm
Djup:	105 mm
Höjd:	142 mm
Förpackningens bredd:	65 mm
LED-indikatorer:	Link, PoE, Power
Snabbstartsguide:	Ja
Ursprungsland:	Taiwan
Certifiering:	FCC, CE, VCCI, RoHS\nEN55022/24 \nEN55011\nEN50121-3-2\nEN60068-2-6\nEN60068-2-27\nEN60068-2-32
Internminne:	1 MB
Uteffekt:	1 A
Rackmontering:	Nej
Säkerhet:	EN60950-1
Paketbuffertminne:	1 MB
Full duplex:	Ja
Väggmonteringssats:	Ja
Produktens färg:	Svart
Monteringsbar på väggen:	Ja
Förpackningstyp:	Låda
Låddjup:	165 mm
Vikt inkl. förpackning:	180 g
Strömförsörjning via Ethernet (PoE) stöd:	Ja
Strömförbrukning (vanlig):	3.76 W
Total Power over Ethernet (PoE)-budget:	126 W
Temperatur vid drift:	-40 - 75 ° C
Temperaturintervall (förvaring):	-40 - 85 ° C
Intervall för relativ operativ luftfuktighet:	5 - 95 %
Fuktighet (förvaring):	5 - 95 %
Utgångsspänning:	24 V
Internationellt skydd (IP) kod:	IP30
Material, hölje:	Metall
Kommunikationsstandarder:	IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Adresstabellstorlek:	1024 poster
Switch kapacitet:	1 Gbit/s
10G stöd:	Nej
Flödeskontroll:	Ja
Antal grundläggande RJ-45 Ethernet-portar:	5
Typ av grundläggande RJ-45 Ethernet-portar:	Fast Ethernet (10/100)
Antal Power over Ethernet plus (PoE +)-portar:	4
Switch typ:	Ohanterad
Lagra-och-vidarebefordra:	Ja
Autonegotiation:	Ja
Auto MDI / MDI-X:	Ja
Koppar Ethernet-kablar teknik:	10BASE-T, 100BASE-TX
Kopplingsplint ingår:	Ja
Paketförmedlingshastighet (10 Mbps):	14880 pps
Paketförmedlingshastighet (100 Mbps):	148000 pps
