LevelOne IFP-0502 Bruksanvisning

LevelOne brytare IFP-0502

Läs gratis den bruksanvisning för LevelOne IFP-0502 (2 sidor) i kategorin brytare. Guiden har ansetts hjälpsam av 14 personer och har ett genomsnittsbetyg på 4.5 stjärnor baserat på 7.5 recensioner. Har du en fråga om LevelOne IFP-0502 eller vill du ställa frågor till andra användare av produkten? Ställ en fråga

Ladda ner PDF

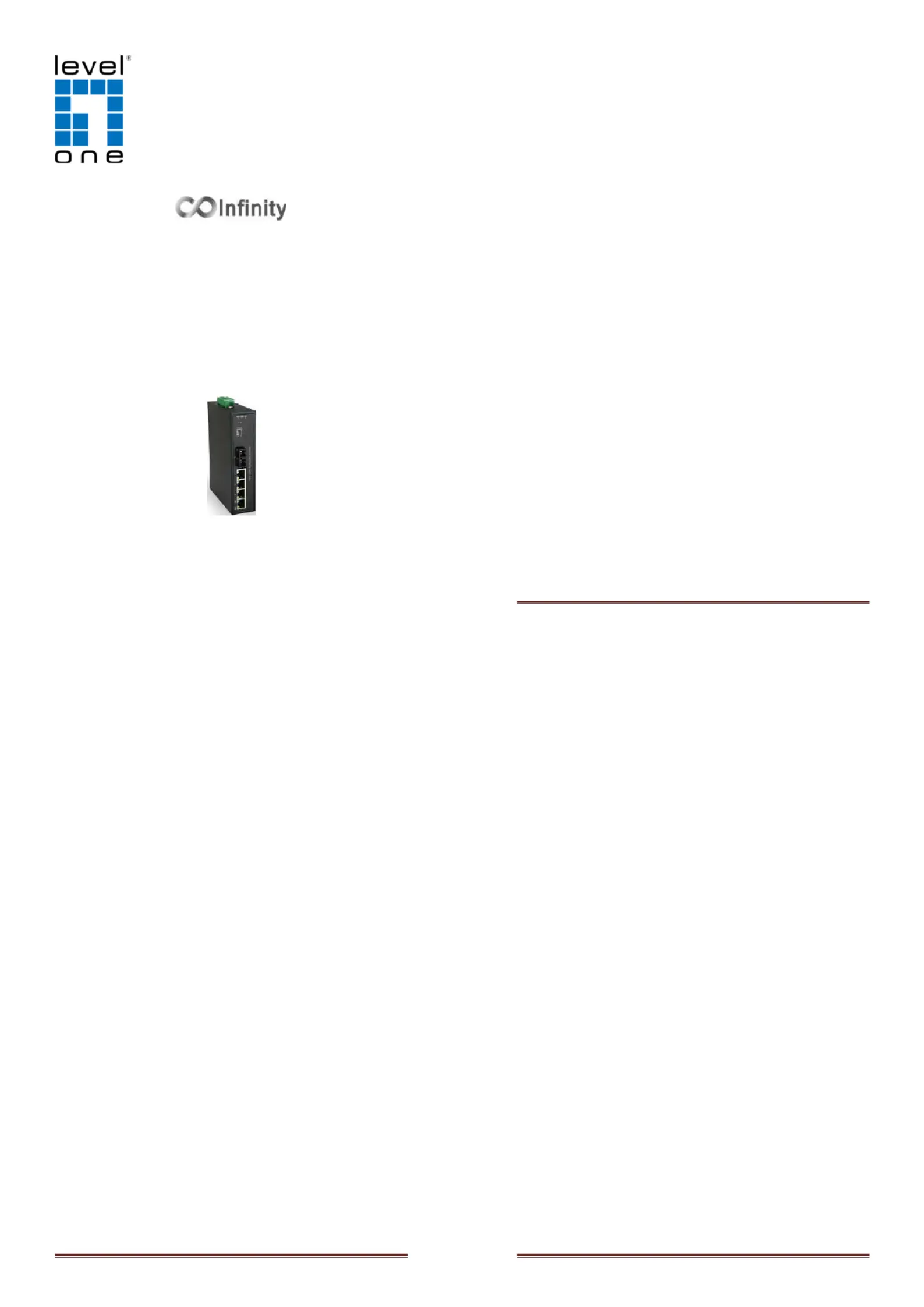

Sida 1/2

Port Fa

4 PoE Outputs, 802.3

Quick

IFP-0502

ast Ethernet Industrial PoE Switch

at PoE Plus, 1 Port SC Multi

Mod

Installation Guid

de Fiber, 2km

v1.0

IFP-0502 Page 1

Overview

The LevelOne IFP-0502 Industrial Fast Ethernet PoE+ Switch

provides 4 ports at 10/100M TX PSE to supply power and

internet to PoE+ compatible Powered Devices (PD) in a

network setting. The multi-modal bre IFP-0502 switch supplies

15.4 Watts for IEEE802.3af or 30 Watts (Max 36W) for

IEEE802.3at per port, and is congured for large industrial or

outdoor networks, with a maximum networking range of 2km.

With an industrial-standard DIN-rail mount for easy cabinet

deployment or wall mount for versatile network congurations,

the IFP-0502 comes in a sturdy metal casing rated to IP30 for

installation in industrial settings where humidity, dust, high or

low operating temperatures or vibrations could cause standard

devices to fail.

High Reliability

All components are built to withstand harsh environment

applications without compromise where humidity, temperature

variation and even shock vibration are concerns, including

Electric & Utility, Critical Infrastructure, Transportation and

Surveillance Security. This device operates under -40 to 75

Celsius (-40 to 167 Fahrenheit) temperature.

Plug & Play

This unmanaged Industrial Ethernet Switch is designed for the

demanding industrial environments at businesses in need of

instant connectivity with no setup or congure required, truly

plug and play.

IFP-0502 Page 2

Power over Ethernet

This switch is Power Sourcing Equipment (PSE), and it is fully

complied with IEEE 802.3at PoE standard at maximum 30W

power budget per port. It helps to save infrastructure wiring

costs dramatically by eliminating electric wiring and less UPS

needed. Also, it is compatible with IEEE802.3af standard PD

devices.

IFP-0502 Page 3

Features

• Meets NEMA TS1/TS2 Environmental requirements such as temperature,

shock, and vibration for trac control equipment

• Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for

industrial environment

• Supports 1024 MAC addresses. Provides 1M bits memory buer

• Provides one Port SC Multi-Mode Fiber with a maximum networking range

of 2km.

• Store-and-forward mechanism. Full wire-speed forwarding rate.

• Power Supply: 44~56VDC Terminal Block power input.

• 3.76W power consumption 48VDC full load

• -40 to 75 (-40 to 167 ) operating temperature range. ℃ ℃ ℉ ℉

• Tested for functional operation @ -40 to 85 (-40 to 185 ). ℃ ℃ ℉ ℉

• Metal case design and compliant with IP30 standard

Package Contents

 IFP-0502

 Din rail*1, wall mount*2, terminal block*1, screw*4

 Quick Installation Guide

Produktspecifikationer

Varumärke:	LevelOne
Kategori:	brytare
Modell:	IFP-0502
Vikt:	470 g
Bredd:	36 mm
Djup:	105 mm
Höjd:	142 mm
Förpackningens bredd:	65 mm
LED-indikatorer:	Link, Power
Snabbstartsguide:	Ja
Ursprungsland:	Taiwan
Certifiering:	FCC, CE, RoHS, VCCI\nEN55022/24 \nEN55011\nEN50121-3-2\nEN60068-2-6\nEN60068-2-27\nEN60068-2-32
Internminne:	1 MB
Uteffekt:	1 A
Rackmontering:	Nej
Säkerhet:	EN60950-1
Paketbuffertminne:	1 MB
Full duplex:	Ja
Väggmonteringssats:	Ja
Produktens färg:	Svart
Monteringsbar på väggen:	Ja
Förpackningstyp:	Låda
Låddjup:	165 mm
Vikt inkl. förpackning:	180 g
Strömförsörjning via Ethernet (PoE) stöd:	Ja
Strömförbrukning (vanlig):	3.76 W
Total Power over Ethernet (PoE)-budget:	126 W
Temperatur vid drift:	-40 - 75 ° C
Temperaturintervall (förvaring):	-40 - 75 ° C
Intervall för relativ operativ luftfuktighet:	5 - 95 %
Fuktighet (förvaring):	5 - 95 %
Utgångsspänning:	24 V
Internationellt skydd (IP) kod:	IP30
Material, hölje:	Metall
Kommunikationsstandarder:	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Adresstabellstorlek:	1024 poster
Switch kapacitet:	1 Gbit/s
10G stöd:	Nej
Flödeskontroll:	Ja
Antal grundläggande RJ-45 Ethernet-portar:	4
Typ av grundläggande RJ-45 Ethernet-portar:	Fast Ethernet (10/100)
Antal Power over Ethernet plus (PoE +)-portar:	4
Switch typ:	Ohanterad
Lagra-och-vidarebefordra:	Ja
Autonegotiation:	Ja
Fiberoptiska kontakten:	SC
Fiberportar kvantitet:	1
Auto MDI / MDI-X:	Ja
Koppar Ethernet-kablar teknik:	10BASE-T, 100BASE-TX
Överföringsavstånd (max):	2 km
Kopplingsplint ingår:	Ja
Paketförmedlingshastighet (10 Mbps):	14880 pps
Paketförmedlingshastighet (100 Mbps):	148000 pps
Fibertyp:	Flerläge
