cAP lite

cAP litecAP lite

cAP lite

Included with the product are two different casings, which can easily be swapped out, or, if you really like to fit the design with the environment, we are

providing 3D printer friendly design files.

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing

accidents.

Ultimate disposal of this product should be handled according to all national laws and regulations.

The Installation of the equipment must comply with local and national electrical codes.

This unit is intended to be installed in the rackmount. Please read the mounting instructions carefully before beginning installation. Failure to use the

correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system.

This product is intended to be installed indoors. Keep this product away from water, fire, humidity or hot environments.

Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.

Read the installation instructions before connecting the system to the power source.

We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your

own risk!

In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.

It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling

requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik radio devices must be professionally installed.

Exposure to Radio Frequency Radiation:

Exposure to Radio Frequency Radiation: Exposure to Radio Frequency Radiation: This MikroTik equipment complies with the FCC, IC, and European Union radiation exposure limits set forth for an

uncontrolled environment.This MikroTik device should be installed and operated no closer than 20 centimeters from your body, occupational user, or the

general public.

Connecting

Connect POE to the Ethernet port, please see section for instructions on how to connect POE.Powering

Set your computer IP configuration to (DHCP).

automatic

The device wireless access point mode is enabled by default.

The device will boot up and Wireless network will be available for connecting.

Open network connections on your PC, mobile phone or other device and search for MikroTik wireless network and connect to it.

Once connected to the wireless network, open in your web browser to start configuration, since there is no password by https://192.168.88.1

default, you will be logged in automatically .(or, for some models, check user and wireless passwords on the sticker)

We recommend clicking the "Check for updates" button and updating your RouterOS software to the latest version to ensure the best

performance and stability.

Choose your country, to apply country regulation settings and set up your password on the screen that loads.

Powering

The device accepts power from the Ethernet port and USB port, so you must either use the included passive PoE injector or make sure your switch

supports passive or 802.3af/at PoE output.

Ethernet port accepts 12-57 V DC (802.3af/at or passive PoE).

MicroUSB DC 5 V.

1. 1.

2. 2.

3. 3.

The power consumption under maximum load can reach 4 W.

Connecting to a POE Adapter:

Connect the Ethernet cable from the device to the POE port of the POE adapter.

Connect an Ethernet cable from your LAN to the LAN port of the POE adapter, please mind arrows for data and power flow.

Connect the power cord to the adapter, and then plug the power cord into a power outlet.

Configuration

Once logged in, we recommend clicking the "Check for updates" button in the QuickSet menu, as updating your RouterOS software to the latest version

ensures the best performance and stability. For wireless models, please make sure you have selected the country where the device will be used, to

conform with local regulations.

RouterOS includes many configuration options in addition to what is described in this document. We suggest starting here to get yourself accustomed to

the possibilities: . In case IP connection is not available, the Winbox tool ( ) can be used to connect to the MAC address https://mt.lv/help https://mt.lv/winbox

of the device from the LAN side (all access is blocked from the Internet port by default).

For recovery purposes, it is possible to boot the device from the network, see a section .Reset button

Reset button

The reset button has three functions:

Hold this button during boot time until LED light starts flashing, release the button to reset RouterOS configuration (total 5 seconds).

Keep holding for 5 more seconds, LED turns solid, release now to turn on CAP mode. The device will now look for a CAPsMAN server (total 10

seconds).

Or Keep holding the button for 5 more seconds until LED turns off, then release it to make the RouterBOARD look for Netinstall servers (total 15

seconds).

Regardless of the above option used, the system will load the backup RouterBOOT loader if the button is pressed before power is applied to the device.

Useful for RouterBOOT debugging and recovery.

Expansion slots and ports

One 10/100 Ethernet port, supporting automatic cross/straight cable correction (Auto MDI/X). Either straight or crossover cable can be used for

connecting to other network devices.

One Integrated Wireless 2.4 GHz 802.11b/g/n.

One USB type AB slot.

Accessories

Package includes the following accessories that come with the device:

DC EU/US Switching Power Supply 24 V, 0.2 A, 4.8 W, Level VI, cable:1.5m).

POE Injector with shielded ethernet cable/connector (RBPOE).

K-49 fastening set.

Map wall cover.

Operating system support

The device supports RouterOS software version 6. The specific factory-installed version number is indicated in the RouterOS menu /system resource.

Other operating systems have not been tested.

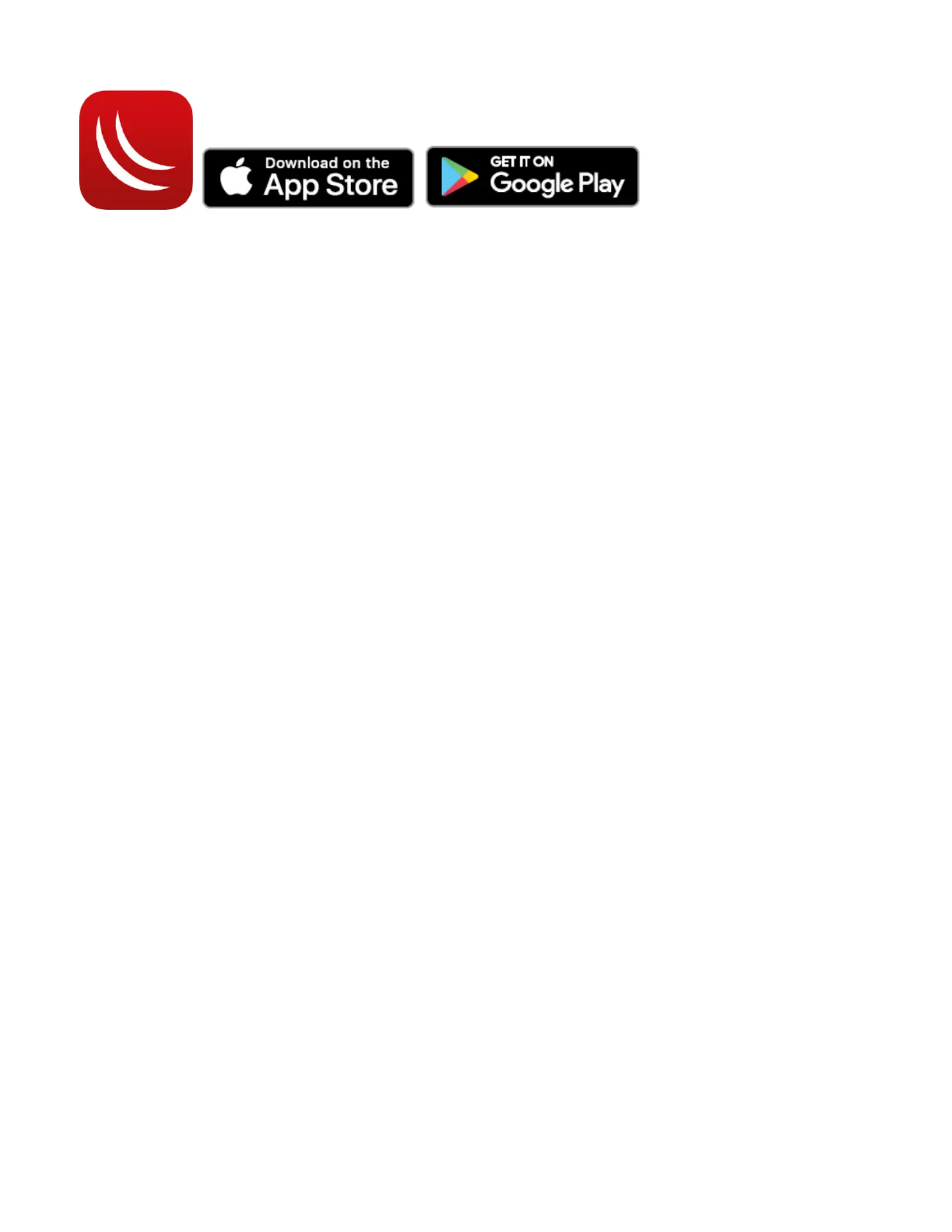

MikroTik mobile app

Use the MikroTik smartphone app to configure your router in the field, or to apply the most basic initial settings for your MikroTik home access point.

Mounting
