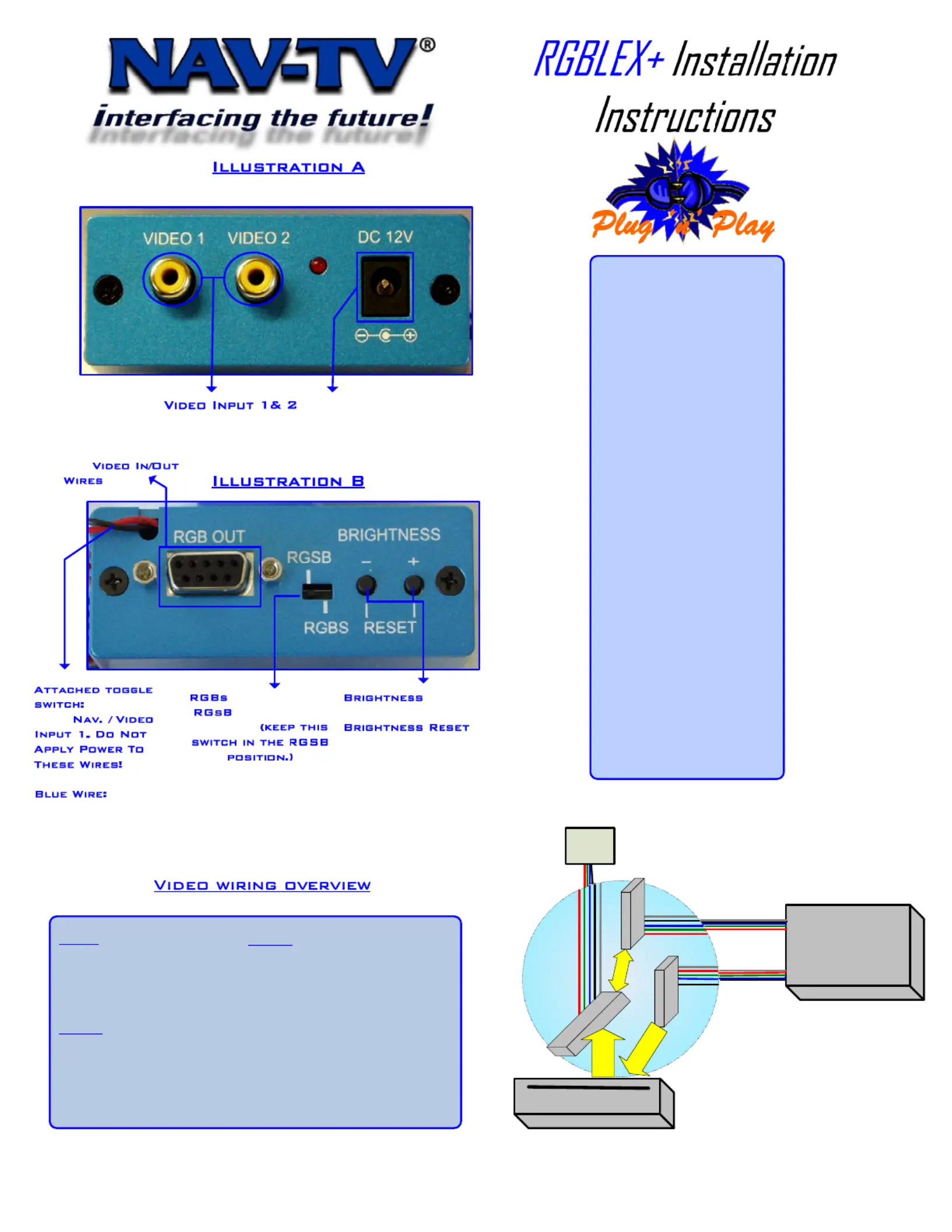

DB9 connector
for
(4-wire setup) /
(3-wire setup)
selector
Up / Down
-
press both
simultaneously to
reset to default
to toggle
from
Positive trigger
for Video 2 on
RGB2+.
Power/Ground Plug
Red: 12 Volts Accessory
Power.
Black: Chassis Ground.
Questions?Need vehicle-specific wiring information? Tech support available through our toll-free number-
1-866-477-3336
Navigation Screen
(S)
Nav Computer (N)
1.Unplug
FactoryPlug
Male
Female
3.Insert
Male
NAV-TV RGBLEX(+) Back-
Up Camera Interface
Output (S= Screen)
Input (N= Nav drive)
Step 1.Unplug the 10-pin
connector from the back
of the GPS computer.
Step 2.
Insert the Male
Factory Navigation plug
into the Female plug of
the RGBLEX(+)
Step 3.Insert the Male 10-pin
connector coming from the
RGBLEX(+) into the back of the
GPS computer.
Note:RGBLEX(+) should only
be plugged into the back of
the Nav. Computer and not
the radio!
A.T.
Note: RGBLEX(+) should only
be plugged into the back of the
Nav. Computer and not the
radio!
1. Red wire must have
accessory power. This is not a
trigger for video input 1. This
is main power for the unit
since it is digital. Connect this
straight from the ignition
harness whenever possible
2. Black wire must have
chassis ground.
3. Blue wire is positive trigger
12v for video input 2 on
RGBLEX+. You may leave the
attached toggle switch off and
connect this wire directly to
the reverse lights for
automatic turn-on in reverse.
