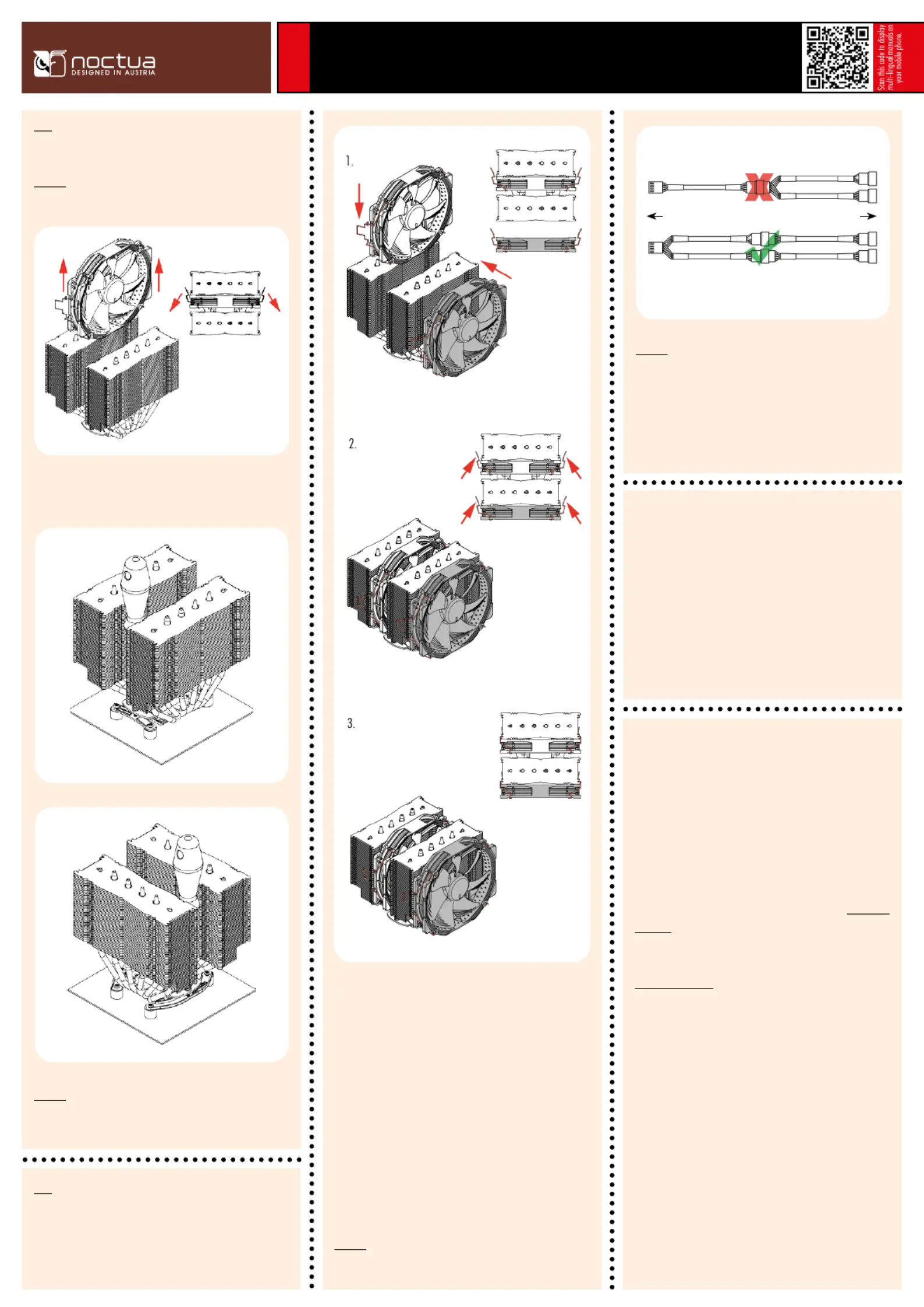

Noctua NH-D15 SE-AM4 | Installation Manual

AM4

Required mounting parts:

Dear customer,

Congratulations on choosing the Noctua NH-D15 SE-AM4.

Having received more than 200 awards and recommendations from

international hardware websites and magazines, our flagship model

NH-D15 has become a benchmark for elite-class dual tower coolers.

The SE-AM4 version is a dedicated special edition for AMD’s AM4

platform featuring the latest SecuFirm2™ mounting system for AM4.

Enjoy your NH-D15 SE-AM4!

Yours sincerely,

Roland Mossig, Noctua CEO

This manual will guide you through the installation process of the

SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility list

on our website (www.noctua.at/compatibility) and verify that the

cooler is fully compatible with your motherboard. Please also make

sure that your PC case offers sufficient clearance for the cooler and

that there are no compatibility issues with any other components

(e.g. tall RAM modules). Double check that the heatsink and fan

clips do not make contact with the VGA card or other PCIe cards.

Noctua cannot be held responsible for any damage or losses caused

by compatibility issues.

Should you encounter any difficulties, please check the FAQs on

our website (www.noctua.at/faqs) and don’t hesitate to contact our

support team at support@noctua.at.

Multilingual versions of this manual are available on our

website: www.noctua.at/manuals

AMD stock backplate

(pre-installed on the motherboard)

4x NM-APS4 plastic spacers 4x NM-ALS1 screws

2x NM-AMB4 mounting bars 2x NM-AMB5 mounting bars

Attaching the mounting bars

Choose either the short NM-AMB4 or the long NM-AMB5 mounting

bars according to the desired final orientation of the cooler.

Step 2

Removing the stock retention module

First remove the motherboard’s stock CPU cooler retention module

by unscrewing it from the backplate. The SecuFirm2™ mounting

system will install directly to the stock backplate, so please keep

it in place.

Step 1

If your motherboard does not include a stock backplate, please

contact Noctua customer support at support@noctua.at.

Orientation NM-AMB5Orientation NM-AMB4

NM-AMB4

First put the NM-APS4 plastic spacers onto the screw threads of the

backplate, then fix the mounting bars using the four long screws.

NM-AMB5

For the short NM-AMB4 mounting bars, make sure that the curved

sides are pointing inwards. For the long NM-AMB5 mounting bars,

make sure that the curved sides are pointing outwards.

Caution: Gently tighten the screws until they stop, but don’t use

excessive force (max. torque 0.6 Nm).

NM-AMB5 mounting barsNM-AMB4 mounting bars

Please note that on some motherboards, the long NM-AMB5

mounting bars may not fit due to making contact with components

on the motherboard. In such cases, the cooler can be installed with

the short NM-AMB4 mounting bars only.

Applying thermal paste

If there are residual traces of thermal paste or thermal pads on

your CPU, please clean them off first. Then press a small drop

(4-5mm diameter) of the supplied NT-H1 thermal compound onto

the centre of the heatspreader.

Step 3

Caution: - Applying too much thermal paste will lower heat conduc

tivity and cooling performance!

AM4

Even with high-grade products and strict quality control, the

possibility of defects cannot be eliminated entirely. Therefore,

we aim at providing the highest possible level of reliability and

convenience by offering a warranty period of 6 years and direct,

fast and straightforward RMA service.

Should you encounter any problems with your NH-D15 SE-AM4,

please don’t hesitate to contact our support team (support@

noctua.at).

Please also consult the FAQ section on our website:

www.noctua.at/faqs.

Warranty, Support and FAQs

As it is not possible to reliably calculate or control the forces

that act upon a system during transport (e.g. in shipping), we

generally recommend, for safety reasons, taking the cooler off.

Noctua cannot be held responsible for any damage that may arise

due to excessive stress during transport if you keep the heatsink

installed.

Should I take the cooler off before transporting

my system?

Caution: When using the L.N.A.s, check the temperature of your

CPU using appropriate software (e.g. the respective applications

of your mainboard manufacturer), in order to evade automatic

throttling of the CPU due to the increased temperature. If the

cooling performance is insufficient, please increase case ventilation

or remove the L.N.A.s.

Mainboard Fans

Low-Noise Adaptor Y-Split Cable

Y-Split Cable Low-Noise Adaptors

Fastening the heatsink to the CPU

Caution: - Please first take off the centre fan as well as the protec

tion cover at the bottom side of the heatsink.

Step 4

Then put the heatsink onto the CPU and screw it to the screw

threads of the mounting bars.

NM-AMB4

NM-AMB5

Noctua NH-D15 SE-AM4 | Installation Manual

Caution: Tighten the screws until they stop, but don’t use excessive

force (max. torque 0.6 Nm).

Fan Setup

Step 5

Reattach the centre fan and, optionally, install the second fan

(in grey) using the supplied steel clips:

Use the heatsink with the centre fan only in order to guarantee

best compatibility with tall RAM modules. Add the second fan to

the front fin-stack for further improved cooling performance.

Connect the fan(s) to the mainboard’s CPU fan header(s). If

necessary, use the supplied NA-YC1 y-split cable to connect both

fans to one fan header.

Depending on your CPU and the temperature inside the case,

you may interconnect the supplied NA-RC7 Low-Noise Adaptors

(L.N.A.) in order to further reduce the fans’ operating noise.

Caution: Never use one adaptor for both fans by putting it before

the y-split cable.
