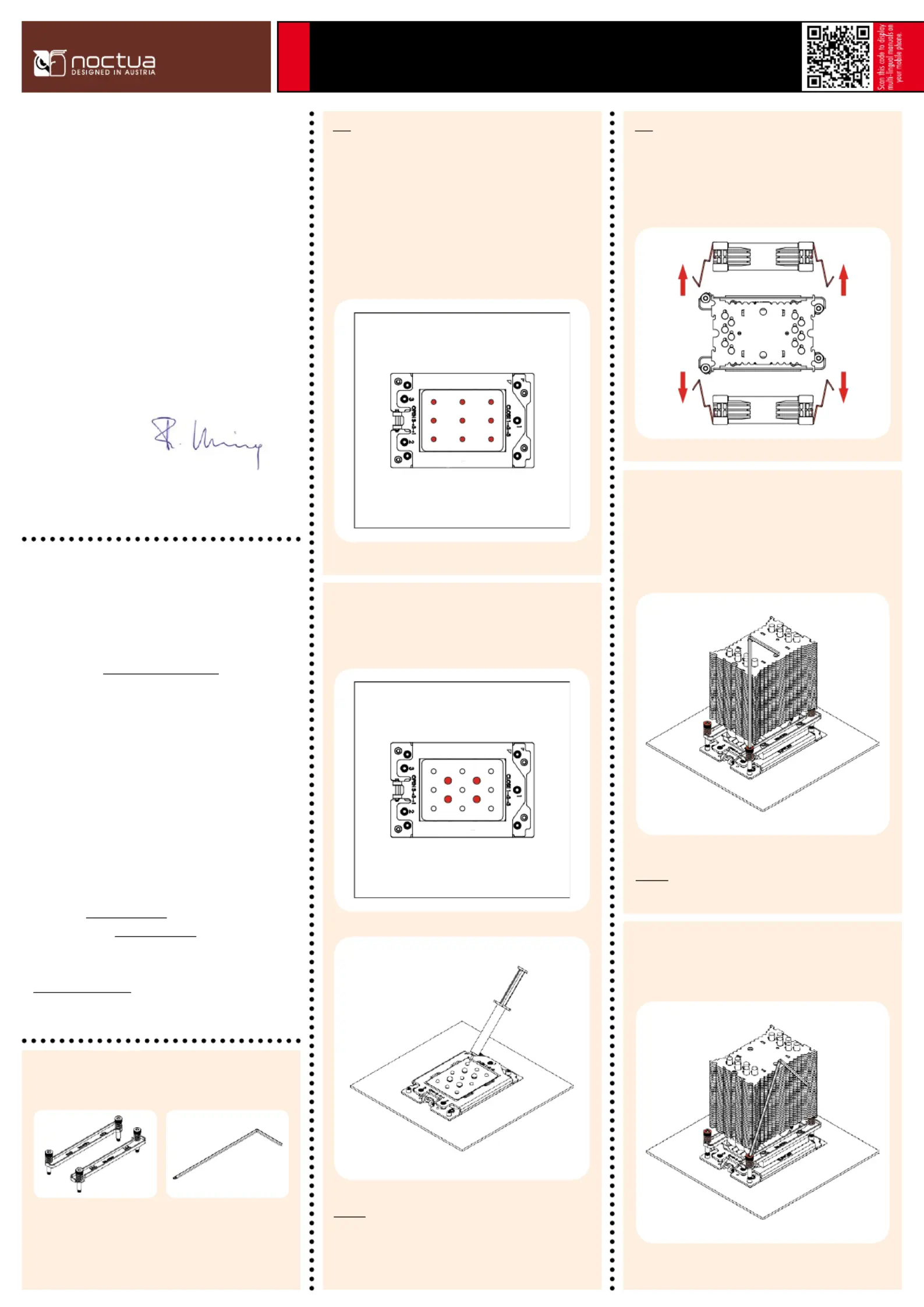

Required mounting parts:

Dear customer,

Congratulations on choosing the Noctua NH-U9 TR4-SP3.

Having received more than 300 awards and recommendations

from international hardware websites and magazines, the NH-U9

line has become a benchmark for compact 92mm single tower

coolers. The TR4-SP3 version is a tailored custom model for AMD’s

TR4/SP3 platform and features a larger contact surface as well

as the latest SecuFirm2™ mounting system for socket TR4/SP3.

Enjoy your NH-U9 TR4-SP3!

Yours sincerely,

Roland Mossig, Noctua CEO

This manual will guide you through the installation process of the

SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility list

on our website (www.noctua.at/compatibility) and verify that

the cooler is fully compatible with your motherboard.

Please also make sure that your PC case offers sufficient clear-

ance for the cooler and that there are no compatibility issues

with any other components (e.g. tall RAM modules). Double

check that the heatsink and fan clips do not make contact with

the VGA card or other PCIe cards.

Noctua cannot be held responsible for any damage or losses

caused by compatibility issues.

Should you encounter any difficulties, please check the FAQs on

our website (www.noctua.at/faqs) and don’t hesitate to contact

our support team at support@noctua.at.

Multilingual versions of this manual are available on our website:

www.noctua.at/manuals

Applying thermal paste

If there are residual traces of thermal paste or thermal pads on

your CPU, please clean them off first.

Then press 9 small drops (3-4mm diameter) of NT-H1 onto the

heatspreader in a square 3x3 pattern as shown below:

Step 1

NM-SMT3 mounting toolNM-AFB7 fastening brackets

(pre-installed on the cooler)

Noctua NH-U9 |

Installation Manual | TR4-SP3

TR4-SP3

Caution: Applying too much thermal paste will lower heat

conductivity and cooling performance!

Continue by adding 4 larger drops (5-6mm diameter) of NT-H1 in

a square pattern at the center as shown below:

Then put the heatsink onto the CPU so that the four spring-loaded

screws align with the threads of the CPU socket. Use the sup-

plied mounting tool to tighten the screws. Perform 3 turns on each

screw, then repeat until all are fully tightened.

Caution: Gently tighten the screws until they stop, but don’t use

excessive force (max. torque 0.6 Nm).

Fastening the heatsink to the CPU

Please first take off the fans as well as the protection cover at the

bottom side of the heatsink.

Step 2

Note that you can tilt the mounting tool for reaching the screws in

case they are blocked by the heatsink fins.

Caution: Never use one adaptor for both fans by putting it before

the y-split cable.

Reattach the fans using the steel clips:

Attaching the fan

Step 3

Noctua NH-U9 |

Installation Manual | TR4-SP3

TR4-SP3

Connect the fans to the motherboard’s CPU fan header(s). If neces-

sary, use the supplied NA-YC1 y-split cable to connect both fans

to one fan header.

Depending on your CPU and the temperature inside the case,

you may interconnect the supplied NA-RC7 Low-Noise Adaptors

(L.N.A.) in order to further reduce the fans’ operating noise. For

optimal acoustics, it is generally recommended to always use the

L.N.A. on the rear fan.

Mainboard Fans

Low-Noise Adaptor Y-Split Cable

Y-Split Cable Low-Noise Adaptors

Caution: When using the L.N.A., check the temperature of your

CPU using appropriate software (e.g. the respective applications

of your mainboard manufacturer), in order to evade automatic

throttling of the CPU due to the increased temperature. If the cool-

ing performance is insufficient, please increase case ventilation or

remove the L.N.A.

As it is not possible to reliably calculate or control the forces that

act upon a system during transport (e.g. in shipping), we gener-

ally recommend, for safety reasons, taking the fans off the heat-

sink in order to reduce the weight below 700g. Noctua cannot be

held responsible for any damage that may arise due to excessive

stress during transport if you keep the fan installed.

Should I take the cooler off before transporting

my system?

Even with high-grade products and strict quality control, the

possibility of defects cannot be eliminated entirely. Therefore,

we aim at providing the highest possible level of reliability and

convenience by offering a warranty period of 6 years and direct,

fast and straightforward RMA service.

Should you encounter any problems with your NH-U9 TR4-SP3,

please don’t hesitate to contact our support team (support@

noctua.at).

Please also consult the FAQ section on our website:

www.noctua.at/faqs.

Warranty, Support and FAQs
