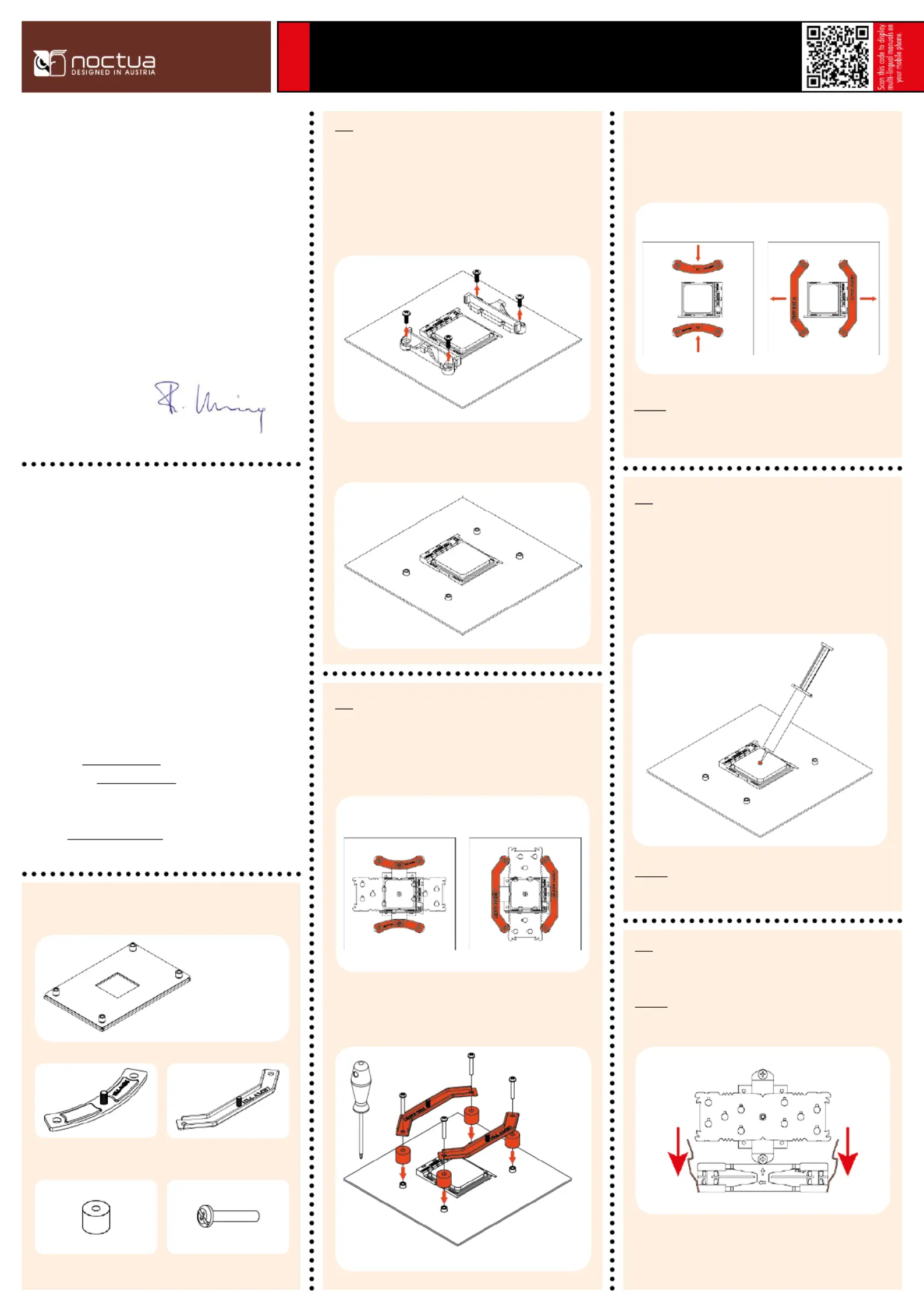

Noctua NH-U12S SE-AM4 | Installation Manual

AM4

Required mounting parts:

Dear customer,

Congratulations on choosing the Noctua NH-U12S SE-AM4.

Continuing the legacy of our classic NH-U-series, which has received

more than 500 awards and recommendations from international

hardware websites and magazines, the NH-U12S has become a

benchmark for slim, highly compatible 120mm single tower coolers.

The SE-AM4 version is a dedicated special edition for AMD’s AM4

platform, featuring the latest SecuFirm2™ mounting system for AM4.

Enjoy your NH-U12S SE-AM4!

Yours sincerely,

Roland Mossig, Noctua CEO

This manual will guide you through the installation process of the

SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility list

on our website (www.noctua.at/compatibility) and verify that the

cooler is fully compatible with your motherboard. Please also make

sure that your PC case offers sufficient clearance for the cooler and

that there are no compatibility issues with any other components

(e.g. tall RAM modules). Double check that the heatsink and fan

clips do not make contact with the VGA card or other PCIe cards.

Noctua cannot be held responsible for any damage or losses caused

by compatibility issues.

Should you encounter any difficulties, please check the FAQs on

our website (www.noctua.at/faqs) and don’t hesitate to contact our

support team at support@noctua.at.

Multilingual versions of this manual are available on our

website: www.noctua.at/manuals

AMD stock backplate

(pre-installed on the motherboard)

4x NM-APS4 plastic spacers 4x NM-ALS1 screws

Attaching the mounting bars

Choose either the short NM-AMB6 or the long NM-AMB7 mount-

ing bars according to the desired final orientation of the cooler.

Step 2

Removing the stock retention module

First remove the motherboard’s stock CPU cooler retention module

by unscrewing it from the backplate. The SecuFirm2™ mounting

system will install directly to the stock backplate, so please keep

it in place.

Step 1

If your motherboard does not include a stock backplate, please

contact Noctua customer support at support@noctua.at.

Orientation NM-AMB7Orientation NM-AMB6

2x NM-AMB6 mounting bars 2x NM-AMB7 mounting bars

NM-AMB7

(same procedure for NM-AMB6)

First put the NM-APS4 plastic spacers onto the screw threads of the

backplate, then fix the mounting bars using the four long screws.

For the short NM-AMB6 mounting bars, make sure that the curved

sides are pointing inwards. For the long NM-AMB7 mounting bars,

make sure that the curved sides are pointing outwards.

Caution: Gently tighten the screws until they stop, but don’t use

excessive force (max. torque 0.6 Nm).

NM-AMB7 mounting barsNM-AMB6 mounting bars

Applying thermal paste

If there are residual traces of thermal paste or thermal pads on

your CPU, please clean them off first. Then press a small drop

(4-5mm diameter) of the supplied NT-H1 thermal compound onto

the centre of the heatspreader.

Step 3

Caution: - Applying too much thermal paste will lower heat conduc

tivity and cooling performance!

Fastening the heatsink to the CPU

Caution: Please first take off the fan as well as the protection cover

at the bottom side of the heatsink.

Step 4

Then put the heatsink onto the CPU and screw it to the screw

threads of the mounting bars.
