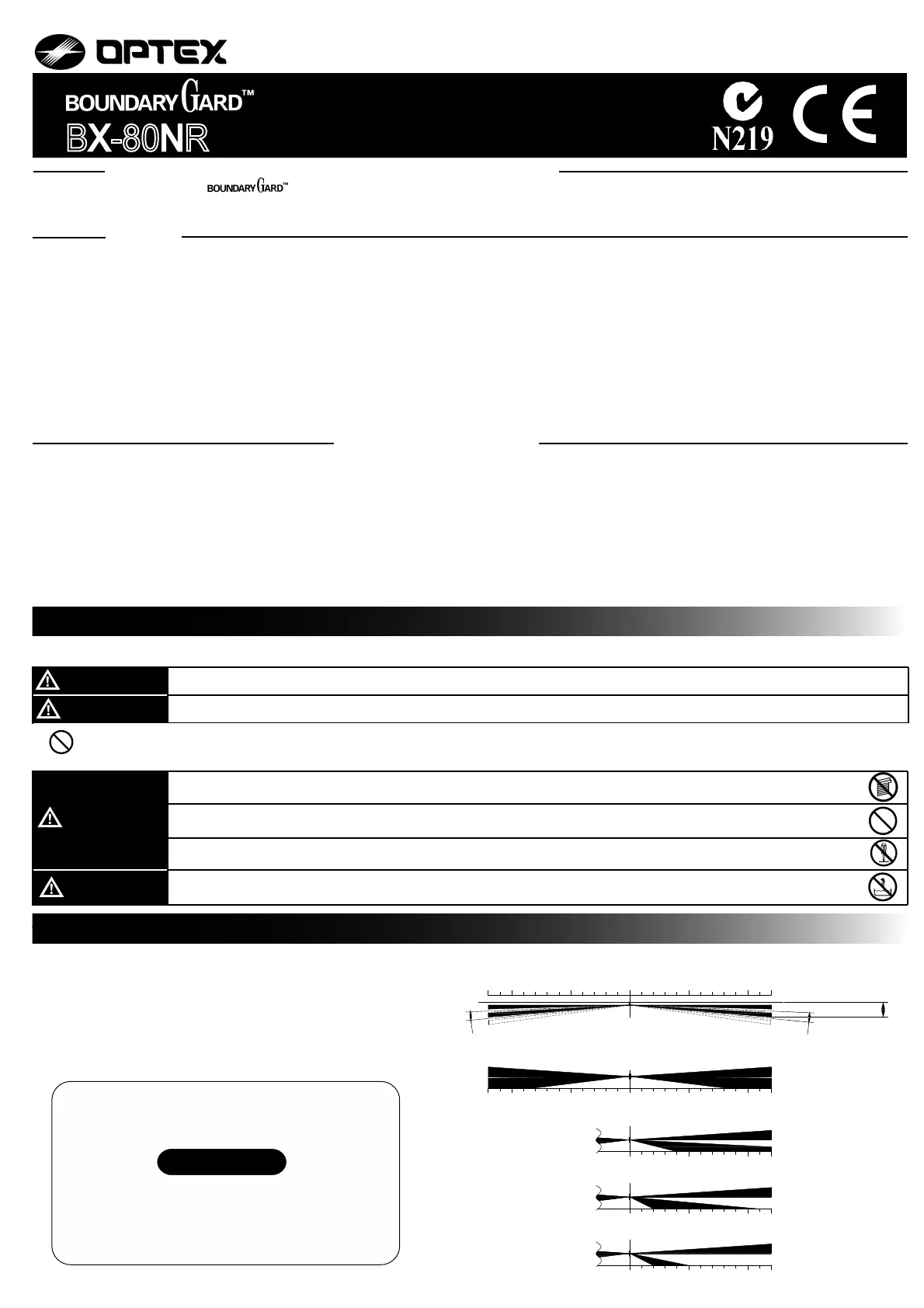

Optex presents a new concept, , which protects a building's exterior by detecting intruders before an entry is attempted. In addition to signaling an
alarmsystem.
BX-80NR is a passive infrared detector which detects the infrared heat energy that is emitted by humans and is designed with this concept.
Read instructions completely before beginning installation.
˴˴˴˴˴˴˴˴ޝ INSTALLATION INSTRUCTIONS ޞ
5913801
Features
: IP rating IP 55
Before installation, make sure to read this instruction manual carefully for safe and effective product operation.
This icon denotes a situation involving the risk of serious injury or even death, if the warning given is ignored.
This icon denotes a situation involving the risk of serious injury or damage to property if the warning given is ignored.
This icon indicates actions to be avoid. Details of the actions to be avoided are written beside or near icon.
( The icon on the left indicates that the product must not be dissembled )
Never use this product for any applications except as stated above or unexpected accidents can occur.
Never attempt to disassemble or modify the product, which increases the risk of fire or damage of the product.
Never attempt to connect the terminals to units which require higher power supply or current draw than its rating.
It increases the risk of fire or damage to the product.
Avoid applying water directly from buckets, houses, or otherwise splashing water directly onto the product. It increases
the risk of damaging the product.
The horizontal and vertical angle of detection areas are inde-
pendently adjustable on both the right and left sides of the
detector. (See section 7. AREA SETUP)
˴˴˴˴˴˴˴˴
˴˴˴˴˴˴
C O N T E N T S
1. SAFETY-RELATED PRECAUTIONS
2. DETECTION AREA

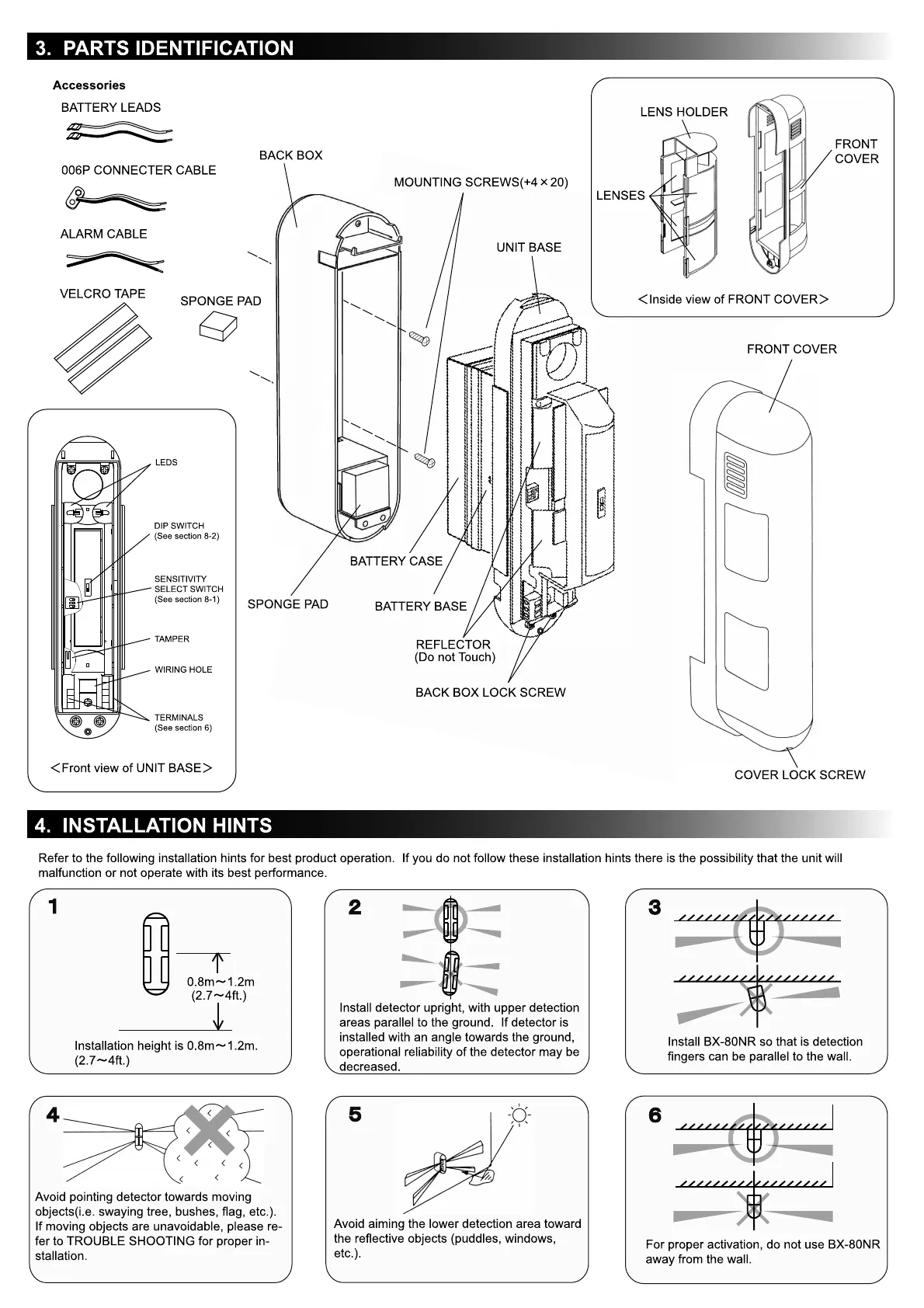

3. PARTS IDENTIFICATION
4. INSTALLATION HINTS
5. INSTALLATION
6. WIRING
7. AREA SETUP
8. FUNCTION SETUP
9. WALK TEST
10. SPECIFICATIONS & DIMENSIONS
11. TROUBLE SHOOTING
5-1 Before the Installation
5-2 Mounting
7-1 Area Angle Adjustment
7-2 Detection Length Adjustment
8-1 Sensitivity Adjustment
8-2 DIP Switch Setup
5.High offset mounting design
6.Limited detection range function
7.Size judging function
8.Waterproof
: The detection range of the BX-80NR can be limited to avoid detecting unwanted objects. By limiting
the detection range, false alarms due to unwanted movement (i.e. cars, persons or animals outside of
the protected area) can be reduced.
: BX-80NR is designed to discriminate between large and small objects. By utilizing this ability, false
alarms due to small animals can be reduced.
WARNING
CAUTION
WARNING
CAUTION
IMPORTANT
BX-80NR
This product detects temperature differences between the
moving target and the background temperature of the detec-
tion area. So, if the target does not move, the detector can
not detect it. Additionally, the temperature of the target may
affect the detector's maximum detection range.
9.Double conductive shielding
: This patent listed shielding greatly reduces the risk of false alarms due to car headlights,
sunlight and other ambient light sources.
12105
30
(ft)
40
20
10512
20
40
(m)
(ft)
10
10
30
(m)
2030
(ft)
10
510
510
10
(m)
12
20
12
30
40
(ft)
(m)
40
10
(m)
40
2030
(ft)
12105
5
3010
0
(m)051012
(ft)400302010
20
12(m)
(ft)
(m)
3.3
1
(ft)
10
0
40
0
0
3.3
0
(ft)
1
(ft)(m)
3.3
0
(ft)(m)
3.31
0
1
(m)
0
Approx. 1.4m (4.6ft.) at 40ft.(12m)
[ POSITION B ]
[ POSITION D ]
[ POSITION C ]
Top View
[ POSITION A ]
Side view of detection area:2m(6.7ft.)(single side)
Side view of detection area:5m(16.7ft.)(single side)
Side view of detection area:8m(26.7ft.)(single side)
Side view of detection area:12m(40ft.)(single side)
The angles of all detection areas are
adjustable horizontally 0 or 3 degrees.
The angles of all detection fingers are
adjustable horizontally 0 or 3 degrees.
1.Low current draw
: 15uA(standby)
2.Battery saving circuit
: Alarm signal is generated only once with in a selected finer period, 5 or 120 seconds.
3.Operates on wide range of power
: 3-9V lithium battery or alkaline battery.
4.Back box for a wireless transmitter
: Back box can conceal a wireless transmitter. (Max. W40mmH126mmD50mm)
5-3 Mounting on a gutter
5-4 Wall Tamper
6-1 Terminals
6-2 Setting up Transmitter
: Avoid areas with unwanted objects.(80mm)
1. SAFETY-RELATED PRECAUTIONS
2. DETECTION AREA
Produktspecifikationer
| Varumärke: | Optex |
| Kategori: | rörelse detektor |
| Modell: | BX-80NR |
| Vikt: | 520 g |
| Bredd: | 56 mm |
| Djup: | 128 mm |
| Höjd: | 235 mm |
| LED-indikatorer: | Operation, Status, Switch |
| Placering: | Indoor, Outdoor |
| Vattentät: | Ja |
| Larmfunktion: | Ja |
| Certifiering: | EMC Directive 89/336 EEC |
| Bildsensortyp: | Passiv infraröd (PIR) sensor |
| Spänning: | 2.5 - 10 V |
| Batterityp: | 3-9VDC Lithium/Alkaline |
| Testknapp: | Ja |
| Antal batterier: | 1 |
| Produktens färg: | Vit |
| bruksanvisning: | Ja |
| Förpackningstyp: | Låda |
| Temperatur vid drift: | -20 - 50 ° C |
| Internationellt skydd (IP) kod: | IP55 |
| Anslutningsteknologi: | Trådlös |
| Monteringssätt: | Vägg |
| Strömkälla av typen: | Batteri |
| Batterier medföljer: | Nej |
| Strömförbrukning: | 3 mA |
| Skruvar medföljer: | Ja |
| Avkänningsavstånd: | 24 m |
| Detektionsvinkel: | 3 ° |
| Monteringshöjd (min): | 0.8 m |
| Monteringshöjd (max): | 1.2 m |
| Varaktighet justering: | 5 - 120 s |
| Monteringsfäste ingår: | Ja |
| Strömförbrukning i Stand-by läge: | 0.015 mA |
| Maximal räckvidd på öppen plats: | 4 Zone |
| Statusåterkoppling: | Ja |
| Switch: | DIP |
