Sida 1/16
AX-350DH MK III
AX-650DH MK III
AX-350DH TS
AX-350DH BT
No.59-1073-0 0406-04
FEATURES
CONTENTS
·Multiple beam installation of up to 4 sets
·Simple optical alignment
·High waterproofing property; jet-proof : IP65
·Wide optical alignment range:
±90 degrees horizontally; ±20degrees vertically
*AX-350DH BT:
±60 degrees horizontally; ±45 degrees vertically
·Reduced possibility of false alarms caused by flying
objects
1. INSTALLATION GOOD PRACTICE
2. PARTS IDENTIFICATION
3. NOTES ON INSTALLATION
4. INSTALLATION METHOD
5. TERMINAL CONNECTIONS
6. WIRING
7. OPTICAL ALIGNMENT
8. BEAM INTERRUPTION TIME ADJUSTMENT
9. RE-TRANSMISSION FUNCTION
10. WALK TEST
11. HEATER UNIT HU-2
12. BACK COVER BC-1
13. DIMENSIONS
14. TROUBLESHOOTING
15. SPECIFICATIONS
2
3
3
4
6
7
8
11
11
12
12
13
13
15
16
-1-
INSTALLATION
INSTRUCTIONS
top/bottom unit AND/OR selectable
maximum detection range: 350ft.(100m)
PHOTOELECTRIC DETECTOR
·Digital communication function
·Cross talk prevention function
·Peak Finder Interface (P.F.I ) of Dual Alignment
Level Indicator
·Mode-specific indicator allowing simple and
accurate optical alignment
·Simple beam alignment without the “Beam
Blocking Tool”
·Minimization of light disturbance
·ATPC ( Auto Transmit Power Control )
to optimize the power of beam
Thank you for purchasing our product.Be sure to read the
following installation instructions carefully before beginning
installation.Make sure that the person in charge of system
management stores this manual carefully for maintenance
and management.
model for beam tower, upper and lower unit unit AND/OR selectable
maximum detection range: 350ft.(100m)
maximum detection range: 350ft.(100m)
maximum detection range: 650ft.(200m)
Downloaded from www.Manualslib.com manuals search engine
-2-

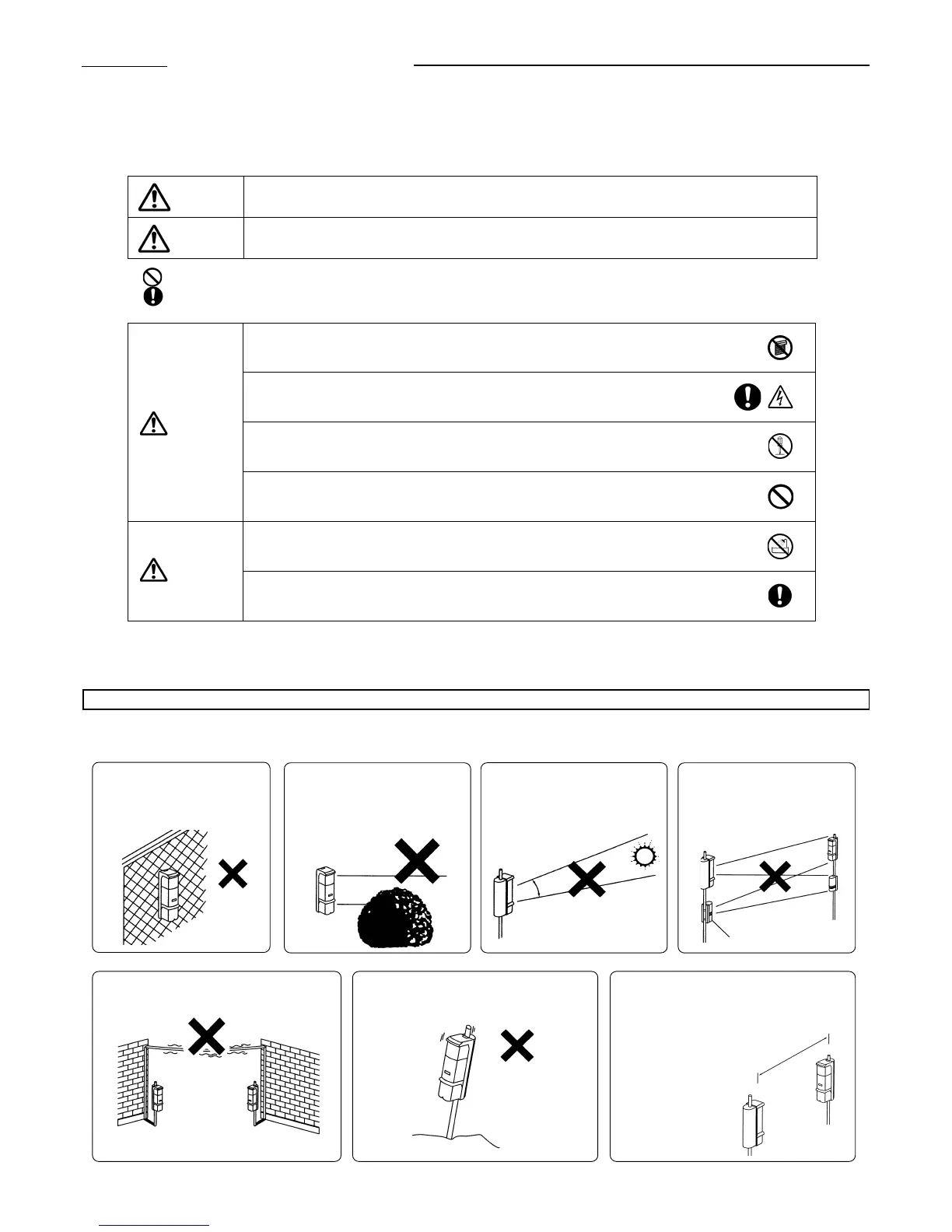

For Safe Use of the Product
¥Read this instruction manual carefully prior to installation, for safe use of the product.
¥After reading, store this manual carefully in an easily accessible place for reference.
¥This manual uses the following warning indications for correct use of the product and preventing any harm to you or other
people and damage to your assets, which are described below. Be sure to understand the description before reading the
rest of this manual.
Failure to follow the instructions provided with this indication and improper handling may
cause injury and/or property damage.
CAUTION
Failure to follow the instructions provided with this indication and improper handling may
cause death or serious injury.
WARNING
This symbol indicates prohibition. The specific prohibited action is provided in and/or around the figure.
This symbol requires an action or gives an instruction.
Do not use the product for purposes other than the detection of moving
objects such as people and vehicles. Do not use the product to activate a
shutter, etc., which may cause an accident.
Clean and check the product periodically for safe use. If any problem is found,
do not attempt to use the product as it is and have the product repaired by a
professional engineer or electrician.
Do not touch the unit base or power terminals of the product with a wet
hand (do not touch when the product is wet with rain, etc.). It may cause
electric shock.
Do not exceed the voltage or current rating specified for any of the terminals
during installation, doing so may cause fire or damage to the devices.
Never attempt to disassemble or repair the product. It may cause
fire or damage to the devices.
Do not pour water over the product with a bucket, hose, etc. The water
may enter, which may cause damage to the devices.
WARNING
CAUTION
<Note> This product is not an antitheft device.
Please be notified that we will not be held responsible for any damage caused in the unlikely event of theft.
1. INSTALLATION GOOD PRACTICE
[2] Do not install the unit
where objects moved by the
wind such as plants and
laundry, which may block the
beam.
[1] Mount unit only on a solid
surface.
The following items are important to ensure the performance of the product. Be informed that the detector may not detect
objects if not installed correctly.
[4] Mount the units in such
a way that the infrared
beam of any other model
does not enter the
Receiver.
[6] The mounting pole should have a
solid footing.
[5] Avoid aerial wiring. [7] Ensure that the mounting distance
between the Transmitter and the
Receiver (maximum detection range)
is within the rating.
35-350ft. (10-100m):
AX-350DH MK III
AX-350DH TS
AX-350DH BT
65-650ft.(20-200m) :
AX-650DH MK III
[3] Prevent direct sunlight
from entering into internal
optics.
AX-DH series
Downloaded from www.Manualslib.com manuals search engine
