Sida 1/12
- 1 -
ENGLISH FRANÇAIS DEUTSCH ITALIANO ESPAÑOL
The detection zones of Redwall-V, which may be cause of false
alarms can be eliminated by masking.
1. To confirm detection zones
Use optional Area View Finder, AVF-1
2. To eliminate unnecessary detection zones
a. Use supplied area masking seals.
b. Use equiped area masking plates.
The following shows an example;
Detection zones and related segments of the mirror of SIP-3020.
See step 4-1 and 6.
INSTALLATION AND MAINTENANCE NOTES
Warning
Failure to follow the instructions provided
with this indication and improper handling
may cause death or serious injury.
Caution
Failure to follow the instructions provided
with this indication and improper handling
may cause injury and/or property damage.
The check
mark indicates recommendation.
The nix
sign indicates prohibition.
Warning Caution
Never repair or
modify product
Hold the main unit
securely when you
install or service it.
If you remove your
hands from the main
unit when cables are
connected to it, the
main unit may fall
and the connector
cables may break
or the circuit board
may be damaged.
Caution
Verify that the
power is off before
connecting the
wiring.
2
PARTS IDENTIFICATION
1
No. 59-1564-6 1710-11
No. 59-1564-6 1710-11

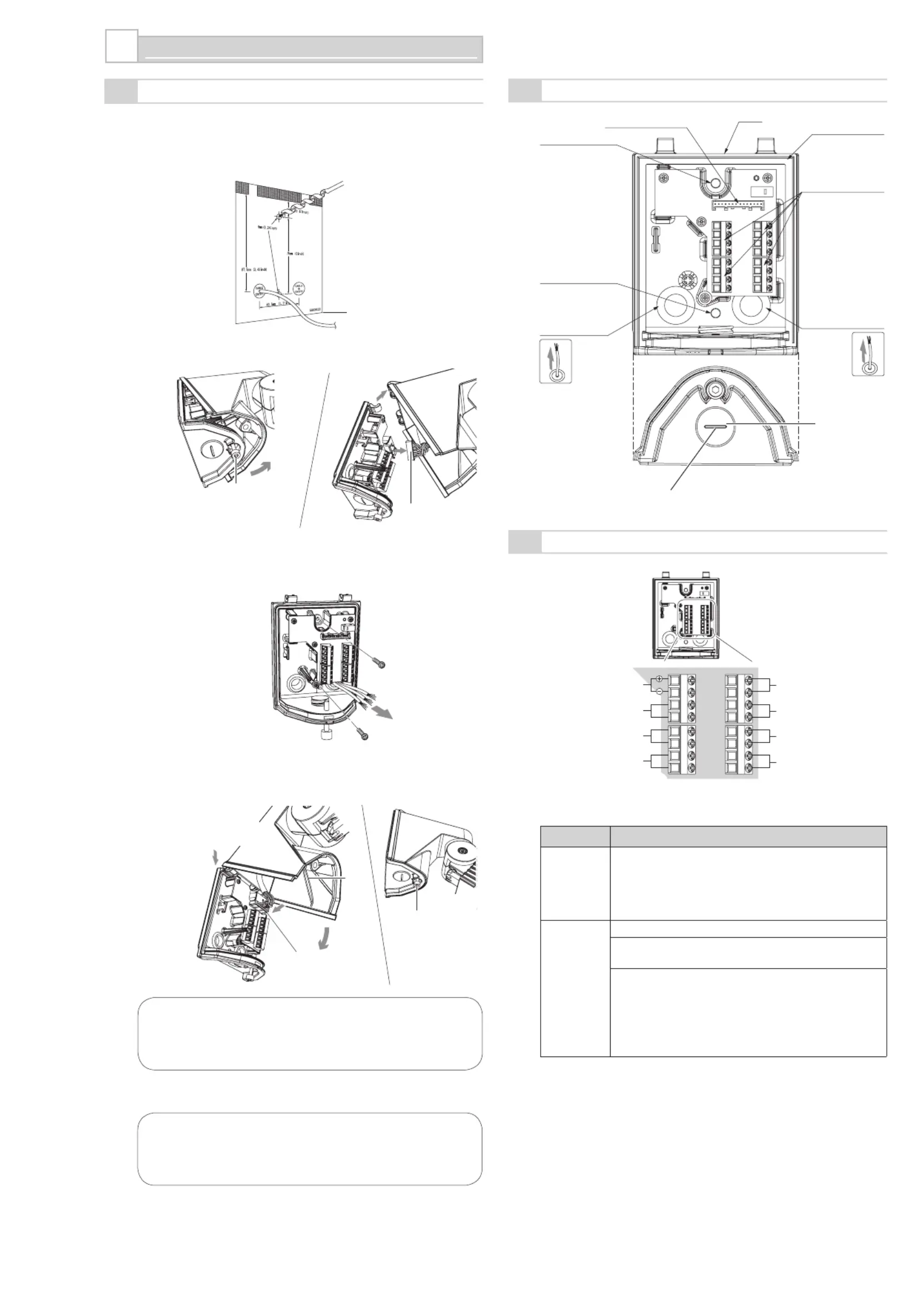

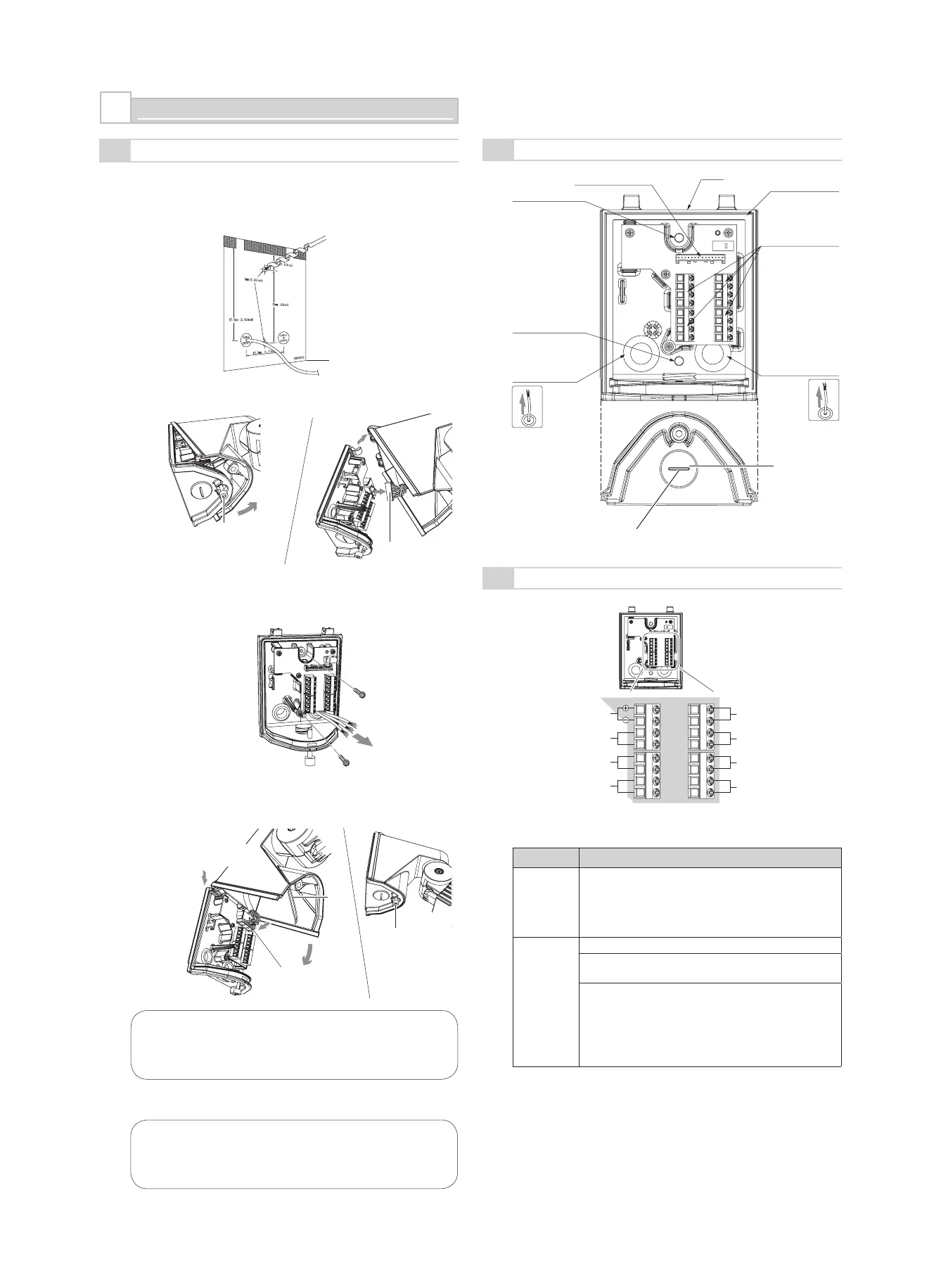

INSTALLATION INSTRUCTIONS
Synthesized Intelligent PIR
REDWALL-V series
Synthesized Intelligent PIR
REDWALL-V series
FEATURES
* Intelligent PIR Detection System
- Detection of ambient temperature and illuminance for
automatic sensitivity management
- Advanced detection algorithm
- Three dual pyro-elements with patented Double Conductive
Shielding for main area
)stnemele-oryp laud elbuoD( rotceted enoz peerc ni-tliuB *
* Anti-vandalism functions
- Anti-rotation function with accelerometer
- Anti-masking function with photo-beam
- Reinforced polycarbonate housing
- Max. 4m (13ft.) installation height
* Independent sensitivity selector for creep/near/far areas
* Detection logic selector
* Detection range selector
* Independent N.C. and N.O. outputs
* Adjustable alarm interval time
REDWALL-V
: Synthesized Intelligent PIR with creep zone
SIP-3020/5
SIP-4010/5
SIP-404/5
•
•
•
*1: Not used for the SIP-4010/5 and SIP-404/5.
2-1

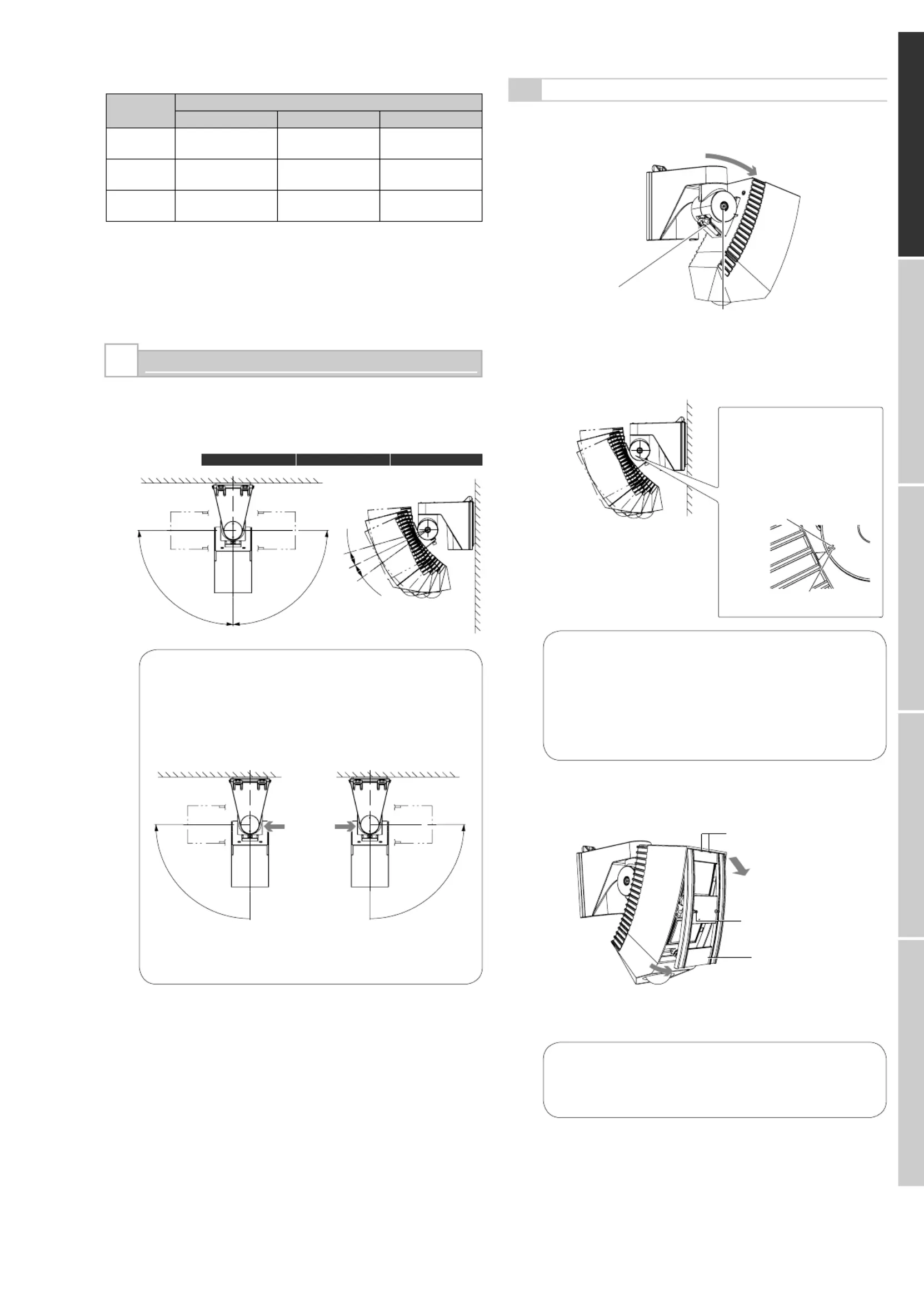

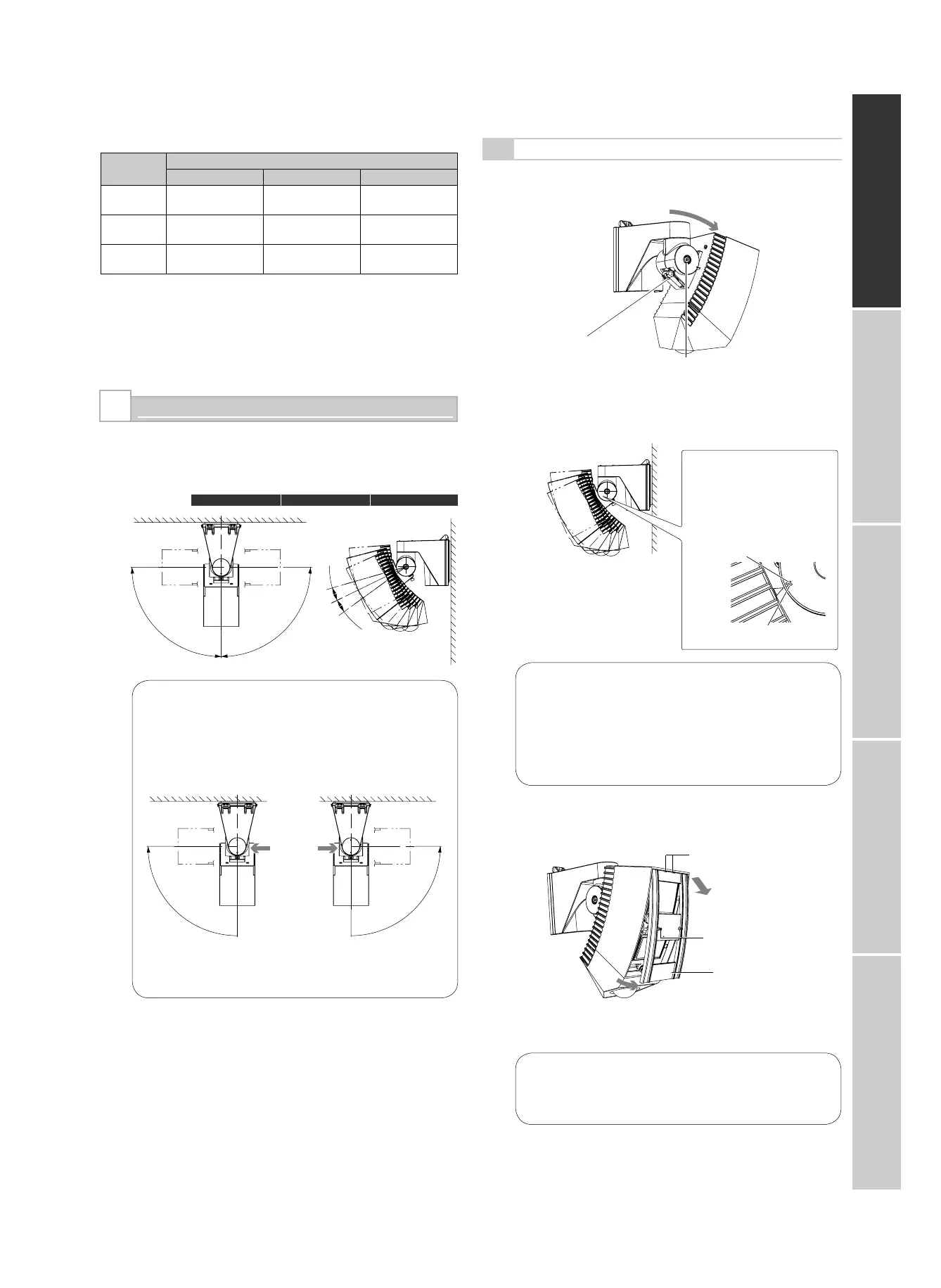

INSTALLATION HINTS
2.3-4.0 m
(7.6-13 ft.)
F
6 4 2 5 3 1
F 6 F 4 F 2 F 5 F 3 F 1
E 6 E 4 E 2 E 5 E 3 E 1
D 6 D 4 D 2 D 5 D 3 D 1
C 6 C 4 C 2 C 5 C 3 C 1
B 6 B 4 B 2 B 5 B 3 B 1
E
D
C
B
Area Masking Seals
3020 (521203)
1 2
3
4 5 6 7
B1
C1
D1
E1
F1 F6
2F 3F 4F 5F
E5E2 E3 E4
D5D2
C5C2
C3 C4
B5B2
B4
3D 4D
B3
E6
D6
C6
B6
Area View Finder
FAR
NEAR
7
6
5
4
3
2
1
B6
C6
D6
E6
B3
C3
D3
E3
F3
B2
C2
D2
E2
F2
B1
C1
D1
E1
F1
B4
C4
D4
E4
F4
B5
C5
D5
E5
F6
F5
Mount the detector so that the majority of
traffic flow is across the detection pattern.
REDWALL-V SIP-3020
Base
Fixing screw
for the base
Main unit
Masking plate for near
area (*1)
Window
Fixing screw
for the cover
Cover
Far area mirror
Masking plate for far area
Fixing rubber form
Adjustment screws
(two facing each other)
Angle adjustment guide
Near area mirror
Arrow marking
Fixing screw
Nylon wire
loop
When servicing, the sensor
can be hooked onto the base
using the nylon wire loop.
Creep unit
Fixing rubber
form (*1)
* UL-1: SIP-3020/5, -4010/5 and -404/5 are recommended not to be connected to an
alarm initiating circuit but may be connected to a trouble alarm circuit if nuisance trips
are not tolerable.
UL
* UL/c-UL Listed
* SIP-4010/5 and SIP-404/5 do not
have a masking function.
* Creep
zones can
not be
masked.
