EN-1
2.3-4.0 m
(7.6-13 ft.)
INSTALLATION AND MAINTENANCE NOTES
Warning Caution
Never repair or
modify product
Hold the main unit
securely when you
install or service it.
If you remove your
hands from the main
unit when cables are
connected to it, the
main unit may fall
and the connector
cables may break
or the circuit board
may be damaged.
Caution
Verify that the
power is off before
connecting the
wiring.
2

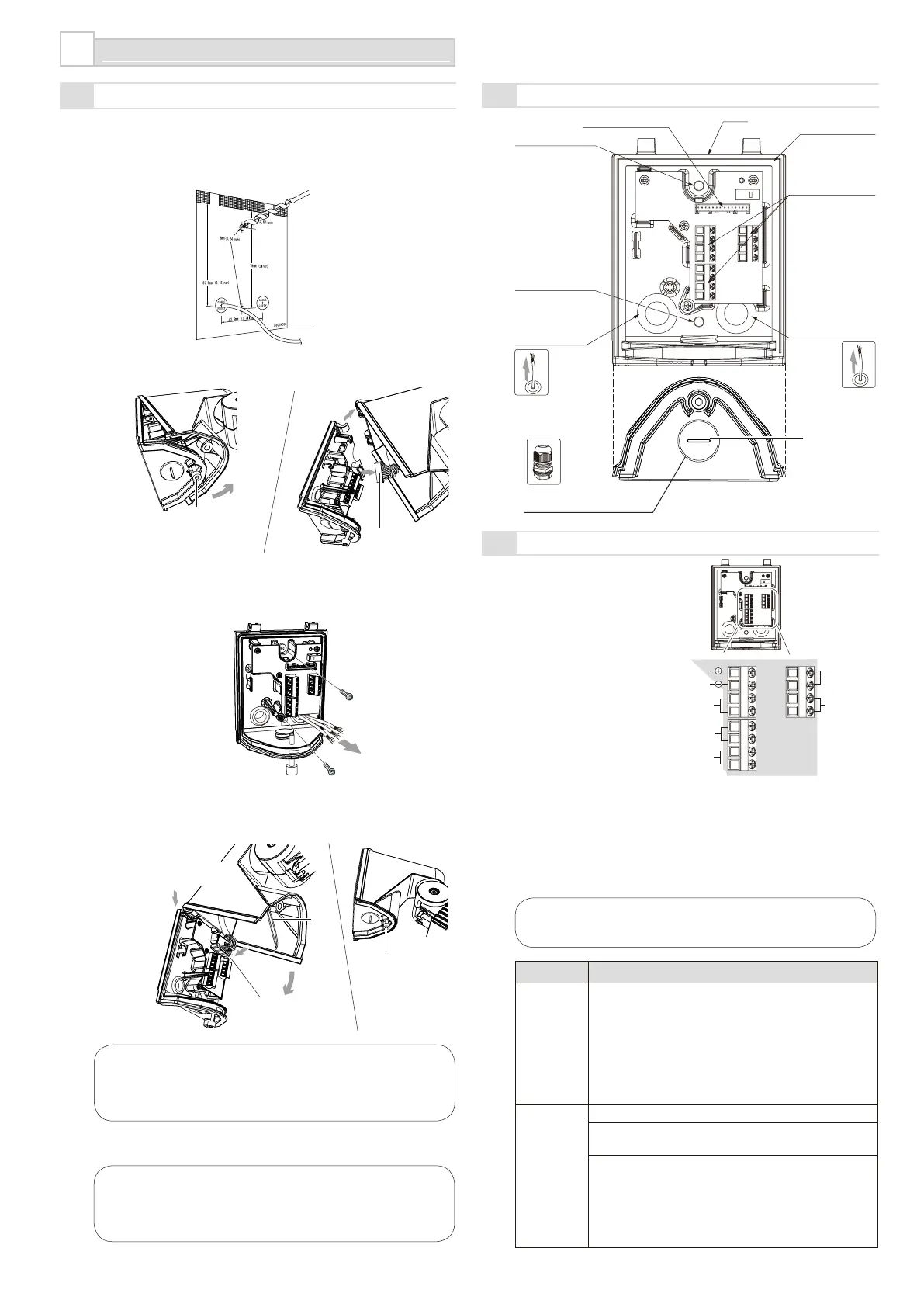

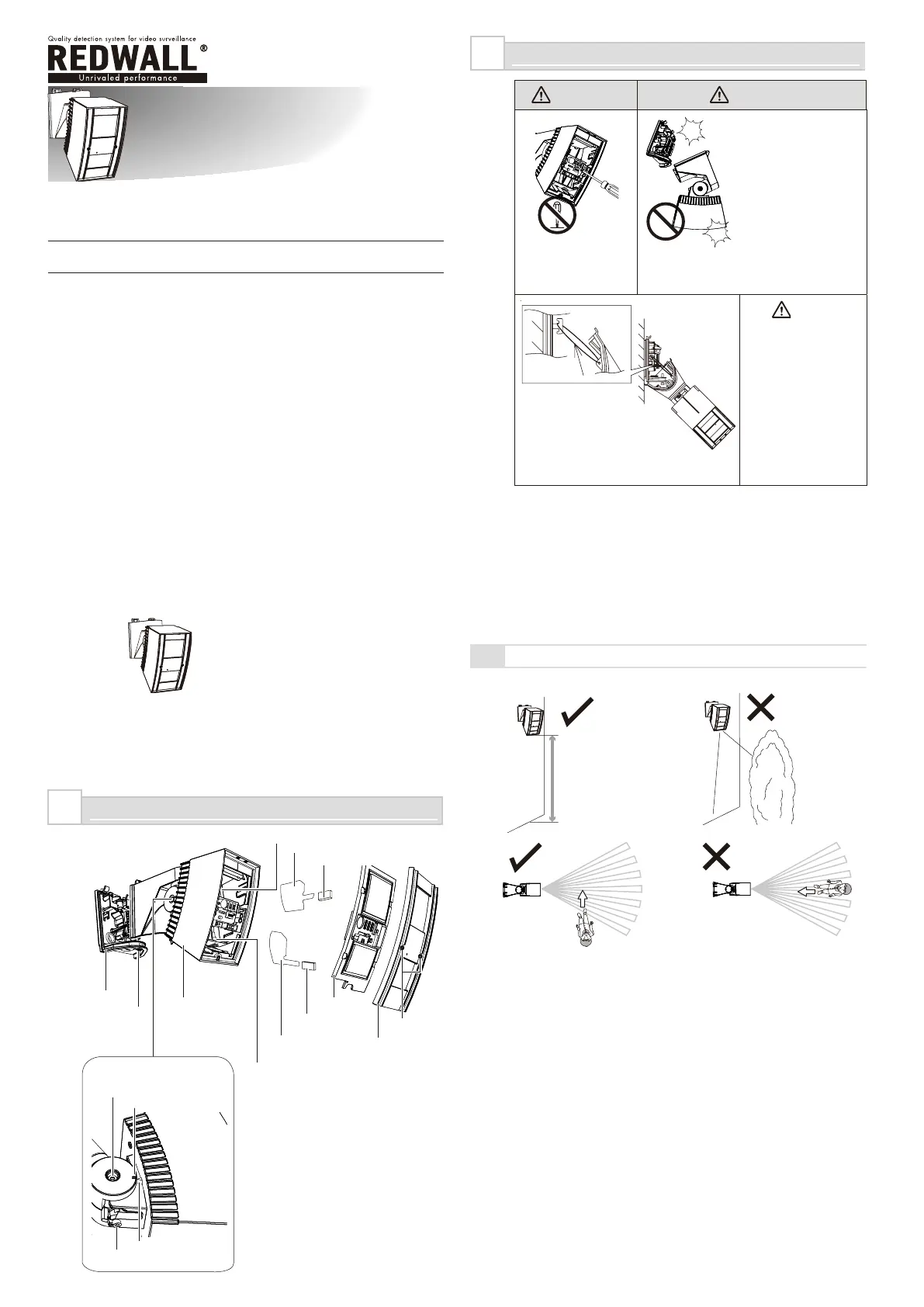

PARTS IDENTIFICATION
1
59-3462-0 2310-11
INSTALLATION INSTRUCTIONS
Synthesized Intelligent PIR
REDWALL-V series
Synthesized Intelligent PIR
REDWALL-V series
FEATURES
,CDV9-3( noitpmusnoc rewop woL * 40μA (standby) 5mA max.)
* Low battery signal
* Intelligent PIR Detection System
- Three dual pyro-elements with patented Double Conductive
Shielding
- Detection of ambient temperature and illuminance for
automatic sensitivity management
- Advanced detection algorithm
* Anti-vandalism functions
- Max.4 m (13 ft.) installation height
- Anti-rotation function with accelerometer
- Anti-masking function with photo-beam
* Independent sensitivity selector for near/far areas
* Detection logic selector
* Detection range selector
* Independent N.C. and N.O. ALARM output
* Adjustable alarm interval time
* Reinforced polycarbonate housing
REDWALL-V
: Low current Synthesized Intelligent PIR
SIP-3020WF
SIP-4010WF
SIP-404WF
•
•
•
Mount the detector so that the majority of traffic flow is across the detection pattern.
dna FW0104-PIS eht rof desu toN :1*
SIP-404WF.
2-1
INSTALLATION HINTS
Base
Fixing screw
for the base
Main unit
Masking plate for near
area (*1)
Fixing rubber
form (*1)
Window
Fixing screw
for the cover
Cover
Far area mirror
Masking plate for far area
Fixing rubber form
Adjustment screws
(two facing each other)
Angle adjustment guide
Near area mirror
Arrow marking
Fixing screw
Nylon wire
loop
When servicing, the sensor
can be hooked onto the
base using the nylon wire
loop.
*UL-1: When assessing the installation and application, alarms triggered
by conditions such as weather, blowing leaves and bush, or related
environmental conditions, etc., need to be considered.
It is recommended that the intrusion detection unit is not to be
connected to an alarm initiating circuit but may be connected to
a trouble alarm circuit if nuisance trips are not tolerable.
