Sida 1/12
BATTERY OPERATED
PHOTOELECTRIC DETECTOR
BATTERY OPERATED
PHOTOELECTRIC DETECTOR
CONTENTS
1 INTRODUCTION
1-1 BEFORE YOUR OPERATION ............................... 2
1-2 PRECAUTIONS...................................................... 3
1-3 PARTS IDENTIFICATION...................................... 3
2 PREPARATIONS
2-1 ORDERING DETECTOR BATTERIES .................. 4
2-2
CHECKING THE WIRELESS TRANSMITTER SIZE
..... 4
3 INSTALLATION
3-1 WALL MOUNTING ................................................. 4
3-2 POLE MOUNTING ................................................ 6
3-3 MOUNTING IN THE BEAM TOWER...................... 7
3-4 WIRING .................................................................. 9
4 SETTING
4-1 FUNCTION........................................................... 11
4-2 4 CHANNEL BEAM FREQUENCY SELECTOR .. 11
4-3 OPTICAL ALIGNMENT ........................................ 12
4-4 BEAM INTERRUPTION ADJUSTMENT .............. 14
4-5 ADJUSTING OUTPUT ......................................... 14
5 OPERATION CHECK
5-1 LED INDICATION................................................. 14
5-2 OPERATION CHECK........................................... 14
5-3 TROUBLE SHOOTING ........................................ 15
6 OPTION...................................................................... 15
7 DIMENSIONS............................................................. 15
8 SPECIFICATIONS ..................................................... 16
INSTALLATION INSTRUCTIONS
FEATURES
No.59-2420-3 2112-08
AX-100TFR/AX-200 TFR
AX-100TFR/AX-200 TFR
•
Battery-operated detector
(Batteries are not included.)
Use four LSH20 (3.6 V, 13 Ah) batteries manufactured
by SAFT.
Battery life: AX-100TFR Approximately five years
AX-200TFR Approximately three years (transmitter)
Approximately five years (receiver)
•
Back box for wireless transmitters
•
N.C./N.O. selection switch
•
Battery saving function for wireless transmitter
•
Intermittent output function
•
4 channel beam frequency selector
•
International protection IP55
•
LED indicator for an easy alignment
•
D.Q. circuit (environmental disqualification)
•
Tamper
•
Beam interruption adjustment function
Model Detection range Feature
30 m / 100 ft.
Battery operated with 4
selectable beam frequencies
60 m / 200 ft.
AX-100TFR
AX-200TFR
- 1 -
https://navi.optex.net/manual/08608/
Warning
Caution
This symbol indicates prohibition. The specific prohibited action is provided in and/or around the figure.
This symbol requires an action or gives an instruction.
Do not use the product for purposes other than the detection of moving objects such as people and vehicles.
Do not use the product to activate a shutter, etc., which may cause an accident.
Never attempt to disassemble or repair the product. It may cause fire or damage to the devices.
Do not use batteries other than those specified.
Specified batteries: Four LSH20 batteries manufactured by SAFT
Do not use batteries that have different levels of power remaining (i.e., new and used batteries).
Not observing the above may result in an explosion, leakage of electrolyte, emission of toxic gases or other
outcomes that may be harmful to people and property.
[Handling of Batteries]
Fire, explosion and severe burn hazard. Do not recharge, short circuit, crush, disassemble, heat above
100°C (212°F), incinerate, or expose contents to water.
Do not solder directly to the cell.
Do not pour water over the product with a bucket, hose, etc. The water may enter, which may cause damage to the
devices.
Clean and check the product periodically for safe use. If any problem is found, do not attempt to use the
product as it is and have the product repaired by a professional engineer or electrician.
Do not touch the unit base or power terminals of the product with a wet hand (do not touch when the
product is wet with rain, etc.). It may cause electric shock.
Warning
Caution
Failure to follow the instructions provided with this indication and improper handling may cause
death or serious injury.
Failure to follow the instructions provided with this indication and improper handling may cause
injury and/or property damage.
1
INTRODUCTION
1-1
BEFORE YOUR OPERATION
• Read this instruction carefully prior to installation.
• After reading, store this instruction carefully in an easily accessible place for reference.
• This instruction uses the following warning indications for correct use of the product, harm to you or other people
and damage to your assets, which are described below. Be sure to understand the description before reading the
rest of this instruction.
- 2 -

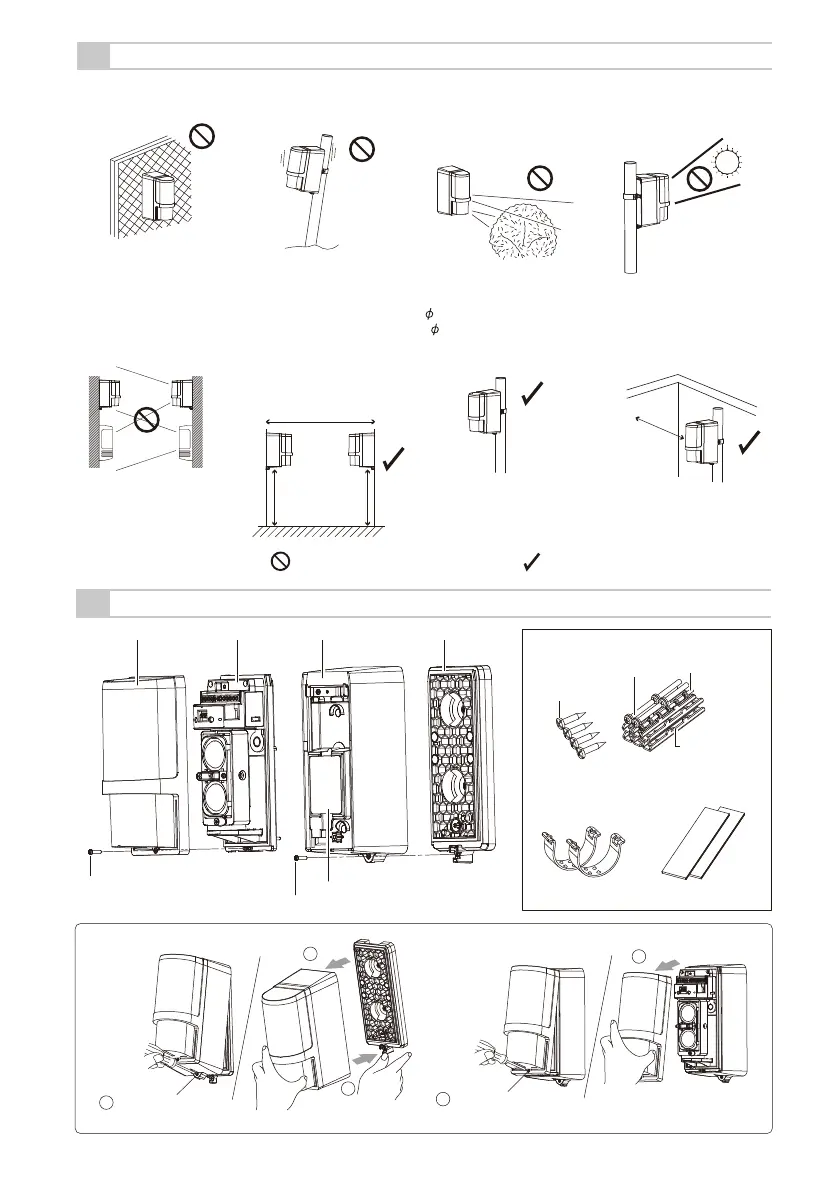

1-3
PARTS IDENTIFICATION
ChassisBack boxMain unitCover
Back box lock screw
Harness retainer plate
Cover lock screw
Velcro tape: 2 setsU-brackets: 2
Mounting plate
lock screws
Pole mounting
bracket set
Pole mounting
brackets: 6
M3×8
screws: 6
M4×20
screws: 4
M4×30
screws: 4
2
1
2
1
3
Loosen the
back box lock screw.
Pull
Press
Loosen the
cover lock screw.
Pull
Removing the Back Box >> Removing the Cover >>
1-2
PRECAUTIONS
Install the unit on a stable
surface.
Install the pole in a location
where sufficient stability
can be ensured.
Do not install the unit in a
location where trees,
leaves, or other objects
that may swing in the wind
may block the beam.
Do not install the receiver
in a location where it is
exposed to direct sunlight.
Receiver
Transmitter
(different
model)
Transmitter
Do not allow the infrared
beam from a different model
to reach the receiver.
Install the unit more than 1
m (3.3 ft.) away from the
wall or fence that are
running parallel to the beam.
This symbol indicates prohibition. This symbol indicates recommendation.
AX-100TFR
Detection range: 30 m (100 ft.)
AX-200TFR
Detection range: 60 m (200 ft.)
Installation
Height
0.7 m - 1 m
(2.3 ft. - 3.3 ft.)
Observe the prescribed
transmitter-receiver
distance (range) and
installation height.
The pole size should be
43 - 48 mm
( 1.69" - 1.89").
1 m (3.3 ft.)
Accessories
- 3 -
