For Technical Support: www.panduit.com/resources/install_maintain.asp

INSTALLATION INSTRUCTIONS

© Panduit Corp. 2018

FS119A

LC Fiber Optic Connectors

Field Polish Termination - Singlemode and Multimode

ITEMPART NUMBERDESCRIPTION

1CST-115Fiber Cable Jacket Stripper

2FALCAlcohol Bottle (empty)

3FBFSPFiber Buffer Stripper

4FLPTLC Crimp Tool

5FSCRIBECarbide Scribe

6FGLSSafety Glasses

7FLCPKLC Polishing Puck (1.25mm Ferrule)

8FJPMRPrimer

9FJPXYAnaerobic Adhesive

10

FHSCT (or)

FHSCT-W

Heat Shrink Curing Tool (110VAC / 60Hz for 1.6mm/2.0mm installation)

Heat Shrink Curing Tool (230VAC / 50Hz for 1.6mm/2.0mm installation)

11FKSAramid Yarn Shears

12FPP5-L5µm Polishing Film (Alu

minum Oxide)

13FPF1-V1µm Diamond Polishing Film

14FLCPAD85 Durometer Polishing Pad

15FSCDVRScrewdriver

16FSCOPE200x Microscope

17FLCASCP1.25mm Adapter for FSCOPE

18FSTYSafety Stickers for fiber scraps

19FSWB-CCleaning Swabs

20FSYR-XSyringes with needle tips

21FTWZRTweezers

22FWP-CCloth Wipes

23PFX-0Indelible Ink Marking Pen

24FLOUPEX10Eye Loupe 10X Power

25--Isopropyl Alcohol (Reagent Grade, 90% minimum concentration; not avail

able from Panduit)

26FLCFPLF-X.05µm Lapping Film (For singlemode terminations only)

27FWBTLDistilled Water Bottle (empty)

----Distilled Water (not available from Panduit)

OPTIONALPN335*LC Connector Stripping Template

DUPLEX

Duplex Clip

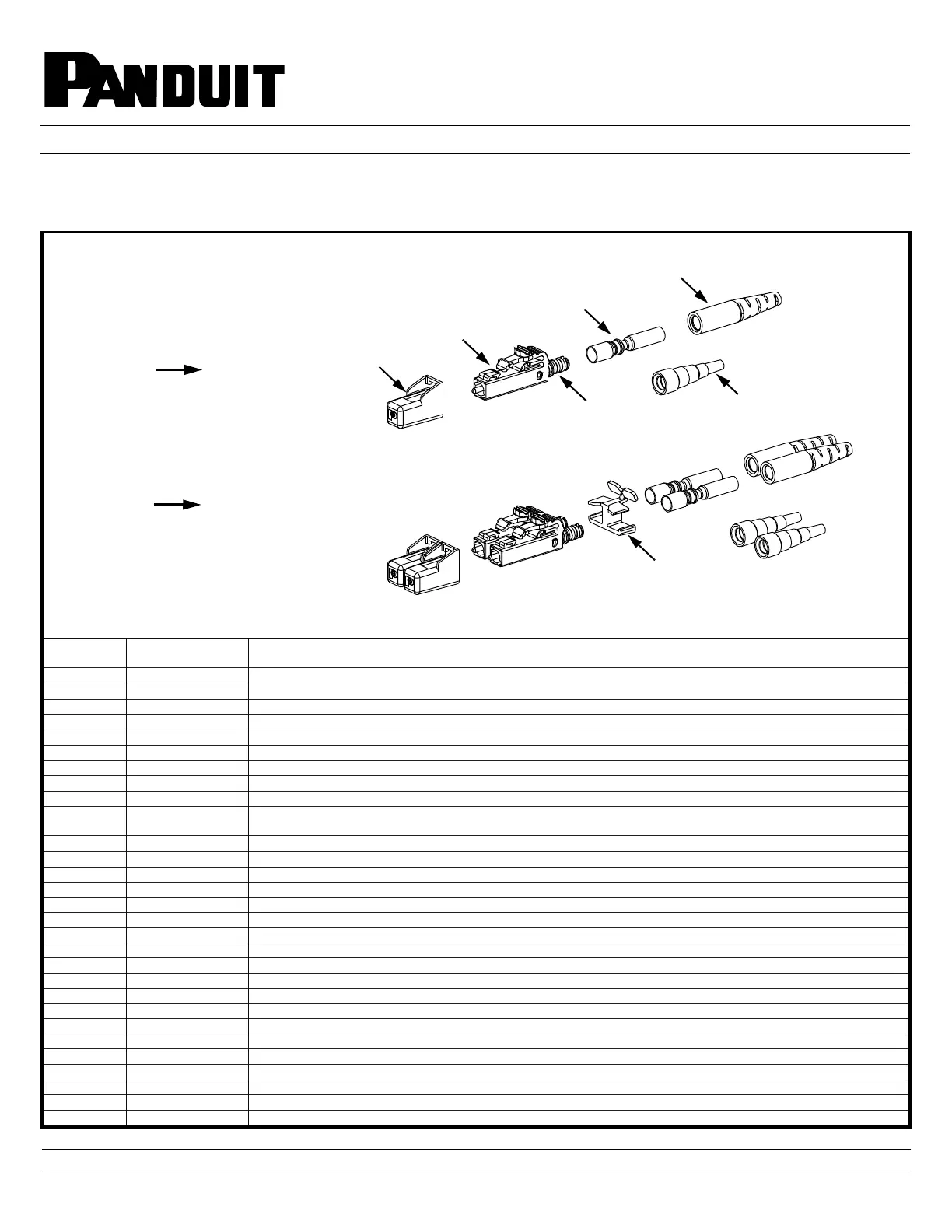

CONNECTOR ASSEMBLY

ITEMS REQUIRED FOR TERMINATION

SIMPLEX

Dust cap

Connector Body

Backbone

Crimp Sleeve

900µm Boot

Jacketed Boot

with heat shrink

tubing

READ ALL INSTRUCTIONS COMPLETELY BEFORE PROCEEDING

Page 1 of 11

COMPONENT IDENTIFICATION

* denotes stripping template revision letter.
