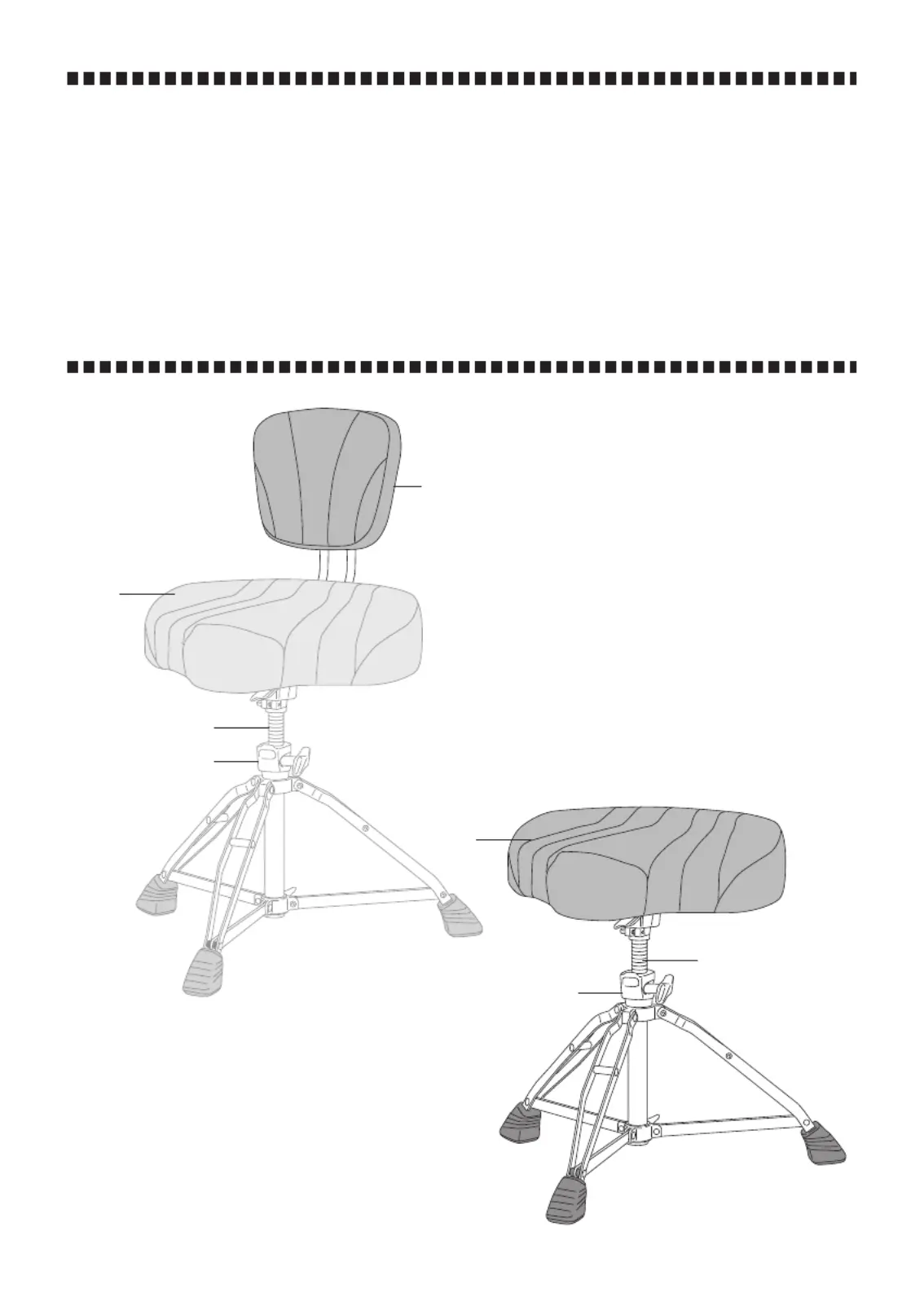

PEARL DRUM THRONE
D-2500/BR-2500A
D-2500
BR-2500A
Backrest
Center Post
Seat
Height Adjustment
Joint
Congratulations on your purchase!
To get optimum performance from your Drum Throne,
please read this Instruction Manual before playing.
Instruction Manual
Center Post
Seat
Height Adjustment
Joint
Backrest Bracket
Plate
Fig.1
Seat
Attachment Screw
BACKREST BRACKET ATTACHMENT
(D-2500BR ONLY)
Attach the Backrest Bracket to the Plate under the Seat
with the four Attachment Screws as shown using a Philips
screwdriver. (Fig.1)

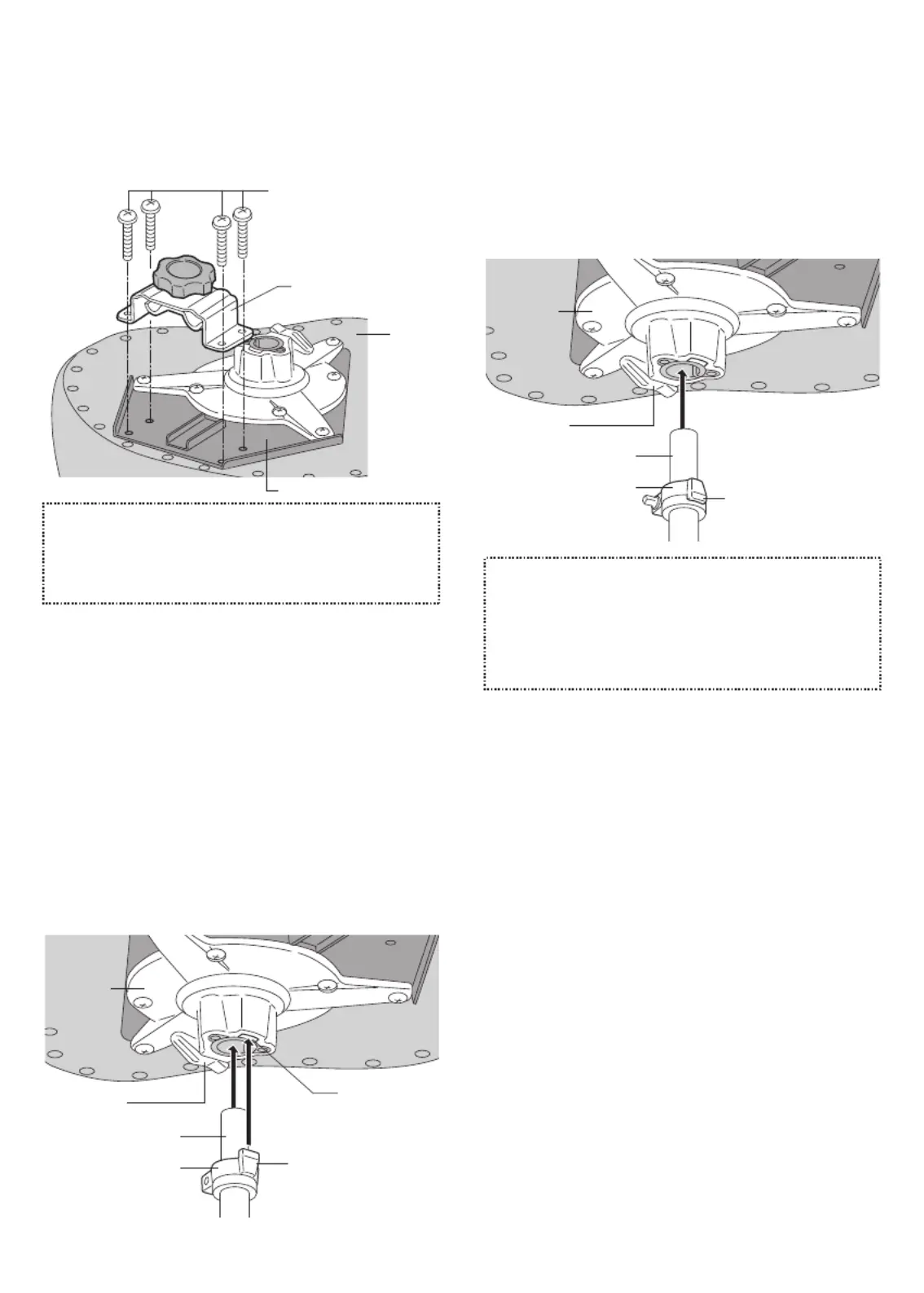

SEAT BRACKET
The unique Seat Bracket on the D-2500/D-2500BR allows
the Seat Top to ROTATE or LOCK depending on your
preference.
Mounting the Seat in the LOCKED Position
(Factory Setting, Fig.2)
1.Make sure that the tab on the Stop Lock is facing
upwards as shown.
2.Tighten the Key Bolt on the Stop Lock securely.
3.Mount the Seat on the Center Post and insert the tab on
the Stop Lock into the Groove on the Seat Bracket as
shown.
4.Make sure Tab is securely fitted into the Groove and
tighten the Wing Bolt securely.
Mounting the Seat to Allow it to ROTATE
(Fig.3)
1.Remove the Stop Lock and turn it over with the Tab
facing down as shown.
2.Tighten the Key Bolt on the Stop Lock securely.
3.Mount the Seat on the Center Post.
4.Tighten the Wing Bolt with enough pressure to allow the
Seat to rotate.
Fig.2
Center Post
Stop Lock
Groove
Seat
Bracket
Seat
Bracket
Wing Bolt
Tab
Fig.3
Center Post
Stop Lock
Wing Bolt
Tab
NOTE
・Always keep the Wing Bolt on the Seat tightened to keep it
from wobbling and from coming off when transporting the
throne.
・The Stop Lock is an integral part of the throne’s design and
should always be used in either the LOCKED or ROTATE
positions.
NOTE
・Make sure to tighten the Attachment Screws equally.
・Use only light pressure when installing the Attachment
Screws to prevent the T-Nuts under the Plate from dislodg-
ing.

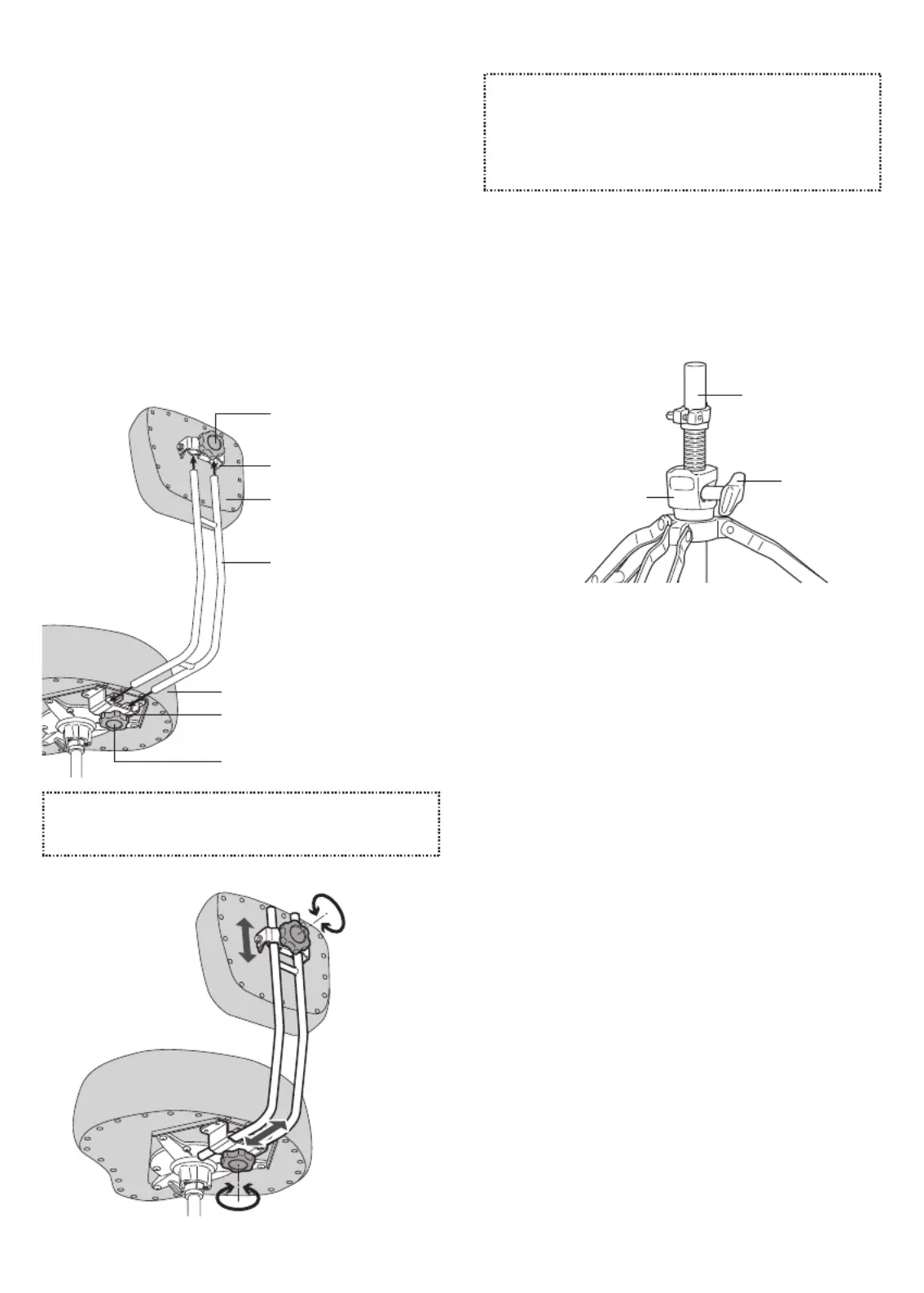

BACKREST ATTACHMENT
(D-2500BR ONLY)
The D-2500BR is equipped with an adjustable Backrest with
adjustments for front/back and up/down positioning for
optimum support and comfort. The Backrest removes easily
for convenient transport. (Fig.4)
1.Loosen the Adjustment Knob on the Backrest Bracket
and insert the Backrest Tube as shown.
2.Slide the Backrest Tube to the desired position and
tighten the Adjustment Knob. (Fig.5)
3.Loosen the Adjustment Knob on the Back Support
Bracket and attach the Back Support to the Backrest
Tube as shown.
4.Slide the Back Support to the desired position and
tighten the Adjustment Knob. (Fig.5)
HEIGHT ADJUSTMENT (Fig.6)
1.Loosen the Wing Nut on the Height Adjustment Joint.
2.Spin the Center Post until desired height is achieved.
3.Tighten the Wing Nut securely.
Fig.4
Back Support
Back Support Bracket
Adjustment Knob
Backrest Tube
Seat
Backrest Bracket
Adjustment Knob
Fig.5
Fig.6
Center Post
Wing Nut
Height Adjustment Joint
NOTE
・When making adjustments to the Adjustment Knob, be
careful not to pinch your hands / fingers.
・
Do not adjust the position of the Backrest when seated as this
may require twisting and reaching that can cause injury to
your body. To prevent injury, make adjustments before sitting.
NOTE
Make sure that the Backrest Tube is inserted into the
Backrest and Back Support Brackets straight and not tilted.
