Sida 1/5

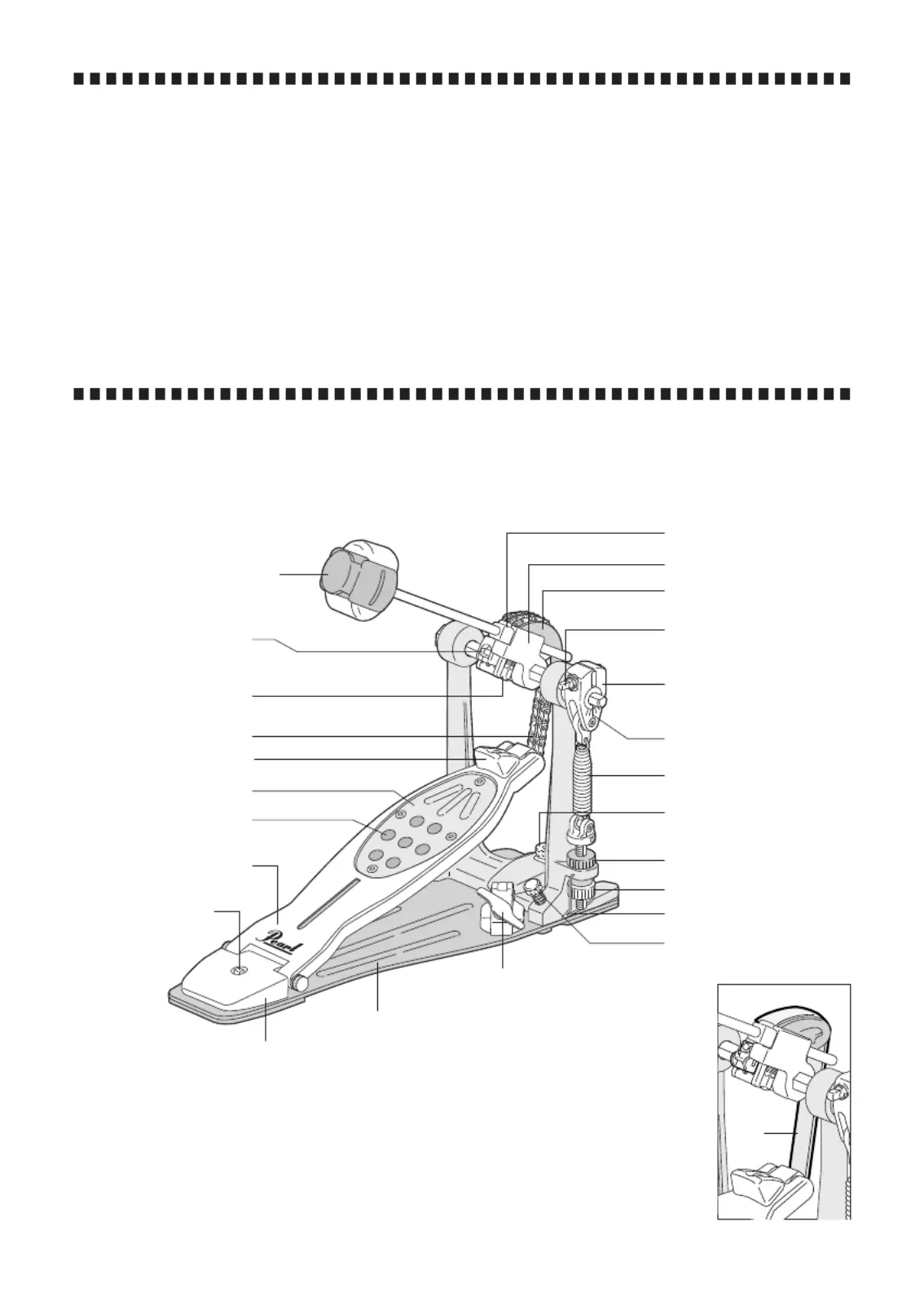

PEARL DRUM PEDAL
P-2050C/P-2050B
Congratulations on your purchase!
To get optimum performance of your "P-2050C / P-2050B" Drum Pedal,
please read this Instruction Manual before playing.
Instruction Manual
Control Core Quad Beater
Wing Bolt
(for Hoop Clamp)
Power Plate
Heel Plate
Key Bolt
(for PowerShifter)
Footboard
Traction Grip
Traction Plate
Dual Chain
Key Bolt
(for Footboard Angle
Adjustment )
Key Bolt
(for Beater Setting)
Toe Stopper
Beater Holder Link
Interchangeable Cam
Key Bolt (for Beater
Angle Adjustment)
Uni-Lock Beater
Angle Cam
Spring
Upper Nut
Lower Nut
Click Lock
Anchor Screw
Adjustment Knob
(for Hoop Clamp)
Beater Setting Stopper
Gauge
P-2050C
P-2050B
Belt
A
B
D C
Beater Holder Link

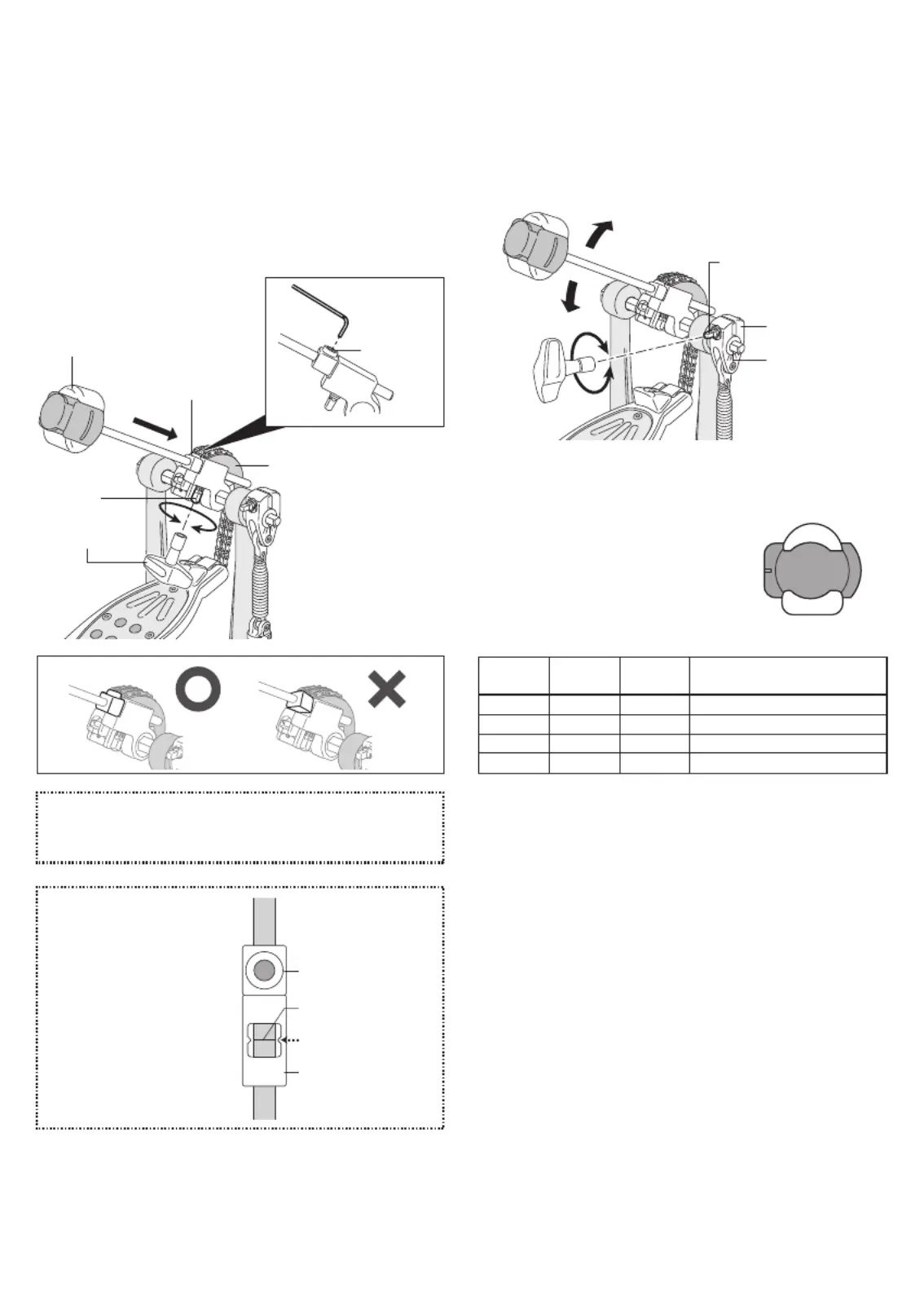

Beater Setting
Insert the Control Core Quad Beater into the Beater Holder
Link with the desired face toward the bass drum head until
it stops against the Beater Setting Stopper. Tighten the Key
Bolt with a Tuning Key to secure (Fig.1-A). Make sure that
the Beater Setting Stopper is flush against the Beater
Holder Link (Fig.1-B). To adjust the height of the Quad
Beater, loosen the Allen Screw on the Beater Setting
Stopper with the provided hexagonal wrench. Set the Quad
Beater to the desired height and re-tighten the Allen Screw
(Fig. 1-C).
Uni-Lock Beater
Angle Cam
Gauge
Beater Angle Adjustment
The beater angle can be adjusted by loosening the Key Bolt
on the Uni-Lock Beater Angle Cam. Adjust to desired
setting and tighten Key Bolt to secure. For small incremen-
tal changes or to index settings use the Gauge located on
the Uni-Lock Beater Angle Cam.
Tip
The Beater Setting Stopper preserves the height setting if the
beater is removed when transporting the pedal.
Tip
Beater Setting Stopper
Marking on the shaft
Index Mark
Fig.2
Fig.3
Key Bolt
Control Core Quad Beater
The Control Core Quad Beater has
four striking surfaces, each capable
of producing a different sound.
Please refer to the following chart to
determine the sound best suited to
your playing style (Fig. 4).
Fig.4
A Felt Vertical Warm Sound with Sharp Attack
B Felt Horizontal Warm Sound with Fat Attack
C Plastic Vertical Bright Sound with Sharp Attack
D Plastic Horizontal Bright Sound with Fat Attack
Surface Sound
Surface
Material
Contact
Area
In the initial factory setting,
the Index Mark on the
Beater Holder Link and
Marking on the Shaft is
aligned in the Window as
shown (Fig. 2).
Control Core Quad Beater
Beater Setting Stopper
Beater Holder Link
Fig.1-A
Key Bolt
Tuning Key
Fig.1-B
Fig.1-C
Allen screw
Key Bolt
Anchor Screw
Allen Screw
Hoop Clamp
Fig.8
Fig.9
Fig.10
Wing Bolt
Adjustment Knob
Toe-Stop
Fig.6-B
Spring
Upper Nut
Lower Nut
Click Lock
Fig.6-A
Fig.7

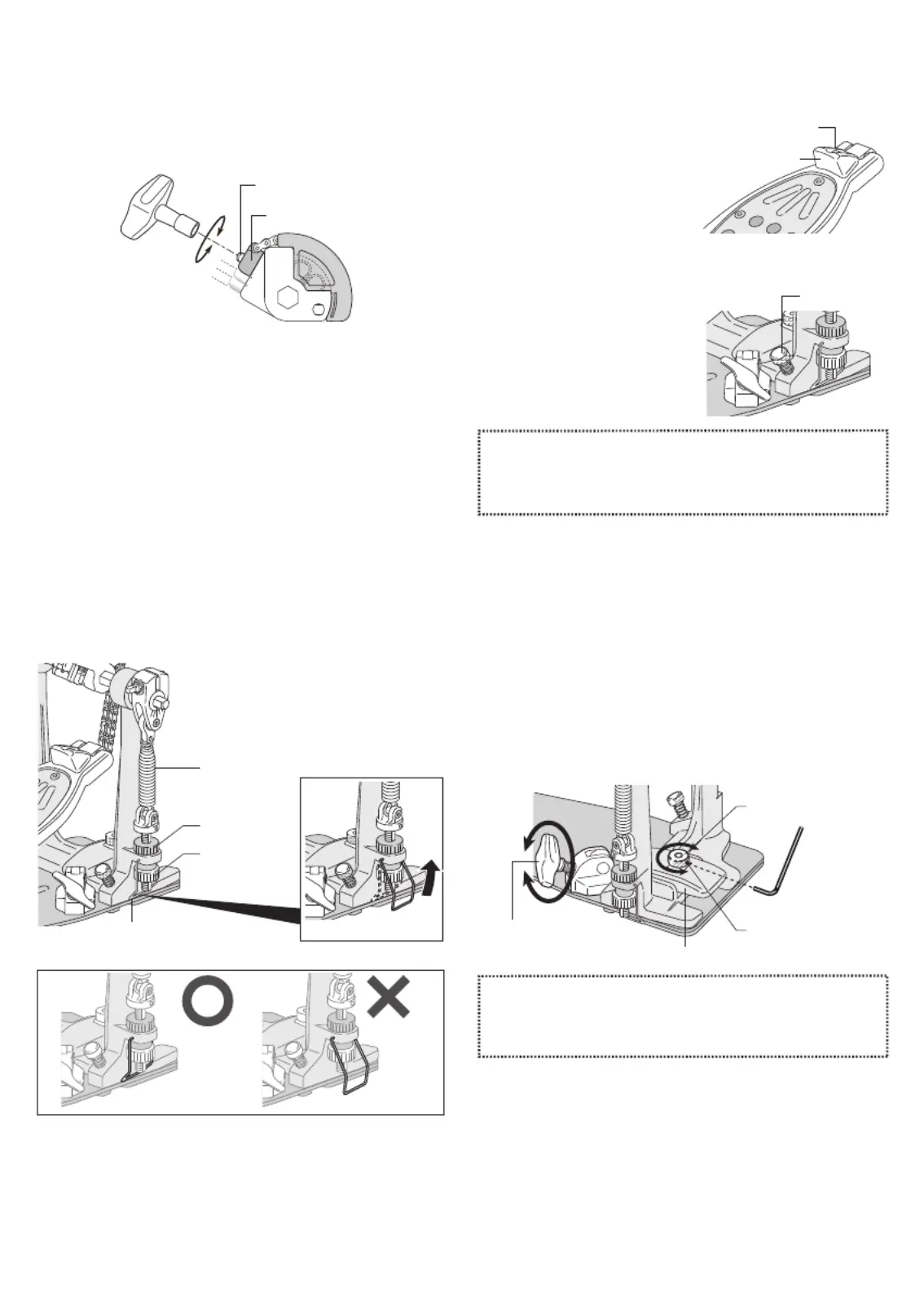

Footboard Angle Adjustment
To adjust the footboard angle, remove beater and loosen
Key Bolt on the Drive Connector as shown (Fig.5). Slide the
Drive Connector of the Chain or Belt to one of three
positions, tighten the Key Bolt and replace beater.
Fig.5
Spring Tension Adjustment
The P-2050C / P-2050B Pedal features our patented Click
Lock spring tension retention system. To adjust the spring
tension, disable the Click Lock by lifting the lever upward
(Fig.6-B) and loosen the Upper Nut shown in (Fig. 6-A). To
increase spring tension, turn the Lower Nut clockwise. To
decrease spring tension turn the Lower Nut
counter-clockwise. Once desired spring tension is
achieved, tighten the Upper Nut against pedal frame firmly.
To secure the setting, lower the Click Lock lever to engage
the grooves around the Lower Nut until you feel the lever
"Click.” Before playing, make sure that both Upper and
Lower Nuts are tight and the Click Lock lever is in a vertical
position with both sides of the lever engaged in the grooves
around the Lower Nut (Fig.7).
Recommended for carpeted surfaces only. Use on hard flooring
may result in damage to the surface from spikes. Check to ensure
spikes are retracted when used on these surfaces.
CAUTION
If the heel of the pedal lifts while playing, loosen the Adjustment
Knob to change the angle of the Hoop Clamp until the pedal
remains flat.
Note
Removable Toe-Stop
The Toe-Stop may be removed
for individual playing style. To
remove simply unscrew Key
Bolt and remove Toe-Stop
from footboard (Fig.8). Store in
secure location for possible
future use.
Anchor Screw
To prevent the bass drum from
creeping forward while playing
turn the Anchor Screws
clockwise to extend the spikes
downward into the floor
(Fig.9).
Hoop Clamp system
To attach your pedal to the bass drum, slide the bass drum
hoop between the Hoop Clamp and the bottom lip of the
pedal. Square the pedal and tighten the Wing Bolt to
secure the pedal to the bass drum hoop. The Hoop Clamp
system is fully adjustable and comes preset from the
factory to accommodate a variety of hoop thicknesses. To
adjust, use the hexagonal wrench provided to loosen the
Allen Screw on the side of the Adjustment Knob. Rotate the
Adjustment Knob until proper fit is achieved then tighten the
Allen Screw to secure setting (Fig. 10).
Drive Connector
Key Bolt
