Congratulations on your purchase!
To get optimum performance from your S-1030 Snare Stand,
please read this Instruction Manual before playing.
S-1030
PEARL SNARE STAND
Instruction Manual

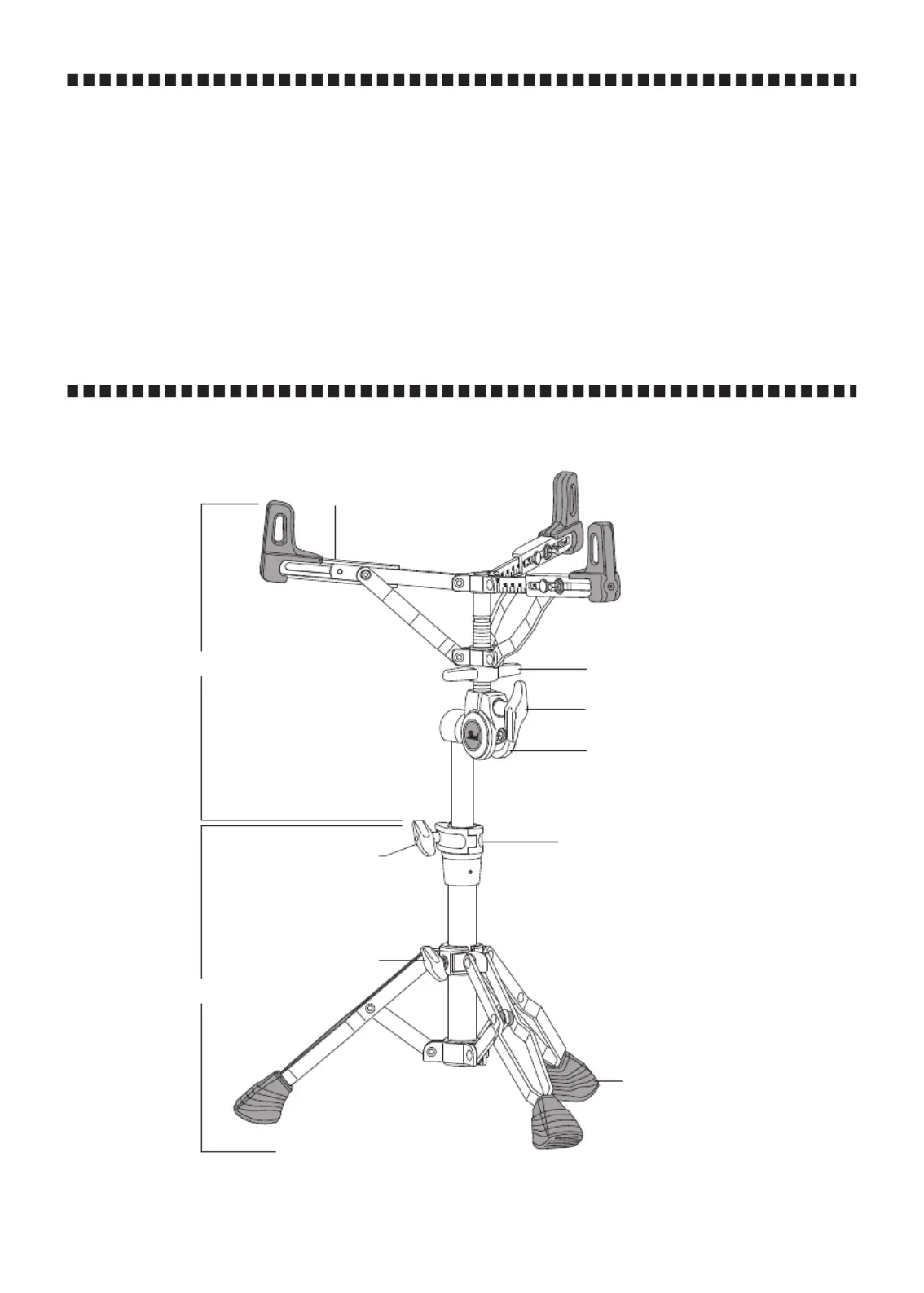

Telescoping Arms
Rubber Tip
Gyro-Lock Tilter
Die-Cast Joint
Adjustment Nut
Wing Nut
Wing Bolt
Wing Nut
Base Section
Basket Section
16" (40cm)
Fig.1
Fig.4
Leg
Direction
Drum Tilting
Direction
Note
When handling tubular hardware do not put your fingers into
the tubes to prevent injury to your fingers.
Note
For optimal stability, one leg should be placed in the same
direction as the tilt of the drum. (Fig.4)
Gyro-Lock Tilter
Wing Nut
Upper Tube
Fig.2
Gyro-Lock Tilter
Wing Nut
Die cast Joint
Upper Tube

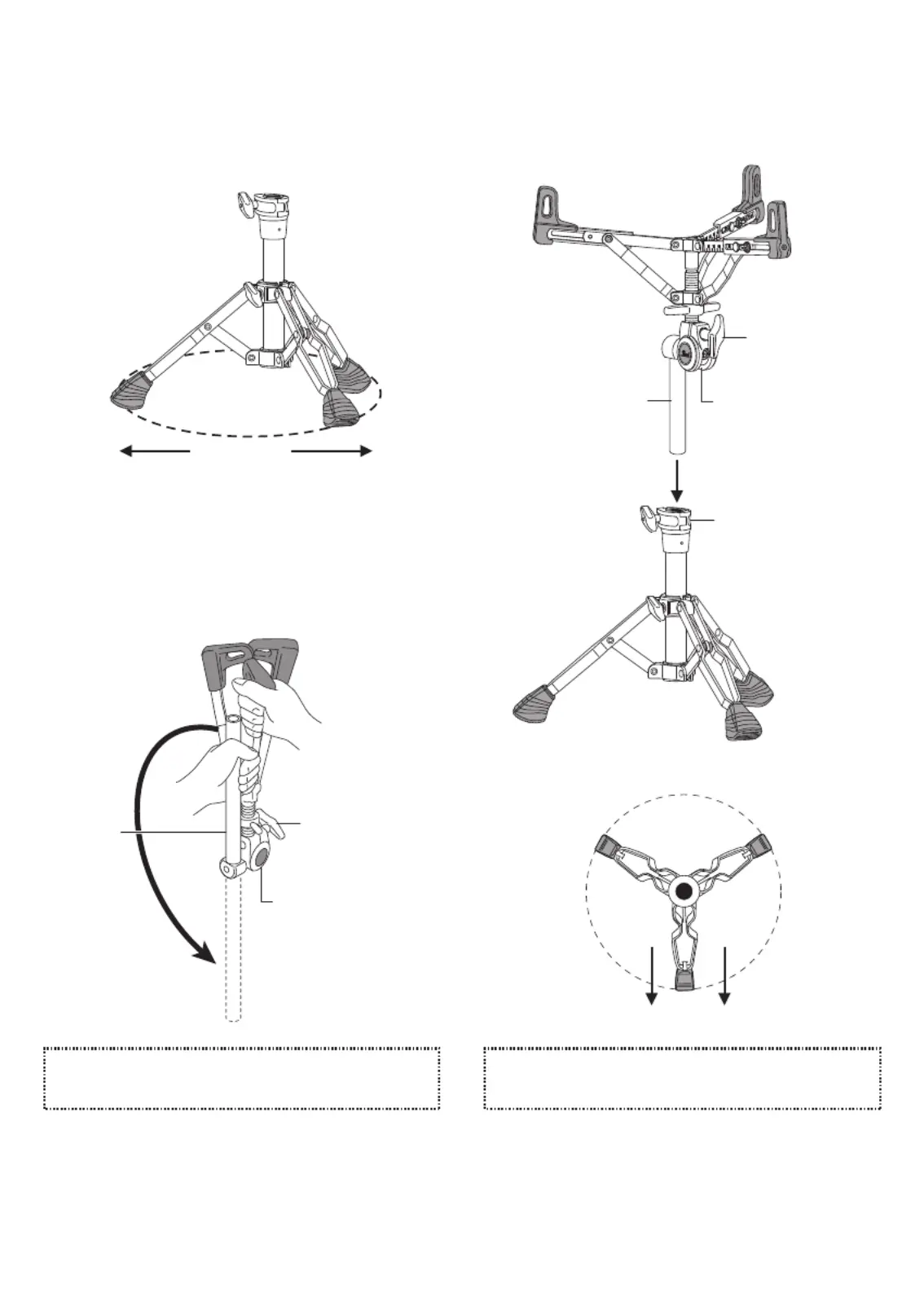

Base Section Assembly
Loosen the Wing Bolt on the Base Section and extend the
legs to form a stable tripod (a minimum of 16" (40cm) is
recommended for optimum stability). Tighten the Wing
Bolt securely when set (Fig.1).
Basket Section Assembly
The Basket Section is packed with the Arms and the Upper
Tube folded. Loosen the Wing Nut on the Gyro-Lock Tilter
and turn the Upper Tube as shown (Fig.2).
Loosen the Wing Nut on the Die Cast Joint on the Base
Section and insert the Upper Tube of the Basket Section
as shown. Adjust the height to your preference and tighten
the Wing Nut on the Die-Cast Joint securely (Fig.3).
Fig.3
10" 16"~
fore/aftleft/right
CAUTION
Telescoping Arms

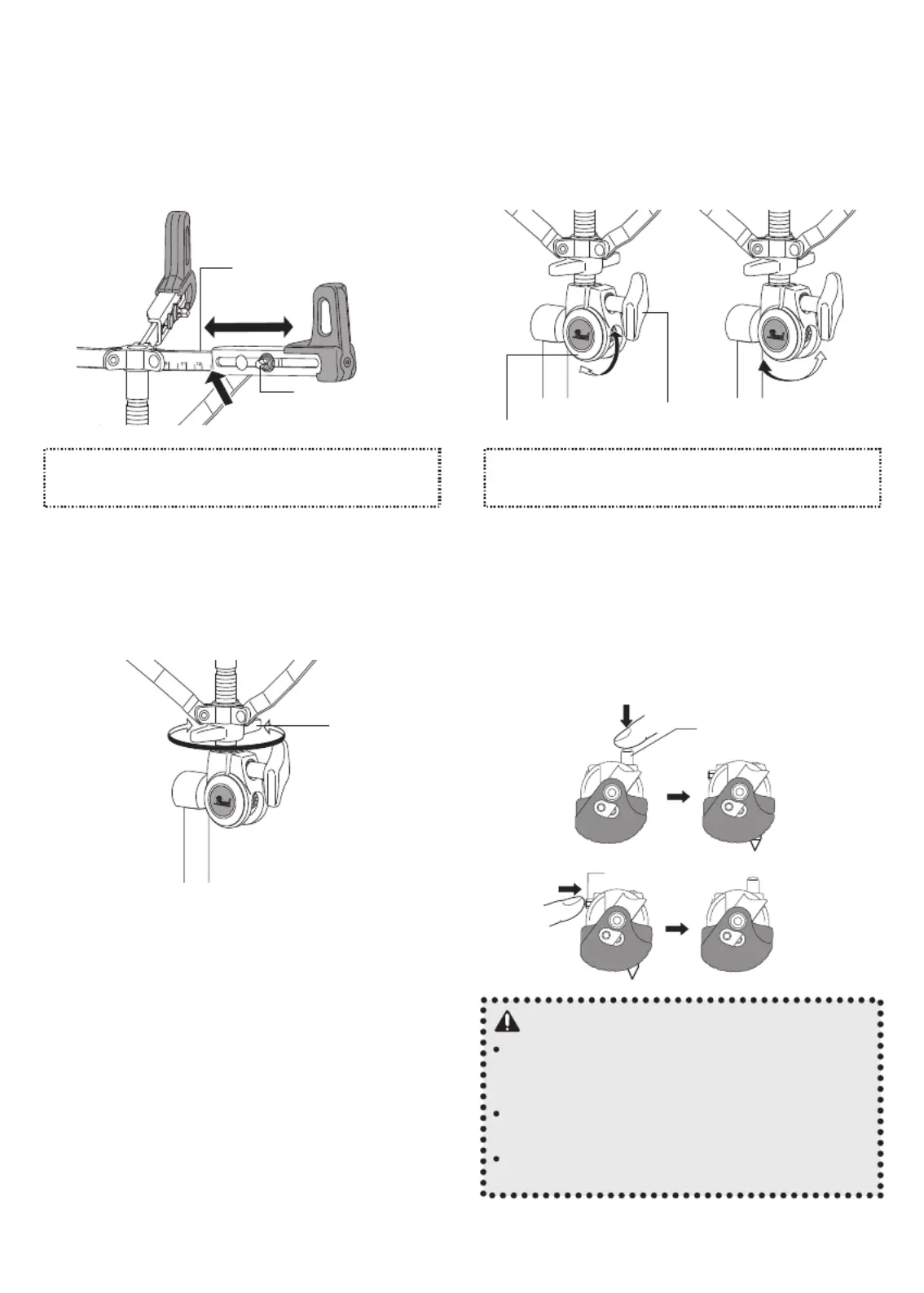

The S-1030 features telescoping arms that accommodate
drums from 10" to 16" in diameter. Loosen the Key Bolts
and align the ends of the arms to the Index Marks that
correspond to the diameter of your drum. Tighten the Key
Bolts when the settings are completed (Fig.5).
Key Bolt
Index Marks
Align the end of the arm
Gyro-Lock Tilter
The Gyro-Lock Tilter featured on the S-1030 is infinitely
adjustable and allows the drum to be tilted fore/aft and
left/right at the same time for precise placement (Fig.7).
Loosen the Wing Nut to make tilt adjustments and tighten the
Wing Nut securely after the adjustments have been made.
Fig.6
Fig.8
Fig.9
Push Button "A"
Push Button "B"
Adjustment Nut
Place the Snare Drum into the Basket with the Strainer
positioned where it can be conveniently operated with your
left hand. Tighten the Adjustment Nut to hold the Snare
Drum securely (do not overtighten) (Fig.6).
Optional Items (sold separately)
・Convertible Spike / Rubber Tip (CVT-300/3)
The optional CVT-300/3 Convertible Spike/Rubber Tips
replace the stock Rubber Tips and give you the choice of
Rubber Tips or Spike Tips for greater stability.
Push Button "A" to activate the Spike Tip (Fig.8).
To retract, push Button "B" (Fig.9)
Gyro-Lock Tilter
Wing Nut
(for Angle Adjustment)
Adjustment Nut
Note
After adjusting the arms tighten the key bolts securely.
Failure to do so may cause the drum to fall from the stand.
Note
Use one hand to stabilize the drum while controlling the Wing
Nut with your other hand.
Use extreme care when handling the Spike Tip.
The Spikes are sharp and could cause serious
injury.
When the stand is not is use, retract the Spike to
avoid property damage.
A rug or carpet should be used to protect floor
surfaces whenever using the Spikes.
Fig.5 Fig.7
