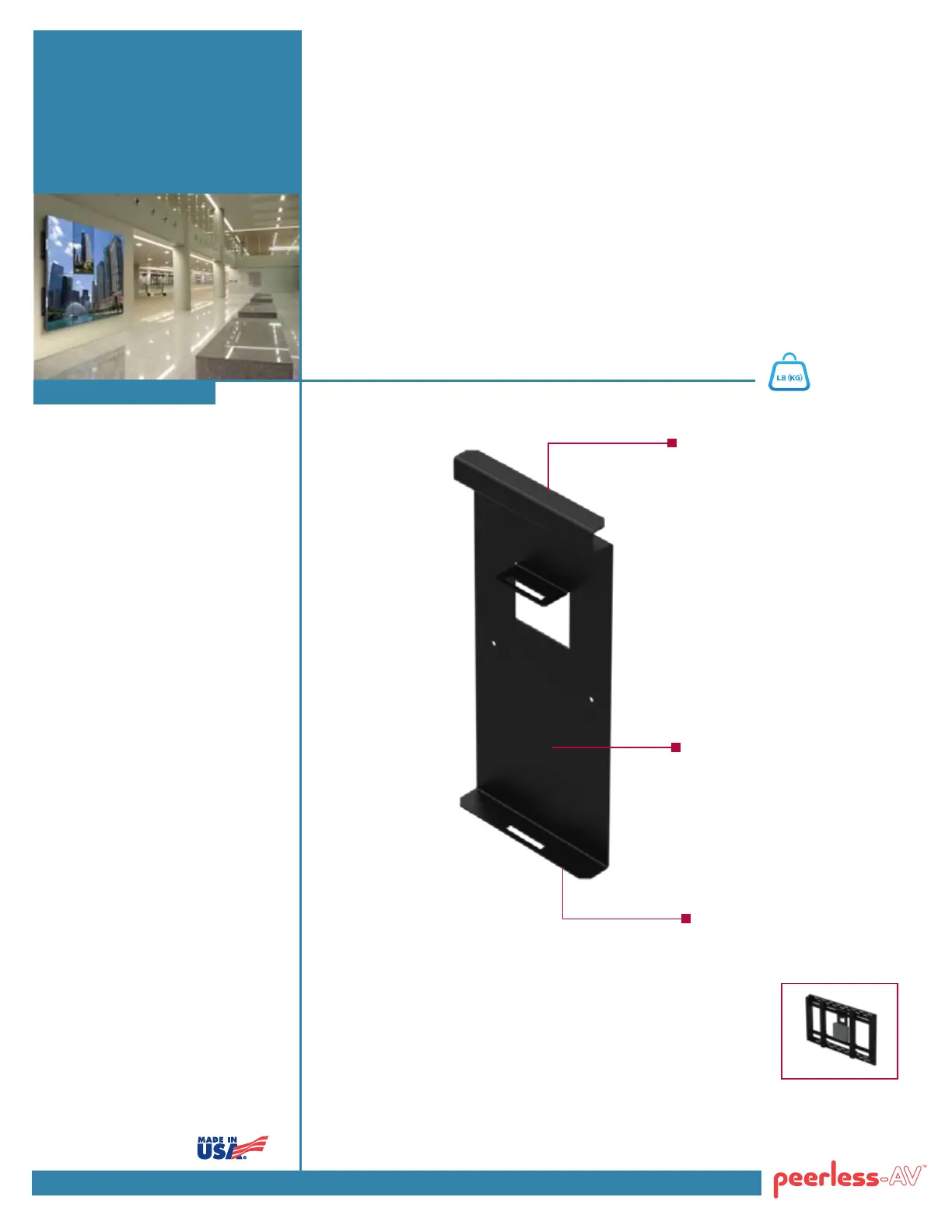

Media Player Mounting Bracket

For full service video wall mounts

Quickly, securely and inconspicuously house a media player control device behind a full service

video wall mount with the Peerless-AV DS-ACC770 Media Player Bracket Accessory. Included

Velcro

straps hold the media player in place for easy access and servicing when the display

is fully extended from the wall. Secure the display back in its normal operating position and

access to the media player is denied, deterring unwanted tampering and theft.

DS-ACC770

 Compatible with Peerless-AV

full service video wall mounts

DS-VW765-LAND and

DS-VW765-POR

 Accommodates media

players up to 2.5" deep x

8.5" tall

 Media player can be quickly

mounted using the included

Velcro

strap

 DS-ACC770 will be mounting

inside the full service video

wall mount and hidden from

view

 Securing of the full service

video wall mount will prevent

the removal of the media

player

FeatureS

uNIVerSaL

Accommodates media players

up to 2.5" deep x 8.5" tall

CLICK: www.peerless-av.com CaLL: 800.865.2112 FaX: 800.359.6500

QuICK Set-uP

Includes Velcro

straps for

attaching media player

SeCure

Mounts inside the full service

video wall mount

Max load: 25lb (11.3kg)

Mounted with medial player in

DS-VW765-LAND Wall Mount

PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS

UNITS IN

PACKAGE

DS-ACC770

14.25" x 6.75" x 3.0"

(362 x 171 x 76mm)

1.5lb (0.7kg) 735029280156

Wall bracket, Velcro

strap and mounting

hardware

DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS

DS-ACC770

5.5" x 12.3" x 1.0"

(140 x 312 x 25mm)

1lb (0.45kg) 25lb (11.3kg) Powder Coat Black

Product Speciﬁcations

Model Numbers

WARRANTY: Limited 5-year

All dimensions = inch (mm)

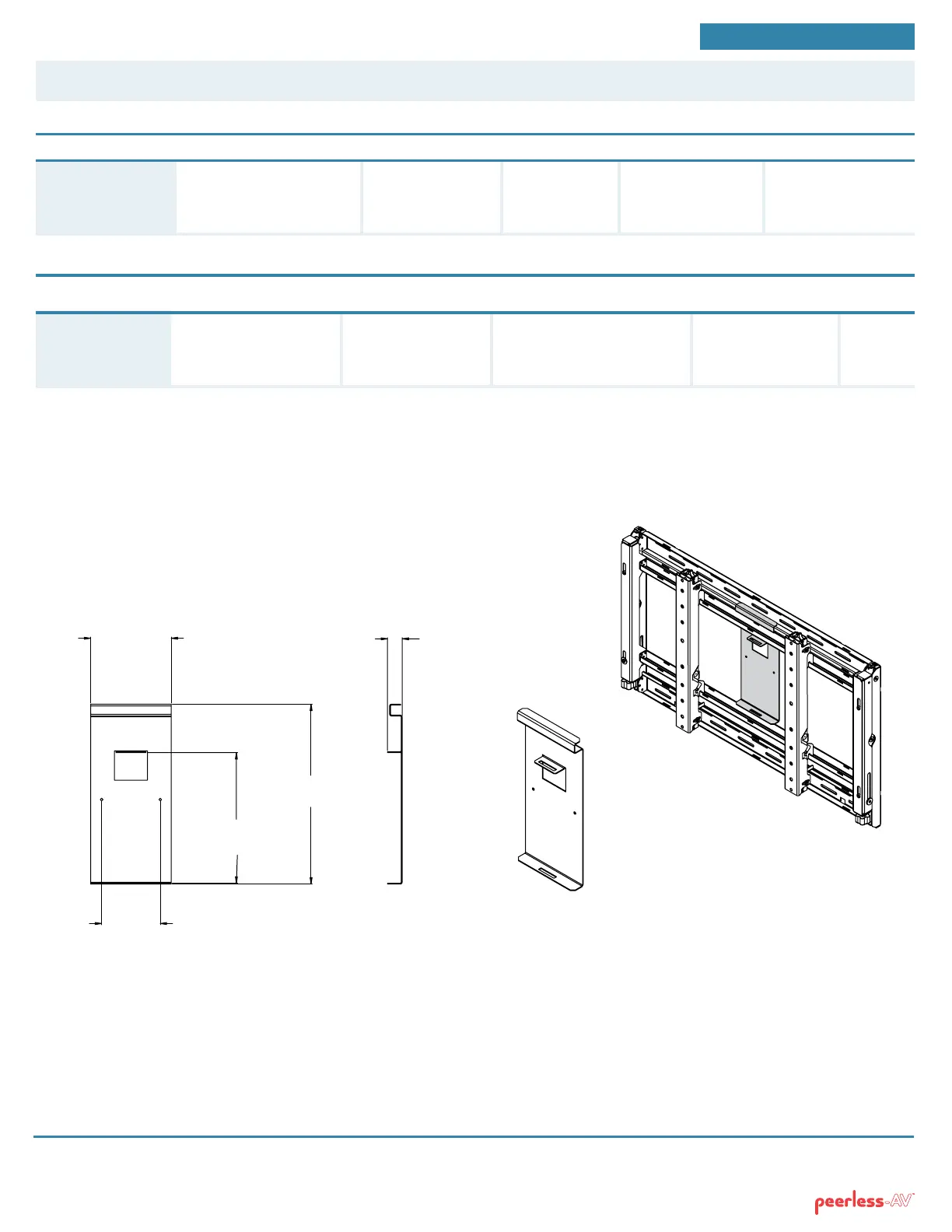

DS-ACC770 Media Player Mounting Bracket for full service video wall mounts

Package Speciﬁcations

A R C H I T E C T S S P E C I F I C A T I O N S

The Media Player Mounting Bracket shall be Peerless-AV model DS-ACC770 and shall be located where indicated on the plans.

It shall be constructed of heavy gauge steel. The nish shall be scratch resistant black fused epoxy.

Assembly and installation shall be done according to instructions provided by the manufacturer.

LIT-0749 rev.1

Peerless Industries, Inc.  2300 White Oak Circle  Aurora, IL 60502  (800) 865-2112  (630) 375-5100  Fax: (800) 359-6500  www.peerless-av.com

Visit www.peerless-av.com to see the complete line of AV solutions from Peerless-AV, including at panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.

SIDE VIEW

FRONT VIEW

DETAIL WITH PULL-OUT MOUNT

ISOMETERIC VIEW

5.50"

(140mm)

12.27"

(312mm)

8.91"

(226mm)

4.00"

(102mm)

1.00"

(25mm)

Produktspecifikationer

Varumärke:	Peerless-AV
Kategori:	väggfäste
Modell:	DS-ACC770
Vikt:	450 g
Bredd:	140 mm
Djup:	25 mm
Höjd:	312 mm
Förpackningens bredd:	362 mm
Maxvikt:	11.3 kg
Produktens färg:	Svart
Låddjup:	76 mm
Vikt inkl. förpackning:	700 g
Antal per förpackning:	1 styck
Produktstorlek (BxDxH):	140 x 25 x 312 mm
