INSTRUCTIONS FOR USE

Pro-Ject Phono Box II USB

Dear music lover,

thank you for purchasing a PRO-JECT AUDIO phono amplifier.

In order to achieve maximum performance and reliability you should study these instructions for use carefully.

Warning of a hazard for the user, the unit or possible misuse.

Important notice.

Setting the cartridge mode

The phono amplifier must be used in either MM (moving magnet) or MC (moving coil) mode according to the

construction principle of the pickup cartridge to be used. Since most cartridges use the MM (moving magnet)

principle the phono amplifier is factory set to operate in this mode. To find out which type your cartridge is

please consult the literature accompanying your cartridge. The literature for MC cartridges should also specify

the correct impedance and capacity into which the cartridge is designed to work. If in doubt please consult

your dealer.

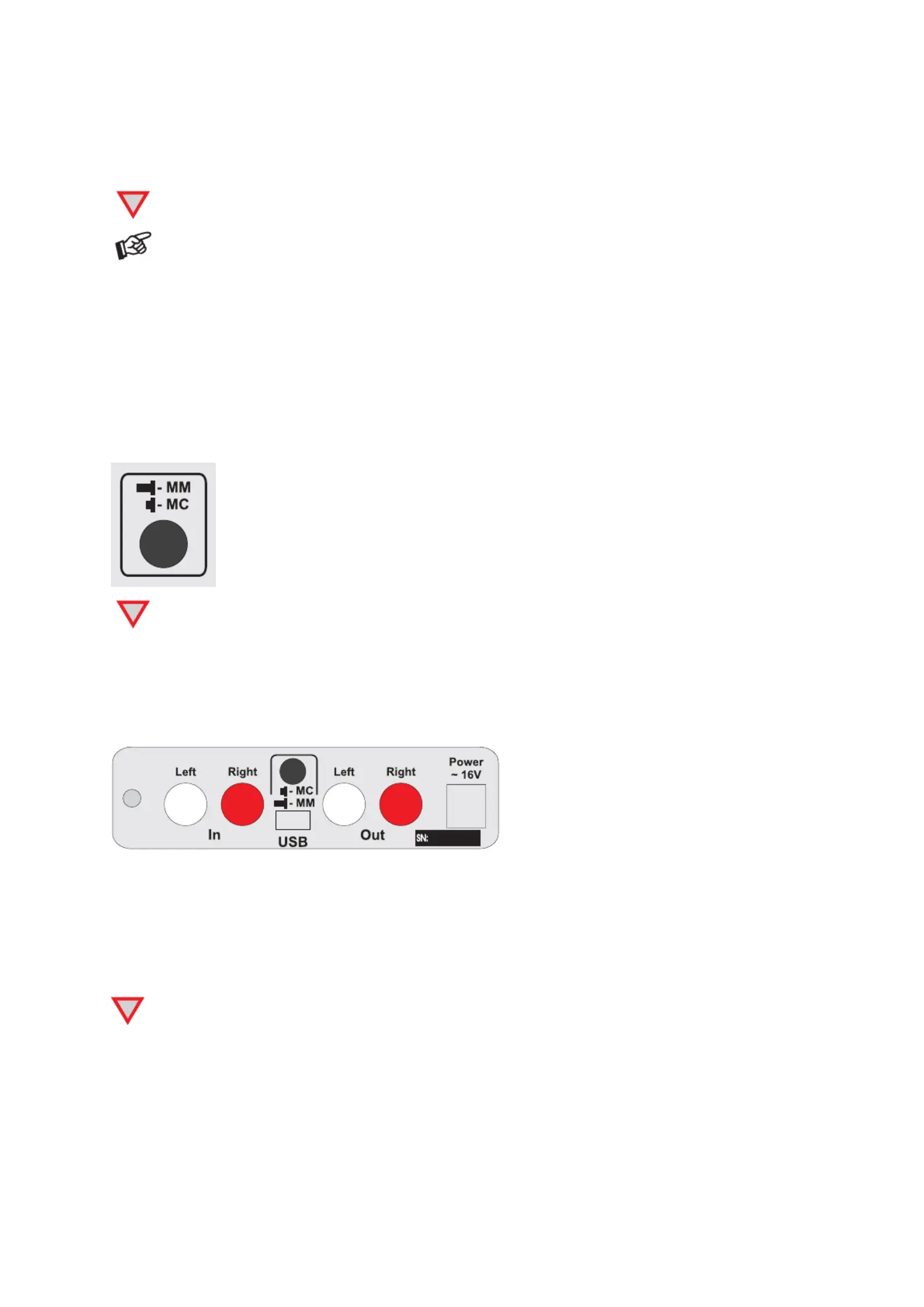

A switch at the back of the phono amplifier sets the correct level of amplification for the cartridge.

Before setting MM / MC mode the unit must be disconnected from the power supply and amplifier.

Connecting the record player

Connect the tonearm signal lead to the In of the phono amplifier.

Take care to connect the left and right channels correctly. The right channel is usually marked red, the left

channel black or white. The earthing wire of the tonearm lead should be connected to the earth terminal.

Connection to the amplifier

Connect the Out of the phono amplifier to a line input (such as AUX, CD, Tuner, Tape or Video) on your

amplifier.

Take care to connect the left and right channels correctly. The right channel is usually marked red, the left

channel black or white.

Make all connections whilst the phono amplifier is disconnected from the power supply.

Do not connect the phono amplifiers output to a phono input (sometimes labelled or gram, disc RIAA)

on the amplifier.

Connecting to a Computer (Windows XP

operating system)

1. Connect the USB-output of the Phono Box USB to a free USB-socket on your computer and

turn it on/make sure it is powered on.

Please note: Connection should be made to an USB-socket of your computer directly. Connecting to

USB-hubs or switches can cause problems.

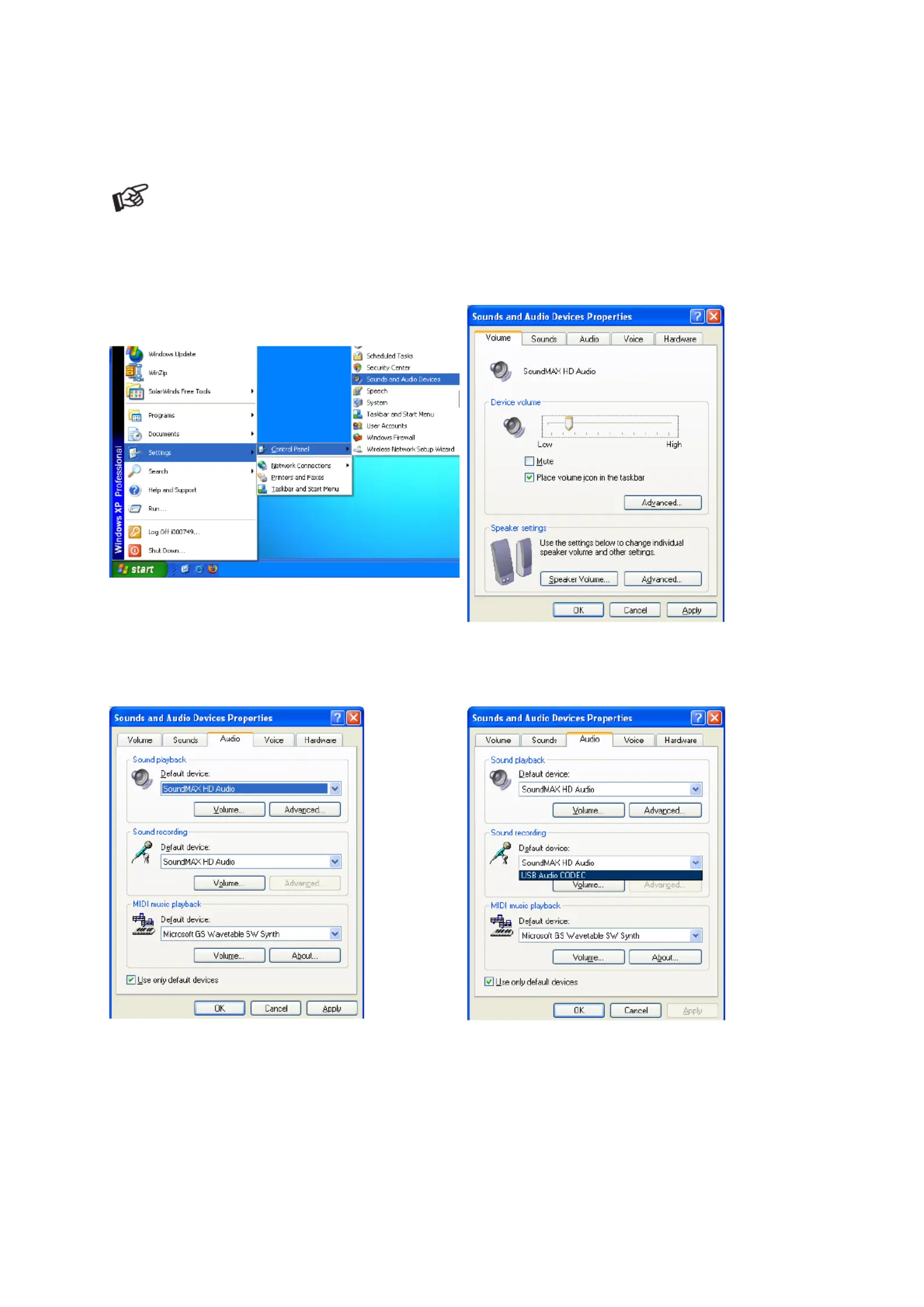

2. The “new hardware found assistant“ will automatically detect the unit and announces it as a “USB audio codec”.

3. open the System menu via “Start“ (Windows key)

 Settings

 Control Panel

 Sound and Audio Devices

4. In the control panel open the

“Sound and audio“ menu.

5. In the Sounds and Audio panel select the Audio

tab. In the Replay section select your sound card

from the pull-down lists (usually preselected).

6. Select the USB Audio CODEC from the pull

down list in the Recording section. Make sure

your sound card is selected for Replay.

7. Confirm your selections by clicking the OK button.

8. Close the control panel windows and start your recording programme.
