Sida 1/4
INSTRUCTIONS FOR USE
Pro-Ject Pre Box Analogue S2
© Pro-Ject Audio Systems · Pro-Ject Pre Box S2 Analogue · Revision 7.9.01 201
2
Dear music lover,
thank you for purchasing a preamplifier from P -Ject Audio Systems. ro
In order to achieve maximum performance and reliability you should study these instructions for use carefully.
Warning of a hazard for the user, the unit or possible misuse.
Important notice.
Safety instructions
AC outlet voltages vary from country to country. Before connecting to the mains, make sure that the
voltage in your area meets the voltage requirements printed on the power supply.
The power supply is used to disconnect the unit from the mains. Make sure that the power supply is easily
accessible at all times. Never handle the device, the power supply while your hands are wet or damp.
Avoid letting liquids enter the device or the power supply. Never place any item containing liquid, such
as a flower vase on or near the device. Never spill any liquid on the device or the power supply. Never
place any naked flame sources, such as lighted candles on or near the device. The product shall not be used
in damp or wet locations, next to a bathtub, sink, swimming pool or any other similar conditions.
Connectors
Make all connections whilst the amplifier is disconnected from the power supply.
Take care to connect the left and right channels correctly. The right channel is usually marked red, the
left channel black or white.
Never use any other power supply than the one supplied with the unit.
Inputs
Line level sources such as CD player radio or TV can be connected to the input RCA sockets marked ,
In
In
In
InIn1
1
1
11 In
In
In
InIn2
2
2
2 2
and also to the stereo 3.5mm jack socket
I
I
I
IIn3.
n3.
n3.
n3. n3.
Pre Out (Line output)
A power amplifier or active loudspeakers can be connected to the output sockets marked .
Out
Out
Out
OutOut
Fixed output (Record output, connecting a headphone amplifier)
Fix Output
Fix Output
Fix Output
Fix OutputFix Output connects an analogue record device or a Pro-Ject Head Box headphone amplifier.
© Pro-Ject Audio Systems · Pro-Ject Pre Box S2 Analogue · Revision 7.9. 201 01
3
Mains power connection
Connect the low voltage plug from the power supply to the socket of the preamplifier before
P
P
P
PPower
ower
ower
ower ower 5V
5V
5V
5V 5V DC
DC
DC
DCDC
connecting the power supply to the mains.
Trigger connection
The unit is equipped with 12V trigger-out socket (jack 2.5mm) to turn on/off a Pro-Ject product with trigger input
socket (such as Amp Box S2). trigger cables are offered as accessory.

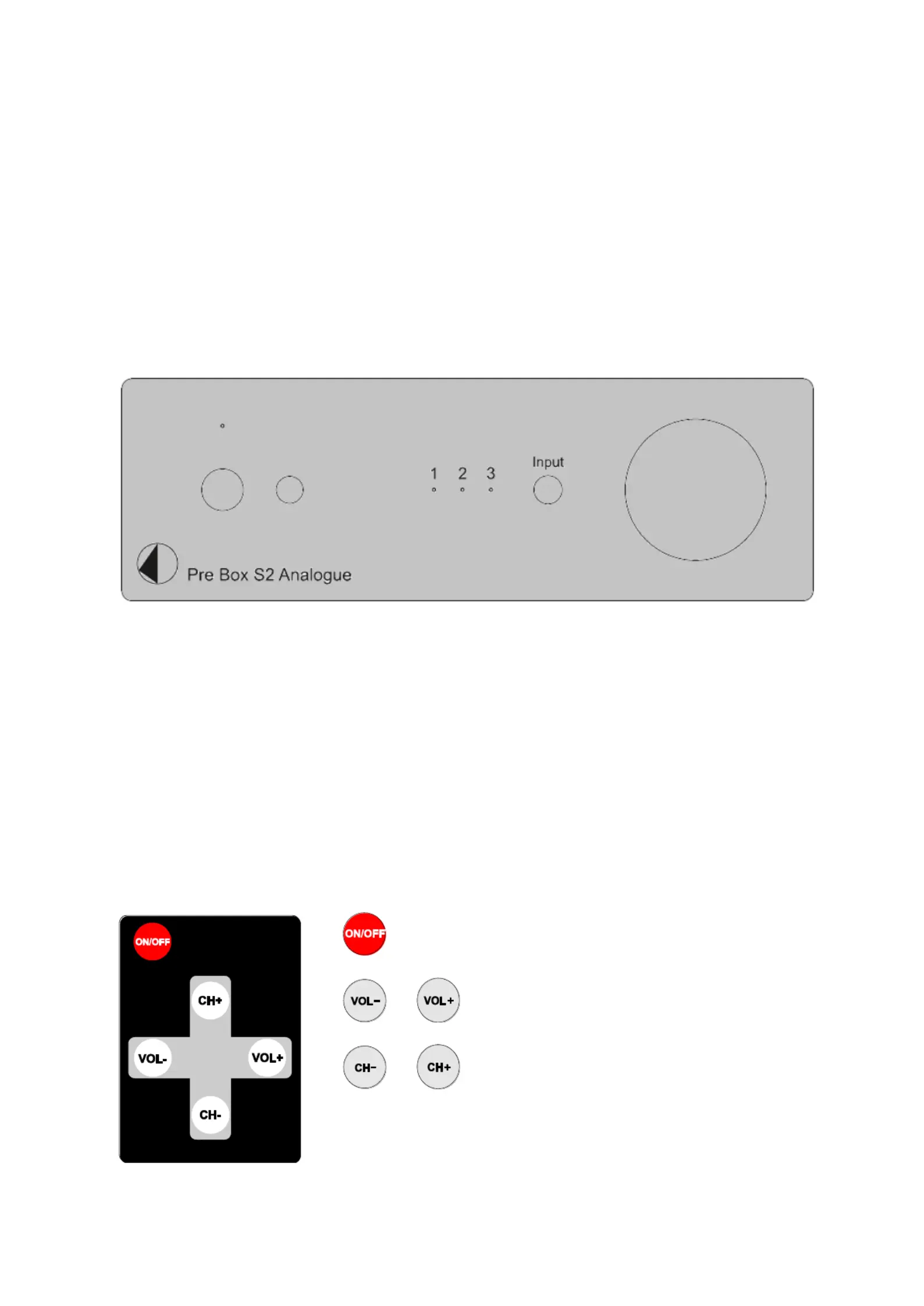

Front panel controls
To switch on from standby or to standby
The push button on the left-hand side will toggle the pre-amplifier between its fully operational status and
standby. The blue LED above the stand-by push button shows that the unit is switched on.
Input selector
Press the push button next to the 3 LEDs to switch between the inputs. Selected input number will be illuminated.
Volume
Adjust the volume to the desired level, using the large knob on the front panel.
Remote control
turns the unit on or back into standby (long press), mute (short)
and adjust the sound volume
and select the inputs
